X10 LM465 Install Manual

Lamp Module LM465
Setting The Module's Code
Using a small screwdriver, set the red
House Code dial to the same letter as your
Controllers. Set the Black Unit Code dial to
any unused number.
Ratings
The Lamp Module can be used to control an incandescent lamp rated up to
300W. It is not suitable for other types of lamps such as fluorescent or energy
saving lamps, low voltage lamps, or lamps that include a dimmer control.
Caution: Do not connect an appliance such as a coffee pot or heater to a Lamp
Module. It may damage the Module and/or the appliance and could cause a fire
hazard. Use an Appliance Module instead.

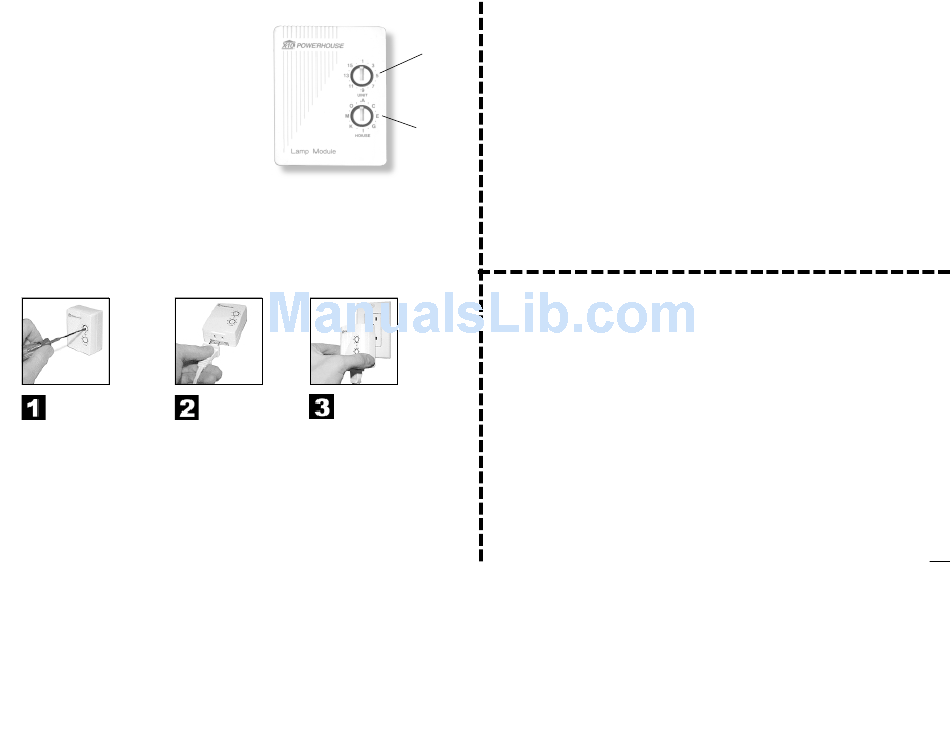

1. Set the House Code 2.
and Unit Code.
Testing The Module
Make sure the lamp's switch is on. Plug the Module into the same wall outlet as
your controller, press the On and Off buttons on the controller that correspond
to the Unit Code setting on the Module. If the Module turns on and off you can
unplug the Module or Controller and move it to its permanent location. If you
can't control the module, visit http://www.x10.com/support for help.
Plug a lamp into 3. Plug the Module into
the same wall outlet as
the Module.
your controller (see
testing below).

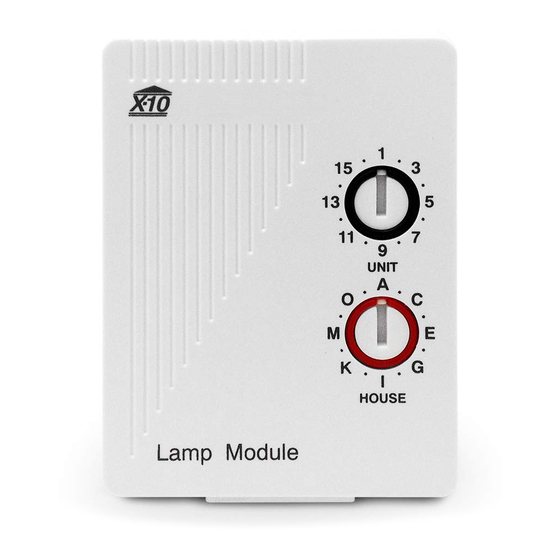

UNIT CODE
DIAL
HOUSE CODE
DIAL
