JTR REVEAL User Manual

Diamond detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

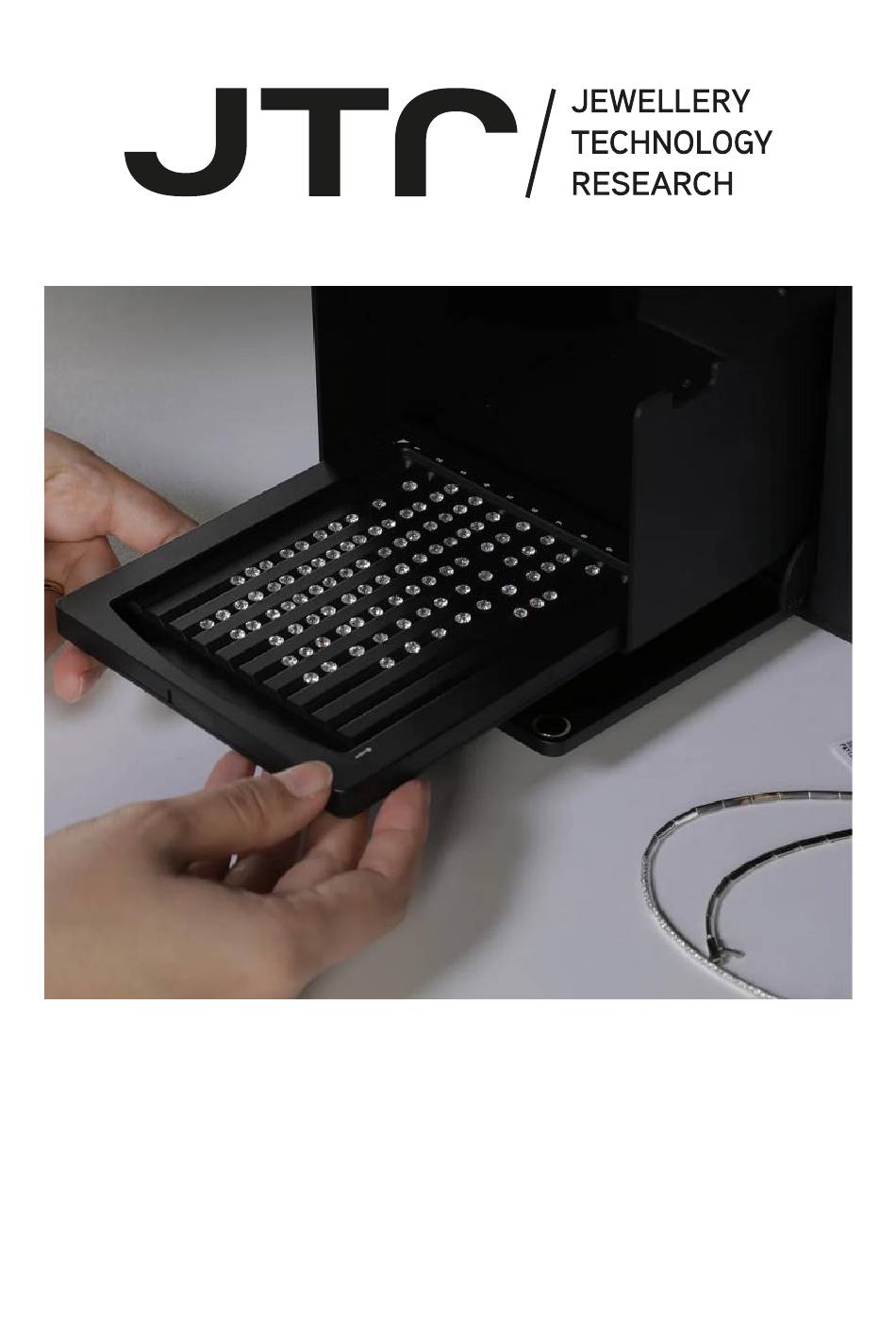

REVEAL
DIAMOND DETECTOR
USER MANUAL BOOKLET
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REVEAL and is the answer not in the manual?

Questions and answers

Summary of Contents for JTR REVEAL

  • Page 1 REVEAL DIAMOND DETECTOR USER MANUAL BOOKLET...

  • Page 2: Table Of Contents

    USER MANUAL V1.1 REVEAL DIAMOND DETECTOR CONTENTS DISCLAMERS, EXCLUSIONS AND LIMITATIONS OF LIABILITY ............4 ABOUT REVEAL DIAMOND DETECTOR .................... 4 III. FEATURES AND ADVANTAGES ......................5 IV. PRODUCT SPECIFICATIONS ......................5 DETECTOR OVERVIEW ........................6 DETECTOR PARTS AND ACCESSORIES ..................6 DETECTOR OVERVIEW .........................
  • Page 3 FLASHLIGHT EFFECT ........................23 SIMULANT ..........................24 vii. FALSE POSITIVE ........................25 DETECTOR VERIFICATION ......................25 XI. SAFE HANDLING / MAINTENANCE ....................26 XII. TROUBLE SHOOTING ........................26...

  • Page 4: Disclamers, Exclusions And Limitations Of Liability

    Reveal shall not be held liable for any damage or loss resulting from the use of the product or user manual. Under no circumstances will Reveal, its manufacturer, or any of its subsidiaries, licensors, distributors, resellers, servants, and/or agents be responsible for any direct or indirect damages arising from the use of this product.

  • Page 5: Features And Advantages

    Reveal Diamond Detector distinguishes itself with its sophisticated functionality, which includes automatically saving and sending results to your cloud account, ensuring longer access to your results in your diamond screening processes. III. FEATURES AND ADVANTAGES Our diamond detector boasts the following features: •...

  • Page 6: Detector Overview

    DETECTOR OVERVIEW DETECTOR PARTS AND ACCESSORIES A. Reveal diamond detector B. AC power cable C. Power supply D. Loose stone and jewellery trays E. Detector’s user manual DETECTOR OVERVIEW...

  • Page 7: Accessories

    Connect mouse and/or keyboard to the USB socket on the side of Reveal Diamond Detector. • Connect LAN cable to the LAN socket on the side of Reveal Diamond Detector and the other end of cable to the LAN socket of your desired source. (In case of using Wi-Fi connections you do not need to apply the LAN cable) •...

  • Page 8: Homepage Settings

    VII. HOMEPAGE SETTINGS When the detector is turned on, it is directed to the application homepage. There is a hamburger menu on the top right corner of the homepage. Press the hamburger menu and you are directed to the side menu containing the following tabs. General Account Analyse...
  • Page 9 On the bottom left corner of the screen, you can see your Reveal Diamond Detector information. To return to homepage press the home button on the top right corner of the screen. In General tab, you can adjust your language and screen settings.
  • Page 10 On the bottom left corner of the screen, you can see your device particular information. Which contains your detectors Anydesk, Rasp code, WMAC ID and LMAC ID. (red square) You can also see your device’s software version (here 3.0) and check either your device is connected to any network.

  • Page 11: Testing, Analysis, Detection

    VIII. TESTING, ANALYSIS, DETECTION RUN A TEST Open the detector door and place the sample in the analysis area. (Explained in detail in section VIII- Close the door. Note: The door must be closed during the analysis due to safety measures and the effect of light on the analysis results.
  • Page 12 To return to homepage press the home button on the top left corner of the screen. Click on new analysis to return to the live camera view of the analysis area under the daylight lamps. To run the test, click on your selected mode of analysis. The fan is turned off while the test is running. If quick analysis mode is selected after 15 seconds the fan is turned on and the result image appears on the screen.

  • Page 13: Sample Placement

    to return to homepage press the home button on the top left corner of the screen. Note: If after running a test you press the home button instead of the new analysis your test results will NOT be saved, and you return to the homepage. SAMPLE PLACEMENT ➢...

  • Page 14: Detection Guidelines And Analysis Of A Test Result

    DETECTION GUIDELINES AND ANALYSIS OF A TEST RESULT The Reveal detection process utilizes a specialized lighting system, software, and AI to determine the identity of diamonds under test. This process involves subjecting the diamonds to a proprietary light source, which causes them to emit light (fluoresce). Subsequently, the light source is turned off, and the diamonds are observed for phosphorescence, a phenomenon in which some diamonds continue to emit light even after the cessation of excitation.

  • Page 15: Double Image Screen

    Your Reveal Diamond Detector comes with pre-set sensitivity levels however you can change the level anytime as needed. After changing the amount of red filter sensitivity click Recalculate.
  • Page 16 Herein, the image on the right is the result image and will not change. The result image combines both the fluorescence and phosphorescence images. However you are able to add or remove the detector red marking to the result image (in case of existence of a lab-grown or false positive diamond) by clicking on the show/hide result button on the bottom right corner of the screen.
  • Page 17 In the case of this sample bracelet since no lab-grown diamonds are present and the natural diamonds usually do not show phosphorescence no phosphorescence is shown in that image. Click the square button on the bottom right corner of the result image and you will be directed to the previous screen, where you can change the amount of result sensitivity.

  • Page 18: Exposure

    To put it in simpler terms, our software can detect diamonds that exhibit phosphorescence or glow in the dark and highlights them with a bright colour in the result image. Although our software marks these diamonds with a red colour in the result image, the intensity of the marking may vary and based on the diamonds characteristics they could be either completely or slightly marked.
  • Page 19 right corner of the result image and you will be directed to the previous screen, where you can change the amount of result sensitivity. As mentioned before, you can manually change the result sensitivity number by sliding the button and using the arrows to get to the number you wish. Remember to click on recalculate after changing the amount of result sensitivity.

  • Page 20: Cvd And Hpht Methods

    Both methods can produce high-quality diamonds with similar physical and chemical properties to natural diamonds, but they differ in their manufacturing processes and cost. In Reveal Diamond Detector, HPHT laboratory-grown diamonds often display a very strong turquoise colour fluorescence and a highly visible phosphorescence. In the result image, such diamonds typically appear entirely painted in bright red, making it difficult to distinguish their actual colour.

  • Page 21: Cvd Lab-Grown Diamonds

    CVD LAB-GROWN DIAMONDS CVD lab-grown diamonds show a different non-blue colour and/or are fully or partially marked red depending on the amount of their phosphorescence. A CVD lab-grown diamond may or may not have phosphorescence. If it has phosphorescence, it will be marked in red in the result image. If the CVD lab-grown diamond do not show phosphorescence it will not be marked red, however the difference in the fluorescence colour expresses its laboratory origin.

  • Page 22: Natural, Hpht & Cvd Lab-Grown Diamonds Together

    NATURAL, HPHT & CVD LAB-GROWN DIAMONDS TOGETHER Natural diamonds show blue colour and are not marked red in the result image. HPHT lab-grown diamonds are fully marked in red. The CVD lab-grown diamonds show a non-blue colour and some are partially marked red.

  • Page 23: Flashlight Effect

    Natural diamonds usually do no show phosphorescence, in rare cases they might show some phosphorescence (False Positive – section IX-vii). HPHT lab-grown diamonds show very strong phosphorescence in a blue colour. CVD lab-grown diamonds show a very weak phosphorescence or none at all.

  • Page 24: Simulant

    UV light coming from the lamps, however they might be mistaken with low fluorescent, inert natural diamonds. In order to prevent any confusion as such it is advised NOT to use Reveal Diamond Detector to separate diamonds and simulants. Remember Reveal Diamond Detector is a screening device to...

  • Page 25: False Positive

    ✓ By default, automatic mode is selected for the capture setting, click either Quick or Detailed Analysis. ✓ When the test is done the stone must be marked red. If it is marked red your Reveal Diamond Detector is working properly.

  • Page 26: Safe Handling / Maintenance

    XIII. TROUBLE SHOOTING For assistance with any issues, kindly visit our website at www.JTR.org and view the video that corresponds to your specific concern. We've curated a range of concise instructional videos, and we are confident that you'll discover one that effectively addresses the problem you're currently facing.
