SmartCell SC-62-0210-0001-99 Installation Manual

Wireless Remote Indicator

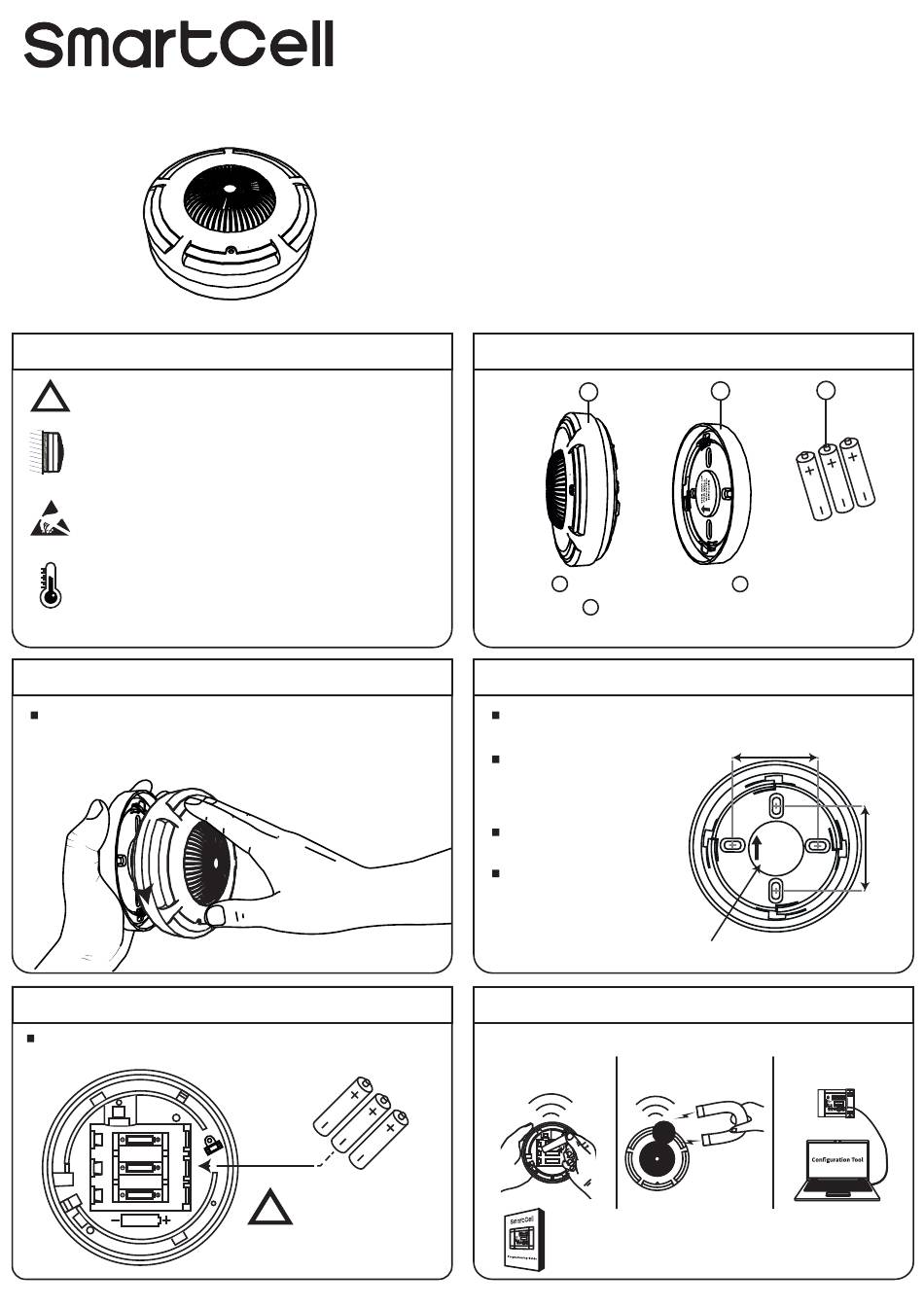

Installation Guide

1 Pre installation

Installation must conform to applicable local installation codes and
!
should only be installed by a fully trained competent person.
The use of a non-metallic spacer should be considered if mounting
the device on to a metal surface.
This device contains electronics that may be susceptible to damage
from Electrostatic Discharge (ESD). Take appropriate precautions
when handling electronic boards.
To ensure correct operation, products must be used within the
specified environmental operating conditions.

3 Remove mounting plate

Remove the mounting plate by turning the device ANTICLOCKWISE, to
release it from the mounting plate.

5 Fit batteries

When fitting / replacing batteries, observe correct polarity, using only
specified batteries.
3x ER14505M
LITHIUM 3.6V
©2021 EMS Ltd. All rights reserved.
www.acornfiresecurity.com
SC-62-0210-0001-99
model shown
OBSERVE BATTERY
!
POLARITY!
Page 1 of 2
www.acornfiresecurity.com
Part number Product description
SC-62-0210-0001-99 SmartCell Wireless Remote Indicator
SC-62-0211-0001-99 SmartCell Wireless Remote Indicator
(Fire Detection Indicator Text)

2 Components

1

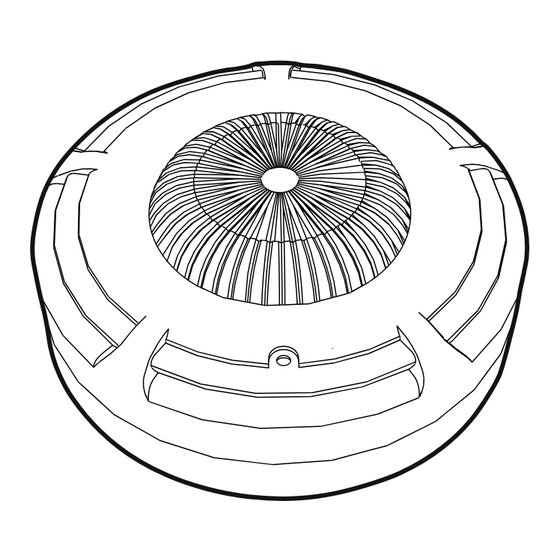

Wireless Remote Indicator
1
3
Batteries (not included in some regions*)
*When batteries are not supplied, only fit specified batteries.

4 Fix mounting plate

When fixing to the wall, all four fixing positions should be used to ensure a
firm fixing.
Where existing electrical
mounting boxes are present,
two fixing positions may be
used.
Use suitable fasteners and
fixings.
Observe the orientation
marking!
Orientation marking

6 Configuration

The device must now be added (programmed) to the control panel.
Method 1
Device powering Magnet application
- AA+
ER14500
- AA +
ER14500
- AA +
ER14500
Refer to the programming manual (TSD155) for full programming
details.
2
3
2 Mounting plate
60 mm
THIS WAY UP
FOR WALL
MOUNTED
DEVICES
Method 2 Method 3
Via computer
MK353-0001-99 (Issue 2) 04/11/2021 AJM
60 mm
