BW SENSING MIS341 Technical Manual

Dual axis tilt switch relay output with relative zero setting button
Hide thumbs

Advertisement

Quick Links

Download this manual
MIS341
Dual Axis Tilt Switch Relay Output
with Relative zero setting button
Technical Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIS341 and is the answer not in the manual?

Questions and answers

Summary of Contents for BW SENSING MIS341

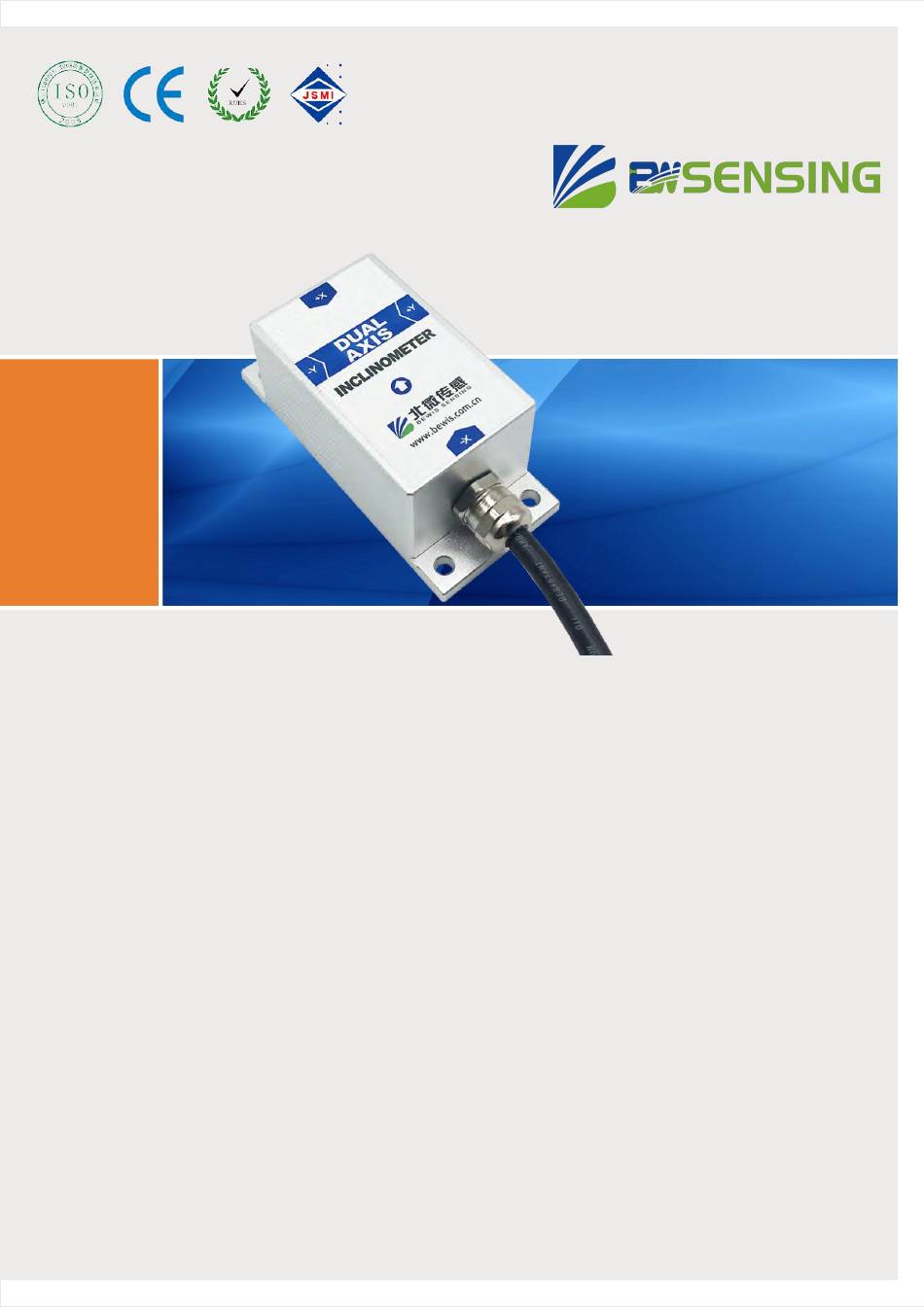

  • Page 1 MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button Technical Manual...
  • Page 2 Dual Axis Tilt Switch Relay Output with Relative zero setting button Introduction MIS341 Tilt Switch is developed by BEWIS, dual axis measurement with zero setting and measuring range is ±90°. When the measured tilt angle is over the alarm threshold, the output line becomes closed. The alarm threshold can be set according to the actual situation of the user.

  • Page 3: Electrical Specifications

    MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button Introduction Electrical Specifications Model MIS341 Typical Condition Power Supply(V) Operating Current(mA) no-load 40(DC 12V) Working Temp(°C) Storage Temp(°C) +100 Measuring Range(°) ＜±90 Accuracy(°) 0.1（＜±80）；0.2（± 80-90） Measuring Axis X、Y Alarm Axis X、Y...
  • Page 4 MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button Mechanical Characteristic Metal connector（standard cable is 1.5m） Connector Protection level IP67 Magnesium alloy anodizing Shell material Installation Four M4 screws Package size Product Size：L90*W40.5*H26（mm） Bare plate product size Product size: L47*W36*H15(mm) Note: ±1mm error for length and width dimensions, please refer to actual size.

  • Page 5: Installation Direction

    MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button Installation direction The correct installation method can avoid measurement error. The following points should be made when installing the sensor: First of all, to ensure that the sensor mounting surface and the measured surface completely close, the measured surface should be as horizontal as possible, can not have the angle shown in Figure A and Figure C, the correct installation is shown in Figure B and Figure D.
  • Page 6 Users can directly download serial assistant on official website (Supports-Download). You can also use more convenient and intuitive PC software. MIS341 supporting serial debugging software can be connected to the inclinometer on the computer for angle display. The software debugging interface is as shown in the figure below. Using the debug software, it can conveniently display the current X-direction tilt angle, and you can also modify and set other parameters by yourself.

  • Page 7: Electrical Connection

    MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button Electrical Connection Definition BLUE BROWN BLACK GREEN YELLOW WHITE Cable color & Function contact 2 contact 1 DC 9-35V 9~35V contact 2 GREEN BROWN YELLOW contact 1 WHITE...
  • Page 8 MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button Protocol 1 Data Frame Format： （8 data bits，1 stop bit，No parity check，default baud rate 9600） Identifier Data Frame Length Command Address Code Checksum (1byte) （1byte） （1byte） （1byte） （Nbyte）...
  • Page 9 MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button 2.3 Read angle of X,Y axis Command：77 04 00 04 08 Identifier Data Frame Length Checksum Address Code Command (1byte) （0byte） （1byte） （1byte） （1byte） （1byte） 0x77 0x08 0x04 0x04 Command response：...
  • Page 10 MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button 2.4 Set address module Command: 77 05 00 0F 01 15 Frame Length Command Identifier Address Code Data Checksum （1byte） (1byte) （1byte） （1byte） （1byte） （1byte） 0xXX 0x05 0x77...
  • Page 11 MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button 2.7 Set the zero type Command：77 05 00 05 01 0B Identifier Data Frame Length Address Code Checksum Command （1byte） （1byte） （1byte） （1byte） （1byte） （1byte） 0x00: absolute zero...
  • Page 12 MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button 2.10 Quer y alarm angle Command： 77 05 00 21 00 26 Data Identifier Address Code Command Frame Length Checksum （1byte） (1byte) （1byte） （1byte） （1byte） （1byte） 0x00:+X 0x01:+Y...
  • Page 13 MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button 2.13 Set alarm delay off time Command： 77 07 00 23 01 05 00 30 Data Identifier Address Code Frame Length Checksum Command (1byte) （1byte） （3byte） （1byte） （1byte）...

  • Page 14: Ordering Information

    MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button Ordering Information Package condition Product number Way of communication RS232 MIS341-232 IP67 Package/Metal Connector MIS341-TTL IP67 Package/Metal Connector Executive standard ● Enterprise Quality System Standard: ISO9001:2008 Standard (Certificate No.:10114Q16846ROS) ●...
  • Page 15 MIS341 Dual Axis Tilt Switch Relay Output with Relative zero setting button Wuxi Bewis Sensing Technology LLC Address: Building 30, No. 58 Xiuxi Road, Binhu District, Wuxi City Tel: +86 510 85737158 Email: sales@bwsensing.com Website: www.bwsensing.com...
