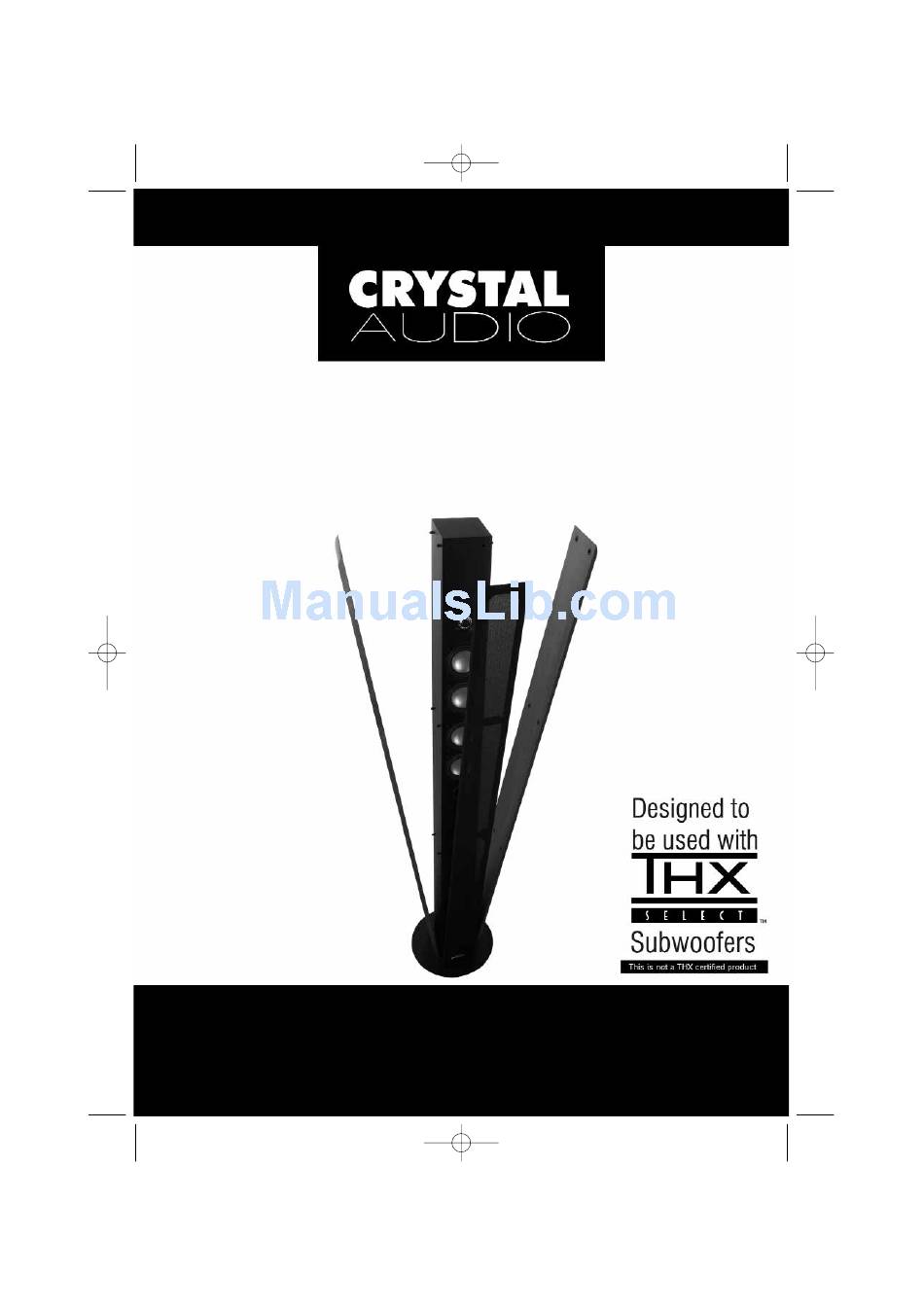

Page 1: Home Theater System
ManualEnglish.qxd 13/04/2005 16:40 Page 1 Home Theater System Instructions M M anual CRYSTAL AUDIOVIDEO LTD. LONDON.UK www.crystalaudiovideo.com... - Page 2 3. Speakers Connections ...8 4. Operation between AV Receivers & your THX-SUB subwoofer ...9 5. Side Panels for SmArt 4 and SmArt 8 speaker systems & Specifications ...10 6. Room Acoustics Designer®, Loudspeaker Placement Interactive Software ...11 7. Home Theater Handbook "The Salesman's & Buyer's Guide...12...
- Page 3 $Do not place loudspeakers in dusty or humid environments. $Avoid exposure to direct sunlight. Caution: Your SmArt speakers come with electronically protected tweeter in order to avoid problems of overheating that can cause their destruction. However for even greater protection, avoid extremely high volumes in your amplifier that can distort your sound signal or cause severe damage to your amplifier and your speakers.
- Page 4 Hz instead of 80 which is the requirement for the THX certification. SmArt speakers have the extra ability to change their side panels making them able to change colour whenever you change decor without having to change the entire speaker sys-...
- Page 5 1.1.1 S S mArt S S peakers Your SmArt system is available in 2 different versions that include the following speakers: SmArt 8 8 S S ystem $SmArt Tower Speakers with 8 woofers for the front and surround channel.
- Page 6 $TV s s creen: Place your SmArt-4 speaker directly above or below the screen wherever is closest to ear level. $Projector s s creen: Place your SmArt-4 behind or in front of the centre of your screen whether the screen is acoustically transparent or not.
- Page 7 2.4 Placement o o f S S mArt-4 4 o o n t t he w w all Because of their smart design the SmArt-4 speakers can also be placed on the wall as a center (horizontal placement) or a surround speaker (vertical placement).
- Page 8 $For t t he f f ront l l eft a a nd r r ight s s peakers: Use the front right and left speaker output termi- nals on your Receiver to connect two SmArt-Tower speakers. $For t t he c c enter s s peaker: Use the "center" speaker output terminals on your Receiver to connect your SmArt-4 speaker.
- Page 9 ManualEnglish.qxd 13/04/2005 16:40 www.crystalaudiovideo.com 4 4 . . O O p p e e r r a a t t i i o o n n b b e e t t w w e e e e n n A A V V R R e e c c e e i i v v e e r r s s & & y y o o u u r r T T H H X X -S S U U B B s s u u b b w w o o o o f f e e r r THX certified and not certified Dolby Digital/DTS Receivers also include Crossover Frequency Controls to set at different low frequencies the roll off point of the signal led to the subwoofer.
- Page 10 5 5 . . S S i i d d e e p p a a n n e e l l s s f f o o r r S S m m A A r r t t 4 4 a a n n d d S S m m A A r r t t 8 8 s s p p e e a a k k e e r r s s Crystal SmArt speakers offer you the additional ability to change their color and fin- ishing by changing their side panels into different colors, so that they match with your room and aesthetics.
- Page 11 (display, speakers) are moved, so that the acoustic rules are observed. Room D D esigner is patented software, accessible free of charge at Crystal Audiovideo's web Page 11 (Loudspeaker P P lacement I I nteractive S S oftware) Room A A coustics D D esigner®...
- Page 12 The book provides all the back- ground information and the latest develop- ments to make you an expert on the HOME THEATRE subject. You will be able to distinguish sales hype from facts and valuable features from mar- keting tricks. Crystal Audiovideo Ltd.
