Summary of Contents for BLACK GATE R4G

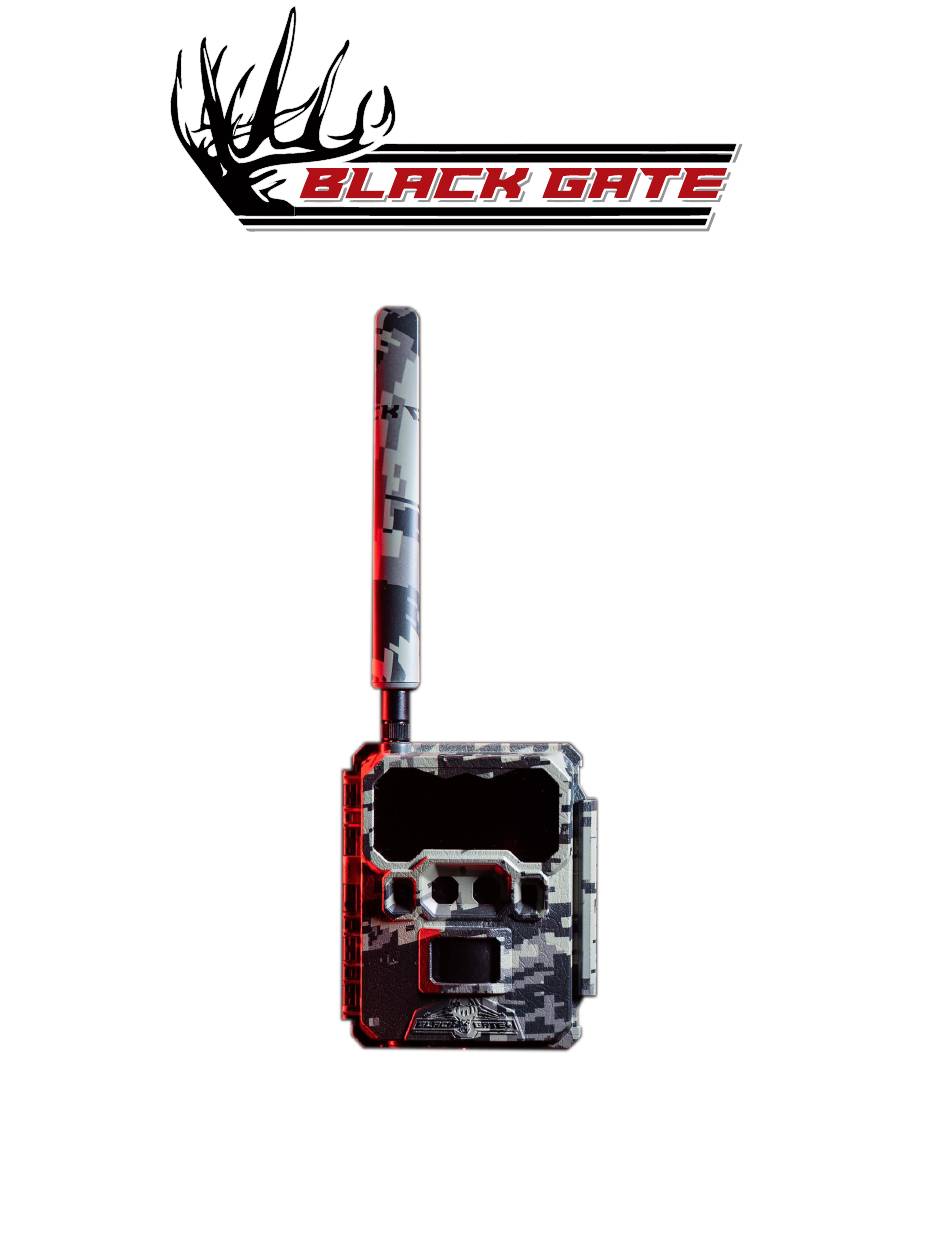

- Page 1 MANUAL INSTRUCTION BLACKGATEHUNTING.COM...
- Page 2 RETURN DO NOT RETURN THIS PRODUCT TO YOUR RETAILER PLEASE CALL 937-900-7195 OR EMAIL CONTACT@BLACKGATEHUNTING.COM For any warranty issues or questions 1053 PURCELL RD. PEEBLES, OHIO 45660 BLACKGATEHUNTING.COM...

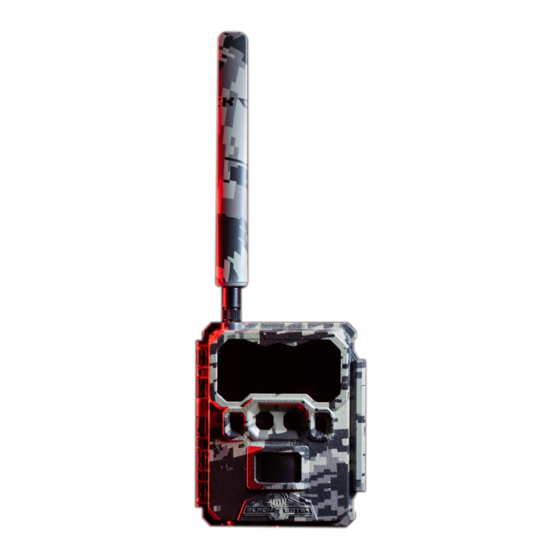

- Page 3 INTRODUCTION R4G Lens/Sensors 2 Antenna 3 IR LEDs (940NM) 4 Camera Working Status Indicator 5 Power Switch 6 PIR Motion Sensor 7 Microphone 8 External Battery In/DC Port 9 Tripod/Mount Attachment 1/4” x 20 BLACKGATEHUNTING.COM...
- Page 4 QUICK START GUIDE WHAT IS IN THE BOX? (1) R4G TRAIL CAMERA (1) INSTRUCTION MANUAL (1) MOUNTING STRAP (1) ANTENNA (1) PRE-INSTALLED SIM CARD (DO NOT REMOVE) WHAT YOU WILL NEED 12 AA BATTERIES (LITHIUM RECOMMENDED) SD CARD - CLASS 10, U3, 32GB-64GB...
- Page 5 BLACK GATE MOBILE APP DOWNLOAD BLACK GATE MOBILE BLACKGATEHUNTING.COM...
-
Page 6: Quick Setup
• To install the batteries, open the camera. Install the batteries in the correct orientation on the right side of the camera. 4. DO NOT REMOVE the SIM Card that is pre-installed in the R4G 5. Turn the power switch to “ON”... - Page 7 Recommended 3000mAh Barrel plug reducer size 5.5x2.1mm External DC Transfer Picture via 4G High, detailed thumbnail images sent to Black Gate App (additional data charges may apply) Request HD Photo via Only in supported locations (Additional data charges may apply)
-
Page 8: Product Care
The R4G is IP67 rated waterproof. The camera housing is water resistant against rain and storm elements. The only way the R4G can get condensation in or behind the lens is if the antenna is not screwed down tightly or is missing the rubber sealing washer underneath it. Also, condensation can occur if the DC plug cover is not in place or if there is dirt or debris on the internal door seal. -
Page 9: Limited Warranty
LIMITED WARRANTY CHECK OUT WARRANTY INFORMATION ON OUR WEBSITE WWW.BLACKGATEHUNTING.COM BLACKGATEHUNTING.COM... -
Page 10: Fcc Regulations
FCC REGULATIONS FEDERAL COMMUNICATIONS COMMISSION - PART 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
