ebmpapst Denmark ApS, Vallensbaekvej 21, 2605 Broendby
+45 4363 1111
mail@dk.ebmpapst.com
User manual

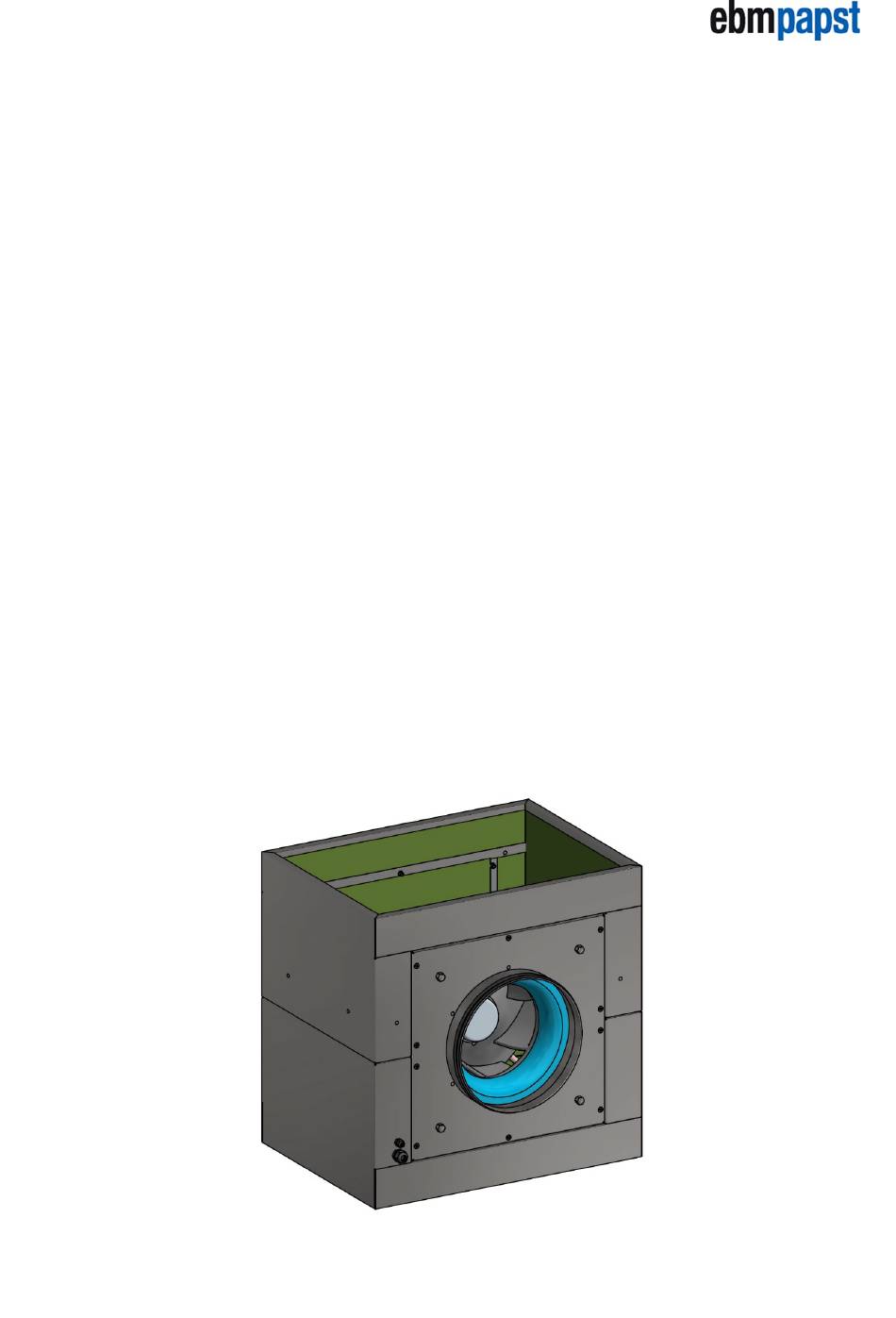

BoxFan
BF700S-355RT01I2
With square air inlet and outlet
BoxFan is a fan with low energy consumption and low noise emission. It is ideal for moving air in new installations as well
as for replacing existing fans when energy renovating or as spare part.
BoxFan consists of a box of warm-galvanized sheet metal, which are lined with 20 mm. insulation.
This ensures effective insulation against noise and condensation and makes it resistant to various climate impacts
Inside the box, the fan is mounted on a warm-galvanized sheet metal plate and this is accessed by removing the
inspection hatch.
The fan itself is an EC fan with high efficiency. The motor has built-in electronics for stepless control, which can be
controlled via potentiometer, pressure control or other equipment that can be purchased. See connection diagram.
On this motor, backward curved fan wheels are fitted. The wheel/impeller are of the RadiCal type, which is developed
with high efficiency at the lowest possible noise levels in mind.
Thus, no additional parts are required to cause the fan to provide an energy-friendly and quiet function.
For more, go to www.ebmpapst.dk
Enjoy the product.
2019.08.01 – page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BoxFan BF700S-355RT01I2 and is the answer not in the manual?

Questions and answers

Related Manuals for ebm-papst BoxFan BF700S-355RT01I2

Summary of Contents for ebm-papst BoxFan BF700S-355RT01I2

  • Page 1 ebmpapst Denmark ApS, Vallensbaekvej 21, 2605 Broendby +45 4363 1111 mail@dk.ebmpapst.com User manual BoxFan BF700S-355RT01I2 With square air inlet and outlet BoxFan is a fan with low energy consumption and low noise emission. It is ideal for moving air in new installations as well as for replacing existing fans when energy renovating or as spare part.

  • Page 2: Table Of Contents

    ebmpapst Denmark ApS, Vallensbaekvej 21, 2605 Broendby +45 4363 1111 mail@dk.ebmpapst.com Content SAFETY REGULATIONS AND INFORMATION ................3 Hazard levels for warrnings ....................... 3 Staff qualifications ..........................3 Basic safety rules ..........................3 Voltage..............................3 Safety and protective features ......................4 Electromagnetic radiation ........................

  • Page 3: Safety Regulations And Information

    ebmpapst Denmark ApS, Vallensbaekvej 21, 2605 Broendby +45 4363 1111 mail@dk.ebmpapst.com Read these operating instructions carefully before starting work on the device. Observe the following warnings to prevent malfunctions or danger to persons. These operating instructions are to be regarded as part of the device. The device is only to be sold or passed on together with the operating instructions.

  • Page 4: Safety And Protective Features

    ebmpapst Denmark ApS, Vallensbaekvej 21, 2605 Broendby +45 4363 1111 mail@dk.ebmpapst.com WARNING Live terminals and connections even with device switched off. Wait five minutes after disconnection the voltage at all poles before opening the device. CAUTION If control voltage or a stored speed set value is applied, the motor will restart automatically, e.g. after a power failure.

  • Page 5: Emissions

    ebmpapst Denmark ApS, Vallensbaekvej 21, 2605 Broendby +45 4363 1111 mail@dk.ebmpapst.com 1.8 Emissions WARNING Depending on the installation and operating conditions, the sound pressure level may exceed 70 dB(A). Risk of noise-induced hearing loss Take appropriate technical safety measures. Protect operating personnel with appropriate safety equipment such as hearing protection.

  • Page 6: Technical Data

    ebmpapst Denmark ApS, Vallensbaekvej 21, 2605 Broendby +45 4363 1111 mail@dk.ebmpapst.com Improper use. Using the device under the following conditions is particularly critical and may pose a danger: Moving air containing abrasive particles. Move strongly corrosive air, e.g. salt fog. Exceptions to this are devices intended for use in salt mist and adequately protected under this application.

  • Page 7: Nominal Data

    Denmark ApS, Vallensbaekvej 21, 2605 Broendby +45 4363 1111 mail@dk.ebmpapst.com 3.2 Nominal Data Type: BoxFan BF700S-355RT01I2 EC Fan: K3G355-RT01-I2 Nominal voltage range: 200-277 VAC Frequency: 50/60 Hz Speed: 2100 RPM Power input: 750W Current draw: 3,3 A (1) Temperature range during operation: -40C to +60°C Max.

  • Page 8: Technical Description

    ebmpapst Denmark ApS, Vallensbaekvej 21, 2605 Broendby +45 4363 1111 mail@dk.ebmpapst.com 3.3 Technical description 27 Leakage: <3,5 mA i.h.t. IEC 60990 Mode: S1 Direction of rotation: Clockwise, viewed toward rotor Mounting position: Shaft horizontal or rotor on bottom; rotor on top on request Moisture: Condensation in motor and/or electronic housing must be avoided.

  • Page 9: Electrical Connection

    ebmpapst Denmark ApS, Vallensbaekvej 21, 2605 Broendby +45 4363 1111 mail@dk.ebmpapst.com damaging body parts. Shields must therefore be established on both the suction and return sides in accordance with ISO 13857. 4.2 Electrical connection DANGER Voltage on the device Electric shock Always connect a protective earth first Check the protective earth DANGER...

  • Page 10: Connection Diagram

    ebmpapst Denmark ApS, Vallensbaekvej 21, 2605 Broendby +45 4363 1111 mail@dk.ebmpapst.com 4.5 Connection diagram Conn. Designation Color Function/assignment 1, 2 Green/ye Protective earth llow Blue Power supply, neutral conductor, 50/60 Hz Black Power supply, phase, 50/60 Hz White 1 Status relay, floating status contact; break for failure, contact rating 250 VAC / 2A (AC1) / min.

  • Page 11: Checking Connections

    ebmpapst Denmark ApS, Vallensbaekvej 21, 2605 Broendby +45 4363 1111 mail@dk.ebmpapst.com 4.6 Checking connections 43 Ensure isolation from supply (all phases). Make sure a restart is impossible. Check the cables for proper fit. 4.7 Switching on the device WARNING 44 Understanding the product. Before using the product or after delivery or moving, make sure that the operator is familiar with these operating instructions and is familiar with the procedures for use, control and inspection of the machine.

  • Page 12: Troubleshooting

    If imbalance Is still present, the unit is replaced. 50 The machine cannot be repaired. Only original part is the fan. Therefore, return the unit to ebm-papst for repair or replacement. WARNING Terminals and connections have voltage even when the device is turned off.
