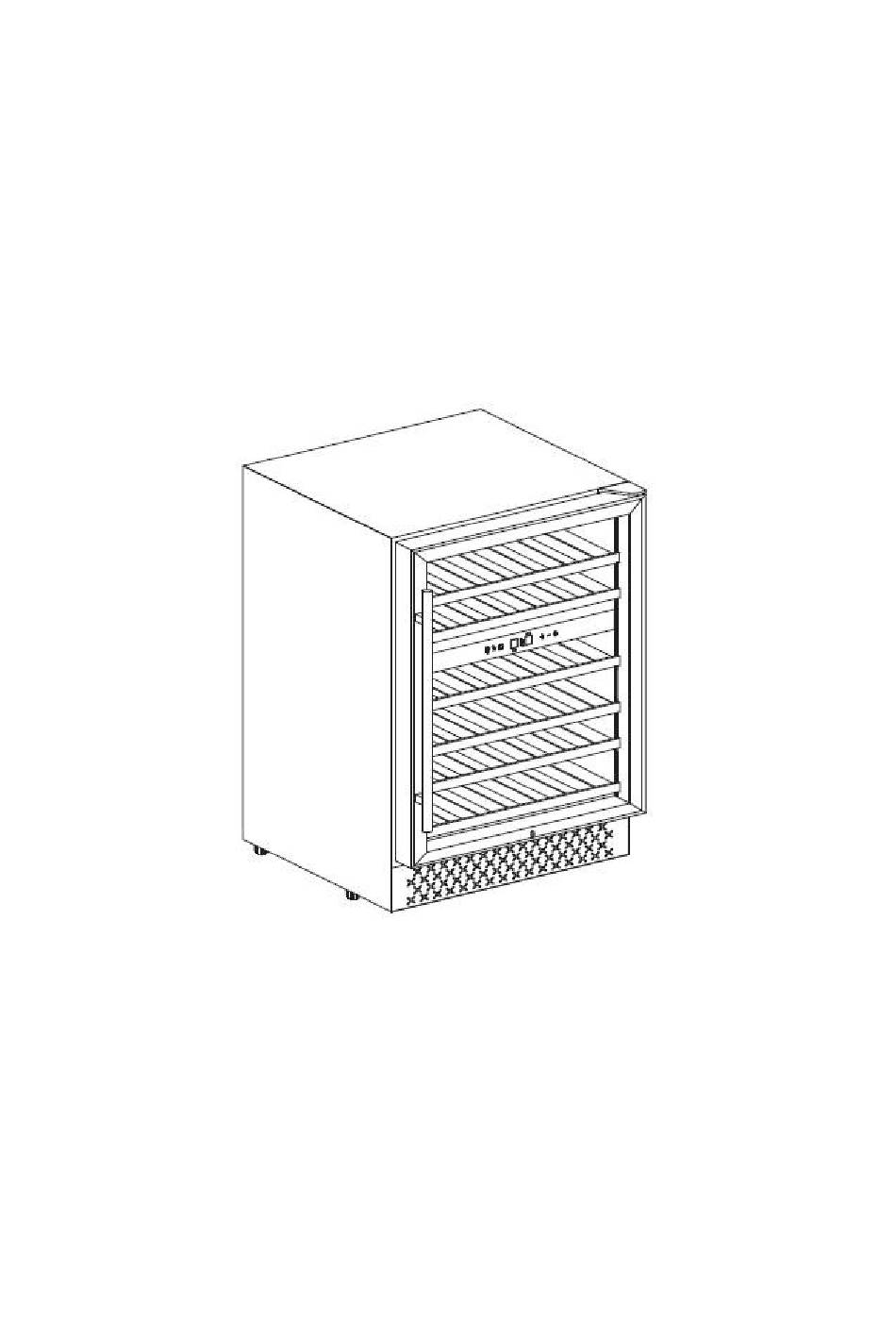

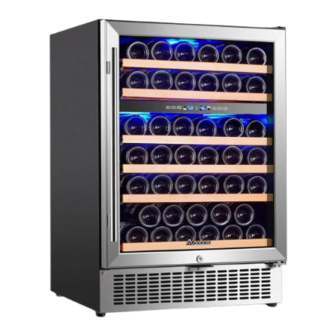

- Page 1 WINE COOLER WC138B USER MANUAL MODEL: YC-150B Read this manual and follow all safety rules and operating instructions before first use of this wine cooler.
-
Page 2: Table Of Contents
CONTENT IMPORTANT SAFETY INSTRUCTIONS ......................1 SPECIFICATIONS .............................3 PRODUCT DIAGRAM .............................4 INSTALLATION INSTRUCTIONS .........................5 OPERATION INSTRUCTIONS ........................8 CARE & MAINTENANCE ..........................11 TROUBLESHOOTING GUIDE ........................14 WARRANTY ..............................16 GET SALES SERVICE .............................16 AFTER-SALES INFORMATION ........................17... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This wine cooler complies with the applicable safety requirements and is safe for daily use. However, basic safety precautions should always be followed when using an electrical appliance, to reduce the risk of fire, electric shock, and personal injury. ... - Page 4 Do not use this wine cooler for other than its intended purpose. For indoor, household use only. Move this wine cooler by 2 people. Failure to do so can result in injury. Place this wine cooler in a well-ventilated area with temperatures above 15°C (60°F) and below 32°C (90°F).
-
Page 5: Specifications
SPECIFICATIONS Model YC-150B Rated Voltage 115V/60HZ Input Power Rated Current 0.9A Refrigerant R600a Volume 138L Climate Type SN/N/ST Net Weight 43Kg Gross Weight 46Kg Product Dimensions 595*575*870 mm Package Dimensions 655*675*915 mm... -
Page 6: Product Diagram
PRODUCT DIAGRAM Control Panel Top Hinge Wood Shelves Glass Door with Handle Exhaust Window Safety Child Lock Leveling Legs... -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler Remove the exterior and interior packaging. Check to ensure you have all of the following parts: 6 Wood Shelves 2 Keys Stainless Steel Handle Instruction Manual 2 Extra Screws for Installing Handle Before connecting this Wine cooler to a power source, let it stand upright for IMPORTANT: approximately... - Page 8 Illustration #1 Illustration #2 1 Gasket 2 Screws 3 Screw Driver 4 Handle To Install Your Wine Cooler This Wine cooler is designed for free standing or built-in (fully recessed) installation. Place your Wine cooler on a solid and level floor that is strong enough to support it when it is fully loaded.
- Page 9 Improper use of the grounded plug can result in the risk of electrical shock. If the WARNING ： power cord is damaged,replaced it by an authorized service center. The Wine cooler should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the Wine cooler.
-
Page 10: Operation Instructions
OPERATION INSTRUCTIONS Controls After plugging the Wine cooler into a wall outlet, the cooler would turn on automatically and the LCD screen would show the temperature inside of the cooler. After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours before placing wine bottles in the Wine cooler. - Page 11 Recommended Temperature Settings Storing wines at the proper temperature is important. To preserve them as long as possible, wine needs to be stored at approximately 55° Fahrenheit. However, the chart below suggests the optimal drinking temperature for the different varietal of wine. Wine Variety °F °C...
- Page 12 shelves can be removed to store larger bottles. To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment. For easy access to the bottles, you may need to pull the shelves approximately 1/3 out of the rail compartment.
-
Page 13: Care & Maintenance
CARE & MAINTENANCE Cleaning Your Wine Cooler Always unplug the cooler before cleaning or performing maintenance. Never use IMPORTANT: harsh cleansers or scouring pads to clean any part of the cooler. Turn off the power, unplug the Wine cooler, and remove all items including shelves. ... - Page 14 Moving Your Wine Cooler Remove all items (bottles) from the cooler. Securely tape down any loose items, such as shelves, inside the cooler. Turn the adjustable leg up to the base to avoid damage. Tape the door shut. ...
- Page 15 To replace the filter Remove the bottles of wine stored on the shelves in front of the filter. Remove the shelves and set aside to be replaced once you have changed the filter. Hold the filter and turn it at 45 degrees in the counter- clockwise direction and then pull it out.
-
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION The Wine cooler may not be plugged Ensure the Wine cooler has been in, or plug may be loose. plugged in properly. The Wine cooler The Wine cooler is turned off. Press to turn on the cooler. does not run. - Page 17 PROBLEM POSSIBLE CAUSE SOLUTION Not plugged in. Plug the cooler in. The circuit breaker tripped or The light does not Check the breaker and/or fuses. a blown fuse. work. The light button is "OFF". Press to turn the light ON. The cooler is not leveled.
-
Page 18: Warranty
WARRANTY This device is covered by a limited manufacturer's warranty. The manufacturer will repair or replace any part of this equipment that is defective in material or workmanship within three years from the date of original purchase, provided that the equipment is used under normal operating conditions as intended by the manufacturer. -
Page 19: After-Sales Information
AFTER-SALES INFORMATION Model: YC-150B Email: support@aprafielife.com Phone: 1-866-658-5891 (US) Monday-Friday from 7 a.m.- 3 p.m. EST...
