Wren EM101 User Manual

EM101, Video Encoder Module

Overview

The EM101 is utilized to provide an effective method of converting a
previously installed analog solution into a solid IP solution without
the need to replace the camera or its cabling.

Warnings and Safeguards

Prior to installation and use of this product, please observe the
following warnings
1. Installation and servicing should be done by qualified
personnel, and all work done should conform to local
codes.
2. Using replacement parts or accessories other than
Wren may invalidate the warranty.
3. The EM102 is designed to accept 12V DC power.
4. It is recommended that your active network assign an
available IP address through DHCP when connecting
this module for the first time.

Component List

1. EM101 Module
2. Power Adapter

Instructions

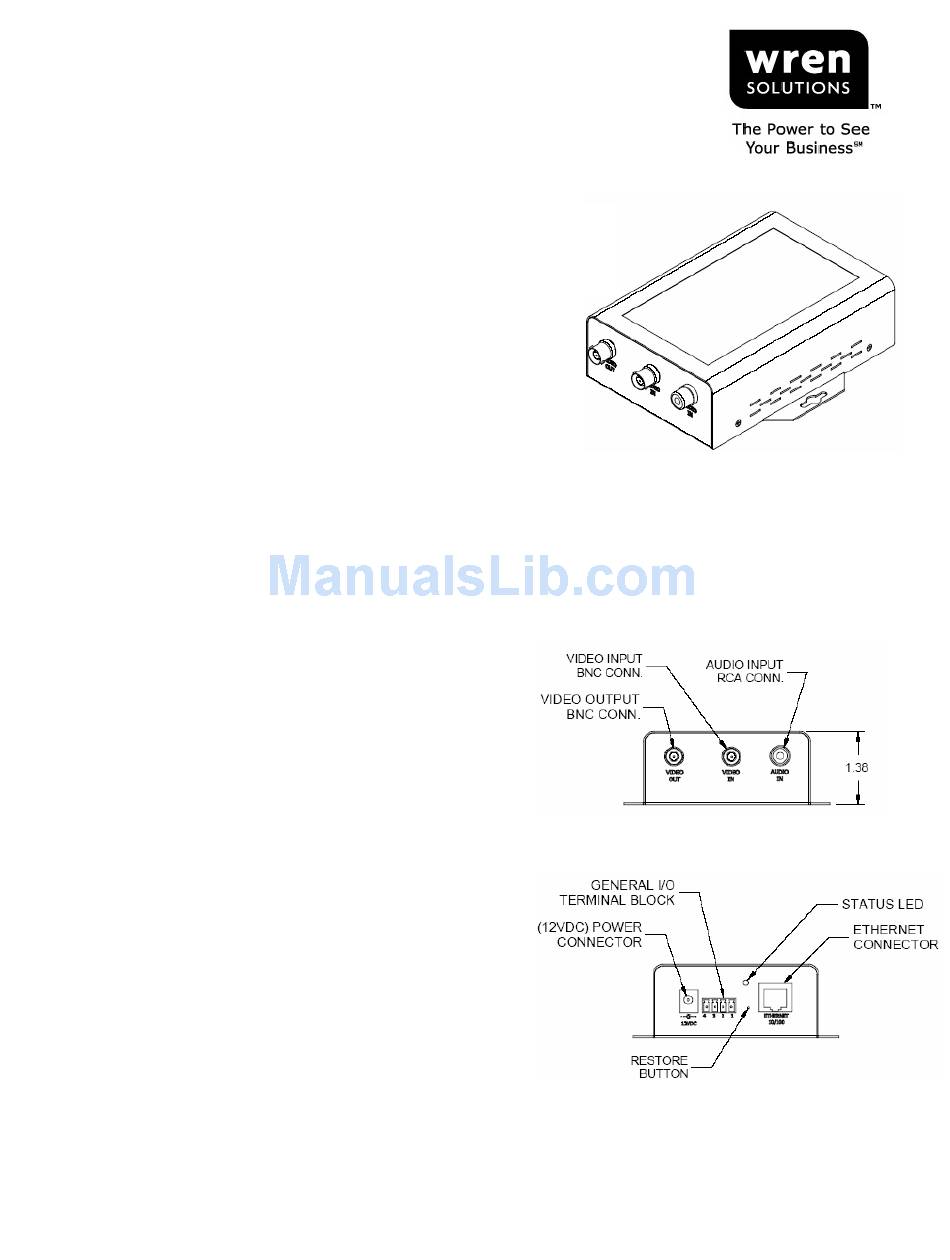

1. Connect the Video and Audio (if applicable) feed from
the camera to their respective ports on the EM101.
[Figure 1]
2. Connect a CAT5 cable from the LAN to the Ethernet
jack on the EM101. [Figure 2]
3. If applicable connect the alarm contacts and digital
output to pins 1 through 4 on the I/O terminal
according to the table below. [Figure 2]
PROPERTY OF WREN
124 WREN PARKWAY • JEFFERSON CITY, MO 65109 • TOLL FREE (800) 881-2249 • FAX (877) 893-2317
Page 1 of 2
www.wrensolutions.com
IP Solution:
EM101
Video Encoder Module
FIGURE 1
FIGURE 2
7L224 REV-D 9/21/2007
