Table of Contents

Camera Plate Lock
Spare Camera Screw
Tilt Lock
Tilt Drag Selector
Level Bubble Battery
Tray
Pan Drag Selector
Safety Instructions
Please use this manual to familiarise yourself with the operation of the T8 Fluid Head and observe these
instructions to prevent any damage to your equipment. Ensure that all equipment is operating correctly
and free from defects and damage, also please ensure that the tripod is steady, secure and that the bowl
is approximately horizontal when attaching the camera. The operator is responsible for the safe operation
of this piece of equipment.
• Do not exceed the safety payload capacity of the Fluid Head.
• Do not leave the camera unattended on the Fluid Head.
• Do not release the CAMERA PLATE LOCK whilst the camera is at an angle.
• Do not adjust the tripod whilst the camera is attached to the Fluid Head.
• Ensure PANBAR LOCK is securely tightened.
• Apply TILT LOCK when adding/removing equipment from the camera or when attaching/removing the
camera from the Fluid Head.
• Hold camera securely whilst changing Counterbalance, Pan Drag or Tilt Drag settings.
• Hold the camera securely whilst releasing the SAFETY RELEASE LEVER.

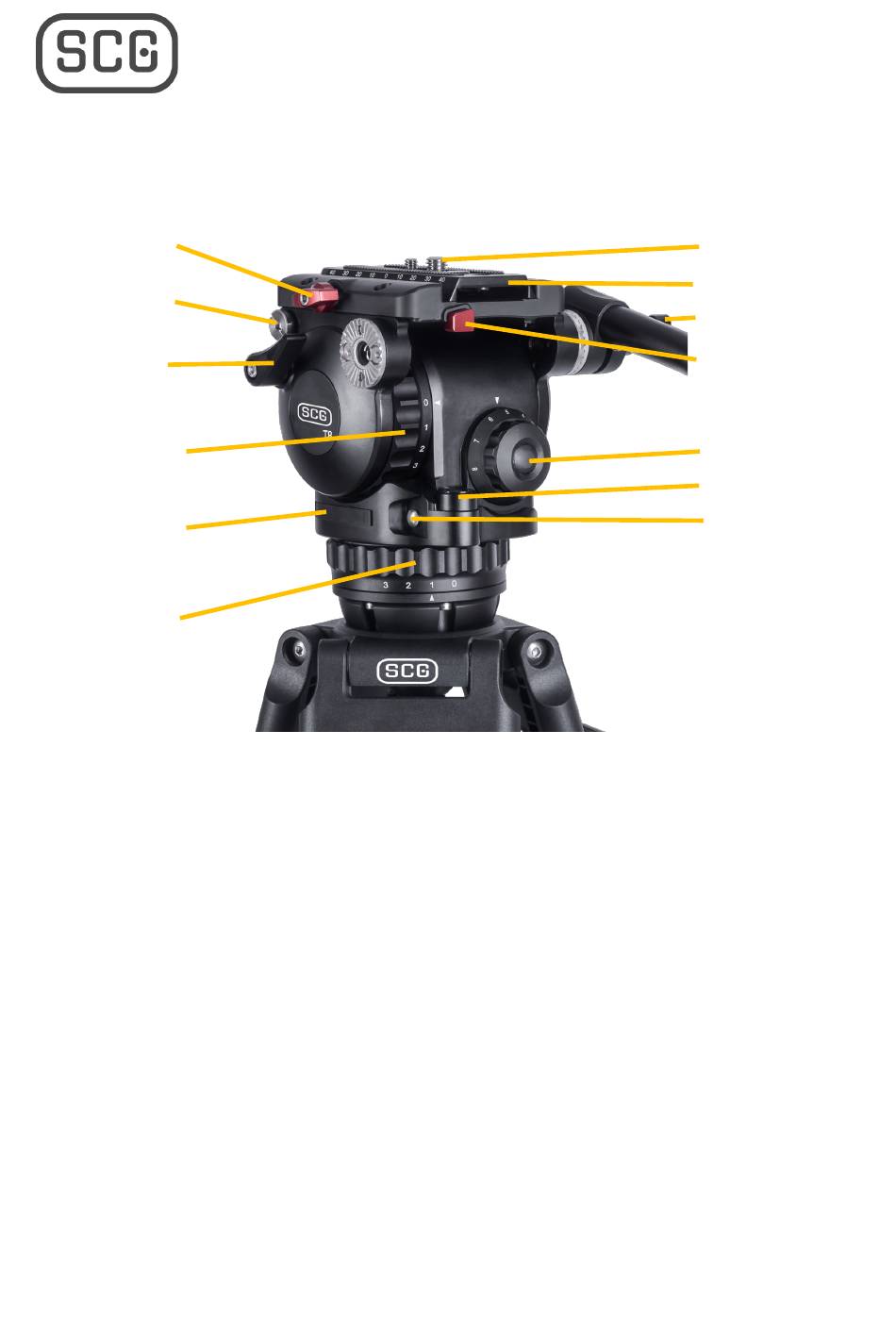

Camera Screws
Camera Plate
Panbar Lock
Safety Release for Cam-
era Plate
Counterbalance Selector
Aluminated Bubble Level
LED Button for Bubble
