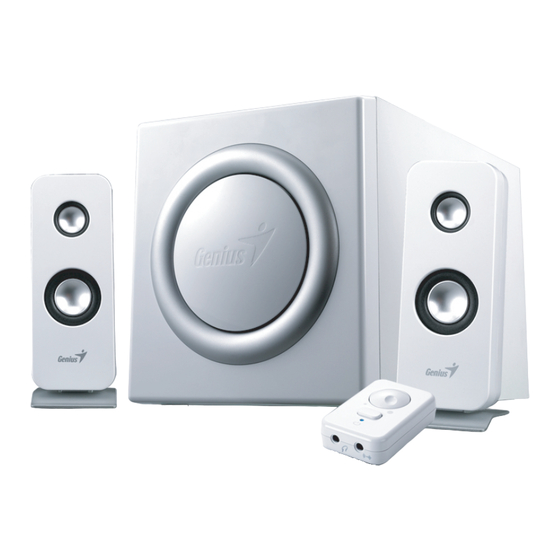

- Page 1 Service Guide SW-i2.1 1100 SERVICE GUIDE KYE SYSTEMS CORP SW-i2.1 1100 Version:1.0 Version 1.0 Page 1 of 16...
-
Page 2: Revision History
Service Guide SW-i2.1 1100 Revision History Version Change Date Nov-08.2005 VER1.0 Version 1.0 Page 2 of 16... -
Page 3: Table Of Contents
Service Guide SW-i2.1 1100 Table of Contents Revision History Table of Contents Getting Started Conventions Used in this Guide Safety Precautions Chapter 1. How to Handle Defective Returns 1.1 Overview 1.2 Problems 1.2.1 Satellite channels no sound 1.2.2 Woofer channel no sound 1.2.3 Woofer no power Chapter 2. -
Page 4: Getting Started
Service Guide SW-i2.1 1100 Getting Started Conventions Used in this Guide Pay Special Attention: Instructions that are important to remember and may prevent mistakes. Caution: Information that, if not followed, may result in damage to the product. Safety Precautions The following precautions should be observed in handling the speaker described in this guide: Place the speakers on a flat, level and stable surface. -
Page 5: Chapter 1. How To Handle Defective Returns
Service Guide SW-i2.1 1100 Chapter 1. How to Handle Defective Returns 1.1 Overview Receiving Defective speaker form customers Verifying problems proceeding necessary tests Function NG Analyzing possible Function NG Function OK malfunction causes Deciding & proceeding the rectification methods Replace necessary defective parts Proceeding tests to verify if the speaker is... -
Page 6: Problems
Service Guide SW-i2.1 1100 1.2 Problems Item Problem Description 1.2.1 Satellite channels no sound 1.2.2 Woofer channel no sound Woofer no power 1.2.3 Version 1.0 Page 6 of 16... -
Page 7: Satellite Channels No Sound
Service Guide SW-i2.1 1100 * Attention Please follow the numbered sequence marked within parenthesis given in individual Flow chat, in that this is the best-recommended sequence to rectify the problems. 1.2.1 Satellite channels no sound Problem Satellite channels no sound Analyzer and Identify the Causes Defective... -
Page 8: Woofer Channel No Sound
Service Guide SW-i2.1 1100 1.2.2 Woofer channel no sound Woofer channel no sound Problem Analyzer and Identify the Causes Defective Broken or short circuit Remote control cable damaged U3,U4,C1 2,C23,VR1 or speaker damaged Solutions Check solder points on Check and replace replace defective cable defective IC or or speaker... -
Page 9: Woofer No Power
Service Guide SW-2.1 1100 1.2.3 no power no power Problem Analyzer and Identify the Causes Defective Broken or short circuit AC power cable dis-connect D1~D4, or remote control cable damaged Solutions Check solder points on Check and replace Re-connected AC power Cable defective SW or or replace defective Cable components... -
Page 10: Satellite
Service Guide SW-i2.1 1100 Chapter 2. Specifications Satellite (AT 1KHZ): NO Description Unit Specifications Out Power at THD 10% 5 ± 0.5 Sensitivity 320 ± 50 Freq Response (Ref:-3dB) 75~20K ≧ 50 S/N ratio ≦ 3 Hum & Noise Vol:max Host(woofer) (AT 100HZ): NO Description... -
Page 11: Chapter 3. Block Diagram
Service Guide SW-i2.1 1100 Chapter 3. Block Diagram Version 1.0 Page 11 of 16... -
Page 12: Satellite
Service Guide SW-i2.1 1100 Satellite Version 1.0 Page 12 of 16... -
Page 13: Host(Woofer)
Service Guide SW-i2.1 1100 Host(Woofer) Version 1.0 Page 13 of 16... -
Page 14: Chapter 5. Part List
Service Guide SW-i2.1 1100 Chapter 5. Part List Version 1.0 Page 14 of 16... -
Page 15: Chapter 6. Schematic Diagram
Service Guide SW-i2.1 1100 Chapter 6. Schematic Diagram Version 1.0 Page 15 of 16... -
Page 16: Chapter 7. Important Notes
Service Guide SW-i2.1 1100 Chapter 7. Important Notes 7.1 Packing Requirement for Sending the PCB Assembly by Post PCB assembly is a kind of sophisticated electronic circuit board. Well packing will be required when sending them by post. * Some sophisticated IC components are mounted on the PCB assembly, hence it is necessary to pack each PCB assembly with a separate static protecting bag, in order to avoid static electricity.
