Summary of Contents for flyingOSPREY SMART CURTAIN ROBOT

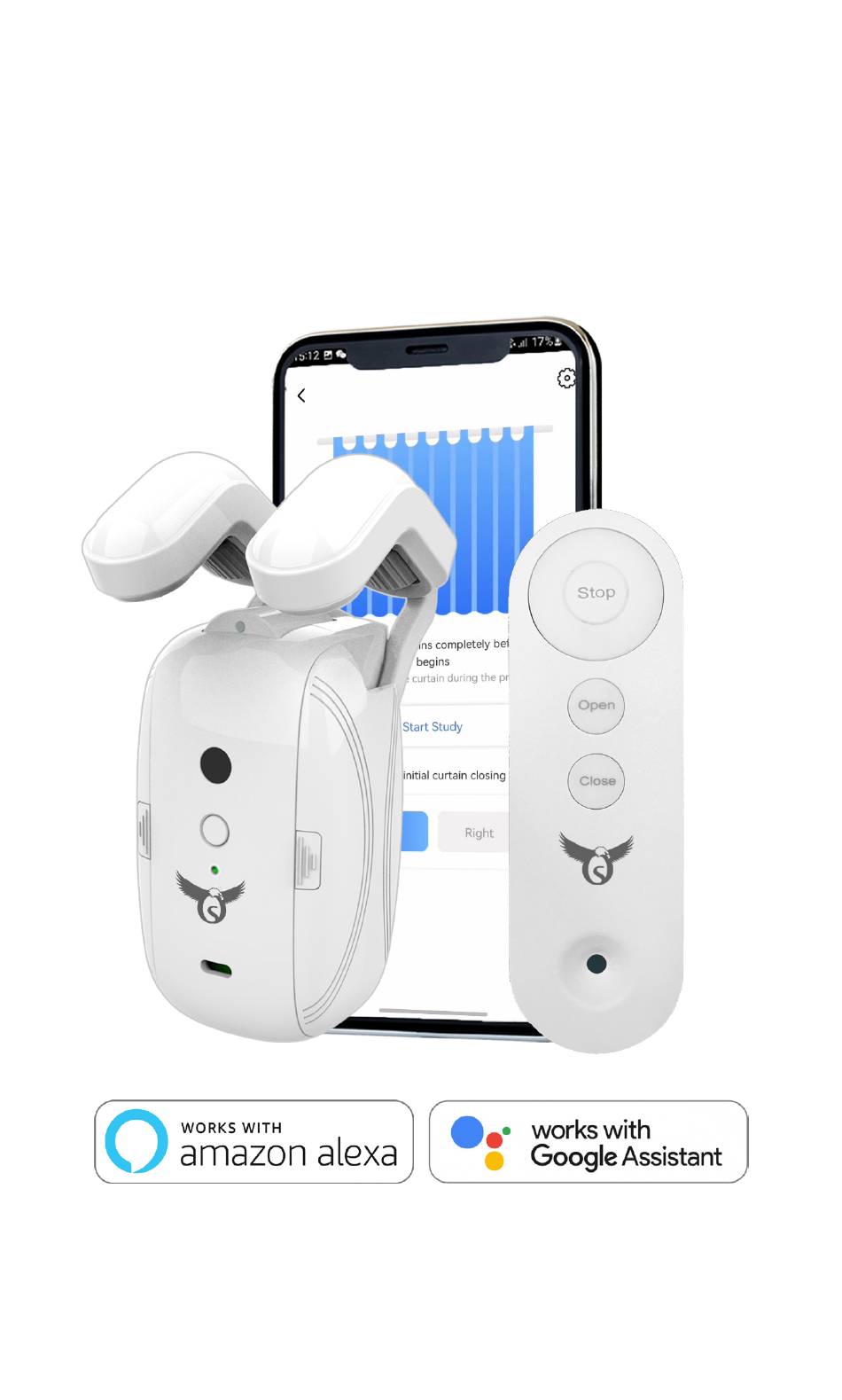

- Page 1 flyingOSPREY SMART CURTAIN ROBOT USER MANUAL Compatible with Alexa & Google Assistant with Osprey Wireless Smart Gateway included in the package osprey.life...
-
Page 2: Table Of Contents
CONTENT I. PACKAGE CONTENTS ..........02 II. LIGHT AND BUTTON FUNCTION ........ 04 III. PREPARATION ............05 IV. INSTALLATION ............06 1. Roman Rod .............. 06 ..............09 2. T-Track 3. U-Rail ................ 11 V. APP OPERATION ............13 VI. REMOTE CONNECTION .......... 21 VII. -
Page 3: Package Contents
I. PACKAGE CONTENTS 1. Curtain Motor / Remote Lighting sensor Power button Indicator light Charging port Remote Control x 1 Single Side Model x 1 Double Side Model x 2 osprey.life... - Page 4 2. Accessories Single Side Model will come with half of the accessories list Power Charging Side Cover x 4 Beads fixer with clips x 2 Adapter x 1 Cable x 2 Roman Rod Roman Rod Small T-Track U-Shape U-Shape Big Hook Arm x 4 Hook Arm x 4 Fitting x 4 Fitting x 4...
-
Page 5: Light And Button Function
II. LIGHT AND BUTTON FUNCTION CURTAIN MOTOR LIGHTS Solid Blue Starting up Flashing blue (2 times/s) Initiate Remote Pairing Flashing blue (3 times/s) Pairing Green Fully Charged Charging LIGHTS ON REMOTE CONTROL Flashing Green Button Pressed Flashing Red (2 times/s) Initiate Curtain Motor Pairing Flashing Red (3 times/s) Pairing... -
Page 6: Preparation
III. PREPARATION STEP 1: FULLY CHARGE YOUR CURTAIN Fully charge your Osprey Smart Curtain Robot before using. The indicator light turns green when fully charged. • Charging • Fully charged STEP 2: APP INSTALLATION Enable WIFI before app installation: • Scan this QR Code below to download the “Osprey Smart Home”... -
Page 7: Roman Rod
IV. CURTAIN MACHINE INSTALLATION STEPS 1. Roman Rod Please go to page 9 for T-Track Installation and page 11 for U-Rail Installation Step 1: Measure your Curtain Measure your Roman Rod and choose the suitable accessories with the following measurements: Roman Rod Small Hook Arms Roman Rod Big Hook Arms Diameter:... - Page 8 Step 3: Roman Rod Curtain Motor Installation Close the curtain all the way before installation As shown in figure (1) (2). Pull the stretchable Hook Arm and attach it between the first and the second grommet of the Roman Rod pole track. Remember to face the indicator light outdoor to get the lighting sensor work properly.
-
Page 10: T-Track
2. T-Track Step 1: Measure your Curtain Close the curtain all the way before installation Measure your T-Track and choose the suitable accessories with the following measurements: T Fittings (1) 7 - 26 (mm) Step 2. Side Covers Setting After choosing your suitable accessories, use the screwdriver to install the screws and the accessories to the side covers. - Page 11 Step 3: T-Track Curtain Motor Installation As show in the above picture (1) (2) (3), push the handle on the T-Shaped fitting to the maximum, tilt one side of the track, and install the other side of the side cover on the track. As show in the above picture (4) (5), install the 2 side covers of the curtain machine on the curtain track, place the curtain machine in the side covers, pull the 2 side covers down sightly,...
-
Page 12: U-Rail
3. U-Rail Step 1: Measure your Curtain Close the curtain all the way before installation Measure your U-Rail and choose the suitable accessories with the following measurements: U-Shape Fittings (1) 10 - 30 (mm) (2) 4 - 10 (mm) Step 2. Side Covers Setting After choosing your suitable accessories, use the screwdriver to install the screws and the accessories to the side covers. - Page 13 Step 3: T-track Curtain Motor Installation After putting the side cover into the track as show in the picture above (1), rotate it 90o as show in the picture above (2) As show in the picture above (3) (4), install the side cover of the curtain machine on the track, place the curtain machine in the side cover, pull down the two side covers slightly, and close the side cover.
-
Page 14: App Operation
V. APP OPERATION 1. Add device Smart Curtain Robot • Click “+” then click “Add device” • Turn on bluetooth and search for Smart Curtain Robot osprey.life... - Page 15 Smart curtain robot • Add successfully, click “ Next ” • Click “ Done ” osprey.life...
- Page 16 The initial position of the curtain closing position is left. • For Single Side Curtain, remain “Left” if Smart Curtain Robot will go to the left side to open your curtain or choose “Right” if Smart • Curtain Robot will go to the right side to open your curtain.
- Page 17 • Click “ Stop study ” after the curtain is fully opened • Click “ Confirm ” after completing the limit setting process osprey.life...
- Page 18 To reset the Curtain Motor Limit Setting, please choose the "Setting" icon on the top of the right side and click "Reset" to return to the factory setting of the curtain. osprey.life...
- Page 19 • Temperature - Luminosity - Curtain Battery shows up on the first line • The second line shows the curtain state "Open", "Stop" and "Close". Please click on the buttons to control the Smart Curtain Robot by mobile phone/ tablet. osprey.life...
- Page 20 • Click on the "Setting" icon on the top of the right side to set up multi-function settings • Set the light intensity to close the curtain osprey.life...
- Page 21 • Set the temperature intensity to close the curtain • Set up timer by clicking "Add" to schedule the time to open and close the curtain as needed osprey.life...
-
Page 22: Remote Connection
VI. REMOTE CONNECTION 1. Remote Operation • Choose ‘’Open’’ to open the curtain. When pressing ‘’Open", the indicator light is flashing green. If you already set up the opening limit, the curtain robot will open and stop at your pre-set position. •... - Page 23 Left Right Down Open Close osprey.life...
-
Page 24: Wifi Gateway Connection
Osprey Wireless Smart Gateway included in the package in Osprey Smart Home app and follow these steps below: Smart Curtain Robot • Click the “+” sign to add equipment • Click automatic discovery, click start search, search mesh to gateway, click “Next”... - Page 25 • Click "Associate Bluetooth device" to add existed Smart Curtain Robot or click "Add new device" to add new Smart Curtain Robot/ other Bluetooth devices • Finally go to "Home" page and click on "Me" page icon at the bottom of the right corner to connect with Alexa or Google Assistant osprey.life...
-
Page 26: Warranty
VIII. WARRANTY A. Warranty Information Limited Warranty, Seller warrants to Customer for a period of twelve (12) months following delivery only that (a) the Products shall conform to the description and specifications, subject to industry standard tolerances and variations; and (b) Seller has good title to the Products free and clear of liens, security inter- ests or encumbrances by any party claiming by, through or under Seller. - Page 27 EXCEED THE PURCHASE PRICE ACTUALLY PAID BY CUS- TOMER FOR THE PRODUCTS TO WHICH SUCH LIABILITY RELATES. B. Return and Refund Policy The situations below are excluded from the Return and Refund Policy: • Intended damage or abuse • Inappropriate storage (drop-down or soaking in water) •...
-
Page 28: Safety Warning
IX. SAFETY WARNING A. CE Warning Product name: Osprey Smart Curtain Robot Trademark: flyingOSPREY This product is in a fixed location. To comply with RF exposure requirements, a minimum separation distance of 20cm must be maintained between the user's body and the device, including the antenna. - Page 29 radiate radio frequency energy and, if not installed and used in accordance with instructions, cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference as to radio or television reception, which can be determined by turning the equipment off...
