TABLE OF CONTENTS

What you need to do the job
A
Speaker parts inventory
Tools for installation
Speaker wire
Amplifier considerations
Where to put your speaker(s)
B
Various uses
Background music
Surround sound
Other acoustic considerations
Wall & ceiling surfaces
Speaker wire paths
C
Painting the speaker(s) and grille(s)
Cutting holes for the speaker(s)
D
Running connecting wire(s)
E
Hooking up your speaker(s)
F
At the speaker end
At the amplifier end
Final assembly
G
A short "test drive"
H
A quick troubleshooting guide
Front panel controls
I
Home Theater (5.1 Channel) Layout
Home Theater (7.1 Channel) Layout
Using the AU620 or AU820 as a "Single Point Stereo" Speaker
J
Further reading
Taking care of your new in-ceiling speaker
More on amplifiers and impedances
Installing Acoustech speakers during new construction
Specifications
Acoustech AuraPro series description and specifications
Limited Warranty
CONGRATULATIONS
Thank you for selecting this Acoustech Ceiling Speaker. Like all
Acoustech speakers, the AuraPro series combines advanced acoustic
technology with durability and will provide years of musical enjoyment.
This manual is designed to make your ceiling speaker as easy to install
as it is to listen to. If you've had any home "do-it-yourself" experience,
you should find installation of your new speaker a simple job.
However, we suggest you read through this manual before starting out.
If you then decide that installing your Acoustech Ceiling Speaker is
beyond your skills, we recommend the use of a professional installer.
................................................
................................................
................................................
................................................
................................................
................................................
................................................
................................................
................................................
................................................
................................................
................................................
................................................
................................................
................................................
................................................
................................................
................................................

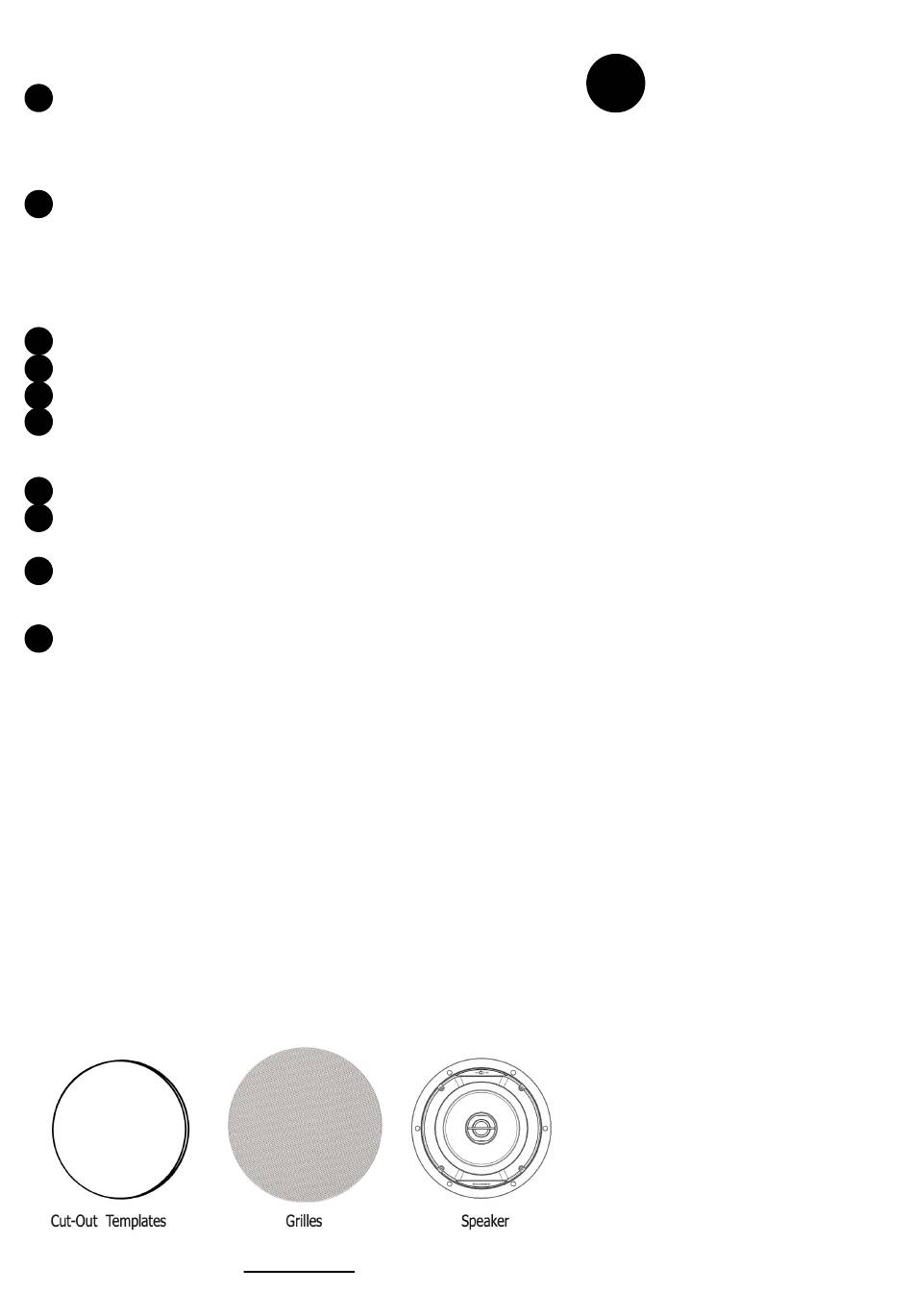

DRAWING 1
A
2
SPEAKER SYSTEM PARTS
2
3 INVENTORY
3
Before you get involved in the actual
installation process, it's a good idea to
check for possible shipping damage
3
and identify parts and hardware.
3
3
You should have the parts shown in
3
Drawing 1:
4
4
• One (1) Acoustech loudspeaker with
one metal grille
4
• White cardboard template: one
4
cutout template
5
If anything is missing after a thorough
search of the box and packing
6
materials, contact the dealer where
6
you bought your speaker.
6
Although Acoustech Speakers are
6
extremely well packed to withstand the
rigors of shipping, you should still
7
inspect them closely, especially if there
is any damage to the outside carton. If
............. 7
you find anything wrong, contact your
............. 7
dealer or the shipper who delivered the
...... 8 speaker.

TOOLS FOR INSTALLATION

............. 9
IN EXISTING WALLS
............. 9
It doesn't take a whole workshop to
............. 9
install your new speaker, just a few
........... 10
simple tools:
........ 11
........... 11
• A pencil
• A drill with a 1-inch flat bit
• A retractable utility knife or keyhole
saw
• A length of stiff wire about 3 feet
long (a straightened wire coat hanger
works fine)
• A Phillips-head screw driver
• A pair of diagonal pliers or wire
strippers Some of the following may
also be needed, depending on the
application.
• A stud finder
• Drill bit just slightly larger than the
diameter of one speaker wire
• Plumb bob or small weight on a
string
• Insulated staples for securing
speaker wire
• Masking tape or foam "double-stick"
tape
• Paint and applicator for changing
2
grille finish
WHAT YOU NEED
TO DO THE JOB
