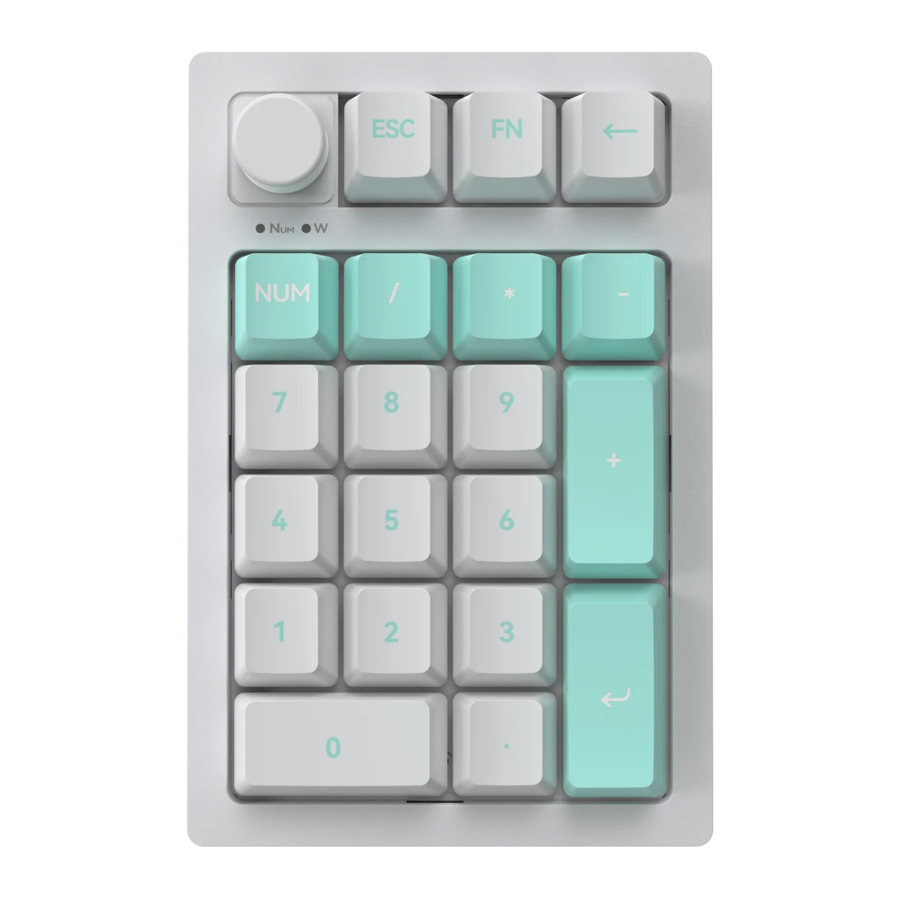

Feker JJK-21 - 3 Mode Gasket Key Pad Manual

Switch & USB Function

	For Wireless version used, including the 2.4 and 3 bluetooth mode;
	For Wired version used, in the same time, you need insert the Type-C cable to device and USB to computer;

Type-C cable insert here and USB connect to computer for connect to computer; and Type-C cable insert here and USB connect to power adaptor for charge only.

Interface Connected Function

USB Version

1. Connect the USB-A port to computer USB port and Connect the Type-C port to keyboard;
2. When the USB cable is completed, the USB devce will working default by system.

Wireless 2.4G Version

1. Connect the USB-A port to computer USB port and Connect the Type-C port to keyboard;
2. Press the Fn and 4 key for enter to 2.4G device mode;
3. If your want used this 2.4g device, you need connect the receiver to USB port of computer first, that's Important;

Or (the other's solution)

1. Switch tho ON/OFF button to ON, and Make sure tho battery is available;
2. Press the Fn and 4 key for enter to 2.4G device mode;
3. If your want used this 2.4g device, you need connect tho receiver to USB port of computer first, that's Important;

Wireless BT Version

1. Connect the USB-A port to computer USB port and Connect the Type-C port to keyboard;
2. Press the Fn and 1/2/3 key for enter to BT device FEKER JJK21-1/2/3 mode, one by one;
3. Long press 3 seconds for pairing to new device by bluetooth;
4. Press 1 time for re-connected to paired device by bluetooth;
5. Press the Fn + 1/2/3 one time, You can switch between FEKER JJK21-1/2/3 device;

FN+ Keys Function

System Requirement

Compatible with Windows 2000 and above and Mac system.

Battery status indicator Function

On The PAD, the Number 0 key's LED lighting is indicator of battery status.

	the Number 0 key's LED will lighting RED flash.
	Preas 3 seconds Fn and Number 0 key, LED will lighting BLUE.
	Preas 3 seconds Fn and Number 0 key, LED will lighting GREEN.
	the Number 0 key's LED will lighting RED continuous.

Device name description

	FEKER PAD JJK21
	2.4G Wireless Device
	FEKER PAD JJK21-1 FEKER PAD JJK21-2 FEKER PAD JJK21-3

Electrical Specifications

For reference only
