Summary of Contents for Dasaita DAS-X9s

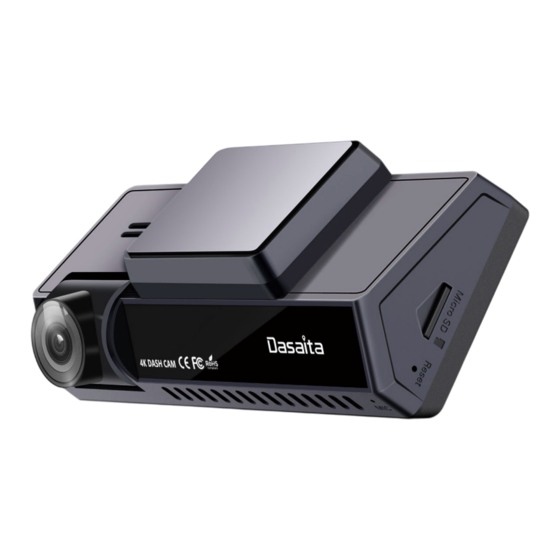

- Page 1 User manual 4k Dash Camera DAS-X9s Please read this manual carefully before using the product Please keep this instruction manual properly...
-
Page 2: Table Of Contents
Catalogue: 1. Accessories --------------------------------------02 2. Product introduction -------------------02~03 3. Installation Guide ------------------------03~05 4. About mobile APP -----------------------------05 5. Main Menu ----------------------------------06~07 6. Introduction of Main Functions ------------- ---------------------------------------------------------07~11 7. Play Videos On Computer -----------11~12 8. Technical Specifications --------------------12 9. Trouble-shooting -------------------------------12... - Page 3 To Users： Dear users and friends, thank you for purchasing the high-end wireless WIFI driving recorder product produced by our company. This product is a high-tech intelligent driving recorder based on the smartphone platform. It is mainly used for the safe driving of various types of automobile industry.
-
Page 4: Accessories
(6) The external output voltage of the host of this product is 5V, please do not use an external power supply on this host. (7) Illegal power failure during video recording will cause the last video file to be damaged or lost. The recorded video is damaged or lost due to the destructive collision of the machine during the recording process. -
Page 5: Installation Guide
Product introduction 14. GPS Receiver 10. Sticker 12. Front Camera 11.Speake 9. USB-C 13.Rear Camera Interface 8.Micro SD 7. Reset 1. Power 2. OK 3. Memu 4. Up 5. Down 6. LED 7. Reset 8. SD Slot 9. USB -C 10. - Page 6 Installation Guide 5. The fuse box power version ( 12V to 5V ACC cable) also called Hardware kits is connected to the matching interface B+, ACC. GND, (optional version) Another end of TYPE-C is connected to the TYPE-C interface of dashcam.
-
Page 7: About Mobile App
WIFI option in the setting menu and turn it on. 3. Please check that the WIFI name on the phone is exactly the same as the WIFI name on the recorder. SSID: DASAITA**** 4. Enter the initial password: 12345678,and the phone will automatically connect. -
Page 8: Main Menu
APP Main Menu After the recorder is connected to the mobile APP, the current real-time image of the recorder can be displayed in the APP: 1. Find the setting option at the main menu, check out the setting option and the option of formatting TF card. 2. - Page 9 APP Main Menu 1. File list 2. Select 3. Play 4. Video Downloading 5. Video montage 6. Delete Video Recording/playback： Video Recording When the machine is turned on, it will enter the recording mode, and the upper left corner of the screen will display the recording icon to start recording, and a red dot will flash on the screen in the recording state.
- Page 10 Video Recording/playback： Playback method 2: Connect the TF card to the computer through the card reader, select the content in the removable disk, and then play back. Parking monitoring: instant time-lapse video, ACC cable is required 1* Select "Off" to close the parking monitoring.When the car is turned off, the recorder will automatically shut down.
- Page 11 Video Recording/playback： 3. Every time you insert a TF card, please format it inside your dash camera to ensure that the TF card is compatible with the camera. Main Functions Introduction The recorder starts recording when it powers on, click the OK button (to stop recording).
- Page 12 Setting When the recorder is at pause , press the M key for a long time to enter the menu "Settings" option. Back： Return to previous interface Resolution： Select the video recording resolution: 4K/2K/1080P, different resolutions represent the resolution of the recorded video Speaker Volume：...
-
Page 13: Play Videos On Computer
Setting Language： Multi-language English/Simplified Chinese/Japanese, etc., the selection matches up the current menu language Boot Sound： Select On/Off to turn on or off the switch sound Recording Audio: select On/Off, which means turning on or off the audio recording WIFI： Select On/Off, which means turning on or off WIFI (pop-up WIFI name and password) Plate Number：... -
Page 14: Technical Specifications
Play Videos on your computer VIDEO: Video recorded by the recorder PHOTO: Photos saved by the recorder EVENT: Lock file saved by the recorder (Note: For devices that use dual camera recording, the file name end with "M" is called the front camera, and the file end with "S"...
