Jasco 14314 Product Specifications

14314 PRODUCT SPECIFICATIONS

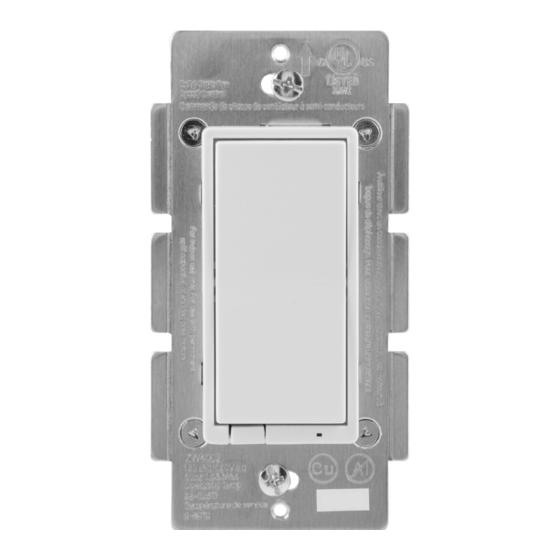

Jasco Z - Wave In-wall
Smart Fan Control
www.byjasco.com
Specifications
Power: 120VAC, 60Hz Signal Frequency: 908.4/916
Maximum Fan Motor Load: 2.5A
Range: Up to 150 feet from controller or closest Z-Wave device
Operating Temperature: 32-104° F (0-40° C)
Warranty: 5-year limited product warranty
Requires neutral wire. Switch must be mounted indoors
Control fan motor only, not intended for lighting control. No
more than two fans
Design Features
· Remotely monitor with any
mobile device*
· May be used in single pole
installation or with up to four
Jasco model 46560 Add-on
switches in 3, 4, 5 or 6-way
wiring configurations
· Turn ON/OFF and control
speed level of the connected
Ceiling fan manually or via
Z-Wave remote control
(On/Off, High, Medium, Low)
· Can be Included in multiple
Groups and Scenes
· Supports Advanced
Configuration; LED status,
Invert switch (if unit is installed
upside down)
· Screw Terminal installation;
requires wiring connections
for Line (Hot), Load, Neutral
and Ground. Traveler
wire required for multi pole
installation
· Use a standard size wall plate
for single gang installations
(wallplate not included)
· Interchangeable Paddle switch:
White & light almond paddle
included in package
· LED can be enabled/disabled
manually
· Inline traveler circuit protection
Z-Wave Plus Features
· Backward compatible with all
generations of Z-Wave devices
· Improved battery life and up to
50% more wireless range
· 250% faster processor
· 400% more memory
· 50% more energy efficient
· Supports wireless upgrades
to future-proof your home
White/light almond
paddles included
* Requires Z-Wave hub or controller,
functions may vary depending on brand.
1
