Summary of Contents for Gallagher C300698

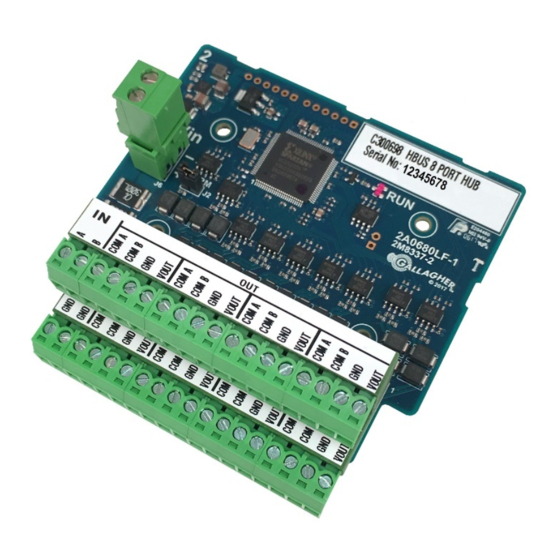

- Page 1 Gallagher HBUS 8 Port Hub Installation Note Gallagher HBUS 8 Port Hub: C300698 3E4465 Gallagher HBUS 8 Port Hub Installation Note | Edition 4 | January 2021 Copyright © Gallagher Group Limited Page 1...
- Page 2 Although every commercially reasonable effort has been taken to ensure the quality and accuracy of the information, Gallagher Group makes no representation as to its accuracy or completeness and it should not be relied on as such. To the extent permitted by law, all express or implied, or other representations or warranties in relation to the information are expressly excluded.
-
Page 3: Table Of Contents
Installation ............................6 Command Centre configuration ......................6 Approvals and standards ........................7 Technical specifications ........................8 Unit dimensions ........................... 8 3E4465 Gallagher HBUS 8 Port Hub Installation Note | Edition 4 | January 2021 Copyright © Gallagher Group Limited Page 3... -
Page 4: Introduction
HBUS devices back to a Gallagher Controller 6000. It utilises a FPGA (field programmable gate array) to allow for the star wiring of devices. The HBUS 8 Port Hub is not a monitored device and therefore is transparent to the Controller. -
Page 5: Connections
Connections Note: Run a common ground (-ve) from the HBUS 8 Port Hub for all RS485 devices. Component layout 3E4465 Gallagher HBUS 8 Port Hub Installation Note | Edition 4 | January 2021 Copyright © Gallagher Group Limited Page 5... -
Page 6: Hbus Device Limits
Gallagher Dual Cabinet Installation Note (3E0694) 2. Install a Gallagher Mounting Plate (C200001, C200002 or C200003) directly into the cabinet. 3. Using the 4 pan pozi screws supplied, fit the HBUS 8 Port Hub to the installed Gallagher Mounting Plate. -
Page 7: Approvals And Standards
AS/NZS IEC 60839.11.1:2019 Grade 4, Class II EN50130-4 EN55022 3E4465 Gallagher HBUS 8 Port Hub Installation Note | Edition 4 | January 2021 Copyright © Gallagher Group Limited Page 7... -
Page 8: Technical Specifications
88 mm (3.5 in) 7 Unit dimensions IMPORTANT This picture is not to scale, therefore use the measurements provided. 3E4465 Gallagher HBUS 8 Port Hub Installation Note | Edition 4 | January 2021 Copyright © Gallagher Group Limited Page 8...
