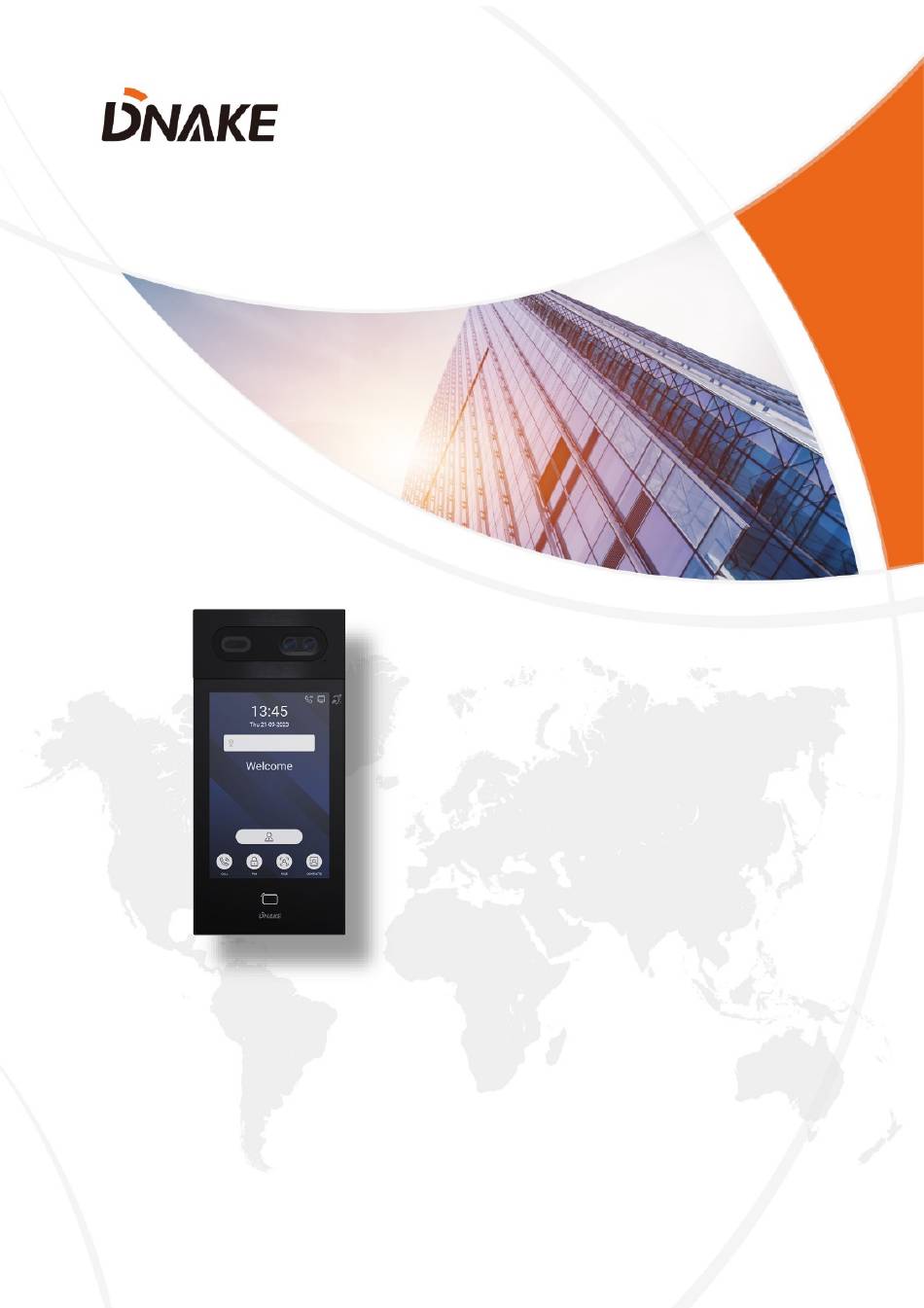

Page 1 User Manual ——— DNAKE S617...
Page 3 REMARK Please follow the user manual for correct installation and testing. If there is any doubt please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra notice for any change. The illustration shown here is only for reference. If there is any difference, please take the actual product as the standard.
Page 4: Table Of Contents
CATALOG PRODUCT FEATURE ..........1 TECHNICAL PARAMETER ........1 PACKAGE CONTENT ..........2 OVERVIEW ............3 BASIC OPERATION ..........4 DEVICE SETTING ..........5 WEB SETTING ............. 10 SYSTEM DIAGRAM ..........26 DEVICE WIRING ..........27 INSTALLATION ............ 30 TROUBLESHOOTING .......... 35 SAFETY INSTRUCTION ........36...
Page 5: Product Feature
PRODUCT FEATURE 1. 8-inch IPS LCD capacitive touch screen 2. 3 output relays for door locks 3. 120° wide-angle 2MP HD camera with automatic lighting 4. Support WDR technology to lighten the dark areas and darken the overexposed parts of the image 5.
Page 6: Package Content
PACKAGE CONTENT MODEL: S617 (Surface Mounting) S617 Screw Screw Fixing Seat Wrench Screw Interface Plate Cable Locking Rain Hood Hang Rope Rear Cover Sealing Plug Plate (Optional) Quick Start Guide MODEL: S617 (Flush Mounting) S617 Screw Screw Fixing Seat Wrech Screw...
Page 7: Overview
OVERVIEW...
Page 8: Basic Operation
BASIC OPERATION 1. Call and Monitor 1.1. Call Indoor Monitor Go to the “CALL” page, press room numbers on Door Station to call Indoor Monitor. During the call, press the hang up icon on Door Station to end the call. If the call fails or Indoor Monitor is busy, Door Station will make a beep sound.
Page 9: Device Setting
DEVICE SETTING Connect Door Station and PC to a network switch in the same LAN. You can enter the admin settings of Door Station by pressing PIN and entering default password (123456). This is where you can configure the device. 1.
Page 10 Building: Number of the building (Building range: 1-999); Unit: Number of the unit (Unit range: 1-99); Device No.: Number of the Index (Unit range: 1-9); System pwd: Administrator password of the Device (Default 123456); Mode: Mode for apt., wall or villa (Unit and Gate) Language: 16 languages supported (简体中文, English, 繁體...
Page 11 DHCP: Enable DHCP (Dynamic Host Configuration Protocol) to dynamically distributing network configuration parameters; Configure Static IP address to manually distributing network configuration parameters; Mask: Subnet mask; Gateway: A component that is part of two networks, which use different protocols; DNS: Domain Name Server of the device;...
Page 12 New User: You can create Users and relate it with face, card, PIN code here; All Users: All users will be shown here and you can edit or delete that; Public PIN Codes,: PIN code for the public; Settings: You can set Relay, Unlock Time, Unlock Delay, Face recognition and Elev Refe.
Page 13 Firmware Version: Firmware version of the device; Current IP address of the device; MAC: MAC address of the device; SIP: Status of SIP registration of the device;...
Page 14: Web Setting
(admin) and password (123456). This is where you can configure the device. For getting the IP address, you can search by DNAKE Remote Upgrade Tool which is installed in the same LAN with the devices. 1. General 1.1.
Page 15 Model: Model of the device; Firmware Version: Firmware version of the device; MAC Address: MAC address of the device; Framework: Framework of the device; UI of the device; MCU: MCU of the device; DHCP: Status of DHCP; IP Address: Current IP address of the device; Mask: Subnet mask of the device;...
Page 16 Language: 16 languages supported (简体中文, English, 繁體中文, ‫ ,ﬠִ בר ִ ית‬Deutsch, Español, Türk, Tiếng Việt, Nederlands, Português, Polski, Русский, ‫,ﻋرﺑﻲ‬ Français, Italiano, slovenský); Resolution: 4 resolutions supported (320 × 240, 640 × 480, 1280 × 720, 1920 x 1080); Intercom: Volume of Intercom can be set from 1 to 6;...
Page 17 1.4. General > Password The System password is for the administrator to log in settings on the device while the Web password is for the administrator to log in settings on the web. The default password for both of them is 123456. System Old Password: Current administrator password of the Device (Default 123456);...
Page 18 Backup&Restore: Backup settings and restore settings; Upgrade: Upgrade equipment; Reset: Reset to factory settings; Reboot: Reboot the device; Packet Capture: Capturing packets can help developers reproduce positioning problems; Logs: Device logs; Screenshot: Screenshot device interface; 2. Intercom 2.1. Intercom > Device...
Page 19 Numbers here are basic settings for making a call to Indoor Monitor. For Door Station, the building and unit number should be the same as those in Indoor Monitor. For Villa Station with one button, the building, unit, and room number should be the same as those in Indoor Monitor.
Page 20 DHCP: Enable DHCP (Dynamic Host Configuration Protocol) to dynamically distribute network configuration parameters; IP Address: Configure Static IP address to manually distribute network configuration parameters; Mask: Subnet mask; Gateway: A component that is part of two networks, which use different protocols; DNS: Domain Name Server of the device;...
Page 21 SIP: Enable to use SIP; Display Name: Display name of SIP; Register Name: Register Name of SIP; Username: Username of SIP; Password: Password of SIP; SIP Server Host: Directly fill in SIP server’s address e.g., 192.168.68.90; The default port is 5060; Outbound Proxy: Outbound Proxy of SIP;...
Page 22 Mode: 2 modes supported (one by one, all at once); Call Concierge URL: Fill in the call destination for concierge button or the single button on the device;  IP call: Fill in sip:IP address, e.g., sip:192.168.68.90;  SIP call: Fill in sip:sip account@SIP server address:port, e.g., sip:101@192.168.68.90:5060;...
Page 23 Search: Fill in text inputs to search; Reset: Click reset to clear words in text inputs; Delete All: Delete all data on the chart; Import: Import all data to the chart; Export: Export all data on the chart; 2.6. Intercom > Call Logs It can support 500 call logs at most;...
Page 24 Type: The type of Call Logs, including incoming and outgoing; Date&Time: The Call Logs will be filtered by the Date&Time you set; Search: Fill in text inputs to search; Reset: Click reset to clear words in text inputs; Delete All: Delete all data on the chart;...
Page 25 Relay 1-3: 3 relays supported; DTMF: Dual-tone multi-frequency signaling (Relay1: #, Relay2:0, relay3: *); Unlock Delay: The length of unlock delay time (1-9s); Unlock Time: The length of unlock time (1-9s); Dry Contact Input 1-3: 3 modes of dry contact inputs are supported (Exit Button, Door Sensor, Fire Linkage);...
Page 26 Search: Fill in text inputs to search; Reset: Click reset to clear words in text inputs; Add: Add users to Door Station; Delete All: Delete all data on the chart; Export: Export all data on the chart; 3.3. Access > Unlock Logs It can support 500 unlock logs at most.
Page 27 Name: The name of the person you add; Person Type: The Person Type you set on person column. Including None, Household and Visitors; Unlock Type: The type of Unlock Logs, including Card, Password, Intercom, Exit button, Face, APP and HTTP; Date&Time: The Unlock Logs will be filtered by the Date&Time you set;...
Page 28 More column is for Advertise, Tamper Alarm, Wallpaper, Periodic Sleep and ONU Penetration. Advertise: Enable to advertise on the screen saver of the device; URL: Advertise URL; Time (minutes): The time length of advertise display (10mins, 20mins, 30mins); Tamper Alarm: Enable to use Tamper alarm;...
Page 29 should be lower than 512KB. The format of Picture should be JPG or PNG; Periodic Sleep: User can set the schedule to make the device screen keep off; ONU Penetration: Enable to prevent ONU from banning multicast; Call mode: Switch to RoomNo. calls or SIP calls; Address: Filling in your location on the homepage.
Page 30: System Diagram
SYSTEM DIAGRAM...
Page 31: Device Wiring
DEVICE WIRING 1. Network (PoE+) Standard RJ45 interface is for the connection with PoE+ switch or other network switch. PSE of power supply equipment shall comply with IEEE 802.3at (PoE+), with output power not less than 30W and output voltage not less than SOV. 2.
Page 32 Warning! 1. When connecting to an inductive load device such as a relay or electromagnetic lock, you are recommended to use a diode 1A/400V (included in the accessories) in anti- parallel with the load device to absorb inductive load voltage peaks.
Page 33 The interface can be connected to one IC/ID card reader or be used for reading the information of built-in card reader. Note: Door station can only be connected to one card reader or management device at a time.
Page 34: Installation
INSTALLATION Surface Mounting-86 Mounting Box Product size: 140 × 300 × 37.8 mm Surface Mounting size: 140 × 300 × 41.8 mm...
Page 35 Flush Mounting Product size: 140 × 300 × 37.8 mm Flush Mounting size: 140 × 300 × 60.3 mm Mounting hole size: 134 × 296 × 46...
Page 36 Surface Mounting & Rain Hood (Optional) Product size: 140 × 300 × 39.8 mm Surface Mounting Product size: 145 × 311 × 88 mm Hole-cutting size: 134 × 296 × 46 m...
Page 37 Flush Mounting & Rain Hood (Optional) Product size: 140 × 300 × 39.8 mm Flush Mounting product size: 145 × 311.5 × 88 mm Hole-cutting size: 134 × 296 × 46...
Page 38 Tips: The camera should be 1450~1550mm above the ground. The camera at this height can capture human face perfectly.
Page 39: Troubleshooting
TROUBLESHOOTING The Indoor Monitor cannot start up or power off automatically. Check whether it has power-failure, and power it on again  The Indoor Monitor display screen is too dim. Check whether the brightness and contrast settings of screen are correct. ...
Page 40: Safety Instruction
SAFETY INSTRUCTION In order to protect you and others from harm or your device from damage, please read the following information before using the device. Do not install the device in the following places:  Do not install the device in high-temperature and moist environment or the area close to ...
Page 41 FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 42 RF exposure statement This equipment complies with the FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Page 43 V1.1 EASY SMART INTERCOM SOLUTIONS...
