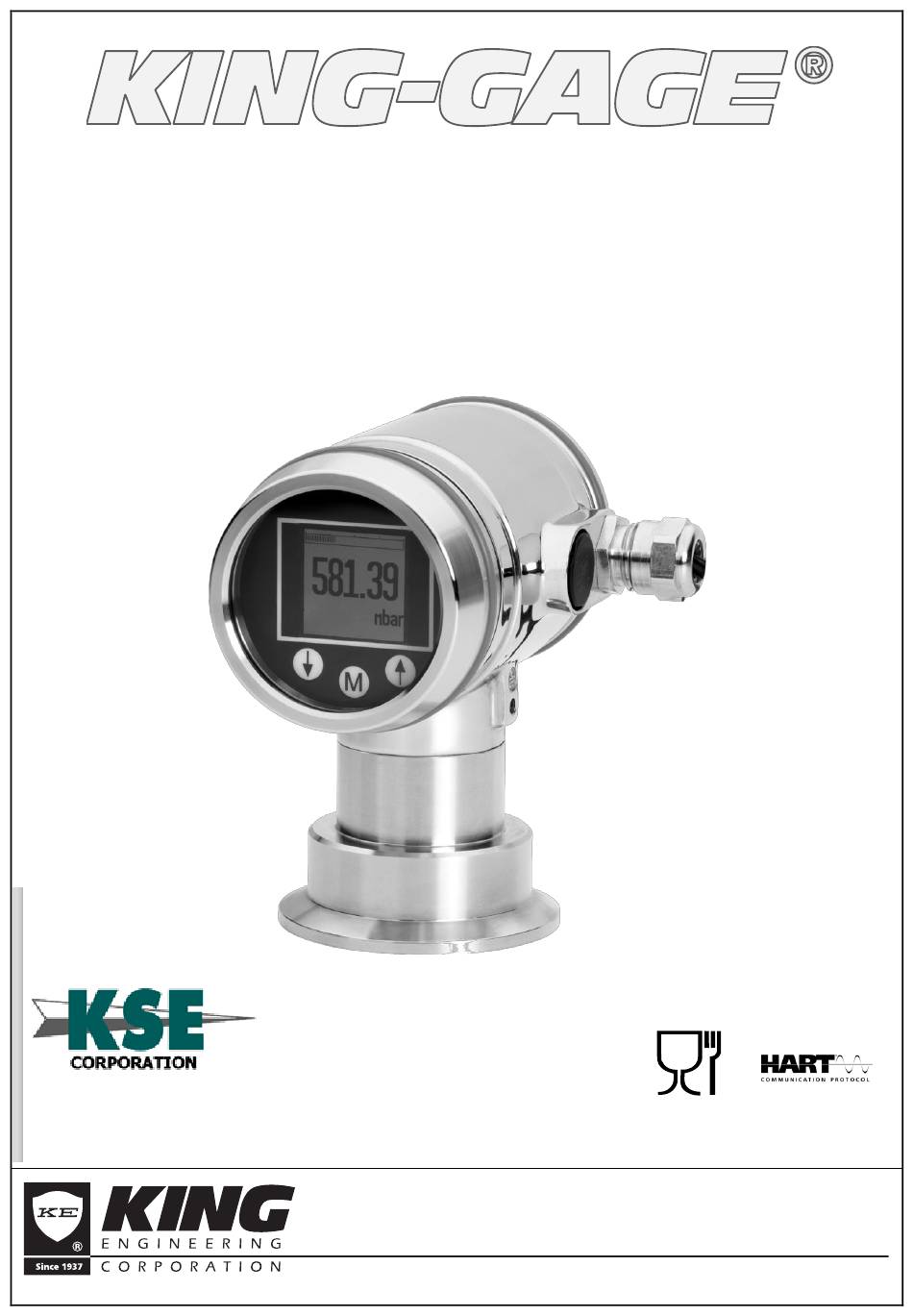

- Page 1 Quick Start Guide "Intelligent" Pressure and Level Transmitters SERIES 5800 1-(800)-573-4243 www.ksecorp.com 8019 Ohio River Blvd, PO Box 305 Newell WV, 26050 U.S.A. Phone: (304) 387-1200 FAX: (304) 367-4417 www.king-gage.com ...
- Page 2 Quick Start Guide Series 5800 TABLE OF CONTENTS Page DISPLAY AND PUSH BUTTONS.......................3 DISPLAY READOUT SUMMARY PROGRAMMING POINTS EXPLANATION PROGRAMMING POINTS..................4-7 ZERO ADJUSTMENT (ZERO) SPAN ADJUSTMENT (SPAN) CANCEL MOUNTING POSITION EFFECT DISPLAY SETTING OF UNITS OUTPUT SELECTION 4-20 mA or 20-4 mA DAMPING ADJUSTMENT TEMPERATURE UNITS DEVICE SETUP...
- Page 3 Quick Start Guide Series 5800 DISPLAY AND PUSH BUTTONS The Series 5800 has a high contrast display for optimal readout. The menu is controlled by three buttons. Navigate with the up and down arrows through the menus and adjust measuring values. Enter a menu and confirm selections with the menu button.
- Page 4 Quick Start Guide Series 5800 EXPLANATION OF PROGRAMMING POINTS ZERO ADJUSTMENT (ZERO) The transmitter is set to 0 PSI at atmospheric pressure. The ZERO can be adjusted to a lower or higher point. Example: Increase ZERO to 2 PSI 1. The measuring unit of the transmitter is set to PSI. If not, this can be selected by choosing the right measuring unit in program point P104.
- Page 5 Quick Start Guide Series 5800 CANCEL MOUNTING POSITION EFFECT The transmitter might exhibit a small "mounting position" effect at the zero. In other words, the pressure value displayed could vary depending on how the transmitter is oriented when installed. 1. Navigate to program point P103, and push the button to enter the menu.
- Page 6 Quick Start Guide Series 5800 Select Reset, and push the button to confirm the reset back to factory default. The transmitter will return to the home screen. TEMPERATURE UNITS In this menu the preferred temperature unit can be selected. 1.
- Page 7 Quick Start Guide Series 5800 3. Select Mode Cntrl, and push to confirm. 4. Two choices appear on the screen: “On” and “Off” Choose On to turn on burst mode. Choose Off to turn off burst mode. 5. Select Message to select the burst message 0,1,2 or 3 and push the button to confirm.
