WebGate HD CCTV OPT-RX16-RS485C Instruction Manual

The World's first certified by
HDcctv Alliance
Instruction Manual Rev 1.1
16 CHANNEL FIBER OPTIC RECEIVER
supports CoC/RS485
OPT-RX16-RS485C
※ Please read instruction manual carefully before installing or using this
product.
Product Features
1. This product converts HD-SDI / EX-SDI signal to optical signal and
transmits it.
2. CoC(Control over Coax) and video transmission can be done with a
single coaxial cable.
3. Video/Data (RS485) transmission up to 20 Km through single mode
fiber-optic cable.
4. Supports 1080p25/30 video.
5. LED indicators for power, video, data and fiber-optic status.
Device Connection Method
1. Connect camera's video output to transmitter's "HD-SDI In" using coaxial cable.
- Non PoC Camera: Connect power supply and RS485 to control PTZ and OSD of camera.
- PoC Camera: No need for power and RS485 connection.
2. Connect transmitter and receiver using single mode LC type fiber-optic cable.
- When connecting optical cable to the converter, insert fully until you hear a click sound.
- As shown in Figure 1, pull the lever to lock the optical cable not to fall off from the converter.
3. Connect receiver's "HD-SDI Out" to DVR's "HD-SDI In" using coaxial cable.
- Non PoC DVR: Connect RS485 to control PTZ and OSD of camera.
- PoC DVR: No need for RS485 connection.
- For each channel, set the DIP switch in front of receiver to select CoC or RS485.
4. Check the status of LED indicators to confirm the correct connections.
- Power: Red LED will be lit if the power is on.
- HD-SDI: Green LED will be lit if the video signal is entered through fiber-optic cable.
- Optic: Green LED will be lit if transmitter and receiver are connected each other.
- CoC(RX): Green LED will be lit if the camera control signal is entered.
5. Check the monitor connected at DVR whether all connected channels are properly displayed.
All manuals and user guides at all-guidesbox.com

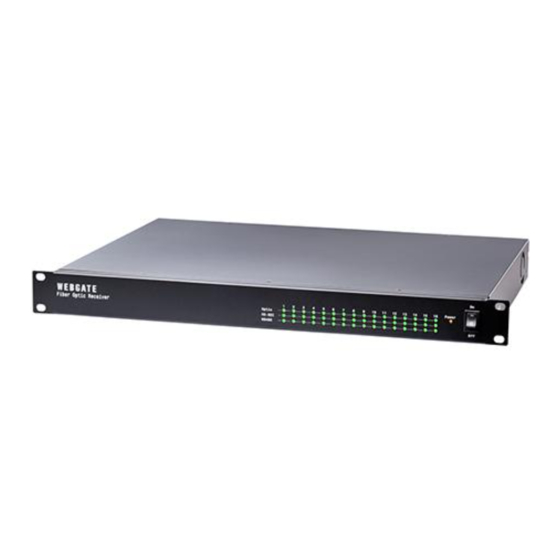

Components
Receiver
16Ch RX
Accessories
Instruction Manual Power Cable Adapter
WEBGATE Inc.
6F, Hanlim Venture Town B/D, 284 Gongdanro,
Gunpo-Si, Gyeonggi-do, Korea
TEL: +82-31-428-9300
FAX: +82-31-428-9400
Client Service: +82-1644-3421
sales@webgateinc.com
support@webgateinc.com
www.webgateinc.com
Premium to your HD-CCTV solution
Precautions
Fiber-Optic Cable
1. For Cable connection, do not bend the cable
narrower than 30 mm (minimum allowable
refraction range).
2. Do not pull the cable from both ends.
3. Do not spin the optical cable while the cable is
connected to connector.
4. Do not knot the optical cable.
Coax Cable
The impedance of the coaxial cable and BNC connectors must be 75 Ohm.
HD-SDI / EX-SDI maximum transmission distance depends on the cable
manufacturer or installation environment.
Note) When selecting a cable, consider the maximum transmission
distance of the cable which depends on its attenuation at 750 MHz.
(dB/100m < 25dB of attenuation is recommended.)
Note) Foamed or high-foamed insulation cable is recommended.
Note) Double or triple shielded cable is recommended.
Specification
Model OPT-RX16-RS485C
Function 16 Channel Fiber Optic Receiver
Video Standard HD-SDI SMPTE 292M (+ EX-SDI)
Resolution SMPTE 274M (1080p25/30)
Function Equalizing, Reclocking, Upstream Signaling, Control over Coax
CoC Control over Coaxial Baudrate: 57600
Impedance 75 ohm
Fiber Optic Type Single mode
Optic Connector Type LC
HD-SDI / EX-SDI Length Approx. 180m (HD-SDI) / 400m (EX-SDI) @ 5C-HFBT
Fiber Length Approx. 20Km @ 1.5Gbps
Data Channel RS485 Upstream (Remote Control from DVR to Camera)
Indicator LED Power(Red), Optic(Green), HD-SDI(Green), CoC(Green)
Operating Temperature / Humidity 0˚C ~ 50˚C / 20%RH ~ 80%RH
Power Consumption Max. 30 W
Dimension (W x D x H) 361 x 483 x 44 mm
Weight 4.5 Kg
Certifications KC, FCC, CE, RoHS
Trouble Shooting [FAQ]
Trouble & Symptom Way to Solve
√ Check the power is properly connected
Can not turn on the to the equipment.
equipment, and LED √ Check the input power voltage..
indicators do not work. √ If it still does not work, please check
the power adapter or replace it.
√ Check video of camera connected to
transmitter. If there is no video output
from camera, nothing could be shown
Nothing shows on the on the screen.
screen. √ Check the power and cable connections
of camera.
√ Check the cable connections between
camera, transmitter, receiver and DVR.
√ Check the RS485 connection among
camera, transmitter, receiver and DVR.
√ Check the polarity of RS485(+,-).
Can not control camera's √ Check the setting of DVR and camera.
OSD menu and PTZ If the setting values such as baudrate,
protocol, address are not properly
configured, camera control can not be
achieved.
