North Light OCL-1169 Quick Start Manual

Solar light system panel
Please read the entire instruction manual before using the product and then keep it
for future reference. We accept no liability for any errors in the text or images
and we reserve the right to make any necessary changes to technical data.
If you experience any technical problems or have questions, please contact our
customer service team.
Safety
• Handle the product with care. Make sure that you do not damage the surface of
the solar cell and that it does not become covered with dust or other dirt.
• The product must not be changed or modified in any way.
• Do not let children play with the product.
Product description
• Solar cell with built-in battery and twilight function.
• This product belongs to the "Flexible solar system" series.
• The lights and cables are sold separately.
• The solar cell can be mounted on a ground spike or on a wall.

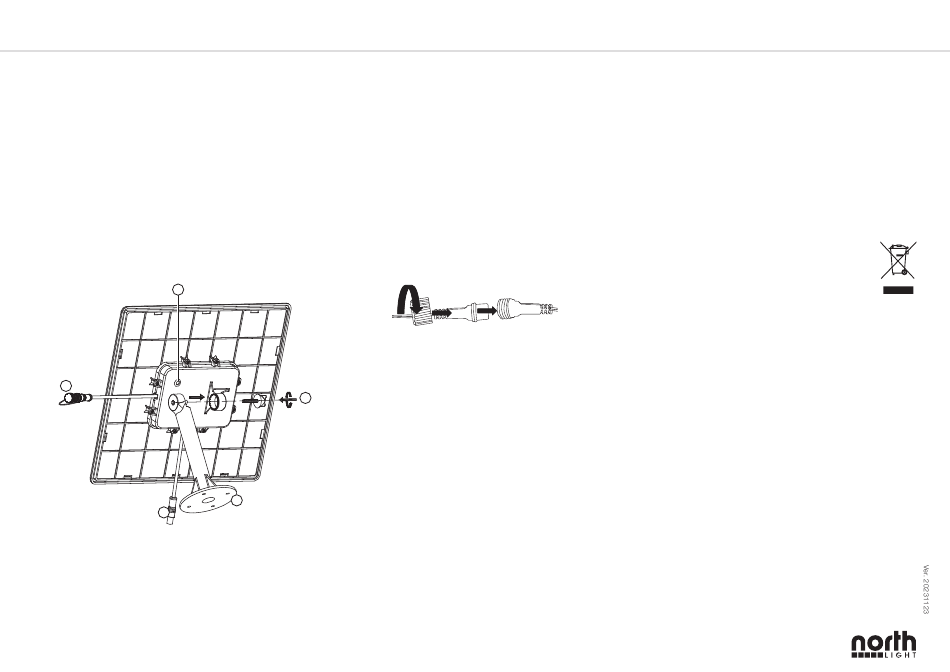

1
5
4
1. On/off
2. Wing screw
3. Bracket
4. Light outlet
5. Mains adapter socket
Mounting on a ground spike
1. Fit the bracket (3) as shown in the figure using the wing screw (2) provided.
2. Push the ground spike into the ground and firmly press the solar cell bracket
onto the spike.
3. Position the solar panel so that it is exposed to maximum sunlight and
tighten the wing screw.
Mounting on a wall
1. Using the bracket as a template, mark out the position of the mounting holes on
the wall where you want to install the solar cell.
2. Use an appropriate type of fastener for the wall and screw the bracket in place.
Note: Ensure that there are no electrical wires or water pipes in the wall where
you intend to screw/drill.
3. Mount the solar cell on the bracket as shown in the figure using
the wing screw (2) provided.
4. Position the solar panel so that it is exposed to maximum sunlight and
tighten the wing screw.
Connecting the light
Connect the light to the solar panel outlet (4) as shown in the figure
(the connector only fits in one way) and tighten the lock nut.
Note: You can attach a maximum of 5 lights to each system with a maximum cable
length of 20 metres.
Power from a wall socket
2
If the solar panel is unable to supply enough power to connected lights, the system
can be supplemented with a power adapter.
• With the power adapter connected via the solar panel, it will only supply power
to connected lights.
Note! The adapter will not charge the solar panel's built-in battery.
In this mode, the solar panel only works as a twilight sensor.
• The lights can also be powered directly by the power adapter without the solar
panel connected. The lighting will then be constantly on.
On/off
3
There is an on/off (1) switch on the back of the solar cell. You can choose between:
ON: On, with the twilight sensor activated.
The light will automatically come on at dusk and switch off at dawn.
OFF: Constantly off
Art.no 36-9423 Model OCL-1169
Cleaning and care
Clean the product with a soft damp cloth. Use a mild detergent.
Never use solvents or abrasive cleaning agents.
Troubleshooting
The light will not come on:
• Make sure the switch is in the ON position.
• The light sensor may be preventing the light from coming on.
Cover the solar cell. The light should come on.
• The battery is not properly charged. Put the solar cell in the sunlight.
• The solar cell is dirty and needs to be cleaned.
• Check that none of the cables are damaged and that they are all
properly connected.
Responsible disposal
This symbol indicates that the product should not be disposed of
with general household waste. This applies throughout the entire EU.
In order to prevent any harm to the environment or health hazards
caused by incorrect waste disposal, the product must be handed in
for recycling so that the material can be disposed of in a responsible
manner. To recycle the product, take it to your local recycling facility or
contact the retailer. They will ensure that the product is disposed of in
a way that does not harm the environment.
Specifications
Solar panel
Batteries
Charging time
Lighting time
IP rating
Temperature range
Dimensions
Weight
15 W
4 × 18650 3.7 V/3000 mAh Li-ion
4–8 hours in direct sunlight
Up to 8 hours with 5 lights connected and
a fully charged battery
IP44
–25 to +60ºC
350 x 320
1.5 kg
ENGLISH
