Summary of Contents for GGMgastro TKKMAT2

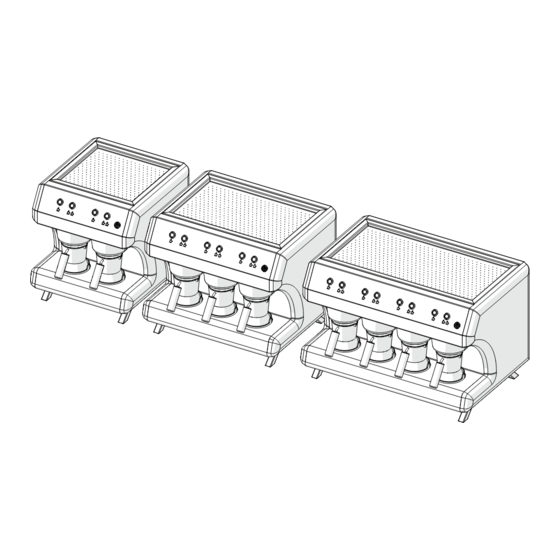

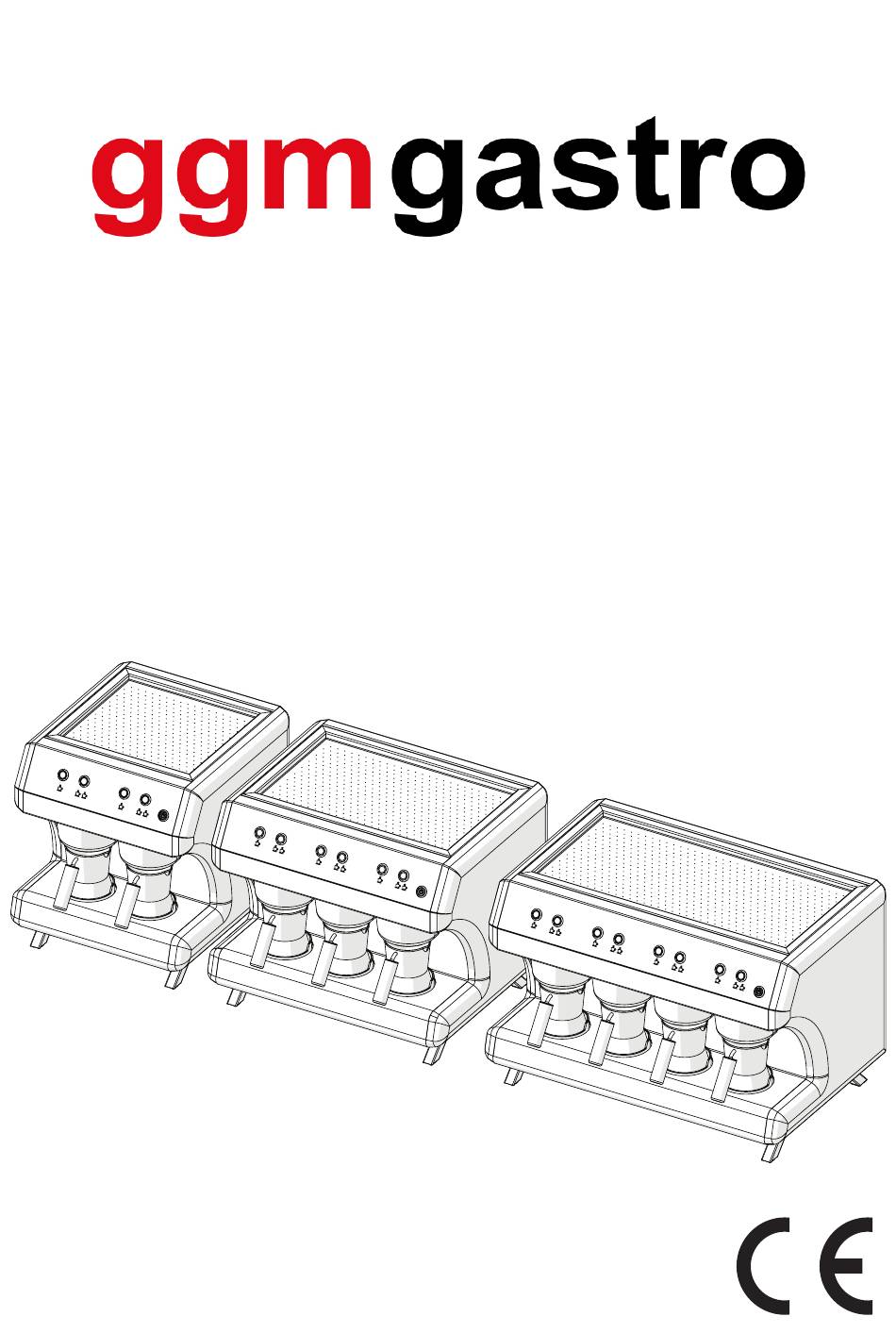

- Page 1 TURKISH COFFEE MACHINE User guide Read it before starting it. There are important explanations for you. TKKMAT2 TKKMAT3 TKKMAT4...
-
Page 2: Table Of Contents
ingredients Technical Information Tables ................3 General Warnings and Security Measures.........4-5-6-7 Setup..........................8 Quantities and sizes of coffee ................9 Operation and Use ....................10 Basic and Technical Characteristics ..............11 Cleaning and Maintenance ...................12 Spare Parts List ..................13-14-15 Electrical Technical Data Sheet and Information............16 Electrical Connections............17-18-19-20-21-22-23 When you want to dispose of the product, of course, it is the social responsibility of individuals to deliver it to valid collection points that... -
Page 3: Technical Information Tables
Technical Information Tables GENERAL INFORMATION TKMMAT2 TKMMAT3 TKMMAT4 Model Product Dimensions 380×410×410 510×410×410 640×410×410 (cm) Net Weight(kg) 21,5 MOQ of Coffee Pot Number of Servings 2 x 2 3 x 2 4 x 2 Storage Capacity (lt) 0.8 Liters 1.2 Liters 1.5 Liters Water Pressure Max. - Page 4 General Warnings and Safety Precautions Dear customer, we wish you to use your product, which is manufactured by undergoing quality controls in a careful and detailed manner, in the best way. We strongly recommend that you read the entire user manual before using the product. This guide will help you use the product quickly and safely.
-
Page 5: General Warnings And Security Measures
General Warnings and Security Measures - Always follow the applicable safety instructions. - Keep the user manual in a place where you can easily access it for future use, understanding its importance, and do not lose it. - The manufacturer reserves the right to make changes to the product. - Page 6 General Warnings and Security Measures NOT SUITABLE FOR OUTDOOR USE The Maximum And Minimum Ambient temperature For Proper Operation is Between 10 Degrees And 23 Degrees Should be. In Case of Freezing, It can Operate the Device Safely After Waiting for 2 Hours at a Temperature of 20 Degrees Turkish Coffee Is Not Suitable For Use In Different Types of Coffee Teeth.
- Page 7 General Warnings and Security Measures This device is designed for use at home and in similar applications, such as: - staff kitchen areas in shops, offices and other working environments; - by customers in farmhouses, hotels, motels and other accommodation-type environments;...
-
Page 8: Setup
Setup -Always make the installation of the product and the electrical connections to the authorized service. The manufacturer is not responsible for any damage to the product caused by operations performed by unauthorized persons. - Please note that the connection lines are made correctly and completely before installation. -
Page 9: Quantities And Sizes Of Coffee
Quantities and sizes of coffee You can make sparkling Turkish coffee according to your taste by using the measurements indicated in the table. The measurements indicated below are only a guide. You can adjust these Measurements according to your personal pref- erences. -
Page 10: Operation And Use
Operation and Use Operate Place the the device coffee pot. by pressing the On/Off The red light will flash If you want to choose when your coffee is which portion, press the ready. The beep will button on it. sound. - Do not touch hot surfaces while resistance is running. -
Page 11: Basic And Technical Characteristics
Basic and Technical Characteristics Dimensions of the Model before side back E:ELECTRICAL INPUT S:WATER INLET PRODUCT CODE TKMMAT2 380 mm 410 mm 410 mm TKMMAT3 510mm 410 mm 410 mm TKMMAT4 640 mm 410 mm 410 mm... -
Page 12: Cleaning And Maintenance
Cleaning and Maintenance - Do not proceed to the cleaning process without unplugging the device. - Do not clean the device before it cools down. - Do not use corrosive chemicals and steel cleaning materials when cleaning. - Make sure that there is no liquid contact with the area where the electronic components of the device are located. -
Page 13: Spare Parts List
Spare Parts List TKMMATT PART NO explanation P118609 White Metal Spring Tact Button with Ring Light P099957 On-Off Button M035999 The upper hiding part of the coffee pot... - Page 14 Spare Parts List TKMMAT PART NO explanation Sheet P0113168 Coffee Pot Base Spring Action Fixing Pin P097719 Resistance Part Spring P107277 Bottom Coffee Pot Heater P095500 Sheet P112869 Coffee Pot Seating Slot P107914 Sheet P113546 Full Tooth Imbus Bolt Rustm P350512 Copper Coffee Pot P095273...
- Page 15 Spare Parts List PART NO explanation Elevator Printing Group M038126 Elevator Mechanism M038856 Coffee pot timer M040066 coffee pot detection Swich P006063...
-
Page 16: Electrical Technical Data Sheet And Information
Electrical Technical Tables and Information Cable Cross Product Power Supply Voltage Section Frequency Insurance Code HO5RR - F TKMMAT2 1,253 Kw 230 V 3x2,5 TTR 50-60 hz TKMMAT3 1,863 Kw 230 V 3x2,5 TTR 50-60 hz TKMMAT4 2,473 Kw 230 V 3x2,5 TTR 50-60 hz - The device must be connected to the electrical installation in... -
Page 17: Electrical Connections
Electrical Connections TKMMAT TKMMAT BADGER BUTTON ELECTRICAL CONNECTIONS... - Page 18 Electrical Connections TKMMAT TKMMAT MOTORS AND PROBES ELECTRICAL CONNECTIONS...
- Page 19 Electrical Connections TKMMAT...
- Page 20 Electrical Connections TKMMAT TKMMAT 2/3/4 MESH CARD CONNECTION DIAGRAM...
- Page 21 Electrical Connections TKMMAT TKMMAT 3-EYE CARD CONNECTION DIAGRAM...
- Page 22 Electrical Connections TKMMAT TKMMAT4-EYE CARD CONNECTION DIAGRAM...
- Page 23 Electrical Connections TKMMAT TKMMAT RESISTANCE AND ON OFF CONNEC- TION DIAGRAM...
