PARADISE GRILLS GXL-45 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

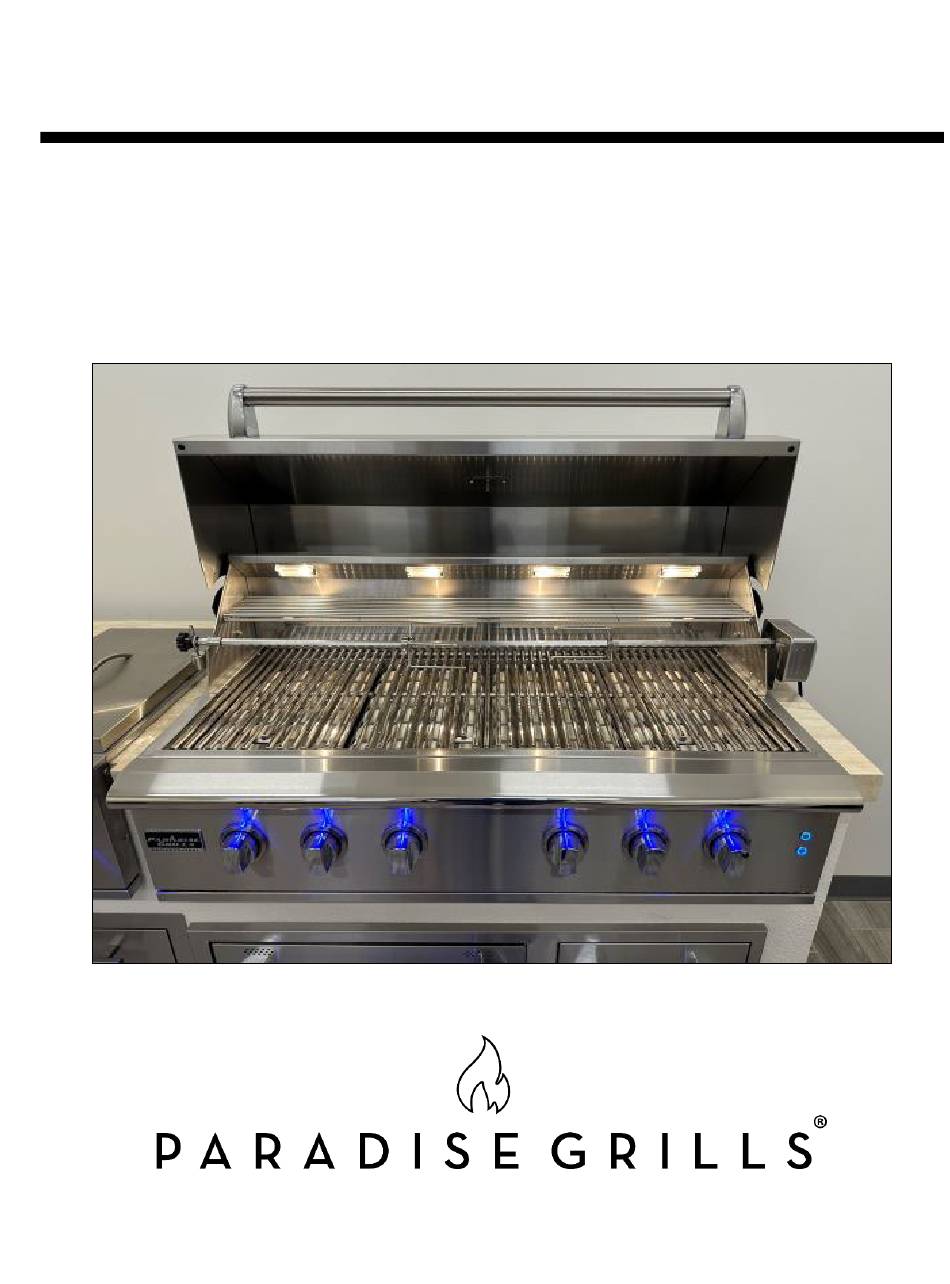

GXL-45 Grill
Professional
Operator Manual

Advertisement

Table of Contents
loading

Related Manuals for PARADISE GRILLS GXL-45

Summary of Contents for PARADISE GRILLS GXL-45

  • Page 1 GXL-45 Grill Professional Operator Manual...
  • Page 2 GXL-45 Operator Manual Version 4 February 2024 The content of this manual is the property of Paradise Grills International, Inc. All rights reserved. Any reproduction, in whole or in part, is strictly prohibited without express written consent of Paradise Grills International, Inc.

  • Page 3: Table Of Contents

    Outdoor Rated Electric Cord ..............11 Safety Equipment ..................11 Grill Covers ....................11 Grill Island Preparation Paradise Grills Island Ventilation ................12 Clearances ........................ 13 Custom Island Construction ................... 13 Planning Considerations ................14 Custom Built Island Ventilation ..............15 Custom Built Island Cut-outs ..............
  • Page 4 Leak Test ........................27 Operating the Grill Warnings and Cautions ................... 29 Normal Lighting ......................30 Manual Lighting ......................31 Using the Grill ......................32 First Time Operation ................... 32 Main Burners ....................32 Rear Infrared Burner ................... 33 Indirect Heating ................... 33 Rotisserie ........................

  • Page 5: Safety Considerations

    EXPLOSION HAZARD – Do not use the grill as storage area for flammable materials. Keep area clear and free from combustible materials, gasoline, and other flammable vapors and liquids. Failure to do so can result in death, explosion, or fire. GXL-45 Operator Manual Safety Considerations • 3...

  • Page 6: Gas Safety

    The installation must conform with local codes, or, in the absence of local codes, with one of the following, as applicable: • National Fuel Gas Code, ANSI Z223.1/NFPA 54 • Natural Gas and Propane Installation Code, CSA B149.1 Propane Storage and Handling Code, CSA B149.2 • 4 • Safety Considerations GXL-45 Operator Manual...

  • Page 7: Tank Requirements

    3. Remove cylinder from the enclosure; have it replaced or filled at your local qualified propane dealer 4. Connect the regulator valve a. Hold the regulator so it is aligned with the cylinder valve b. Thread the coupling nut onto the valve and tighten clockwise until there is resistance GXL-45 Operator Manual Safety Considerations • 5...

  • Page 8: Leak Testing

    With all burners off, open the gas source valve and spray a soap/water solution on all joints. Growing bubbles indicate leaking gas. Correct any leaks immediately. Leak Test on page for more detail. 6 • Safety Considerations GXL-45 Operator Manual...

  • Page 9: Transporting And Storing Lp Gas Cylinder

    The gas supply must be turned off at the LP Gas supply cylinder and the LP Gas supply cylinder must be disconnected from the regulator when this outdoor cooking gas appliance is not in use GXL-45 Operator Manual Safety Considerations • 7...

  • Page 10: Specifications

    Specifications Grill Specifications THIS MANUAL APPLIES TO THE FOLLOWING MODELS: GXL-45 NG/LP PROFESSIONAL GRILL BBQ Dimensions 44.1” x 24.3” x 21.7" BTU Output 20,500 BTU per Burner x4 Infrared Back Burner 9,600 BTU x2 Ignition Piezo Ignition System Cooking Area 738 sq.

  • Page 11: Customer Required Items

    You must equip your grill island with an appropriate mounting base or bracket to hold a 20 lb. LP cylinder upright, such as the examples shown in Figure 3: Figure 3 Example LP Cylinder Mounts GXL-45 Operator Manual Specifications • 9...

  • Page 12: Gas Regulator

    This does not apply to portable propane installations using a 20-pound cylinder. Delivery company employees are not licensed electricians or plumbers and shall NOT install or connect any gas regulators or supply lines, electrical connections or lines, or plumbing. 10 • Specifications GXL-45 Operator Manual...

  • Page 13: Outdoor Rated Electric Cord

    Outdoor Rated Electric Cord Your Paradise Grills Outdoor Kitchen’s base is pre-wired with a Ground Fault Circuit Interrupter (GFCI) electrical outlet installed. This electrical box has a hanging plug pigtail for connection to an existing GFCI electrical outlet for power supply. The customer must supply an outdoor-rated extension cord long enough to reach your chosen electrical outlet.

  • Page 14: Grill Island Preparation

    Grill Island Preparation Paradise Grills Island Ventilation BBQ Grill Islands and Island Bars manufactured by Paradise Grills are portable and must be adequately vented as shown in Figure 4: a. Use the provided adjustable footers to ensure the island’s entire bottom edge, on all sides, is always at least 1”...

  • Page 15: Clearances

    Do not install or operate the grill in or on a recreational vehicle, trailer, boat, marine craft, or other moving conveyance. Paradise Grills makes no warranties or representations as to the safe and proper design, construction, ventilation, or installation of a custom-built grill island.

  • Page 16: Planning Considerations

    (non-closable) ventilation. If you are in doubt, consult your local codes or a licensed contractor for guidance. Measure: Always have equipment measured by a Contractor before building. 14 • Grill Island Preparation GXL-45 Operator Manual...

  • Page 17: Custom Built Island Ventilation

    Please allow for a tolerance of +/- 1/8"; we recommend having your appliances in hand to measure before making final cutouts in your custom-built grill island Figure 7 Example Island Cut-outs for Paradise Grills Appliances GXL-45 Operator Manual Grill Island Preparation • 15...

  • Page 18: Grill Dimensions

    Grill Dimensions The GXL-45 grill outer dimensions are shown below: Figure 8 GXL-45 Dimensions 16 • Grill Island Preparation GXL-45 Operator Manual...

  • Page 19: Grill Assembly

    Grill Assembly Your Paradise Grills appliance comes pre-assembled and requires very little setup. We do, however, recommend the use of professional help during the installation of your grill as improper installation may void your warranty. The grill is very heavy and requires two people to lift.

  • Page 20: Install The Grill

    Figure 10 Burner Air Gap d. Replace the burner – position the burner tube into the valve opening (Figure 11, left), then insert the mounting pin into the hole on the far side (Figure 11 right) 18 • Grill Assembly GXL-45 Operator Manual...
  • Page 21 Figure 12 Grill Rests on Island Frame 5. Carefully snip the zip ties around the electrical cable at the right rear corner of the grill (Figure 13); DO NOT CUT THE WIRE Figure 13 Electrical Cable GXL-45 Operator Manual Grill Assembly • 19...
  • Page 22 8. Check to ensure the grill is level and properly supported around the entire outside edge of cut-out 9. If the grill is not level or is unstable, use non-combustible shims under the outside lip to level and stabilize it 20 • Grill Assembly GXL-45 Operator Manual...

  • Page 23: Grill Setup

    4. Remove the grate sections from the plastic and set in place on the support rail with the lift hole in front and the 3 bars on the bottom Figure 17 Grill in Place GXL-45 Operator Manual Grill Assembly • 21...
  • Page 24 Insert the plug until it is fully seated (Figure 20 center) c. Slide the gnarled locking nut to the threads and hand-tighten until it stops; do not force 8. Plug in the LED light power supply and test the lights: 22 • Grill Assembly GXL-45 Operator Manual...

  • Page 25: Electrical Precautions

    Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance malfunctions or has been damaged in any manner; contact Paradise Grills to discuss service options, or call a licensed professional for inspection and repair Do not let the cord hang over the edge of a table or touch hot surfaces •...

  • Page 26: Connect Grill To Gas Source

    20 lb., 12 1/4" diameter, 18" high cylinder with right-handed connection threads; this is the maximum size LP tank to be used. The cylinder must be marked in accordance with: 24 • Connect Grill to Gas Source GXL-45 Operator Manual...

  • Page 27: Connection

    2. Connect a suitable natural gas flex connector to the grill regulator Figure 23 Natural Gas Connection 3. Turn on the main gas supply and check all connections for leaks as described in the Leak Test procedure below GXL-45 Operator Manual Connect Grill to Gas Source • 25...

  • Page 28: Liquid Petroleum Gas

    Figure 25 LP Cylinder Connection 6. Rotate the regulator coupler nut clockwise until you meet resistance, then tighten another 1/2 to 3/4 turn. Tighten by hand only – do not use any tools 26 • Connect Grill to Gas Source GXL-45 Operator Manual...

  • Page 29: Leak Test

    On LP systems, turn the cylinder valve knob counterclockwise one turn to open • 3. Spray the soapy water solution on all joints of the gas delivery system (Figure 27) GXL-45 Operator Manual Connect Grill to Gas Source • 27...
  • Page 30 9. If bubbles continue to appear after trying a few times, turn the gas source OFF and inspect the leaking gas connections to ensure they are tight and not cross-threaded 10. If no bubbles appear after a minute, wipe away the soap solution and proceed 28 • Connect Grill to Gas Source GXL-45 Operator Manual...

  • Page 31: Operating The Grill

    Do not store any LP cylinder or tank, that is not connected for use with the grill, in the vicinity of this grill or any other appliance. Never store an LP cylinder or tank indoors, or within the reach of children. GXL-45 Operator Manual Operating the Grill • 29...

  • Page 32: Normal Lighting

    7. If the burner does not light on the second try, push in the burner knob and rotate to OFF: a. Open all access doors and drawers, and keep the grill hood open b. Wait five minutes until the gas clears before attempting to light it again 30 • Operating the Grill GXL-45 Operator Manual...

  • Page 33: Manual Lighting

    (Figure 29, right); push in the rear burner control knob, hold for 2-3 seconds, then rotate counterclockwise to HI; ensure the burner ignites and stays lit GXL-45 Operator Manual Operating the Grill • 31...

  • Page 34: Using The Grill

    Use HIGH burner setting for searing, heavy cooking, preheating, and cleanup • Use other burner settings to create temperatures to suit your personal cooking preferences • Temperatures will vary with outside temperatures and wind conditions 32 • Operating the Grill GXL-45 Operator Manual...

  • Page 35: Rear Infrared Burner

    Turn on one or two burners to control the temperature, and place the meat over the burners that are off. Indirect heat greatly reduces flare-ups. A drip pan can also be used to collect fat and juices. GXL-45 Operator Manual Operating the Grill • 33...

  • Page 36: Rotisserie

    2. Use a Phillips head screwdriver to tighten the mounting screws until they are tight (Figure 33 left) 3. Slide the Shaft Collar onto the spit rod as shown below right, with the groove to the outside; do not tighten 34 • Operating the Grill GXL-45 Operator Manual...

  • Page 37: Operating Tips

    Using the rear burner with the rotisserie can provide excellent and tasty meals. There are thousands of rotisserie recipes, and we encourage you to try as many as you like using your new grill and rotisserie! Here are some tips for success to use with any recipe: GXL-45 Operator Manual Operating the Grill • 35...
  • Page 38 Before cooking, preheat the grill. Use a high temperature on the infrared burner for the initial sear to brown the outside of your food, then reduce heat for slow cooking as recommended in your 36 • Operating the Grill GXL-45 Operator Manual...
  • Page 39 Place the rod in a safe place to cool – it is very hot! GXL-45 Operator Manual Operating the Grill • 37...

  • Page 40: Cleaning And Maintenance

    Routinely wipe down the exterior and interior of the grill to remove grease and splatters. Use a good stainless steel cleaner to clean and polish the exterior surfaces. Doing so on a regular basis minimizes the 38 • Cleaning and Maintenance GXL-45 Operator Manual...

  • Page 41: Corrosive Environmental Conditions

    Routinely have a professional barbecue cleaning company detail the grill for best results and • longevity • DO NOT flood a hot cooking surface with cold water – doing so may cause the grill to warp or crack GXL-45 Operator Manual Cleaning and Maintenance • 39...

  • Page 42: Cleaning The Drip Tray

    If the grill was uncovered during rain, check the drip tray to drain any water from the tray. Preventive Maintenance Replacement parts are available from Paradise Grills International, Inc. Contact us at 800-604-2023 for assistance. At least twice a year conduct the following inspections to ensure safe grill operation:...

  • Page 43: Spiders And Other Insects

    Check and clean burner/venturi tubes every 6 months for insects and insect nests, and clean as needed. GXL-45 Operator Manual Cleaning and Maintenance • 41...

  • Page 44: Troubleshooting

    Adjust Air Gap If adjusting the burner orifice doesn’t result in an appropriate flame, adjusting the air flow at the air mixers should help. 1. Remove the burners per the Install the Grill procedure 42 • Troubleshooting GXL-45 Operator Manual...

  • Page 45: Confirm Gas Type

    3. Inspect the number stamped on the main orifice (circled above right); 1.1 indicates LPO gas, and 1.5 indicates natural gas GXL-45 Operator Manual Troubleshooting • 43...

  • Page 46: Convert To Another Gas Type

    6. Replace the orifice with the change-out orifice; brass fittings are fragile and very little pressure is needed for a secure connection; follow these precautions: Use a shallow socket to ensure enough threads are exposed to get it started (Figure 39 right) • 44 • Troubleshooting GXL-45 Operator Manual...
  • Page 47 Pull off the knob and adjust the setscrew shown in Figure 43 until the flame is 1/2" to 1” high c. Align the knob opening with the shaft and press the knob back into position GXL-45 Operator Manual Troubleshooting • 45...

  • Page 48: Rear Burner Conversion

    Natural gas orifice size – 1.1 mm • LP gas orifice size – 1.0 mm 4. Complete orifice leak check after gas is supplied 5. Close the access panel; install and tighten all 4 screws 46 • Troubleshooting GXL-45 Operator Manual...

  • Page 49: Parts Diagrams

    BACK COVER IR IGNITER COVER WARMING RACK IGNITER LIGHT STAINLESS STEEL FLEX LINE ELECTRODE WIRE FIREBOX STS BURNERS FLAME TAMER COOKING GRATE DRIP TRAY KNOB KNOB BEZEL SWITCH LED WIRE ASSEMBLY CONTROL PANEL GXL-45 Operator Manual Parts Diagrams • 47...
  • Page 50 TRANSFORMER WIRE REAR BURNER VALVE MAIN BURNER VALVE GAS MANIFOLD ASM NG OR LP REGULATOR TRANSFORMER ROTISSERIE ASSEMBLY MOTOR MOTOR BRACKET SPIT ROD FORK THUMBSCREW SHAFT COLLAR KEY WASHER BLACK PHENOLIC HANDLE COUNTER BALANCE 48 • Parts Diagrams GXL-45 Operator Manual...

  • Page 51: Grill Diagram

    Grill Diagram GXL-45 Operator Manual Parts Diagrams • 49...

  • Page 52: Limited Manufacturer's Warranty

    Limited Manufacturer’s Warranty Limited Warranty Paradise Grills International, Inc. (PGS) warrants the GXL-45 PROFESSIONAL GRILL from the later of the date of purchase or delivery as follows: limited lifetime warranty on structural integrity of stainless steel housing to be free from original manufacturing defects;...
  • Page 53 File your written claim for damages immediately with the delivery company, regardless of the extent of damage. PGS and Paradise Grills Direct, Inc. (collectively, “Paradise Grills”) shall not be liable for any damage that occurs during shipment. If damages are unnoticed until the grill is unpacked, immediately notify the delivery company and file a written concealed damage claim with them.

  • Page 54: Warranty Claim Submission

    Final Sales Agreement either: via email to Warranty.Claim@paradisegrills.com; or (ii) via U.S. mail to Paradise Grills International, Inc., Attn: Warranty Claim, 640 Ocoee Business Parkway, Suite 80, Ocoee, Florida 34761. For more information, please call Paradise Grills International, Inc. at 800-604-2023.
