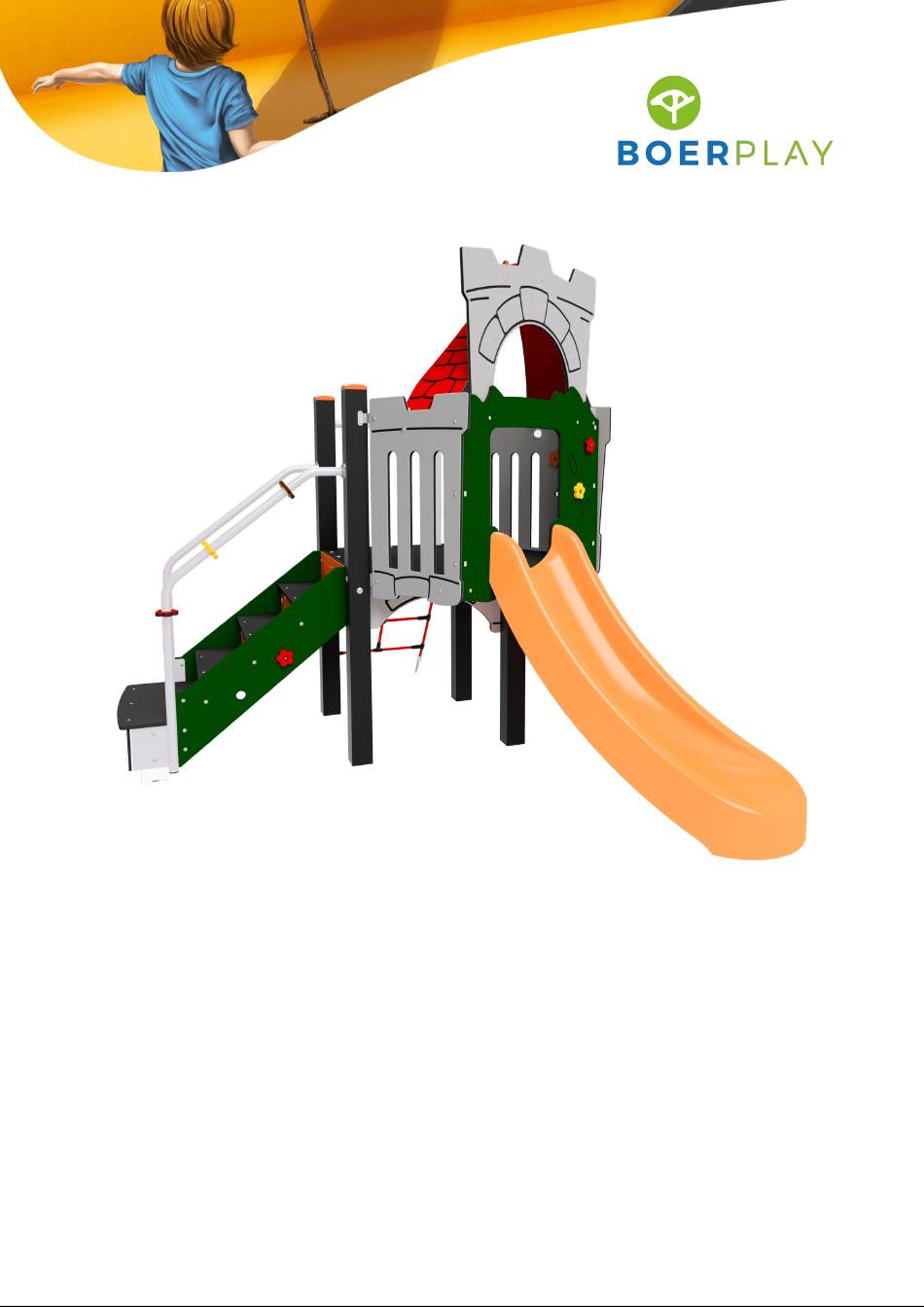

  • Page 1 Castle Kaiserburg BBIE110.CBP...

  • Page 2: Installation Instructions

    Il est conseillé de ne pas orienter de FR - Important ! l’équipement avec toboggans vers le sud. Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. © Copyright BOERplay 23-3-2020 Revision: BBI 110 CxP MV...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 2,63 m 2,42 m 1,90 m 1,10 m 0,00 m 2,42 m 1,81 m 0,95 m 0,00 m ≤0,20m © Copyright BOERplay 23-3-2020 Revision: BBI 110 CxP MV...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacle 5,93 m 4,98 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacle © Copyright BOERplay 23-3-2020 Revision: BBI 110 CxP MV...
  • Page 5 Nivel del suelo para postes de metal Nivel del suelo para postes de plástico o madera Niveau au sol pour poteaux en métal Niveau au sol pour poteaux en plastique ou en bois © Copyright BOERplay 23-3-2020 Revision: BBI 110 CxP MV...

  • Page 6: Assembly Manual

    Roestvrij staal Kunststof Blauw aluminium Zwart aluminium Hout Edelstahl Kunststoff Blaues Aluminium Schwarzes Aluminium Holz Acero inoxidable Plastico Aluminio azul Aluminio negro Madera Acier inoxydable Plastique Aluminium bleu Aluminium noir Bois © Copyright BOERplay 23-3-2020 Revision: BBI 110 CxP MV...
  • Page 7 Ø5 mm Ø11 mm Ø12 mm Ø14 mm 4.8mm Only for metal posts Alleen voor metalen staanders Nur für Pfosten aus Metall Solo para postes de metal Seulement pour poteaux en métal © Copyright BOERplay 23-3-2020 Revision: BBI 110 CxP MV...
  • Page 8 1 / 7 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage assembly manual module MOD.BBI.001.xMV 2 / 7 assembly manual module MOD.BBI.131.xMV © Copyright BOERplay 23-3-2020 Revision: BBI 110 CxP MV...
  • Page 9 3 / 7 assembly manual module MOD.BBI.118 4 / 7 assembly manual module MOD.BBI.125 © Copyright BOERplay 23-3-2020 Revision: BBI 110 CxP MV...
  • Page 10 5 / 7 assembly manual module MOD.BBI.142.xMV 6 / 7 assembly manual module MOD.BBI.137.MV © Copyright BOERplay 23-3-2020 Revision: BBI 110 CxP MV...
  • Page 11 7 / 7 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com © Copyright BOERplay 23-3-2020 Revision: BBI 110 CxP MV...
  • Page 12 LOGBOOK Type indication Figura Play Article number BBIE110.CBP Product Name Castle Kaiserburg Maximum fall height 1,0 m Construction year 2023 Certificate 063173 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 13 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 14: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 15 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 17 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 001 B © Copyright BOERplay 18-8-2023 Revision: C...
  • Page 18 A (18x) SME.BBI.053.372 Detail B (4x) Detail A (18x) 40 mm 35 mm BSR.026.008.040 KST.DON.010.060 BSR.026.008.035 BSR.030.008.016 BSR.030.008.016 BSR.011.008.015 BSR.010.008.008 KST.DOP.010.060 BSR.010.008.008 BSR.011.008.015 BSR.026.008.035 BSR.026.008.040 BSR.030.008.016 KST.BBI.011.LPE KST.DON.010.060 KST.DOP.010.060 SME.BBI.053.372 MOD BBI 001 B © Copyright BOERplay 18-8-2023 Revision: C...
  • Page 19 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois KST.LAM.100.100 18 mm 50 mm ø5mm ø3mm x 30 BSR.014.005.052 BSR.002.005.050 KST.LAM.100.100 BSR.014.005.052 BSR.002.005.050 MOD BBI 001 B © Copyright BOERplay 18-8-2023 Revision: C...
  • Page 20 Poteaux en plastique ou en bois 70 mm KST.LAM.013.006 BSR.002.005.070 Glue NL Lijm DE Kleber ES Pegamento 50 mm FR Colle ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 18 mm BSR.002.005.050 KST.LAM.013.006 BSR.014.005.052 MOD BBI 001 B © Copyright BOERplay 18-8-2023 Revision: C...
  • Page 21 OME.KAP.100.204 SMD.BBI.500 S.BBI.004.B S.BBI.001.B S.BBI.001.B S.BBI.001.B Detail C (8x) 120 mm BSR.026.010.120 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.010.010 BSR.026.010.120 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 ! Max 12 Nm ! SMD.BBI.500 MOD BBI 001 B © Copyright BOERplay 18-8-2023 Revision: C...
  • Page 22 Metalen staanders Kunststof of houten staanders Pfosten aus Metall Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois MOD BBI 125 © Copyright BOERplay 4-3-2020 Revision: A...
  • Page 23 1 / 5 OPE.BBI.078.062 OPE.BBI.058.072 Detail A (4x) OPE.BBI.030.xxx KST.ROR.006.000 KST.ROR.006.000 BSR.053.005.030 BSR.053.005.030 OPE.BBI.038.090 30 mm BSR.053.005.030 KST.ROR.006.000 OPE.BBI.030.010 OPE.BBI.030.022 OPE.BBI.030.032 OPE.BBI.038.090 OPE.BBI.058.072 OPE.BBI.078.062 MOD BBI 125 © Copyright BOERplay 4-3-2020 Revision: A...
  • Page 24 OPE.BBI.059.072 B (3x) C (2x) B (3x) C (4x) C (3x) Detail B (6x) Detail C (9x) BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 BSR.052.008.060 OME.BBI.021 OPE.BBI.059.072 MOD BBI 125 © Copyright BOERplay 4-3-2020 Revision: A...
  • Page 25 3 / 5 OPE.BBI.060.072 Detail D (4x) BSR.035.008.002 KST.DON.010.020 BSR.052.008.060 BSR.010.008.008 BSR.010.008.008 KST.DOP.010.020 BSR.035.008.002 BSR.052.008.060 KST.DON.010.020 KST.DOP.010.020 OPE.BBI.060.072 MOD BBI 125 © Copyright BOERplay 4-3-2020 Revision: A...
  • Page 26 OPE.BBI.044.032 OPE.BBI.064.022 OME.BBI.056 OME.BBI.056 Detail B (8x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 Detail E (4x) BSR.010.008.008 BSR.010.010.010 BSR.030.010.002 BSR.026.010.040 BSR.010.010.010 BSR.030.010.002 KST.DOP.010.020 BSR.052.008.060 BSR.026.010.040 KST.DON.010.020 KST.DON.010.020 KST.DOP.010.020 OME.BBI.021 OME.BBI.056 OPE.BBI.044.032 OPE.BBI.045.032 OPE.BBI.064.022 MOD BBI 125 © Copyright BOERplay 4-3-2020 Revision: A...
  • Page 27 BSR.026.010.040 BSR.030.010.002 BSR.030.010.002 KST.DON.010.020 BSR.010.010.010 KST.DOP.010.020 KST.DOP.010.020 BSR.026.010.040 SME.BBI.002 KST.DON.010.020 MOD.BBI.125.A BSR.014.005.052 MOD.BBI.125.G BSR.002.005.050 KST.ROR.006.000 Detail F (2x) MOD.BBI.125.A MOD.BBI.125.G 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 MOD BBI 125 © Copyright BOERplay 4-3-2020 Revision: A...
  • Page 28 Metalen staanders Kunststof of houten staanders Pfosten aus Metall Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 29 1 / 5 11mm Remove floor fixings (2x) NL Verwijder vloer bouten (2x) DE Bodenbefestigungen entfernen (2x) ES Retire las fijaciones del piso (2x) FR Retirer les fixations au sol (2x) MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 30 2 / 5 SME.BBI.003.916 Detail A (2x) BSV.030.010.002 BSV.023.010.050 BSV.023.010.050 BSV.030.010.002 SME.BBI.003.916 MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 31 3 / 5 MOD.BBI.131.A BSR.014.005.052 MOD.BBI.131.G KST.ROR.006.000 BSR.002.005.050 Detail B (2x) MOD.BBI.131.A MOD.BBI.131.G 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 32 4 / 5 OPE.BBI.090.062 SNT.BBI.003 Detail C (3x) BSR.023.010.040 BSR.034.010.002 KST.ROR.010.000 BSR.023.010.040 BSR.034.010.002 KST.ROR.010.000 OPE.BBI.090.062 SNT.BBI.003 MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 33 5 / 5 ✔ ✔ 0,58 m 0,95 m Detail D (2x) BSV.020.006.040 BSV.035.006.020 OPE.BBI.223.xxx BSV.010.006.006 BSV.035.006.020 BSV.020.006.040 BSV.035.006.020 BSV.010.006.006 OPE.BBI.223.xxx MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 34 Plastic or wooden posts Metalen staanders Kunststof of houten staanders Pfosten aus Metall Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois MOD BBI 118 © Copyright BOERplay 28-2-2020 Revision:...
  • Page 35 1 / 2 OPE.BBI.061.072 Detail A (3x) BSR.011.008.015 BSR.030.008.016 BSR.030.008.016 BSR.052.008.035 OPE.BBI.061.072 BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 MOD BBI 118 © Copyright BOERplay 28-2-2020 Revision:...
  • Page 36 2 / 2 MOD.BBI.118.A BSR.014.005.053 MOD.BBI.118.G KST.ROR.006.000 BSR.002.005.070 Detail B (4x) MOD.BBI.118.A MOD.BBI.118.G 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 MOD BBI 118 © Copyright BOERplay 28-2-2020 Revision:...
  • Page 37 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 142 x © Copyright BOERplay 17-10-2022 Revision: B...
  • Page 38 A (4x) OPE.BBI.098.022 KST.BBI.013.LPE A (4x) OPE.BBI.097.022 KST.BBI.013.LPE A (4x) OPE.BBI.096.022 KST.BBI.014.LPE OPE.BBI.095.062 Detail A (12x) ✔ BSR.010.008.008 BSR.010.008.008 BSR.052.008.060 KST.BBI.013.LPE KST.BBI.014.LPE OME.BBI.021 OME.BBI.021 OPE.BBI.094.062 BSR.052.008.060 OPE.BBI.095.062 OPE.BBI.096.022 OPE.BBI.097.022 OPE.BBI.098.022 OPE.BBI.099.022 MOD BBI 142 x © Copyright BOERplay 17-10-2022 Revision: B...
  • Page 39 B (3x) B (3x) B (3x) B (3x) Detail B (12x) KST.ROR.006.000 BSR.053.005.035 35 mm KST.ROR.006.000 BSR.053.005.035 MOD BBI 142 x © Copyright BOERplay 17-10-2022 Revision: B...
  • Page 40 OPE.BBI.100.006 Detail A (3x) Detail C (10x) BSR.011.008.015 ✔ BSR.030.008.016 BSR.052.008.035 BSR.010.008.008 BSR.010.008.008 BSR.011.008.015 BSR.030.008.016 OME.BBI.021 BSR.052.008.060 BSR.052.008.035 35 mm BSR.052.008.060 OME.BBI.021 OPE.BBI.054.010 60 mm OPE.BBI.054.022 OPE.BBI.054.032 OPE.BBI.100.006 SME.BBI.016.916 SME.BBI.017.916 MOD BBI 142 x © Copyright BOERplay 17-10-2022 Revision: B...
  • Page 41 Detail D (2x) Detail F (2x) OME.BBI.036.916 BSR.030.010.002 BSR.023.010.030 KST.LAM.042.003 KST.DOP.006.030 Detail E (1x) OPE.BBI.030.xxx KST.ROR.006.000 BSR.023.010.030 KST.ROR.006.000 BSR.030.010.002 BSR.053.005.030 BSR.053.005.030 BSR.053.005.030 KST.DOP.006.030 KST.LAM.042.003 OPE.BBI.038.090 30 mm KST.ROR.006.000 OME.BBI.036.916 OPE.BBI.030.032 OPE.BBI.038.090 MOD BBI 142 x © Copyright BOERplay 17-10-2022 Revision: B...
  • Page 42 Detail H (2x) OME.MNP.009.905 OPE.BBI.048.006 Detail C (4x) Detail G (4x) BSR.010.010.010 BSR.010.010.010 BSR.011.008.015 BSR.011.008.015 BSR.030.010.002 BSR.014.005.052 BSR.030.008.016 BSR.026.010.040 BSR.014.005.053 BSR.052.008.035 BSR.026.010.040 BSR.030.008.016 BSR.030.010.002 35 mm BSR.052.008.035 OME.MNP.009.905 OPE.BBI.047.006 OPE.BBI.048.006 MOD BBI 142 x © Copyright BOERplay 17-10-2022 Revision: B...
  • Page 43 Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 50 mm 18 mm KST.ROR.006.000 BSR.014.005.052 ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBI 142 x © Copyright BOERplay 17-10-2022 Revision: B...
  • Page 44 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 KST.ROR.006.000 BSR.002.005.070 BSR.014.005.053 MOD BBI 142 x © Copyright BOERplay 17-10-2022 Revision: B...
  • Page 45 Modul manual de instalación del módulo instructions d'installation du module MOD BBI 137 © Copyright BOERplay 30-4-2019 Revision: A...
  • Page 46 1 / 3 POL.BPK.004.203 12 mm 12 mm POL.BPK.004.203 MOD BBI 137 © Copyright BOERplay 30-4-2019 Revision: A...
  • Page 47 2 / 3 Detail A (4x) BSR.023.010.040 KST.ROR.010.000 BSR.017.010.005 BSR.017.010.005 BSR.023.010.040 KST.ROR.010.000 POL.BPK.004.203 MOD BBI 137 © Copyright BOERplay 30-4-2019 Revision: A...
  • Page 48 3 / 3 Detail B (4x) BSR.030.010.002 BSR.011.010.020 BSR.011.010.020 BSR.030.010.002 MOD BBI 137 © Copyright BOERplay 30-4-2019 Revision: A...
