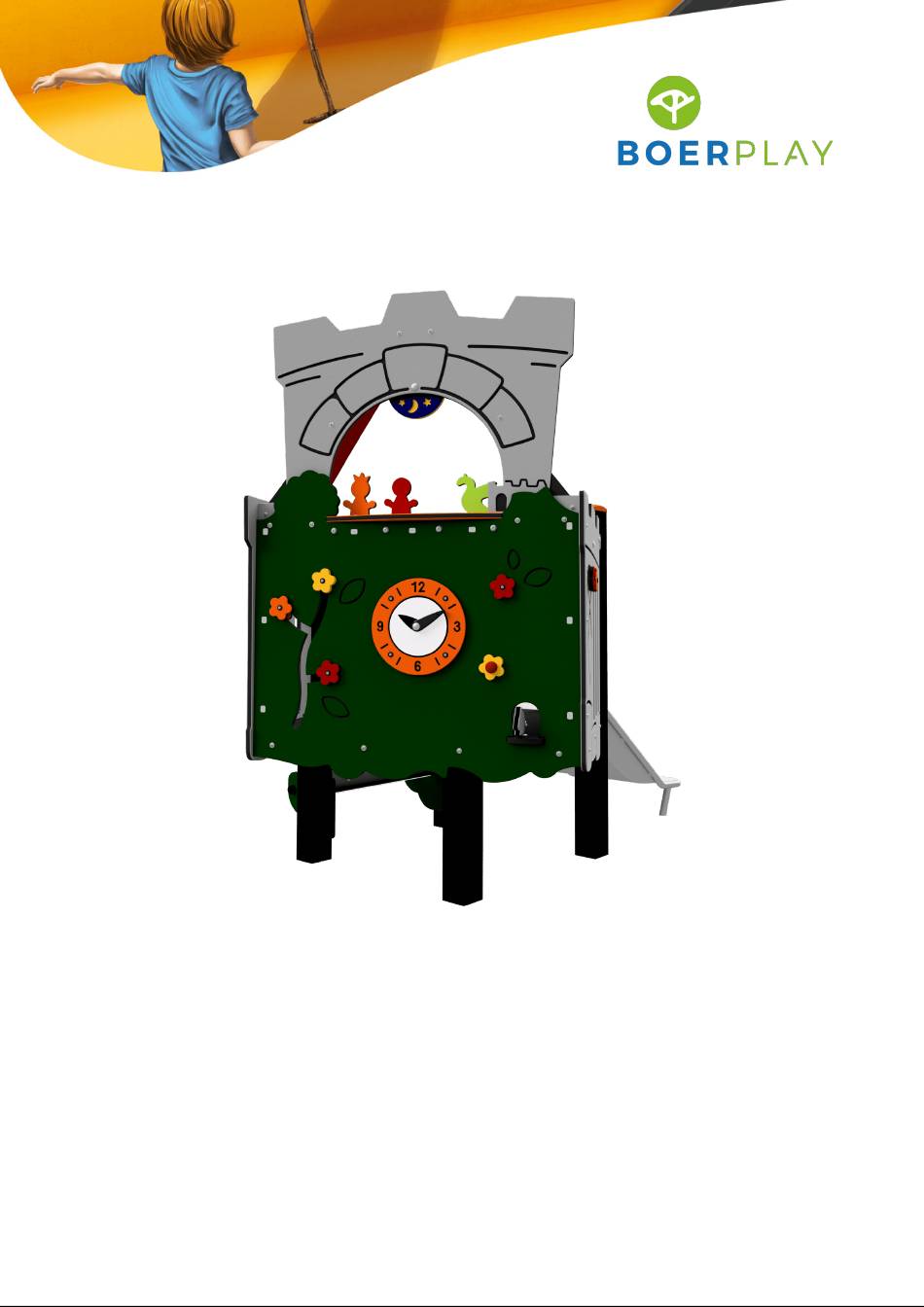

  • Page 1 Poppentheater Kasteel Harlech BBI.111.CUR...

  • Page 2: Installation Instructions

    Il est conseillé de ne pas orienter de FR - Important ! l’équipement avec toboggans vers le sud. Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. © Copyright BOERplay 4-11-2021 Revision: BBI 111 CxR...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 1,62 m 1,10 m 0,30 m 0,00 m 2,06 m 1,45 m 0,59 m ≤ 0.20m 0,28 m 0,00 m © Copyright BOERplay 4-11-2021 Revision: BBI 111 CxR...
  • Page 4 5,46 m 0,50 m 2,00 m 2,96 m 1,01 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles © Copyright BOERplay 4-11-2021 Revision: BBI 111 CxR...
  • Page 5 Nivel del suelo para postes de metal Nivel del suelo para postes de plástico o madera Niveau au sol pour poteaux en métal Niveau au sol pour poteaux en plastique ou en bois © Copyright BOERplay 4-11-2021 Revision: BBI 111 CxR...

  • Page 6: Assembly Manual

    - assembly manual - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD.BBI.144.x MOD.BBI.108.x MOD.BBI.109.x MOD.BBI.148 MOD.BBI.006.x MOD.BBI.006.x MOD.BBI.108.x MOD.BBI.109.x MOD.BBI.144.x MOD.BBI.148 MOD.BBI.159 © Copyright BOERplay 4-11-2021 Revision: BBI 111 CxR...
  • Page 7 Outils nécessaires TX-25 No. 10 (2x) TX-40 No. 13 (2x) No. 17 (2x) TX-25 12 Nm No. 10 No. 13 No. 17 Ø3 mm Ø5 mm Ø11 mm Ø12 mm Ø4.8 mm © Copyright BOERplay 4-11-2021 Revision: BBI 111 CxR...

  • Page 8: Order Of Assembly

    1 / 6 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage assembly manual module MOD.BBI.006.x 2 / 6 assembly manual module MOD.BBI.108.x assembly manual module MOD.BBI.144.x © Copyright BOERplay 4-11-2021 Revision: BBI 111 CxR...
  • Page 9 3 / 6 assembly manual module MOD.BBI.159 4 / 6 assembly manual module MOD.BBI.109.x © Copyright BOERplay 4-11-2021 Revision: BBI 111 CxR...
  • Page 10 5 / 6 assembly manual module MOD.BBI.148 6 / 6 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com © Copyright BOERplay 4-11-2021 Revision: BBI 111 CxR...
  • Page 11 LOGBOEK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type aanduiding Figura Play Artikelnummer BBI.111.CUR Naam toestel Poppentheater Kasteel Harlech Maximale valhoogte 0,6 m Bouwjaar 2023 Certificaat...
  • Page 12 LOGBOEK Inspectie en onderhoud Datum Tijdstip Naam Naam Geconstateerde Te vervangen inspectie inspectie uitvoerder uitvoerder gebreken onderdelen onderhoud onderhoud inspectie onderhoud Ongevallen Genomen Datum Leeftijd Vermoedelijk oorzaak letsel Opgetreden persoonlijk letsel maatregel n.a.v. ongeval slachtoffer ongeval...
  • Page 13 Inspectie en onderhoud intervallen Maanden Nr. Inspectie Onderhoud tussen controle Speeltoestel controleren op stabiliteit, goede Ontbrekende onderdelen toevoegen, verbindingen en ontbrekende onderdelen. verbindingen vastdraaien. Ontbrekende Bouten, schroeven en moeren controleren op bevestigingsmiddelen aanbrengen en ontbreken, vastzitten, corrosie en slijtage gecorrodeerde onderdelen vervangen. Vervangen van versleten onderdelen en/of Ophangingen controleren op slijtage.
  • Page 14 6. Controleer het terrein regelmatig op zaken die er niet thuis horen, onveilig zijn of uitnodigen tot verkeerd gebruik, bijvoorbeeld giftige planten, glas enz. De controle frequentie is afhankelijk van de belasting. 7. Bedenk dat slecht onderhoud leidt tot onveiligheid en aantoonbare snellere verpaupering van de speelomgeving.
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 006 U © Copyright BOERplay 17-8-2023 Revision: C...
  • Page 17 A (18x) SME.BBI.053.372 Detail B (4x) Detail A (18x) 40 mm 35 mm BSR.026.008.040 KST.DON.010.060 BSR.026.008.035 BSR.030.008.016 BSR.030.008.016 BSR.011.008.015 BSR.010.008.008 KST.DOP.010.060 BSR.010.008.008 BSR.011.008.015 BSR.026.008.035 BSR.026.008.040 BSR.030.008.016 KST.BBI.011.LPE KST.DON.010.060 KST.DOP.010.060 SME.BBI.053.372 MOD BBI 006 U © Copyright BOERplay 17-8-2023 Revision: C...
  • Page 18 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois KST.LAM.100.100 18 mm 50 mm ø5mm ø3mm x 30 BSR.014.005.052 BSR.002.005.050 KST.LAM.100.100 BSR.014.005.052 BSR.002.005.050 MOD BBI 006 U © Copyright BOERplay 17-8-2023 Revision: C...
  • Page 19 Poteaux en plastique ou en bois 70 mm KST.LAM.013.006 BSR.002.005.070 Glue NL Lijm DE Kleber ES Pegamento 50 mm FR Colle ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 18 mm BSR.002.005.050 KST.LAM.013.006 BSR.014.005.052 MOD BBI 006 U © Copyright BOERplay 17-8-2023 Revision: C...
  • Page 20 OME.KAP.100.204 SMD.BBI.500 S.BBI.012.K S.BBI.011.K S.BBI.011.K S.BBI.011.K Detail C (8x) 120 mm BSR.026.010.120 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.010.010 BSR.026.010.120 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 ! Max 12 Nm ! SMD.BBI.500 MOD BBI 006 U © Copyright BOERplay 17-8-2023 Revision: C...
  • Page 21 Plastic or wooden posts Metalen staanders Kunststof of houten staanders Pfosten aus Metall Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois MOD BBI 109 © Copyright BOERplay 1-4-2020 Revision:...
  • Page 22 1 / 9 OPE.BBI.292.062 Detail A (1x) KST.DOP.010.020 BSR.010.010.010 BSR.030.010.002 KST.DON.010.020 Detail B (1x) OPE.BBI.119.006 KST.BBI.021 OPE.BBI.137.090 BSR.030.010.002 BSR.026.010.080 BSR.010.010.010 BSR.026.010.080 BSR.030.010.002 KST.BBI.021 KST.BUS.012.020 KST.BUS.012.020 KST.DON.010.020 KST.DOP.010.020 OPE.BBI.119.006 OPE.BBI.137.090 OPE.BBI.292.062 MOD BBI 109 © Copyright BOERplay 1-4-2020 Revision:...
  • Page 23 2 / 9 OPE.BBI.136.022 C (4x) Detail C (4x) 35 mm BSR.053.005.035 BSR.053.005.035 KST.ROR.006.000 KST.ROR.006.000 OPE.BBI.136.022 MOD BBI 109 © Copyright BOERplay 1-4-2020 Revision:...
  • Page 24 BSR.031.005.000 KET.005.002.029 OPE.BBI.033.072 BSR.031.005.000 BSR.010.010.010 Detail E (6x) BSR.023.010.080 OPE.BBI.030.xxx BSR.030.010.002 BSR.031.005.000 BSR.053.005.030 KST.ROR.006.000 KET.005.002.029 KST.DON.010.030 KST.DOP.010.030 KST.ROR.006.000 KST.ROR.006.000 BSR.053.005.030 OPE.BBI.030.010 BSR.053.005.030 OPE.BBI.030.022 OPE.BBI.030.032 OPE.BBI.032.010 OPE.BBI.038.090 OPE.BBI.033.072 OPE.BBI.038.090 30 mm OPE.BBI.058.072 OPE.BBI.221.010 MOD BBI 109 © Copyright BOERplay 1-4-2020 Revision:...
  • Page 25 4 / 9 OPE.BBI.059.072 Detail F (9x) BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 Detail G (6x) ✔ BSR.010.008.008 BSR.010.008.008 OME.BBI.021 BSR.011.008.015 BSR.052.008.060 BSR.030.008.016 BSR.052.008.035 BSR.052.008.060 OME.BBI.021 OPE.BBI.059.072 MOD BBI 109 © Copyright BOERplay 1-4-2020 Revision:...
  • Page 26 5 / 9 OPE.BBI.228.072 Detail H (1x) KST.DOP.010.020 BSR.010.010.010 BSR.030.010.002 KST.DON.010.020 BSR.030.010.002 BSR.026.010.060 KST.BUS.012.020 Detail I (4x) BSR.010.008.008 BSR.010.010.010 BSR.026.010.060 BSR.052.008.060 BSR.030.010.002 BSR.035.008.002 KST.DOP.010.020 BSR.052.008.060 BSR.010.008.008 KST.DON.010.020 KST.DOP.010.020 BSR.035.008.002 OPE.BBI.214.051 OPE.BBI.228.072 KST.DON.010.020 KST.BUS.012.020 MOD BBI 109 © Copyright BOERplay 1-4-2020 Revision:...
  • Page 27 6 / 9 OPE.BBI.293.022 Detail G (3x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBI.293.022 MOD BBI 109 © Copyright BOERplay 1-4-2020 Revision:...
  • Page 28 7 / 9 OPE.BBI.289.062 KET.005.002.014 KET.005.002.014 KET.005.002.014 OPE.BBI.231.022 OPE.BBI.232.061 OPE.BBI.217.032 Detail J (6x) BSR.031.005.000 KET.005.002.014 KET.005.002.014 BSR.031.005.000 OPE.BBI.289.062 OPE.BBI.232.061 OPE.BBI.231.022 MOD BBI 109 © Copyright BOERplay 1-4-2020 Revision:...
  • Page 29 8 / 9 Detail K (4x) KST.DOP.010.060 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 BSR.010.010.010 BSR.023.010.060 BSR.030.010.002 BSR.030.010.002 KST.DON.010.060 BSR.023.010.060 KST.DOP.010.060 MOD BBI 109 © Copyright BOERplay 1-4-2020 Revision:...
  • Page 30 OPE.BBI.064.022 OPE.BBI.044.032 OPE.BBI.045.032 OME.BBI.056 OME.BBI.056 Detail G (6x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 Detail L (4x) BSR.010.008.008 BSR.010.010.010 BSR.026.010.040 BSR.030.010.002 BSR.052.008.060 BSR.026.010.040 KST.DON.010.020 KST.DON.010.020 KST.DOP.010.020 OME.BBI.021 BSR.030.010.002 OME.BBI.056 BSR.010.010.010 OPE.BBI.044.032 KST.DOP.010.020 OPE.BBI.045.032 OPE.BBI.064.022 MOD BBI 109 © Copyright BOERplay 1-4-2020 Revision:...
  • Page 31 BSR.010.010.010 BSR.026.010.040 BSR.030.010.002 BSR.026.010.040 KST.DON.010.020 KST.DOP.010.020 KST.DON.010.020 SME.BBI.002 BSR.030.010.002 MOD.BBI.109.A BSR.010.010.010 BSR.014.005.052 KST.DOP.010.020 MOD.BBI.109.G BSR.002.005.050 KST.ROR.006.000 Detail M (2x) MOD.BBI.109.A MOD.BBI.109.G 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 MOD BBI 109 © Copyright BOERplay 1-4-2020 Revision:...
  • Page 32 Metalen staanders Kunststof of houten staanders Pfosten aus Metall Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois MOD BBI 144 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 33 1 / 7 11mm Remove floor fixings (2x) NL Verwijder vloer bouten (2x) DE Bodenbefestigungen entfernen (2x) ES Retire las fijaciones del piso (2x) FR Retirer les fixations au sol (2x) MOD BBI 144 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 34 2 / 7 SME.BBI.003.916 Detail A (2x) BSV.030.010.002 BSV.023.010.050 BSV.023.010.050 BSV.030.010.002 SME.BBI.003.916 MOD BBI 144 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 35 3 / 7 MOD.BBI.144.A BSR.014.005.052 MOD.BBI.144.G BSR.002.005.050 KST.ROR.006.000 Detail B (2x) MOD.BBI.144.A MOD.BBI.144.G 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 MOD BBI 144 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 36 4 / 7 OPE.BBI.091.062 C (3x) Detail C (3x) BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 OPE.BBI.091.062 MOD BBI 144 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 37 5 / 7 KST.BBI.015.LPE OME.BBI.064.916 OPE.BBI.041.062 OPE.BBI.039.062 Detail D (2x) KST.DOP.010.060 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 BSR.070.010.735 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 BSR.010.010.010 BSR.030.010.002 BSR.070.010.735 KST.BBI.015.LPE KST.DON.010.060 KST.DOP.010.060 OME.BBI.064.916 OPE.BBI.039.062 OPE.BBI.041.062 MOD BBI 144 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 38 6 / 7 Detail E (6x) 30 mm BSR.014.005.053 ø5mm BSR.014.005.053 MOD BBI 144 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 39 7 / 7 F (2x) MOD.BBI.144.A BSR.014.005.053 MOD.BBI.144.G BSR.002.005.070 KST.ROR.006.000 Detail F (8x) MOD.BBI.144.A MOD.BBI.144.G 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 MOD BBI 144 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 40 Metalen staanders Kunststof of houten staanders Pfosten aus Metall Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois © Copyright BOERplay 3-3-2020 Revision: A MOD BBI 108...
  • Page 41 1 / 4 11mm Remove floor fixings (1x) NL Verwijder vloer bouten (1x) DE Bodenbefestigungen entfernen (1x) ES Retire las fijaciones del piso (1x) FR Retirer les fixations au sol (1x) © Copyright BOERplay 3-3-2020 Revision: A MOD BBI 108...
  • Page 42 2 / 4 Detail A (1x) KST.LAM.015.005 KST.LAM.015.005 © Copyright BOERplay 3-3-2020 Revision: A MOD BBI 108...
  • Page 43 3 / 4 Detail B 2x ✔ OPE.BBI.046.062 Detail C (3x) BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 OPE.BBI.046.062 © Copyright BOERplay 3-3-2020 Revision: A MOD BBI 108...
  • Page 44 4 / 4 OPE.BBI.013.062 OPE.BBI.013.062 MOD.BBI.108.A BSR.014.005.053 MOD.BBI.108.G BSR.002.005.070 KST.ROR.006.000 Detail D (4x) MOD.BBI.108.A MOD.BBI.108.G 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 © Copyright BOERplay 3-3-2020 Revision: A MOD BBI 108...
  • Page 45 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 28-2-2020 Revision: A MOD BBI 159...
  • Page 46 1 / 1 OPE.BBI.170.062 Detail A (3x) BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 OPE.BBI.170.062 © Copyright BOERplay 28-2-2020 Revision: A MOD BBI 159...
  • Page 47 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD BBI 148 © Copyright BOERplay 13-5-2019 Revision: A...
  • Page 48 1 / 4 A & B SME.VRB.683.320 A & B Detail A (2x) Detail B (2x) ✔ ✔ SME.VRB.683.320 MOD BBI 148 © Copyright BOERplay 13-5-2019 Revision: A...
  • Page 49 2 / 4 12 mm 12 mm 12 mm 3 / 4 Detail C (6x) BSR.026.010.040 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 BSR.010.010.010 BSR.026.010.040 BSR.030.010.002 KST.DOP.010.060 KST.DON.010.060 KST.DOP.010.060 © Copyright BOERplay 13-5-2019 Revision: A MOD BBI 148...
  • Page 50 4 / 4 ✔ ✔ MOD BBI 148 © Copyright BOERplay 13-5-2019 Revision: A...
