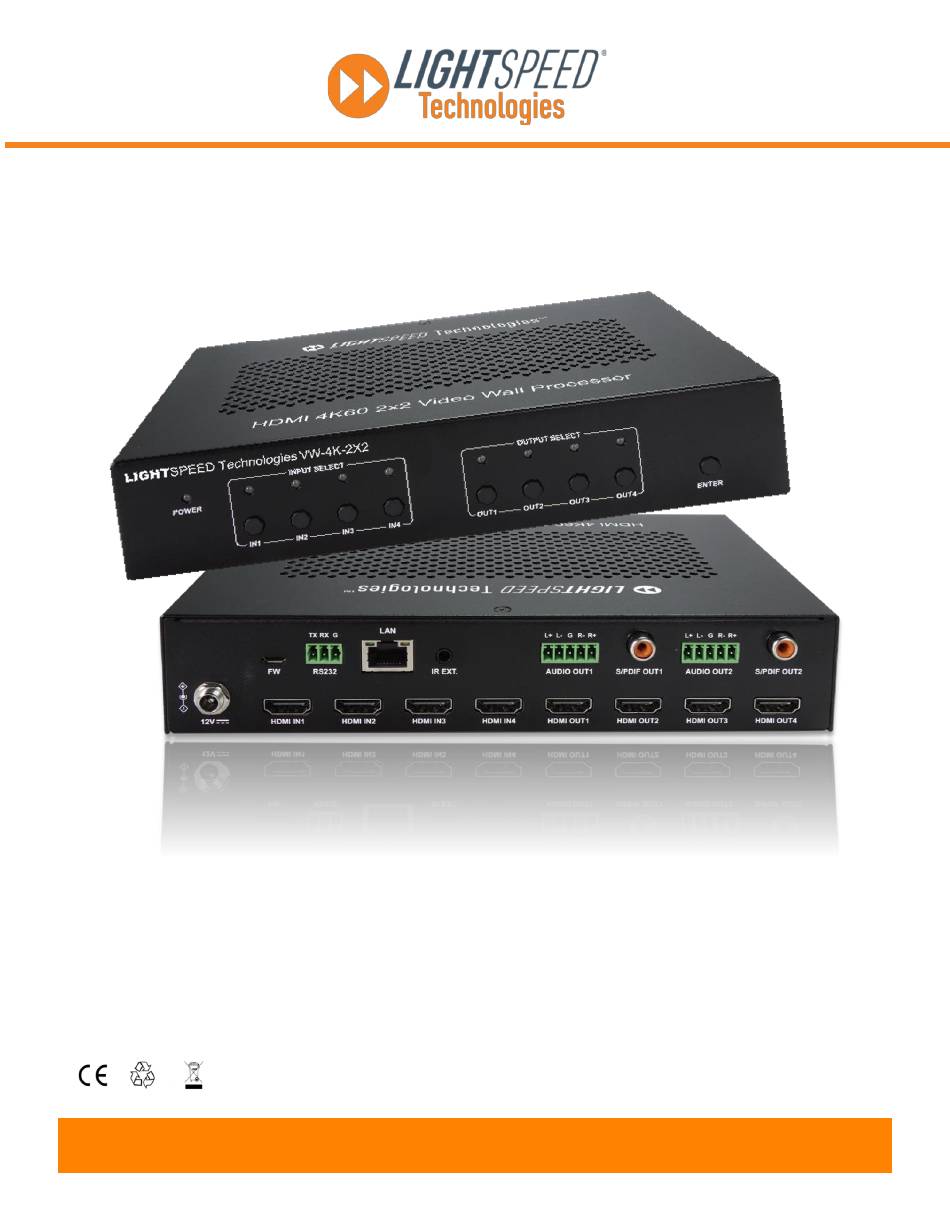

- Page 1 VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 User Manual...
-
Page 2: Table Of Contents
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Table of Contents Introduction ......................................3 Overview ........................................ 3 Features ......................................... 3 Package Contents ....................................3 Specifications ......................................4 Transmission Distance .................................... 4 Panel Description ....................................5 Front Panel ......................................5 Panel Description .................................... -
Page 3: Introduction
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Introduction Overview The LightSpeed® VW-4K-2X features a compact enclosure, instant switching, and free scaling up to 4K@60Hz SDR and HDR. It supports two video working modes including matrix switcher mode and video wall mode to meet different application requirements. -
Page 4: Specifications
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Specifications General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing ESD Protection Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) -
Page 5: Panel Description
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Panel Description Front Panel Name Description On: The device is powered on. Power LED Off: The device is powered off. Input selection LEDs and buttons for input ports (1-4). LED On: The input port is selected. -
Page 6: Panel Description
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Panel Description Back Panel Name Description Connect to the power adapter and AC power cord provided for power input. HDMI IN (1-4) Connect to the HDMI source devices. HDMI OUT (1-4) Connect to the HDMI display devices. -
Page 7: Installation And Wiring
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Installation and Wiring Warnings: Before installation and wiring, disconnect power from the device. During wiring, connect and disconnect the cables gently. Installation Attach the bracket to one side of the enclosure using the screws provided. -
Page 8: Wiring
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Wiring The matrix supports two video working modes, including matrix switcher mode and video wall mode to meet different application requirements. Users can select working mode and configure corresponding settings through API commands or web UI. For detailed information, please refer to the separate document “API Command Set_VM-4K-2X2”... -
Page 9: Video Wall Mode
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Video Wall Mode The matrix supports a 2x2 video wall layout. Users can select any input as the source of the video wall, set output distribution, set bezel correction, and set 180° rotation of output image (to facilitate 2x2 video wall setup using TV display) through API commands or web UI. -
Page 10: Ir Control
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 IR Control The device can be controlled by the IR remote controller in matrix switcher mode. Connect the IR receiver cable to the IR EXT. port at the rear panel of the device and ensure the receiver eye is accessible to the remote controller. -
Page 11: Command Control
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Command Control Advanced users may need to control the device via API commands. Two methods are provided for controlling this device through API commands: 1. RS232. Connect a control PC to the RS232 port of the device. Before sending API commands to control the device, ensure the serial ports between this device and the PC are configured correctly. -
Page 12: Obtain The Ip Address Of The Device
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Obtain the IP Address of the Device To obtain the device’s IP address: Connect a control PC to the RS232 port of the device. Configure RS232 parameters for the PC’s serial port correctly through a RS232 serial port tool, such as Serial Assist. -
Page 13: Web Ui
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Web UI The Web UI designed for this device allows for basic controls and advanced settings. It can be accessed through a modern browser with the latest version, e.g., Chrome, Safari, Firefox, IE10+, etc. -
Page 14: Matrix Control
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Matrix Control VIDEO MODE Matrix Switcher If users selected Video wall mode before, click the circle (turn to green) in front of “Matrix switcher”, and click “CONFIRM” in the following window to set the device to Matrix switcher mode. -
Page 15: Video Wall
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Video Wall Click the circle (turn to green) in front of “Video wall” and click “CONFIRM” in the following window to set the device to Video wall mode. Available exclusively from Future Ready Solutions www.lightspeed-tech.com | Email: info@lightspeed-tech.com | Phone: 239.948.3789... - Page 16 VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 When setting the video to “Video wall” mode, users can set video wall output distribution, select the input source, set bezel correction, and set video wall image rotation. • Video wall layout: Shows the video wall layout is 2x2.
-
Page 17: Hdmi A/V Mute
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 HDMI A/V Mute • ON: Select to mute video and audio for the selected HDMI output port. • OFF: Select to unmute video and audio for selected HDMI output port. Default setting: OFF De-embedded Audio Mute •... -
Page 18: Presets Matrix Control
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Presets Matrix Control This section saves or loads the settings of or to Video Matrix Control section. • Save: Click to save settings of Video Matrix Control section. • Load: Click to load settings to Video Matrix Control section. -
Page 19: Advanced Setting
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Advanced Setting Lower Power Mode This section provides setting of Lower Power Mode. In Low Power Mode, the device will shut down all video outputs and enter standby status. • ON: Select to turn on Lower Power Mode to make the device enter standby status. -
Page 20: Edid Read
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 EDID Read Click Enter to enter EDID Setting page, select the desired HDMI output and click to “Read” its EDID information. • Read: Click to read the selected output port’s EDID information. -
Page 21: Cec Control
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 CEC Control • Display On: Click to power on the display connected to the output selected. • Display Off: Click to power off the display connected to the output selected. •... -
Page 22: Network
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Network This section is to set between the static and dynamic IP address. • IP Type: ⇨ DHCP: When enabled, the IP address of the Matrix is assigned automatically by the DHCP server connected. -
Page 23: Fw Update
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 This section provides Web UI and MCU version information. FW Update To update device’s firmware: 1. Click “Browse” for the update file. 2. Click “Update” to perform upgrade. The update will be completed when the progress bar reaches 100%. -
Page 24: Firmware Upgrade
VM-4K-2X2 4K/60 2X2 Seamless Video Wall Processor Version: V1.0.1 Firmware Upgrade The device supports firmware upgrades through web UI and a micro-USB port on the rear panel. To upgrade firmware through Web UI, see the FW Update section. To upgrade firmware through a micro-USB port, perform the following: 1.
