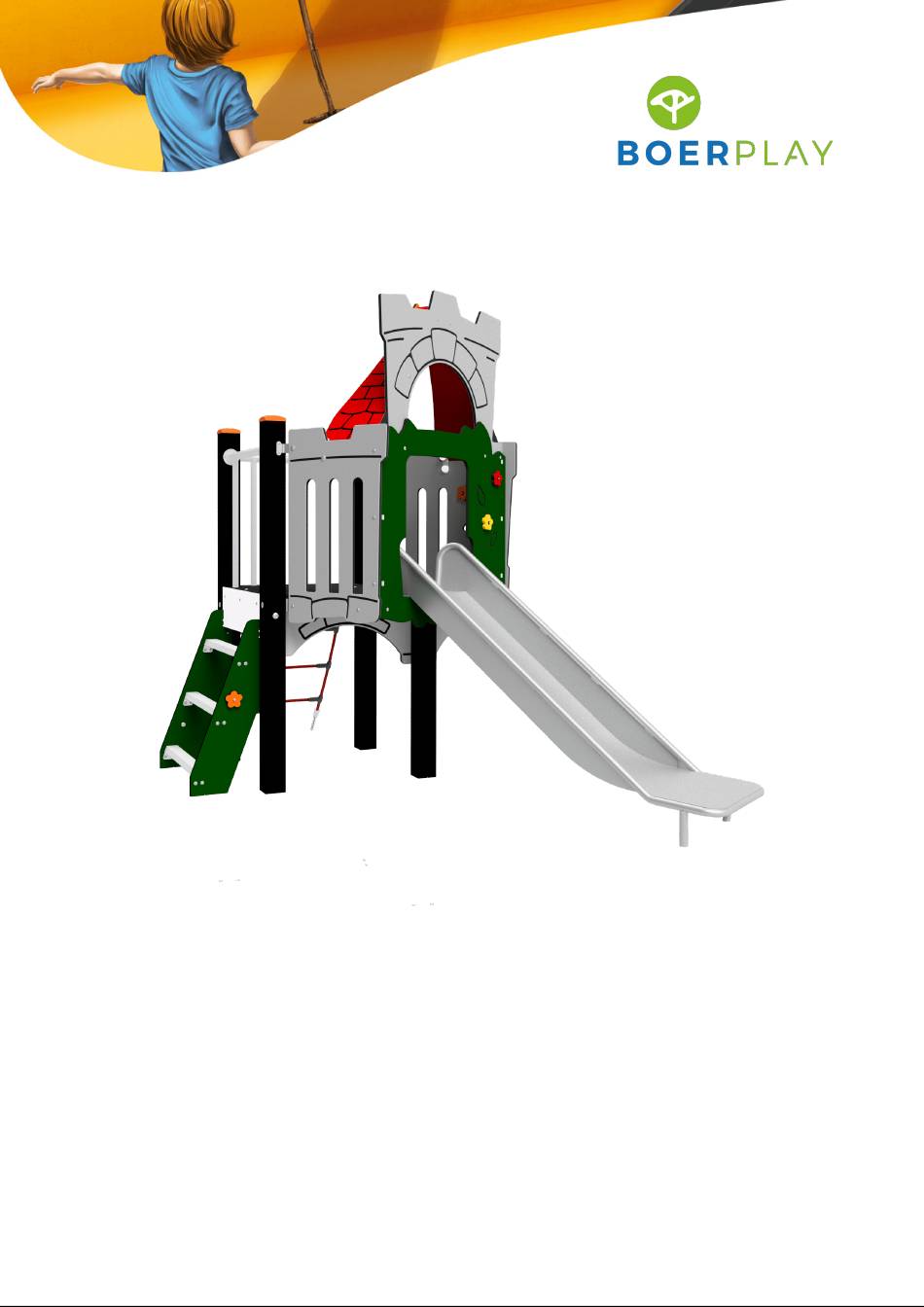

  • Page 1 Kasteel Margat BBI.105.CUR...
  • Page 2 Il est conseillé de ne pas orienter de FR - Important ! l’équipement avec toboggans vers le sud. Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. © Copyright BOERplay 17-11-2021 Revision: BBI 105 CxR...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,00 m 0,40 m 0,93 m 1,73 m 2,11 m 2,42 m 1,81 m 0,95 m 0,00 m © Copyright BOERplay 17-11-2021 Revision: BBI 105 CxR...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacles 6,23 m 5,29 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles © Copyright BOERplay 17-11-2021 Revision: BBI 105 CxR...
  • Page 5 Nivel del suelo para postes de metal Nivel del suelo para postes de plástico o madera Niveau au sol pour poteaux en métal Niveau au sol pour poteaux en plastique ou en bois © Copyright BOERplay 17-11-2021 Revision: BBI 105 CxR...

  • Page 6: Table Of Contents

    - assembly manual - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD.BBI.146.x MOD.BBI.139 MOD.BBI.141.x MOD.BBI.118.x MOD.BBI.131.x MOD.BBI.001.x MOD.BBI.001.x MOD.BBI.118.x MOD.BBI.131.x MOD.BBI.139 MOD.BBI.141.x MOD.BBI.146.x © Copyright BOERplay 17-11-2021 Revision: BBI 105 CxR...

  • Page 7: De Es Fr

    Ø3 mm Ø5 mm Ø11 mm Ø12 mm 4,8mm Only for metal posts Alleen voor metalen staanders Nur für Pfosten aus Metall Solo para postes de metal Seulement pour poteaux en métal © Copyright BOERplay 17-11-2021 Revision: BBI 105 CxR...

  • Page 8: Order Of Assembly

    1 / 7 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage assembly manual module MOD.BBI.001.x 2 / 7 assembly manual module MOD.BBI.131.x © Copyright BOERplay 17-11-2021 Revision: BBI 105 CxR...

  • Page 9: Mod.bbi.146.X

    3 / 7 assembly manual module MOD.BBI.118.x 4 / 7 assembly manual module MOD.BBI.146.x © Copyright BOERplay 17-11-2021 Revision: BBI 105 CxR...

  • Page 10: Mod.bbi.139

    5 / 7 assembly manual module MOD.BBI.141.x 6 / 7 assembly manual module MOD.BBI.139 © Copyright BOERplay 17-11-2021 Revision: BBI 105 CxR...
  • Page 11 7 / 7 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com © Copyright BOERplay 17-11-2021 Revision: BBI 105 CxR...
  • Page 12 LOGBOEK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type aanduiding Figura Play Artikelnummer BBI.105.CUR Naam toestel Kasteel Margat Maximale valhoogte 1,0 m Bouwjaar 2023 Certificaat 063153...
  • Page 13 LOGBOEK Inspectie en onderhoud Datum Tijdstip Naam Naam Geconstateerde Te vervangen inspectie inspectie uitvoerder uitvoerder gebreken onderdelen onderhoud onderhoud inspectie onderhoud Ongevallen Genomen Datum Leeftijd Vermoedelijk oorzaak letsel Opgetreden persoonlijk letsel maatregel n.a.v. ongeval slachtoffer ongeval...
  • Page 14 Inspectie en onderhoud intervallen Maanden Nr. Inspectie Onderhoud tussen controle Speeltoestel controleren op stabiliteit, goede Ontbrekende onderdelen toevoegen, verbindingen en ontbrekende onderdelen. verbindingen vastdraaien. Ontbrekende Bouten, schroeven en moeren controleren op bevestigingsmiddelen aanbrengen en ontbreken, vastzitten, corrosie en slijtage gecorrodeerde onderdelen vervangen. Vervangen van versleten onderdelen en/of Ophangingen controleren op slijtage.
  • Page 15 6. Controleer het terrein regelmatig op zaken die er niet thuis horen, onveilig zijn of uitnodigen tot verkeerd gebruik, bijvoorbeeld giftige planten, glas enz. De controle frequentie is afhankelijk van de belasting. 7. Bedenk dat slecht onderhoud leidt tot onveiligheid en aantoonbare snellere verpaupering van de speelomgeving.
  • Page 17 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 001 U © Copyright BOERplay 18-8-2023 Revision: C...
  • Page 18 A (18x) SME.BBI.053.372 Detail B (4x) Detail A (18x) 40 mm 35 mm BSR.026.008.040 KST.DON.010.060 BSR.026.008.035 BSR.030.008.016 BSR.030.008.016 BSR.011.008.015 BSR.010.008.008 KST.DOP.010.060 BSR.010.008.008 BSR.011.008.015 BSR.026.008.035 BSR.026.008.040 BSR.030.008.016 KST.BBI.011.LPE KST.DON.010.060 KST.DOP.010.060 SME.BBI.053.372 MOD BBI 001 U © Copyright BOERplay 18-8-2023 Revision: C...
  • Page 19 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois KST.LAM.100.100 18 mm 50 mm ø5mm ø3mm x 30 BSR.014.005.052 BSR.002.005.050 KST.LAM.100.100 BSR.014.005.052 BSR.002.005.050 MOD BBI 001 U © Copyright BOERplay 18-8-2023 Revision: C...
  • Page 20 Poteaux en plastique ou en bois 70 mm KST.LAM.013.006 BSR.002.005.070 Glue NL Lijm DE Kleber ES Pegamento 50 mm FR Colle ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 18 mm BSR.002.005.050 KST.LAM.013.006 BSR.014.005.052 MOD BBI 001 U © Copyright BOERplay 18-8-2023 Revision: C...
  • Page 21 OME.KAP.100.204 SMD.BBI.500 S.BBI.004.K S.BBI.001.K S.BBI.001.K S.BBI.001.K Detail C (8x) 120 mm BSR.026.010.120 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.010.010 BSR.026.010.120 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 ! Max 12 Nm ! SMD.BBI.500 MOD BBI 001 U © Copyright BOERplay 18-8-2023 Revision: C...
  • Page 22 Metalen staanders Kunststof of houten staanders Pfosten aus Metall Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois © Copyright BOERplay 4-3-2020 Revision: A MOD BBI 146...
  • Page 23 NL Verwijder vloer bouten (2x) DE Bodenbefestigungen entfernen (2x) ES Retire las fijaciones del piso (2x) FR Retirer les fixations au sol (2x) 2 / 7 Detail A (2x) KST.LAM.015.005 KST.LAM.015.005 © Copyright BOERplay 4-3-2020 Revision: A MOD BBI 146...
  • Page 24 3 / 7 OPE.BBI.104.062 OPE.BBI.058.072 Detail B (4x) OPE.BBI.030.xxx KST.ROR.006.000 KST.ROR.006.000 BSR.053.005.030 BSR.053.005.030 OPE.BBI.038.090 BSR.053.005.030 KST.ROR.006.000 30 mm OPE.BBI.030.010 OPE.BBI.030.022 OPE.BBI.030.032 OPE.BBI.038.090 OPE.BBI.058.072 OPE.BBI.104.062 © Copyright BOERplay 4-3-2020 Revision: A MOD BBI 146...
  • Page 25 OPE.BBI.059.072 C (3x) D (2x) C (3x) D (4x) D (3x) Detail C (6x) Detail D (9x) BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 BSR.052.008.060 OME.BBI.021 OPE.BBI.059.072 © Copyright BOERplay 4-3-2020 Revision: A MOD BBI 146...
  • Page 26 5 / 7 OPE.BBI.060.072 Detail E (4x) BSR.035.008.002 KST.DON.010.020 BSR.052.008.060 BSR.010.008.008 BSR.010.008.008 KST.DOP.010.020 BSR.035.008.002 BSR.052.008.060 KST.DON.010.020 KST.DOP.010.020 OPE.BBI.060.072 © Copyright BOERplay 4-3-2020 Revision: A MOD BBI 146...
  • Page 27 OPE.BBI.044.032 OPE.BBI.064.022 OME.BBI.056 OME.BBI.056 Detail C (8x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 Detail F (4x) BSR.010.008.008 BSR.010.010.010 BSR.026.010.040 BSR.030.010.002 BSR.030.010.002 BSR.052.008.060 BSR.010.010.010 KST.DOP.010.020 KST.DON.010.020 BSR.026.010.040 KST.DOP.010.020 KST.DON.010.020 OME.BBI.021 OME.BBI.056 OPE.BBI.044.032 OPE.BBI.045.032 OPE.BBI.064.022 © Copyright BOERplay 4-3-2020 Revision: A MOD BBI 146...
  • Page 28 BSR.026.010.040 BSR.030.010.002 KST.DON.010.020 BSR.030.010.002 KST.DOP.010.020 BSR.010.010.010 KST.DOP.010.020 SME.BBI.002 BSR.026.010.040 MOD.BBI.146.A KST.DON.010.020 BSR.014.005.052 MOD.BBI.146.G BSR.002.005.050 KST.ROR.006.000 Detail G (2x) MOD.BBI.146.A MOD.BBI.146.G 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 © Copyright BOERplay 4-3-2020 Revision: A MOD BBI 146...
  • Page 29 Metalen staanders Kunststof of houten staanders Pfosten aus Metall Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 30 1 / 5 11mm Remove floor fixings (2x) NL Verwijder vloer bouten (2x) DE Bodenbefestigungen entfernen (2x) ES Retire las fijaciones del piso (2x) FR Retirer les fixations au sol (2x) MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 31 2 / 5 SME.BBI.003.916 Detail A (2x) BSV.030.010.002 BSV.023.010.050 BSV.023.010.050 BSV.030.010.002 SME.BBI.003.916 MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 32 3 / 5 MOD.BBI.131.A BSR.014.005.052 MOD.BBI.131.G KST.ROR.006.000 BSR.002.005.050 Detail B (2x) MOD.BBI.131.A MOD.BBI.131.G 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 33 4 / 5 OPE.BBI.090.062 SNT.BBI.003 Detail C (3x) BSR.023.010.040 BSR.034.010.002 KST.ROR.010.000 BSR.023.010.040 BSR.034.010.002 KST.ROR.010.000 OPE.BBI.090.062 SNT.BBI.003 MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 34 5 / 5 ✔ ✔ 0,58 m 0,95 m Detail D (2x) BSV.020.006.040 BSV.035.006.020 OPE.BBI.223.xxx BSV.010.006.006 BSV.035.006.020 BSV.020.006.040 BSV.035.006.020 BSV.010.006.006 OPE.BBI.223.xxx MOD BBI 131 © Copyright BOERplay 2-11-2020 Revision: B...
  • Page 35 Plastic or wooden posts Metalen staanders Kunststof of houten staanders Pfosten aus Metall Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois MOD BBI 118 © Copyright BOERplay 28-2-2020 Revision:...
  • Page 36 1 / 2 OPE.BBI.061.072 Detail A (3x) BSR.011.008.015 BSR.030.008.016 BSR.030.008.016 BSR.052.008.035 OPE.BBI.061.072 BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 MOD BBI 118 © Copyright BOERplay 28-2-2020 Revision:...
  • Page 37 2 / 2 MOD.BBI.118.A BSR.014.005.053 MOD.BBI.118.G KST.ROR.006.000 BSR.002.005.070 Detail B (4x) MOD.BBI.118.A MOD.BBI.118.G 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 MOD BBI 118 © Copyright BOERplay 28-2-2020 Revision:...
  • Page 38 Metalen staanders Kunststof of houten staanders Pfosten aus Metall Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois MOD BBI 141 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 39 1 / 6 11mm Remove floor fixings (2x) NL Verwijder vloer bouten (2x) DE Bodenbefestigungen entfernen (2x) ES Retire las fijaciones del piso (2x) FR Retirer les fixations au sol (2x) MOD BBI 141 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 40 2 / 6 SME.BBI.003.916 Detail A (2x) BSV.030.010.002 BSV.023.010.050 BSV.023.010.050 BSV.030.010.002 SME.BBI.003.916 MOD BBI 141 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 41 3 / 6 MOD.BBI.141.A BSR.014.005.052 MOD.BBI.141.G BSR.002.005.050 KST.ROR.006.000 Detail B (2x) MOD.BBI.141.A MOD.BBI.141.G 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 MOD BBI 141 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 42 4 / 6 OPE.BBI.102.062 Detail C (1x) OPE.BBI.030.xxx KST.ROR.006.000 KST.ROR.006.000 BSR.053.005.030 BSR.053.005.030 OPE.BBI.038.090 30 mm BSR.053.005.030 KST.ROR.006.000 OPE.BBI.030.022 OPE.BBI.038.090 OPE.BBI.102.062 MOD BBI 141 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 43 D (2x) SME.MNP.143.916 D (2x) D (2x) SME.MNP.143.916 D (2x) E (2x) ORE.BBI.030.066 Detail D (12x) BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 Detail E (4x) BSR.002.005.050 BSR.002.005.050 BSR.011.008.015 50 mm BSR.030.008.016 BSR.052.008.035 OPE.BBI.102.062 ORE.BBI.030.066 SME.MNP.143.916 MOD BBI 141 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 44 BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 F (2x) F (2x) BSR.011.008.015 BSR.030.008.016 BSR.052.008.035 MOD.BBI.141.A BSR.014.005.053 MOD.BBI.141.G BSR.002.005.070 KST.ROR.006.000 Detail F (4x) MOD.BBI.141.A MOD.BBI.141.G 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 MOD BBI 141 © Copyright BOERplay 28-2-2020 Revision: A...
  • Page 45 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD BBI 139 © Copyright BOERplay 11-2-2020 Revision: A...
  • Page 46 1 / 4 A & B A & B SME.VRB.611.320 Detail A (2x) Detail B (2x) ✔ ✔ SME.VRB.611.320 MOD BBI 139 © Copyright BOERplay 11-2-2020 Revision: A...
  • Page 47 2 / 4 12 mm 12 mm 12 mm 3 / 4 Detail C (6x) BSR.026.010.040 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 BSR.010.010.010 BSR.026.010.040 BSR.030.010.002 KST.DOP.010.060 KST.DON.010.060 KST.DOP.010.060 © Copyright BOERplay 11-2-2020 Revision: A MOD BBI 139...
  • Page 48 4 / 4 ✔ ✔ MOD BBI 139 © Copyright BOERplay 11-2-2020 Revision: A...
