INSTALLATION INSTRUCTIONS

PACKAGE CONTENTS:

1x AudioX [pair of speakers]
1x Installation Instructions
2x Templates
1x power cable
1x audio cable

SPEAKER RATINGS:

60 watt peak/25 watt RMS/8 ohm impedance/5" depth
Operating Temperature 0 °C – 60 °C (32 °F – 140 °F)

SUPPLY RATING:

100-240 VAC, 50/60 Hz, 1.0 A max.
1. Cut a 6 9 16" x 6 9 16" (167 mm x 167 mm) hole to mount each speaker.
The maximum distance between each speaker is 15 feet.
All audio wiring shall be installed in accordance with
National Electric Code and local electrical codes.
2. Connect power supply and audio cable to the primary AudioX
speaker and to wall outlet.
3. Connect to the speaker and test speakers before securing to ceiling.

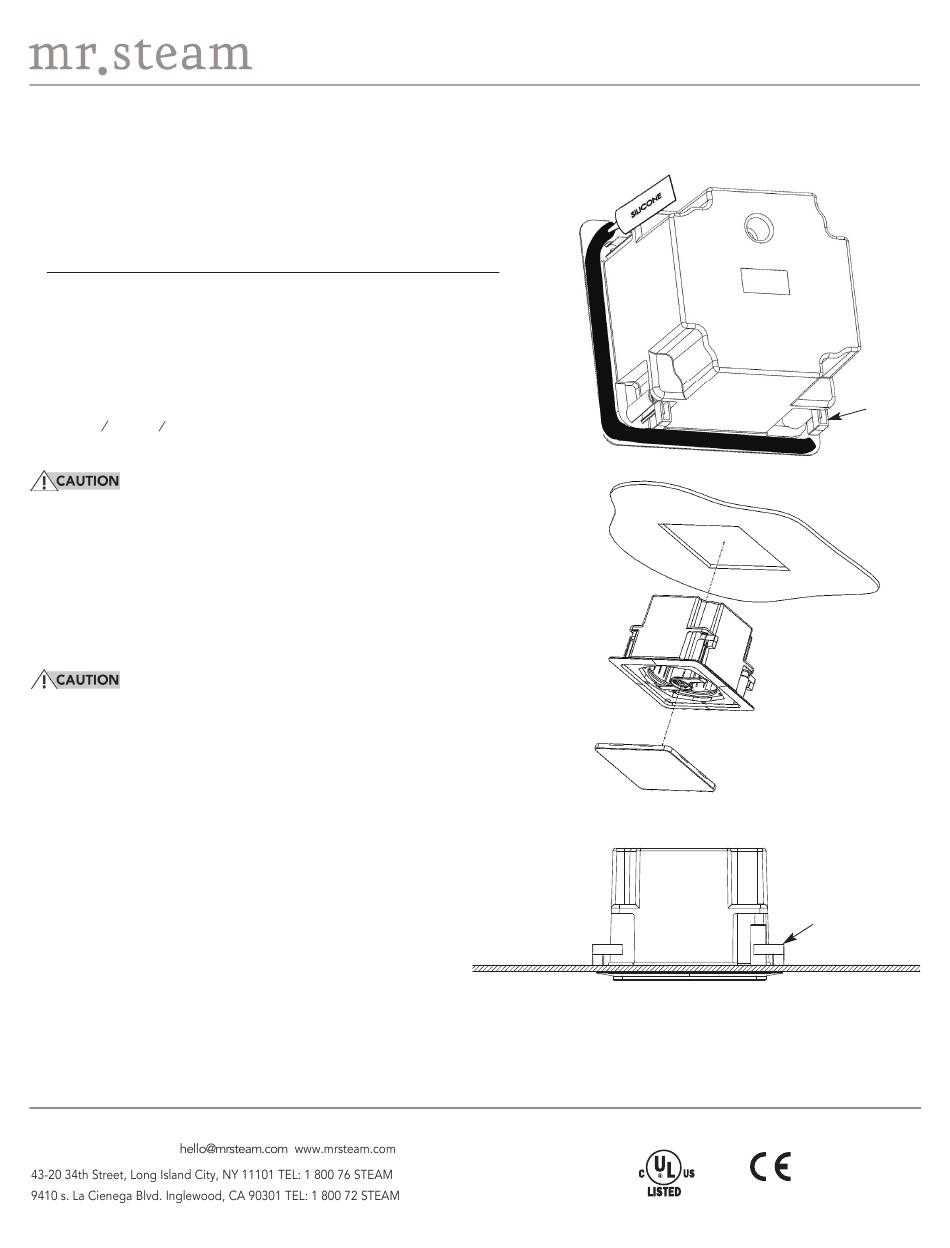

4. Remove the front grill of the AudioX by gently rotating out any two
opposite brackets by hand as shown in the installed view and
pressing them down to pop the grill off. Return the brackets to the
original position before installing AudioX.
Failure to engage mounting brackets correctly or
improper installation may result in a falling object hazard.
5. Apply a bead of silicone RTV (not supplied) around the edge of the
AudioX as shown in the diagram as required to obtain a watertight
seal.
6. Fit the AudioX into the speaker-mounting hole.
7. Secure the AudioX in place using the integral mounting brackets.
The mounting brackets will rotate out and tighten when
the 4 large screws are turned clockwise.
NOTE:
DO NOT OVER TIGHTEN SCREWS.
8. Gently tug on speakers to ensure they are secure in the
ceiling.
9. Carefully replace the AudioX grills by pressing them in
place.
10. Let the silicone cure per manufacture's instructions
before using steam room.
11. Connect the secondary AudioX speaker to the
other end of the audio cable and repeat steps 4-10.
IMPORTANT:
Do not place AudioX in contact with
direct water or steam emission.
.
mr
steam
Model Audio XBK & Audio XWH
Ceiling
Grill
Connecting to AudioX
1. On your iSteamX, go the system settings page and select bluetooth
2. Tap pair new device and look for MrSteam
When prompted, enter the default password: 1234
3.
1
AudioX
Bracket
Speaker
Bracket shown
rotated out after
intallation
PUR 100581 2.24
Designed, Engineered
and Assembled in the
U S A
