LG Multi V ZRUM080LTE6 Data Book

Heat recovery + heat pump

page of 320

/ 320
Bookmarks

Quick Links

Download this manual

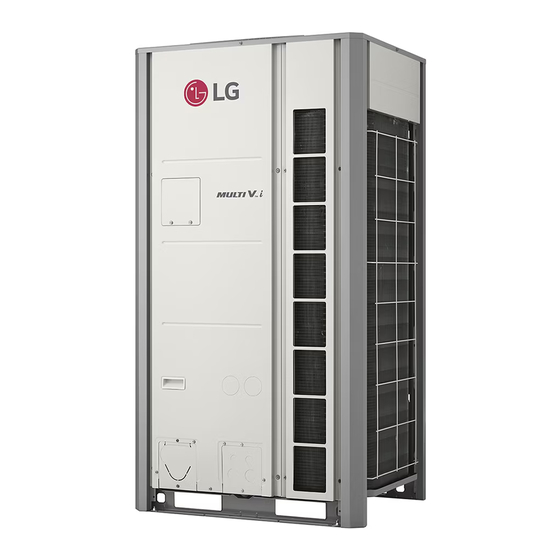

Multi V Outdoor Unit

Heat Recovery + Heat Pump (R32)

MFL67474088

Region : EU

Published on Feb. 2, 2024

Summary of Contents for LG Multi V ZRUM080LTE6

Page 1 Multi V Outdoor Unit Heat Recovery + Heat Pump (R32) MFL67474088 Region : EU Published on Feb. 2, 2024...
Page 2 Multi V Outdoor Unit General Information Model Line Up Combination of Outdoor Units...
Page 3 Multi V Outdoor Unit General Information 1. Model Line Up Capacity Index Product Phase Chassis Model Name ZRUM080LTE6 UXA(α) ZRUM100LTE6 ZRUM120LTE6 ZRUM140LTE6 ZRUM160LTE6 UXB(α) Multi V i ZRUM180LTE6 ZRUM200LTE6 UXA + UXA ZRUM220LTE6 ZRUM240LTE6 UXB + UXA ZRUM260LTE6 ZRUM280LTE6 * The capacity index may differ from actual capacity values.
Page 4 Multi V Outdoor Unit General Information 2. Combination of Outdoor Units Combination Unit Model Name Unit 1 Unit 2 Unit 3 Unit 4 ZRUM220LTE6 ZRUM100LTE6 ZRUM120LTE6 ZRUM240LTE6 ZRUM100LTE6 ZRUM140LTE6 ZRUM260LTE6 ZRUM120LTE6 ZRUM140LTE6 ZRUM280LTE6 ZRUM120LTE6 ZRUM160LTE6...
Page 5 Product Data Multi V i...
Page 6 Multi V i 1. Specifications 2. List of Functions 3. Accessory Compatibility List 4. Dimensions 5. Piping Diagrams 6. Wiring Diagrams 7. Capacity Tables 8. Capacity Correction Factor 9. Operation Limits 10. Sound Levels...
Page 7 Multi V i Product Data 1. Specifications 1.1 Product ZRUM080LTE6 Category Unit Specification Major Minor Chassis Combination Unit (1) ZRUM080LTE6 Classification Combination Unit (2) Combination Unit (3) Combination Unit (4) Case 1 V, Phase, Hz 380-400-415, 3, 50 Limit Range of Voltage(Case 1) 342 ~ 456 Case 2 V, Phase, Hz...
Page 8 Multi V i Product Data 1. Specifications Category Unit Specification Major Minor Compressor/Fan Protection Over-heat protection / Fan driver overload protector Protection Device Inverter Protection Over-heat protection / Over-current protection Type Precharged Amount Refrigerant GWP(Global Warming Potential) t-CO₂ eq. 5.063 Control Type Liquid mm(inch)
Page 9 Multi V i Product Data 1. Specifications ZRUM100LTE6 Category Unit Specification Major Minor Chassis Combination Unit (1) ZRUM100LTE6 Classification Combination Unit (2) Combination Unit (3) Combination Unit (4) Case 1 V, Phase, Hz 380-400-415, 3, 50 Limit Range of Voltage(Case 1) 342 ~ 456 Case 2 V, Phase, Hz...
Page 10 Multi V i Product Data 1. Specifications Category Unit Specification Major Minor Type Precharged Amount Refrigerant GWP(Global Warming Potential) t-CO₂ eq. 5.738 Control Type Liquid mm(inch) Φ9.52 (3/8) mm(inch) Φ19.05 (3/4) Connecting Pipe Low Pressure Gas (Heat Recovery) mm(inch) Φ19.05 (3/4) High Pressure Gas (Heat Recovery) mm(inch) Φ15.88 (5/8)
Page 11 Multi V i Product Data 1. Specifications ZRUM120LTE6 Category Unit Specification Major Minor Chassis Combination Unit (1) ZRUM120LTE6 Classification Combination Unit (2) Combination Unit (3) Combination Unit (4) Case 1 V, Phase, Hz 380-400-415, 3, 50 Limit Range of Voltage(Case 1) 342 ~ 456 Case 2 V, Phase, Hz...
Page 12 Multi V i Product Data 1. Specifications Category Unit Specification Major Minor Type Precharged Amount Refrigerant GWP(Global Warming Potential) t-CO₂ eq. 5.738 Control Type Liquid mm(inch) Φ12.7 (1/2) mm(inch) Φ22.2 (7/8) Connecting Pipe Low Pressure Gas (Heat Recovery) mm(inch) Φ22.2 (7/8) High Pressure Gas (Heat Recovery) mm(inch) Φ19.05 (3/4)
Page 13 Multi V i Product Data 1. Specifications ZRUM140LTE6 Category Unit Specification Major Minor Chassis Combination Unit (1) ZRUM140LTE6 Classification Combination Unit (2) Combination Unit (3) Combination Unit (4) Case 1 V, Phase, Hz 380-400-415, 3, 50 Limit Range of Voltage(Case 1) 342 ~ 456 Case 2 V, Phase, Hz...
Page 14 Multi V i Product Data 1. Specifications Category Unit Specification Major Minor Type Precharged Amount 11.4 Refrigerant GWP(Global Warming Potential) t-CO₂ eq. 7.695 Control Type Liquid mm(inch) Φ12.7 (1/2) mm(inch) Φ22.2 (7/8) Connecting Pipe Low Pressure Gas (Heat Recovery) mm(inch) Φ22.2 (7/8) High Pressure Gas (Heat Recovery) mm(inch)
Page 15 Multi V i Product Data 1. Specifications ZRUM160LTE6 Category Unit Specification Major Minor Chassis Combination Unit (1) ZRUM160LTE6 Classification Combination Unit (2) Combination Unit (3) Combination Unit (4) Case 1 V, Phase, Hz 380-400-415, 3, 50 Limit Range of Voltage(Case 1) 342 ~ 456 Case 2 V, Phase, Hz...
Page 16 Multi V i Product Data 1. Specifications Category Unit Specification Major Minor Type Precharged Amount 11.4 Refrigerant GWP(Global Warming Potential) t-CO₂ eq. 7.695 Control Type Liquid mm(inch) Φ12.7 (1/2) mm(inch) Φ22.2 (7/8) Connecting Pipe Low Pressure Gas (Heat Recovery) mm(inch) Φ22.2 (7/8) High Pressure Gas (Heat Recovery) mm(inch)
Page 17 Multi V i Product Data 1. Specifications ZRUM180LTE6 Category Unit Specification Major Minor Chassis ZRUM180LTE6 Combination Unit (1) Classification Combination Unit (2) Combination Unit (3) Combination Unit (4) Case 1 V, Phase, Hz 380-400-415, 3, 50 Limit Range of Voltage(Case 1) 342 ~ 456 Case 2 V, Phase, Hz...
Page 18 Multi V i Product Data 1. Specifications Category Unit Specification Major Minor Type Precharged Amount 14.0 Refrigerant GWP(Global Warming Potential) t-CO₂ eq. 9.450 Control Type Liquid mm(inch) Φ12.7 (1/2) mm(inch) Φ22.2 (7/8) Connecting Pipe Low Pressure Gas (Heat Recovery) mm(inch) Φ22.2 (7/8) High Pressure Gas (Heat Recovery) mm(inch)
Page 19 Multi V i Product Data 1. Specifications ZRUM200LTE6 Category Unit Specification Major Minor Chassis Combination Unit (1) ZRUM200LTE6 Classification Combination Unit (2) Combination Unit (3) Combination Unit (4) Case 1 V, Phase, Hz 380-400-415, 3, 50 Limit Range of Voltage(Case 1) 342 ~ 456 Case 2 V, Phase, Hz...
Page 20 Multi V i Product Data 1. Specifications Category Unit Specification Major Minor Type Precharged Amount 14.0 Refrigerant GWP(Global Warming Potential) t-CO₂ eq. 9.450 Control Type Liquid mm(inch) Φ12.7 (1/2) mm(inch) Φ28.58 (1-1/8) Connecting Pipe Low Pressure Gas (Heat Recovery) mm(inch) Φ28.58 (1-1/8) High Pressure Gas (Heat Recovery) mm(inch)
Page 21 Multi V i Product Data 1. Specifications ZRUM220LTE6 Category Unit Specification Major Minor Chassis UXA + UXA Combination Unit (1) ZRUM120LTE6 Classification Combination Unit (2) ZRUM100LTE6 Combination Unit (3) Combination Unit (4) Case 1 V, Phase, Hz 380 - 400 - 415, 3, 50 Limit Range of Voltage(Case 1) 342 ~ 456 Case 2...
Page 22 Multi V i Product Data 1. Specifications Category Unit Specification Major Minor Type Precharged Amount Refrigerant GWP(Global Warming Potential) t-CO₂ eq. 11.475 Control Type Liquid mm(inch) Φ12.7 (1/2) mm(inch) Φ28.58 (1-1/8) Connecting Pipe Low Pressure Gas (Heat Recovery) mm(inch) Φ28.58 (1-1/8) High Pressure Gas (Heat Recovery) mm(inch) Φ22.2 (7/8)
Page 23 Multi V i Product Data 1. Specifications ZRUM240LTE6 Category Unit Specification Major Minor Chassis UXB + UXA Combination Unit (1) ZRUM140LTE6 Classification Combination Unit (2) ZRUM100LTE6 Combination Unit (3) Combination Unit (4) Case 1 V, Phase, Hz 380 - 400 - 415, 3, 50 Limit Range of Voltage(Case 1) 342 ~ 456 Case 2...
Page 24 Multi V i Product Data 1. Specifications Category Unit Specification Major Minor Type Precharged Amount 19.9 Refrigerant GWP(Global Warming Potential) t-CO₂ eq. 13.433 Control Type Liquid mm(inch) Φ12.7 (1/2) mm(inch) Φ28.58 (1-1/8) Connecting Pipe Low Pressure Gas (Heat Recovery) mm(inch) Φ28.58 (1-1/8) High Pressure Gas (Heat Recovery) mm(inch)
Page 25 Multi V i Product Data 1. Specifications ZRUM260LTE6 Category Unit Specification Major Minor Chassis UXB + UXA Combination Unit (1) ZRUM140LTE6 Classification Combination Unit (2) ZRUM120LTE6 Combination Unit (3) Combination Unit (4) Case 1 V, Phase, Hz 380 - 400 - 415, 3, 50 Limit Range of Voltage(Case 1) 342 ~ 456 Case 2...
Page 26 Multi V i Product Data 1. Specifications Category Unit Specification Major Minor Type Precharged Amount 19.9 Refrigerant GWP(Global Warming Potential) t-CO₂ eq. 13.433 Control Type Liquid mm(inch) Φ15.88 (5/8) mm(inch) Φ28.58 (1-1/8) Connecting Pipe Low Pressure Gas (Heat Recovery) mm(inch) Φ28.58 (1-1/8) High Pressure Gas (Heat Recovery) mm(inch)
Page 27 Multi V i Product Data 1. Specifications ZRUM280LTE6 Category Unit Specification Major Minor Chassis UXB + UXA Combination Unit (1) ZRUM160LTE6 Classification Combination Unit (2) ZRUM120LTE6 Combination Unit (3) Combination Unit (4) Case 1 V, Phase, Hz 380 - 400 - 415, 3, 50 Limit Range of Voltage(Case 1) 342 ~ 456 Case 2...
Page 28 Multi V i Product Data 1. Specifications Category Unit Specification Major Minor Type Precharged Amount 19.9 Refrigerant GWP(Global Warming Potential) t-CO₂ eq. 13.433 Control Type Liquid mm(inch) Φ15.88 (5/8) mm(inch) Φ28.58 (1-1/8) Connecting Pipe Low Pressure Gas (Heat Recovery) mm(inch) Φ28.58 (1-1/8) High Pressure Gas (Heat Recovery) mm(inch)
Page 29 Multi V i Product Data 2. List of Functions ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6, ZRUM180LTE6, ZRUM200LTE6, ZRUM220LTE6, ZRUM240LTE6, ZRUM260LTE6, ZRUM280LTE6 Category Functions Availability Defrost / Deicing High Pressure Switch Phase Protection Restart Delay (3-minutes) Reliability Self Diagnosis Soft Start Sump Heater Compressor Balanced Operation Low Noise Operation Peak Control...
Page 30 Multi V i Product Data 3. Accessory Compatibility List ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6, ZRUM180LTE6, ZRUM200LTE6, ZRUM220LTE6, ZRUM240LTE6, ZRUM260LTE6, ZRUM280LTE6 Category Accessory Name Model Name Description Compatibility AC EZ PQCSZ250S0 AC EZ touch PACEZA000 Touch type AC Smart IV PACS4B000 Touch type AC Smart 5 PACS5A000...
Page 31 Multi V i Product Data 4. Dimensions 4.1 Dimensional Drawing ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6...
Page 32 Multi V i Product Data 4. Dimensions ZRUM140LTE6, ZRUM160LTE6, ZRUM180LTE6, ZRUM200LTE6...
Page 33 Multi V i Product Data 4. Dimensions 4.2 Installation Space ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6, ZRUM180LTE6, ZRUM200LTE6...
Page 34 Multi V i Product Data 4. Dimensions...
Page 35 Multi V i Product Data 5. Piping Diagrams 5.1 Cooling Operation ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor HEX Indoor HEX Indoor Unit Indoor Unit *8, 10, 12HP unit...
Page 36 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor HEX Indoor HEX Indoor Unit Indoor Unit Outdoor Temperature Motor Sensor...
Page 37 Multi V i Product Data 5. Piping Diagrams 5.2 Heating Operation ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor HEX Indoor HEX Indoor Unit Indoor Unit *8, 10, 12HP unit...
Page 38 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor HEX Indoor HEX Indoor Unit Indoor Unit Outdoor Temperature Motor Sensor...
Page 39 Multi V i Product Data 5. Piping Diagrams 5.3 Defrost / Oil Return ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor HEX Indoor HEX Indoor Unit Indoor Unit...
Page 40 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor HEX Indoor HEX Indoor Unit Indoor Unit Outdoor Temperature Motor Sensor...
Page 41 Multi V i Product Data 5. Piping Diagrams 5.4 Upper HEX Defrost ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor HEX Indoor HEX Indoor Unit Indoor Unit...
Page 42 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor HEX Indoor HEX Indoor Unit Indoor Unit Outdoor Temperature Motor Sensor...
Page 43 Multi V i Product Data 5. Piping Diagrams 5.5 Lower HEX Defrost ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor HEX Indoor HEX Indoor Unit Indoor Unit...
Page 44 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor HEX Indoor HEX Indoor Unit Indoor Unit Outdoor Temperature Motor Sensor...
Page 45 Multi V i Product Data 5. Piping Diagrams 5.6 Heat Recovery (Cooling Operation) ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX...
Page 46 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid Indoor HEX High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX Indoor Unit Indoor HEX Indoor Unit Indoor HEX...
Page 47 Multi V i Product Data 5. Piping Diagrams 5.7 Heat Recovery (Heating Operation) ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX...
Page 48 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid Indoor HEX High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX Indoor Unit Indoor HEX Indoor Unit Indoor HEX...
Page 49 Multi V i Product Data 5. Piping Diagrams 5.8 Heat Recovery (Defrost / Oil Return) ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX...
Page 50 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor High Temperature High Pressure Liquid Indoor HEX High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX Indoor Unit Indoor HEX Indoor Unit Indoor HEX...
Page 51 Multi V i Product Data 5. Piping Diagrams 5.9 Heat Recovery (Upper HEX Defrost) ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX...
Page 52 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX Indoor Unit Indoor HEX Indoor Unit Indoor HEX...
Page 53 Multi V i Product Data 5. Piping Diagrams 5.10 Heat Recovery (Lower HEX Defrost) ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX...
Page 54 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX Indoor Unit Indoor HEX Indoor Unit Indoor HEX...
Page 55 Multi V i Product Data 5. Piping Diagrams 5.11 Heat Recovery (Cooling-Based Simultaneous Operation) ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX...
Page 56 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX Indoor Unit Indoor HEX Indoor Unit Indoor HEX...
Page 57 Multi V i Product Data 5. Piping Diagrams 5.12 Heat Recovery (Heating-Based Simultaneous Operation) ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX...
Page 58 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX Indoor Unit Indoor HEX Indoor Unit Indoor HEX...
Page 59 Multi V i Product Data 5. Piping Diagrams 5.13 Heat Recovery (Balanced Simultaneous Operation) ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX...
Page 60 Multi V i Product Data 5. Piping Diagrams ZRUM180LTE6, ZRUM200LTE6 High Temperature High Pressure Vapor Indoor HEX High Temperature High Pressure Liquid High Temperature High Pressure Liquid (Conditional) Low Temperature Low Pressure Vapor Indoor Unit HR unit Indoor HEX Indoor Unit Indoor HEX Indoor Unit Indoor HEX...
Page 61 Multi V i Product Data 6. Wiring Diagrams 6.1 Product ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6...
Page 62 Multi V i Product Data 6. Wiring Diagrams ZRUM140LTE6, ZRUM160LTE6...
Page 63 Multi V i Product Data 6. Wiring Diagrams ZRUM180LTE6, ZRUM200LTE6...
Page 64 Multi V i Product Data 7. Capacity Tables 7.1 Cooling Operation (Standard) ZRUM080LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 17.50...
Page 65 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 14.80 1.82 18.70 2.55...
Page 66 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 12.10 2.83 15.30 3.50...
Page 67 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 9.40 3.58 11.90 4.35...
Page 68 Multi V i Product Data 7. Capacity Tables ZRUM100LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 21.90 2.19 27.60...
Page 69 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 18.50 2.80 23.40 3.86...
Page 70 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 15.10 3.96 19.10 5.11...
Page 71 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 11.80 4.99 14.90 6.22...
Page 72 Multi V i Product Data 7. Capacity Tables ZRUM120LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 26.20 2.85 33.10...
Page 73 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 22.20 3.56 28.00 5.18...
Page 74 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 18.20 5.14 22.90 6.80...
Page 75 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 14.10 6.35 17.80 8.10...
Page 76 Multi V i Product Data 7. Capacity Tables ZRUM140LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 30.60 3.23 38.70...
Page 77 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 25.90 3.81 32.70 5.61...
Page 78 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 21.20 5.67 26.80 7.29...
Page 79 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 16.50 6.90 20.80 8.63...
Page 80 Multi V i Product Data 7. Capacity Tables ZRUM160LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 35.00 4.18 44.20...
Page 81 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 29.60 4.93 37.40 7.37...
Page 82 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 24.20 7.10 30.60 9.46...
Page 83 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 18.80 8.84 23.80 10.68...
Page 84 Multi V i Product Data 7. Capacity Tables ZRUM180LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 39.40 3.81 49.70...
Page 85 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 33.30 4.42 42.10 6.31...
Page 86 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 27.30 6.82 34.40 8.80...
Page 87 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 21.20 8.74 26.80 10.87...
Page 88 Multi V i Product Data 7. Capacity Tables ZRUM200LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 43.70 4.41 55.20...
Page 89 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 37.00 5.35 46.70 7.81...
Page 90 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 30.30 7.98 38.20 10.45...
Page 91 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 23.60 10.11 29.70 12.74...
Page 92 Multi V i Product Data 7. Capacity Tables ZRUM220LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 48.10 5.04 60.70...
Page 93 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 40.70 6.36 51.40 9.04...
Page 94 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 33.30 9.10 42.00 11.91...
Page 95 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 25.90 11.34 32.70 14.32...
Page 96 Multi V i Product Data 7. Capacity Tables ZRUM240LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 52.50 5.42 66.30...
Page 97 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 44.40 6.61 56.10 9.47...
Page 98 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 36.30 9.63 45.90 12.40...
Page 99 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 28.30 11.89 35.70 14.85...
Page 100 Multi V i Product Data 7. Capacity Tables ZRUM260LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 56.80 6.08 71.80...
Page 101 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 48.10 7.37 60.70 10.79...
Page 102 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 39.40 10.81 49.70 14.09...
Page 103 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 30.60 13.25 38.60 16.73...
Page 104 Multi V i Product Data 7. Capacity Tables ZRUM280LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 61.20 7.03 77.30...
Page 105 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 51.80 8.49 65.40 12.55...
Page 106 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 42.40 12.24 53.50 16.26...
Page 107 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 32.90 15.19 41.60 18.78...
Page 108 Multi V i Product Data 7. Capacity Tables 7.2 Cooling Operation (Advanced SLC) ZRUM080LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 4.80...
Page 109 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 4.00 0.24 6.50 0.44...
Page 110 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 8.30 1.86 10.10 2.11...
Page 111 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 8.00 3.00 9.40 3.36...
Page 112 Multi V i Product Data 7. Capacity Tables humidity dual sensing control. ■ Capacity tables show the average value of conditions which may occur. 7-49...
Page 113 Multi V i Product Data 7. Capacity Tables ZRUM100LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 6.00 0.41 9.60...
Page 114 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 5.70 0.40 8.70 0.67...
Page 115 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 12.90 3.24 15.10 3.67...
Page 116 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 10.10 4.20 11.80 4.67...
Page 117 Multi V i Product Data 7. Capacity Tables ZRUM120LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 7.10 0.53 11.50...
Page 118 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 6.80 0.52 10.50 0.88...
Page 119 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 15.60 4.11 18.10 4.72...
Page 120 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 12.10 5.25 14.00 5.91...
Page 121 Multi V i Product Data 7. Capacity Tables ZRUM140LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 8.30 0.55 13.40...
Page 122 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 8.00 0.50 12.20 0.89...
Page 123 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 18.10 4.65 21.20 5.24...
Page 124 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 14.10 5.80 16.40 6.46...
Page 125 Multi V i Product Data 7. Capacity Tables ZRUM160LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 9.50 0.71 15.30...
Page 126 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 9.10 0.66 14.00 1.16...
Page 127 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 20.70 5.72 24.20 6.63...
Page 128 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 16.10 7.32 18.80 7.80...
Page 129 Multi V i Product Data 7. Capacity Tables ZRUM180LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 10.70 0.67 17.20...
Page 130 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 10.30 0.62 15.70 1.12...
Page 131 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 23.30 5.59 27.20 6.32...
Page 132 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 18.10 7.37 21.20 8.20...
Page 133 Multi V i Product Data 7. Capacity Tables ZRUM200LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 11.90 0.80 19.10...
Page 134 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 11.40 0.77 17.40 1.39...
Page 135 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 25.90 6.46 30.20 7.37...
Page 136 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 20.20 8.44 23.40 9.46...
Page 137 Multi V i Product Data 7. Capacity Tables ZRUM220LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 13.10 0.94 21.10...
Page 138 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 12.50 0.92 19.20 1.55...
Page 139 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 28.50 7.35 33.20 8.39...
Page 140 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 22.20 9.45 25.80 10.58...
Page 141 Multi V i Product Data 7. Capacity Tables ZRUM240LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 14.30 0.96 23.00...
Page 142 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 13.70 0.90 20.90 1.56...
Page 143 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 31.00 7.89 36.30 8.91...
Page 144 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 24.20 10.00 28.20 11.13...
Page 145 Multi V i Product Data 7. Capacity Tables ZRUM260LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 15.40 1.08 24.90...
Page 146 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 14.80 1.02 22.70 1.77...
Page 147 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 33.70 8.76 39.30 9.96...
Page 148 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 26.20 11.05 30.40 12.37...
Page 149 Multi V i Product Data 7. Capacity Tables ZRUM280LTE6 Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 16.60 1.24 26.80...
Page 150 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 15.90 1.18 24.50 2.04...
Page 151 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 36.30 9.83 42.30 11.35...
Page 152 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB/WB) Outdoor Combi. Air Temp. 20.0 / 14.0 23.0 / 16.0 26.0 / 18.0 27.0 / 19.0 28.0 / 20.0 30.0 / 22.0 32.0 / 24.0 (°C,DB) 28.20 12.57 32.80 13.71...
Page 153 Multi V i Product Data 7. Capacity Tables 7.3 Heating Operation (Standard) ZRUM080LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 9.90 7.23 9.90 7.28 9.80 7.32 9.80 7.39 9.80 7.45 9.60 7.55...
Page 154 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, 11.8 32.30 4.57 32.00 4.46 30.70 4.36 29.70 4.28 28.80 4.24 26.70 4.16 13.7 32.30 4.38 32.00 4.26...
Page 155 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, 13.7 28.40 3.72 26.80 3.60 25.20 3.54 24.40 3.38 23.60 3.24 22.00 3.12 -30.2 9.70 7.21 9.70 7.31...
Page 156 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 9.60 6.37 9.60 6.40 9.60 6.47 9.60 7.36 9.60 6.94 9.40 6.62 -24.8 16.00 6.48 16.00 6.51...
Page 157 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 14.10 5.31 13.30 5.40 12.50 5.10 12.10 4.82 11.70 4.55 10.90 4.30 -21.8 14.10 5.37 13.30 5.07...
Page 158 Multi V i Product Data 7. Capacity Tables ZRUM100LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 12.90 9.68 12.90 9.78 12.80 9.89 12.80 10.03 12.80 10.13 12.50 10.36 -24.8 21.60 10.00 21.60...
Page 159 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 12.70 9.89 12.70 10.03 12.70 10.13 12.70 10.36 12.70 10.48 12.40 10.55 -24.8 21.20 10.19 21.20 10.33...
Page 160 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 21.00 9.83 21.00 10.04 20.90 10.18 20.90 10.24 20.90 10.38 20.40 10.59 -21.8 25.60 10.01 25.60 10.22...
Page 161 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 23.40 8.97 23.30 9.02 21.90 8.69 21.20 8.21 20.60 7.77 19.20 7.35 -19.8 24.70 9.01 23.30 8.67...
Page 162 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 17.70 7.09 16.70 6.67 15.70 6.29 15.20 5.93 14.70 5.60 13.70 5.27 -18.8 17.70 6.93 16.70 6.53...
Page 163 Multi V i Product Data 7. Capacity Tables ZRUM120LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 15.30 11.24 15.30 11.46 15.20 11.66 15.20 11.96 15.20 12.25 15.20 12.72 -24.8 25.50 11.98 25.50...
Page 164 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 15.10 11.66 15.10 11.96 15.10 12.25 15.10 12.72 15.10 13.04 15.00 13.17 -24.8 25.20 12.40 25.20 12.70...
Page 165 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 25.00 12.33 25.00 12.78 24.90 13.10 24.90 13.25 24.90 13.55 24.80 14.00 -21.8 29.70 12.76 29.70 13.21...
Page 166 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 28.30 11.54 28.00 11.56 26.30 11.23 25.40 10.66 24.70 10.11 23.00 9.60 -19.8 29.60 11.46 28.00 11.21...
Page 167 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 21.20 9.31 20.00 8.79 18.80 8.30 18.20 7.84 17.60 7.42 16.40 7.01 -18.8 21.20 9.12 20.00 8.59...
Page 168 Multi V i Product Data 7. Capacity Tables ZRUM140LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 17.30 12.97 17.30 13.10 17.20 13.23 17.20 13.41 17.20 13.59 16.80 13.87 -24.8 28.80 13.38 28.80...
Page 169 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 17.10 13.23 17.10 13.41 17.00 13.59 17.00 13.87 17.00 14.06 16.60 14.15 -24.8 28.50 13.63 28.50 13.82...
Page 170 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 28.30 13.42 28.30 13.70 28.10 13.90 28.10 13.99 28.10 14.17 27.50 14.45 -21.8 34.40 13.66 34.40 13.93...
Page 171 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 32.60 12.24 32.60 12.34 30.70 11.87 29.70 11.31 28.80 10.79 26.90 10.28 -19.8 34.60 12.03 32.70 11.84...
Page 172 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 24.80 9.74 23.40 9.23 21.90 8.76 21.20 8.31 20.50 7.89 19.10 7.48 -18.8 24.80 9.55 23.40 9.04...
Page 173 Multi V i Product Data 7. Capacity Tables ZRUM160LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 19.20 15.05 19.20 15.37 19.10 15.63 19.10 16.03 19.10 16.38 19.10 17.01 -24.8 32.00 16.01 32.00...
Page 174 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 18.90 15.63 18.90 16.03 18.90 16.38 18.90 17.01 18.90 17.43 18.90 17.63 -24.8 31.60 16.58 31.60 16.98...
Page 175 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 31.30 16.35 31.30 16.95 31.10 17.37 31.10 17.56 31.10 17.96 31.10 18.56 -21.8 38.50 16.89 38.50 17.49...
Page 176 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 38.00 15.28 37.30 15.05 35.10 14.65 33.90 13.60 32.90 13.02 30.70 12.45 -19.8 39.50 15.30 37.30 14.64...
Page 177 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 28.30 11.85 26.70 11.26 25.10 10.70 24.30 10.18 23.50 9.69 21.90 9.20 -18.8 28.30 11.64 26.70 11.04...
Page 178 Multi V i Product Data 7. Capacity Tables ZRUM180LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 23.60 17.89 23.60 18.00 23.40 18.10 23.40 18.26 23.40 18.42 23.00 18.65 -24.8 39.30 18.24 39.30...
Page 179 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 23.30 18.10 23.30 18.26 23.10 18.42 23.10 18.65 23.10 18.82 22.70 18.89 -24.8 38.80 18.46 38.80 18.61...
Page 180 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 38.50 17.79 38.50 18.03 38.30 18.19 38.30 18.28 38.30 18.43 37.50 18.67 -21.8 45.60 17.99 45.60 18.23...
Page 181 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 41.90 15.96 41.90 16.04 39.50 15.37 38.20 14.63 37.00 13.93 34.50 13.24 -19.8 44.30 16.10 42.00 15.36...
Page 182 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 31.80 12.61 30.00 11.93 28.20 11.30 27.30 10.70 26.40 10.16 24.60 9.61 -18.8 31.80 12.35 30.00 11.68...
Page 183 Multi V i Product Data 7. Capacity Tables ZRUM200LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 25.00 21.77 25.00 21.84 24.80 21.91 24.80 22.00 24.80 22.11 24.30 22.23 -24.8 41.60 21.95 41.60...
Page 184 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 24.70 21.91 24.70 22.00 24.50 22.11 24.50 22.23 24.50 22.35 24.00 22.37 -24.8 41.10 22.08 41.10 22.18...
Page 185 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 40.80 21.66 40.80 21.80 40.50 21.90 40.50 21.94 40.50 22.04 39.70 22.18 -21.8 49.50 21.75 49.50 21.90...
Page 186 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 46.60 19.11 46.60 19.15 43.90 18.27 42.40 17.41 41.10 16.60 38.40 15.82 -19.8 49.40 18.73 46.70 18.24...
Page 187 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 35.40 15.00 33.40 14.21 31.40 13.48 30.40 12.79 29.30 12.15 27.30 11.51 -18.8 35.40 14.71 33.40 13.93...
Page 188 Multi V i Product Data 7. Capacity Tables ZRUM220LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 28.20 20.92 28.20 21.24 28.00 21.55 28.00 21.99 28.00 22.38 27.70 23.08 -24.8 47.10 21.98 47.10...
Page 189 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 27.80 21.55 27.80 21.99 27.80 22.38 27.80 23.08 27.80 23.52 27.40 23.72 -24.8 46.40 22.59 46.40 23.03...
Page 190 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 46.00 22.16 46.00 22.82 45.80 23.28 45.80 23.49 45.80 23.93 45.20 24.59 -21.8 55.30 22.77 55.30 23.43...
Page 191 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 51.70 20.51 51.30 20.58 48.20 19.92 46.60 18.87 45.30 17.88 42.20 16.95 -19.8 54.30 20.47 51.30 19.88...
Page 192 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 38.90 16.40 36.70 15.46 34.50 14.59 33.40 13.77 32.30 13.02 30.10 12.28 -18.8 38.90 16.05 36.70 15.12...
Page 193 Multi V i Product Data 7. Capacity Tables ZRUM240LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 30.20 22.65 30.20 22.88 30.00 23.12 30.00 23.44 30.00 23.72 29.30 24.23 -24.8 50.40 23.38 50.40...
Page 194 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 29.80 23.12 29.80 23.44 29.70 23.72 29.70 24.23 29.70 24.54 29.00 24.70 -24.8 49.70 23.82 49.70 24.15...
Page 195 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 49.30 23.25 49.30 23.74 49.00 24.08 49.00 24.23 49.00 24.55 47.90 25.04 -21.8 60.00 23.67 60.00 24.15...
Page 196 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 56.00 21.21 55.90 21.36 52.60 20.56 50.90 19.52 49.40 18.56 46.10 17.63 -19.8 59.30 21.04 56.00 20.51...
Page 197 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 42.50 16.83 40.10 15.90 37.60 15.05 36.40 14.24 35.20 13.49 32.80 12.75 -18.8 42.50 16.48 40.10 15.57...
Page 198 Multi V i Product Data 7. Capacity Tables ZRUM260LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 32.60 24.21 32.60 24.56 32.40 24.89 32.40 25.37 32.40 25.84 32.00 26.59 -24.8 54.30 25.36 54.30...
Page 199 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 32.20 24.89 32.20 25.37 32.10 25.84 32.10 26.59 32.10 27.10 31.60 27.32 -24.8 53.70 26.03 53.70 26.52...
Page 200 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 53.30 25.75 53.30 26.48 53.00 27.00 53.00 27.24 53.00 27.72 52.30 28.45 -21.8 64.10 26.42 64.10 27.14...
Page 201 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 60.90 23.78 60.60 23.90 57.00 23.10 55.10 21.97 53.50 20.90 49.90 19.88 -19.8 64.20 23.49 60.70 23.05...
Page 202 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 46.00 19.05 43.40 18.02 40.70 17.06 39.40 16.15 38.10 15.31 35.50 14.49 -18.8 46.00 18.67 43.40 17.63...
Page 203 Multi V i Product Data 7. Capacity Tables ZRUM280LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 34.50 26.29 34.50 26.83 34.30 27.29 34.30 27.99 34.30 28.63 34.30 29.73 -24.8 57.50 27.99 57.50...
Page 204 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 34.00 27.29 34.00 27.99 34.00 28.63 34.00 29.73 34.00 30.47 33.90 30.80 -24.8 56.80 28.98 56.80 29.68...
Page 205 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 56.30 28.68 56.30 29.73 56.00 30.47 56.00 30.81 56.00 31.51 55.90 32.56 -21.8 68.20 29.65 68.20 30.70...
Page 206 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 66.30 26.82 65.30 26.61 61.40 25.88 59.30 24.26 57.60 23.13 53.70 22.05 -19.8 69.10 26.76 65.30 25.85...
Page 207 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 49.50 21.16 46.70 20.05 43.90 19.00 42.50 18.02 41.10 17.11 38.30 16.21 -18.8 49.50 20.76 46.70 19.63...
Page 208 Multi V i Product Data 7. Capacity Tables 7.4 Heating Operation (Advanced SLC) ZRUM080LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 9.90 7.23 9.90 7.28 9.80 7.32 9.80 7.39 9.80 7.45 9.60...
Page 209 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, 11.8 23.10 2.62 22.30 2.50 20.70 2.39 19.60 2.32 18.60 2.27 16.40 2.16 13.7 21.10 2.21 20.10 2.09...
Page 210 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, 13.7 18.50 1.96 16.80 1.86 15.10 1.79 14.30 1.69 13.40 1.60 11.70 1.50 -30.2 9.70 7.21 9.70 7.31...
Page 211 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 9.60 6.37 9.60 6.40 9.60 6.47 9.60 7.36 9.60 6.94 9.40 6.62 -24.8 16.00 6.48 16.00 6.51...
Page 212 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 14.10 5.31 13.30 5.40 12.50 5.10 12.10 4.82 11.70 4.55 10.90 4.30 -21.8 14.10 5.37 13.30 5.07...
Page 213 Multi V i Product Data 7. Capacity Tables ZRUM100LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 12.90 9.68 12.90 9.78 12.80 9.89 12.80 10.03 12.80 10.13 12.50 10.36 -24.8 21.60 10.00 21.60...
Page 214 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 12.70 9.89 12.70 10.03 12.70 10.13 12.70 10.36 12.70 10.48 12.40 10.55 -24.8 21.20 10.19 21.20 10.33...
Page 215 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 21.00 9.83 21.00 10.04 20.90 10.18 20.90 10.24 20.90 10.38 20.40 10.59 -21.8 25.60 10.01 25.60 10.22...
Page 216 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 23.40 8.97 23.30 9.02 21.90 8.69 21.20 8.21 20.60 7.77 19.20 7.35 -19.8 24.70 9.01 23.30 8.67...
Page 217 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 17.70 7.09 16.70 6.67 15.70 6.29 15.20 5.93 14.70 5.60 13.70 5.27 -18.8 17.70 6.93 16.70 6.53...
Page 218 Multi V i Product Data 7. Capacity Tables ZRUM120LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 15.30 11.24 15.30 11.46 15.20 11.66 15.20 11.96 15.20 12.25 15.20 12.72 -24.8 25.50 11.98 25.50...
Page 219 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 15.10 11.66 15.10 11.96 15.10 12.25 15.10 12.72 15.10 13.04 15.00 13.17 -24.8 25.20 12.40 25.20 12.70...
Page 220 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 25.00 12.33 25.00 12.78 24.90 13.10 24.90 13.25 24.90 13.55 24.80 14.00 -21.8 29.70 12.76 29.70 13.21...
Page 221 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 28.30 11.54 28.00 11.56 26.30 11.23 25.40 10.66 24.70 10.11 23.00 9.60 -19.8 29.60 11.46 28.00 11.21...
Page 222 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 21.20 9.31 20.00 8.79 18.80 8.30 18.20 7.84 17.60 7.42 16.40 7.01 -18.8 21.20 9.12 20.00 8.59...
Page 223 Multi V i Product Data 7. Capacity Tables ZRUM140LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 17.30 12.97 17.30 13.10 17.20 13.23 17.20 13.41 17.20 13.59 16.80 13.87 -24.8 28.80 13.38 28.80...
Page 224 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 17.10 13.23 17.10 13.41 17.00 13.59 17.00 13.87 17.00 14.06 16.60 14.15 -24.8 28.50 13.63 28.50 13.82...
Page 225 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 28.30 13.42 28.30 13.70 28.10 13.90 28.10 13.99 28.10 14.17 27.50 14.45 -21.8 34.40 13.66 34.40 13.93...
Page 226 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 32.60 12.24 32.60 12.34 30.70 11.87 29.70 11.31 28.80 10.79 26.90 10.28 -19.8 34.60 12.03 32.70 11.84...
Page 227 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 24.80 9.74 23.40 9.23 21.90 8.76 21.20 8.31 20.50 7.89 19.10 7.48 -18.8 24.80 9.55 23.40 9.04...
Page 228 Multi V i Product Data 7. Capacity Tables ZRUM160LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 19.20 15.05 19.20 15.37 19.10 15.63 19.10 16.03 19.10 16.38 19.10 17.01 -24.8 32.00 16.01 32.00...
Page 229 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 18.90 15.63 18.90 16.03 18.90 16.38 18.90 17.01 18.90 17.43 18.90 17.63 -24.8 31.60 16.58 31.60 16.98...
Page 230 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 31.30 16.35 31.30 16.95 31.10 17.37 31.10 17.56 31.10 17.96 31.10 18.56 -21.8 38.50 16.89 38.50 17.49...
Page 231 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 38.00 15.28 37.30 15.05 35.10 14.65 33.90 13.60 32.90 13.02 30.70 12.45 -19.8 39.50 15.30 37.30 14.64...
Page 232 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 28.30 11.85 26.70 11.26 25.10 10.70 24.30 10.18 23.50 9.69 21.90 9.20 -18.8 28.30 11.64 26.70 11.04...
Page 233 Multi V i Product Data 7. Capacity Tables ZRUM180LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 23.60 17.89 23.60 18.00 23.40 18.10 23.40 18.26 23.40 18.42 23.00 18.65 -24.8 39.30 18.24 39.30...
Page 234 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 23.30 18.10 23.30 18.26 23.10 18.42 23.10 18.65 23.10 18.82 22.70 18.89 -24.8 38.80 18.46 38.80 18.61...
Page 235 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 38.50 17.79 38.50 18.03 38.30 18.19 38.30 18.28 38.30 18.43 37.50 18.67 -21.8 45.60 17.99 45.60 18.23...
Page 236 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 41.90 15.96 41.90 16.04 39.50 15.37 38.20 14.63 37.00 13.93 34.50 13.24 -19.8 44.30 16.10 42.00 15.36...
Page 237 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 31.80 12.61 30.00 11.93 28.20 11.30 27.30 10.70 26.40 10.16 24.60 9.61 -18.8 31.80 12.35 30.00 11.68...
Page 238 Multi V i Product Data 7. Capacity Tables ZRUM200LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 25.00 21.77 25.00 21.84 24.80 21.91 24.80 22.00 24.80 22.11 24.30 22.23 -24.8 41.60 21.95 41.60...
Page 239 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 24.70 21.91 24.70 22.00 24.50 22.11 24.50 22.23 24.50 22.35 24.00 22.37 -24.8 41.10 22.08 41.10 22.18...
Page 240 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 40.80 21.66 40.80 21.80 40.50 21.90 40.50 21.94 40.50 22.04 39.70 22.18 -21.8 49.50 21.75 49.50 21.90...
Page 241 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 46.60 19.11 46.60 19.15 43.90 18.27 42.40 17.41 41.10 16.60 38.40 15.82 -19.8 49.40 18.73 46.70 18.24...
Page 242 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 35.40 15.00 33.40 14.21 31.40 13.48 30.40 12.79 29.30 12.15 27.30 11.51 -18.8 35.40 14.71 33.40 13.93...
Page 243 Multi V i Product Data 7. Capacity Tables ZRUM220LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 28.20 20.92 28.20 21.24 28.00 21.55 28.00 21.99 28.00 22.38 27.70 23.08 -24.8 47.10 21.98 47.10...
Page 244 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 27.80 21.55 27.80 21.99 27.80 22.38 27.80 23.08 27.80 23.52 27.40 23.72 -24.8 46.40 22.59 46.40 23.03...
Page 245 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 46.00 22.16 46.00 22.82 45.80 23.28 45.80 23.49 45.80 23.93 45.20 24.59 -21.8 55.30 22.77 55.30 23.43...
Page 246 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 51.70 20.51 51.30 20.58 48.20 19.92 46.60 18.87 45.30 17.88 42.20 16.95 -19.8 54.30 20.47 51.30 19.88...
Page 247 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 38.90 16.40 36.70 15.46 34.50 14.59 33.40 13.77 32.30 13.02 30.10 12.28 -18.8 38.90 16.05 36.70 15.12...
Page 248 Multi V i Product Data 7. Capacity Tables ZRUM240LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 30.20 22.65 30.20 22.88 30.00 23.12 30.00 23.44 30.00 23.72 29.30 24.23 -24.8 50.40 23.38 50.40...
Page 249 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 29.80 23.12 29.80 23.44 29.70 23.72 29.70 24.23 29.70 24.54 29.00 24.70 -24.8 49.70 23.82 49.70 24.15...
Page 250 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 49.30 23.25 49.30 23.74 49.00 24.08 49.00 24.23 49.00 24.55 47.90 25.04 -21.8 60.00 23.67 60.00 24.15...
Page 251 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 56.00 21.21 55.90 21.36 52.60 20.56 50.90 19.52 49.40 18.56 46.10 17.63 -19.8 59.30 21.04 56.00 20.51...
Page 252 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 42.50 16.83 40.10 15.90 37.60 15.05 36.40 14.24 35.20 13.49 32.80 12.75 -18.8 42.50 16.48 40.10 15.57...
Page 253 Multi V i Product Data 7. Capacity Tables ZRUM260LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 32.60 24.21 32.60 24.56 32.40 24.89 32.40 25.37 32.40 25.84 32.00 26.59 -24.8 54.30 25.36 54.30...
Page 254 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 32.20 24.89 32.20 25.37 32.10 25.84 32.10 26.59 32.10 27.10 31.60 27.32 -24.8 53.70 26.03 53.70 26.52...
Page 255 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 53.30 25.75 53.30 26.48 53.00 27.00 53.00 27.24 53.00 27.72 52.30 28.45 -21.8 64.10 26.42 64.10 27.14...
Page 256 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 60.90 23.78 60.60 23.90 57.00 23.10 55.10 21.97 53.50 20.90 49.90 19.88 -19.8 64.20 23.49 60.70 23.05...
Page 257 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 46.00 19.05 43.40 18.02 40.70 17.06 39.40 16.15 38.10 15.31 35.50 14.49 -18.8 46.00 18.67 43.40 17.63...
Page 258 Multi V i Product Data 7. Capacity Tables ZRUM280LTE6 Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 34.50 26.29 34.50 26.83 34.30 27.29 34.30 27.99 34.30 28.63 34.30 29.73 -24.8 57.50 27.99 57.50...
Page 259 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -30.2 34.00 27.29 34.00 27.99 34.00 28.63 34.00 29.73 34.00 30.47 33.90 30.80 -24.8 56.80 28.98 56.80 29.68...
Page 260 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -24.8 56.30 28.68 56.30 29.73 56.00 30.47 56.00 30.81 56.00 31.51 55.90 32.56 -21.8 68.20 29.65 68.20 30.70...
Page 261 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -21.8 66.30 26.82 65.30 26.61 61.40 25.88 59.30 24.26 57.60 23.13 53.70 22.05 -19.8 69.10 26.76 65.30 25.85...
Page 262 Multi V i Product Data 7. Capacity Tables Indoor Air Temp. (°C, DB) Outdoor Air Temp. 16.0 18.0 20.0 21.0 22.0 24.0 Combi. (°C, (°C, -19.8 49.50 21.16 46.70 20.05 43.90 19.00 42.50 18.02 41.10 17.11 38.30 16.21 -18.8 49.50 20.76 46.70 19.63...
Page 263 Multi V i Product Data 8. Capacity Correction Factor 8.1 Cooling Operation ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6, ZRUM180LTE6, ZRUM200LTE6, ZRUM220LTE6, ZRUM240LTE6, ZRUM260LTE6, ZRUM280LTE6 Level Capacity correction factor (%) by equivalent pipe length (m) difference (=IDU-ODU) -110 89.0 88.0 88.0 87.0 86.0 86.0 85.0...
Page 264 Multi V i Product Data 8. Capacity Correction Factor Correction factor Rate of Change size increase (object piping) standard size Capacity Class ≤ 34HP Capacity Class ≤ 60HP Capacity Class ≥ 62HP Cooling(Gas pipe) Heating(Liquid pipe) ※ Accordance with product type(operation mode), target region, model line up could be different. Apply the correction factor after selecting that according to the unit capacity.
Page 265 Multi V i Product Data 8. Capacity Correction Factor 8.2 Heating Operation ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6, ZRUM180LTE6, ZRUM200LTE6, ZRUM220LTE6, ZRUM240LTE6, ZRUM260LTE6, ZRUM280LTE6 Level Capacity correction factor (%) by equivalent pipe length (m) difference (=IDU-ODU) -110 100.0 100.0 100.0 100.0 100.0 -100 100.0...
Page 266 Multi V i Product Data 8. Capacity Correction Factor Correction factor Rate of Change size increase (object piping) standard size Capacity Class ≤ 34HP Capacity Class ≤ 60HP Capacity Class ≥ 62HP Cooling(Gas pipe) Heating(Liquid pipe) ※ Accordance with product type(operation mode), target region, model line up could be different. Apply the correction factor after selecting that according to the unit capacity.
Page 267 Multi V i Product Data 9. Operation Limits 9.1 Cooling Operation ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6, ZRUM180LTE6, ZRUM200LTE6, ZRUM220LTE6, ZRUM240LTE6, ZRUM260LTE6, ZRUM280LTE6 55°C 52°C 50°C 48°C 45°C 40°C 35°C 30°C 25°C 20°C 15°C 10°C 5°C 0°C -5°C -10°C -15°C 10°C 14°C 15°C 20°C 25°C 27°C 30°C...
Page 268 Multi V i Product Data 9. Operation Limits 9.2 Heating Operation ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6, ZRUM180LTE6, ZRUM200LTE6, ZRUM220LTE6, ZRUM240LTE6, ZRUM260LTE6, ZRUM280LTE6 20°C 18°C 15°C 10°C 5°C 0°C -5°C -10°C -15°C -20°C -25°C -30°C 10°C 15°C 20°C 25°C 27°C 30°C Indoor Temperature(°C DB) Note ■...
Page 269 Multi V i Product Data 9. Operation Limits 9.3 Simultaneous Operation (Cooling) ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6, ZRUM180LTE6, ZRUM200LTE6, ZRUM220LTE6, ZRUM240LTE6, ZRUM260LTE6, ZRUM280LTE6 30°C 27°C 25°C 20°C 15°C 10°C 5°C 0°C -5°C -10°C -15°C 10°C 14°C 15°C 20°C 25°C 27°C 30°C Indoor Temperature(°C WB) Note...
Page 270 Multi V i Product Data 9. Operation Limits 9.4 Simultaneous Operation (Heating) ZRUM080LTE6, ZRUM100LTE6, ZRUM120LTE6, ZRUM140LTE6, ZRUM160LTE6, ZRUM180LTE6, ZRUM200LTE6, ZRUM220LTE6, ZRUM240LTE6, ZRUM260LTE6, ZRUM280LTE6 20°C 16°C 15°C 10°C 5°C 0°C -5°C -10°C 10°C 15°C 20°C 25°C 27°C 30°C Indoor Temperature(°C DB) Note ■...
Page 271 Multi V i Product Data 10. Sound Levels 10.1 Pressure Levels ZRUM080LTE6 Night Low Noise Control ■ Cooling SPL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 57.0 58.0 op4~op6, op11 57.0 58.0 op7~op9, op12 55.0 55.0 Noise Target Control...
Page 272 Multi V i Product Data 10. Sound Levels ZRUM100LTE6 Night Low Noise Control ■ Cooling SPL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 57.5 58.5 op4~op6, op11 57.0 58.0 op7~op9, op12 55.0 55.0 Noise Target Control NC-65 Dip Switch Target [dB(A)]...
Page 273 Multi V i Product Data 10. Sound Levels ZRUM120LTE6 Night Low Noise Control ■ Cooling SPL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 59.0 60.0 op4~op6, op11 57.0 58.0 op7~op9, op12 55.0 55.0 Noise Target Control NC-65 Dip Switch Target [dB(A)]...
Page 274 Multi V i Product Data 10. Sound Levels ZRUM140LTE6 Night Low Noise Control ■ Cooling SPL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 60.0 61.0 op4~op6, op11 59.0 59.0 op7~op9, op12 57.0 57.0 Noise Target Control NC-65 Dip Switch Target [dB(A)]...
Page 275 Multi V i Product Data 10. Sound Levels ZRUM160LTE6 Night Low Noise Control ■ Cooling SPL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 60.0 61.0 op4~op6, op11 59.0 59.0 op7~op9, op12 57.0 57.0 Noise Target Control NC-65 Dip Switch Target [dB(A)]...
Page 276 Multi V i Product Data 10. Sound Levels ZRUM180LTE6 Night Low Noise Control ■ Cooling SPL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 60.5 61.0 op4~op6, op11 59.0 59.0 op7~op9, op12 57.0 57.0 Noise Target Control NC-65 Dip Switch Target [dB(A)]...
Page 277 Multi V i Product Data 10. Sound Levels ZRUM200LTE6 Night Low Noise Control ■ Cooling SPL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 60.5 61.0 op4~op6, op11 59.0 59.0 op7~op9, op12 57.0 57.0 Noise Target Control NC-65 Dip Switch Target [dB(A)]...
Page 278 Multi V i Product Data 10. Sound Levels ZRUM220LTE6 ■ Cooling ▲ Heating NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 Approximate Hearing NC-20 NC-15 1000 2000 4000 8000 Octave Band Center Frequency (Hz) Octave Band [Hz] 1000 2000 4000 8000 Overall [dB(A)]...
Page 279 Multi V i Product Data 10. Sound Levels ZRUM240LTE6 ■ Cooling ▲ Heating NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 Approximate Hearing NC-20 NC-15 1000 2000 4000 8000 Octave Band Center Frequency (Hz) Octave Band [Hz] 1000 2000 4000 8000 Overall [dB(A)]...
Page 280 Multi V i Product Data 10. Sound Levels ZRUM260LTE6 ■ Cooling ▲ Heating NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 Approximate Hearing NC-20 NC-15 1000 2000 4000 8000 Octave Band Center Frequency (Hz) Octave Band [Hz] 1000 2000 4000 8000 Overall [dB(A)]...
Page 281 Multi V i Product Data 10. Sound Levels ZRUM280LTE6 ■ Cooling ▲ Heating NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 Approximate Hearing NC-20 Threshold NC-15 1000 2000 4000 8000 Octave Band Center Frequency (Hz) Octave Band [Hz] 1000 2000 4000 8000...
Page 282 Multi V i Product Data 10. Sound Levels 10.2 Power Levels ZRUM080LTE6 Night Low Noise Control ■ Cooling PWL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 78.0 78.0 op4~op6, op11 78.0 78.0 NR-110 op7~op9, op12 77.0 77.0 NR-105...
Page 283 Multi V i Product Data 10. Sound Levels ZRUM100LTE6 Night Low Noise Control ■ Cooling PWL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 79.0 80.0 op4~op6, op11 78.0 79.0 NR-110 op7~op9, op12 77.0 77.0 NR-105 NR-100 NR-95...
Page 284 Multi V i Product Data 10. Sound Levels ZRUM120LTE6 Night Low Noise Control ■ Cooling PWL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 80.0 82.0 op4~op6, op11 78.0 80.0 NR-110 op7~op9, op12 77.0 77.0 NR-105 NR-100 NR-95...
Page 285 Multi V i Product Data 10. Sound Levels ZRUM140LTE6 Night Low Noise Control ■ Cooling PWL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 82.0 81.0 op4~op6, op11 81.0 80.0 NR-110 op7~op9, op12 79.0 79.0 NR-105 NR-100 NR-95...
Page 286 Multi V i Product Data 10. Sound Levels ZRUM160LTE6 Night Low Noise Control ■ Cooling PWL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 82.0 82.0 op4~op6, op11 81.0 81.0 NR-110 op7~op9, op12 79.0 79.0 NR-105 NR-100 NR-95...
Page 287 Multi V i Product Data 10. Sound Levels ZRUM180LTE6 Night Low Noise Control ■ Cooling PWL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 83.0 83.0 op4~op6, op11 81.0 81.0 NR-110 op7~op9, op12 79.0 79.0 NR-105 NR-100 NR-95...
Page 288 Multi V i Product Data 10. Sound Levels ZRUM200LTE6 Night Low Noise Control ■ Cooling PWL [dB(A)] Capacity [%] Dip Switch ▲ Heating Cool Heat Cool Heat op1~op3, op10 83.0 83.0 op4~op6, op11 81.0 81.0 NR-110 op7~op9, op12 79.0 79.0 NR-105 NR-100 NR-95...
Page 289 Multi V i Product Data 10. Sound Levels ZRUM220LTE6 ■ Cooling ▲ Heating NR-110 NR-105 NR-100 NR-95 NR-90 NR-85 NR-80 NR-75 NR-70 NR-65 NR-60 NR-55 NR-50 NR-45 NR-40 NR-35 NR-30 NR-25 NR-20 1000 2000 4000 8000 Octave Band Center Frequency (Hz) Octave Band [Hz] 1000 2000...
Page 290 Multi V i Product Data 10. Sound Levels ZRUM240LTE6 ■ Cooling ▲ Heating NR-110 NR-105 NR-100 NR-95 NR-90 NR-85 NR-80 NR-75 NR-70 NR-65 NR-60 NR-55 NR-50 NR-45 NR-40 NR-35 NR-30 NR-25 NR-20 1000 2000 4000 8000 Octave Band Center Frequency (Hz) Octave Band [Hz] 1000 2000...
Page 291 Multi V i Product Data 10. Sound Levels ZRUM260LTE6 ■ Cooling ▲ Heating NR-110 NR-105 NR-100 NR-95 NR-90 NR-85 NR-80 NR-75 NR-70 NR-65 NR-60 NR-55 NR-50 NR-45 NR-40 NR-35 NR-30 NR-25 NR-20 1000 2000 4000 8000 Octave Band Center Frequency (Hz) Octave Band [Hz] 1000 2000...
Page 292 Multi V i Product Data 10. Sound Levels ZRUM280LTE6 ■ Cooling ▲ Heating NR-110 NR-105 NR-100 NR-95 NR-90 NR-85 NR-80 NR-75 NR-70 NR-65 NR-60 NR-55 NR-50 NR-45 NR-40 NR-35 NR-30 NR-25 NR-20 1000 2000 4000 8000 Octave Band Center Frequency (Hz) Octave Band [Hz] 1000 2000...
Page 293 Installation Installation of Outdoor Unit...
Page 294 Installation of Outdoor Unit Installation 1. Information for Refrigerant 1.1 Alternative Refrigerant The type of refrigerant applied depends on the outdoor unit cycle configuration. Ensure the refrigerant type in the specification of the indoor unit and outdoor unit to be installed. ■...
Page 295 Installation of Outdoor Unit Installation 1. Information for Refrigerant 1.2 Installation Flow Chart Installation = (m / (2.5 x (LFL) (5/4) ≤ 15.964 kg Installation by adding not less than A /(0.75 x LFL x h natural ventilation refer to natural ventilation chapter.
Page 296 Installation of Outdoor Unit Installation 1. Information for Refrigerant 1.3 Natural Ventilation For the low er opening: For the upper opening: - It is not an opening to the outside - It is not an opening to the outside - The opening cannot be closed - The opening cannot be closed - The opening must be ≥...
Page 297 Installation of Outdoor Unit Installation 2. Selection of the best Location 2.1 Best Location Select space for installing outdoor unit, which will meet the following conditions: • No direct thermal radiation from other heat sources. • No possibility of annoying neighbors due to noise of unit. •...
Page 298 Installation of Outdoor Unit Installation 2. Selection of the best Location 2.2 Special Guide for Installation Windbreak Sea wind Sea wind Sea wind ※ This figure is representative. Actual appearance of outdoor unit may be different by product type. < ! > CAUTIONS •...
Page 299 Installation of Outdoor Unit Installation 2. Selection of the best Location 2.3 Lifting Method • When carrying the suspended, unit pass the ropes under the unit and use the two suspension points each at the front and rear. • Always lift the unit with ropes attached at four points so that impact is not applied to the unit. •...
Page 300 Installation of Outdoor Unit Installation 3. Foundation for Installation Unit : mm Pallet(Wood Support) - Remove before Installation • Install where it can sufficiently support the weight of the outdoor unit. If the support strength is not enough, the outdoor unit may drop and hurt people. •...
Page 301 Installation of Outdoor Unit Installation 4. Refrigerant Piping System 4.1 System Diagram Example : 10 Indoor Units connected Slave 2 Slave 1 Master Aircooled / Watercooled VRF Unit Y Branch / Header / HR Unit !! After Header, HR unit or Branch pipe can not be used. Indoor Units Connection branch pipe between Outdoor/Outside units Main pipe before 1st Branch...
Page 302 Installation of Outdoor Unit Installation 4. Refrigerant Piping System 4.2 Refrigerant Piping System Design Limit of Piping Length and difference in height Overall Piping Length 1,000m (A+B+C1+C2+C3+D+a+b+c+d+e+f+g+i+j+k) Longest pipe length (A+B+C3+D+K) 150m (200m**) : between outdoor Unit and the farthest indoor unit Longest pipe Equivalent length* 175m (225m**) between outdoor Unit and the farthest indoor unit...
Page 303 Installation of Outdoor Unit Installation 4. Refrigerant Piping System Refrigerant pipe diameter from branch to branch (B,C,D) Downward indoorunit total Liquid pipe Low Pressure Gas pipe High Pressure Gas pipe capacity [kW(Btu/h)] [mm(inch)] [mm(inch)] [mm(inch)] ≤ 5.6(19,100) Ø6.35(1/4) Ø12.7(1/2) Ø9.52(3/8) <...
Page 304 Installation of Outdoor Unit Installation 4. Refrigerant Piping System • Y branch and header branch cannot be used after header branch. Indoor Unit connecting pipe (a~k) Indoor Unit capacity Liquid pipe Gas pipe [kW(Btu/h)] [mm(inch)] [mm(inch)] ≤ 5.6(19,100) Ø6.35(1/4) Ø12.7(1/2) <...
Page 305 Installation of Outdoor Unit Installation 4. Refrigerant Piping System 4.3 Branch Pattern for Heat Recovery Pattern 1 Pattern 2 Symbols • Impossible installation • Impossible installation Indoor Unit Y Branch pipe Header Branch pipe : Head branch pipe → HR unit : HR unit →...
Page 306 Installation of Outdoor Unit Installation 4. Refrigerant Piping System 4.4 Selection of Y Branch ARBLN- (For Heat Pump) : Liquid pipe + Low Pressure Gas Pipe ARBLB- (For Heat Recovery) : Liquid pipe + Low Pressure Gas Pipe + High Pressure Gas Pipe Model Liquid pipe Low Pressure Gas pipe...
Page 307 Installation of Outdoor Unit Installation 4. Refrigerant Piping System 4.5 Selection of Header Liquid pipe Gas pipe Model [Unit : mm] ID12.7 ID6.35 ID6.35 ID12.7 4 Branch ID9.52 120 150 120 150 ID15.88 ARBL054 ID9.52 ID15.88 ID15.88 ID19.05 ID12.7 ID9.52 ID12.7 ID6.35 7 Branch...
Page 308 Installation of Outdoor Unit Installation 4. Refrigerant Piping System 4.6 Selection of Reducer Model Liquid pipe Low Pressure Gas pipe High Pressure Gas pipe [Unit : mm(inch)] Indoor Unit Reducer OD9.52(3/8) Ø6.35(1/4) OD15.88(5/8) Ø 12.7(1/2) OD19.05(3/4) Ø15.88(5/8) Ø12.7(1/2) PRHR023 OD22.2(7/8) Ø19.05(3/4) Ø15.88(5/8) OD9.52(3/8) Ø6.35(1/4) OD12.7(1/2)
Page 309 Installation of Outdoor Unit Installation 4. Refrigerant Piping System 4.7 Series Unit Connection(Heat Recovery) Master Slave 1 Slave 2 Slave 3 *Maximum combination could be different in accordance with model line up. ≥ ≥ ≥ (1) Indoor unit side connection pipe (2) Outdoor unit to outdoor unit connection pipe (1st branch) (3) Outdoor unit to outdoor unit connection pipe (2st branch) (4) Outdoor unit to outdoor unit connection pipe (3rd branch)
Page 310 Installation of Outdoor Unit Installation 4. Refrigerant Piping System 4.8 Series Unit Connection(Heat Pump) Master Slave 1 Slave 2 Slave 3 *Maximum combination could be different in accordance with model line up. ≥ ≥ ≥ (1) Indoor unit side connection pipe (2) Outdoor unit to outdoor unit connection pipe (1st branch) (3) Outdoor unit to outdoor unit connection pipe (2st branch) (4) Outdoor unit to outdoor unit connection pipe (3rd branch)
Page 311 Installation of Outdoor Unit Installation 4. Refrigerant Piping System 4.9 Oil Trap Application Oil trap application Oil Trap Oil Trap 0.2 m(0.66 ft) or more 0.2 m(0.66 ft) or more 2 m(6.6 ft) or less 2 m(6.6 ft) or less 2 m(6.6 ft) or less 2 m(6.6 ft) or less when 2 m(6.6 ft) or longer...
Page 312 Installation of Outdoor Unit Installation 4. Refrigerant Piping System • Please refer to the below connection examples to install pipe connections between outdoor/outside units. • Because of the possibility of oil being accumulated in the outdoor/outside unit that has stopped, when there is a height difference between outdoor/outside unit pipes or if the pipe distance between the outdoor/outside units is over 2m, you must always apply an oil trap.
Page 313 Installation of Outdoor Unit Installation 4. Refrigerant Piping System 4.10 Calculation of Amount Refrigerant • The calculation of the additional charge should take into account the length of pipe and CF(correction Factor) value of indoor units. • Please refer to the indoor unit’s PDB or the outdoor/outside unit’s installation manual for the additional refrigerant table of indoor units.
Page 314 Installation of Outdoor Unit Installation 5. Electrical Wiring Outdoor Unit Outdoor Unit Indoor Indoor Indoor Indoor Unit Unit Unit Unit Remote Remote control control Remote Remote control control Outdoor Unit Indoor Indoor Unit Unit Outdoor Unit Indoor Indoor Unit Unit Remote Remote control...
Page 315 Installation of Outdoor Unit Installation 5. Electrical Wiring • Never connect the main power source to terminal block of communication line. If connected, electrical parts will be burnt out. • Introducing with a missing “N” phase or with a mistaken “N” phase will break the equipment. •...
Page 316 Installation of Outdoor Unit Installation 6. Field Wiring 6.1 General Instruction ■ Wiring of Main Power Supply • Bear in mind ambient conditions (ambient temperature,direct sunlight, rain liquid,etc.) when proceeding with the wiring and connections • The wire size is the minimum value for metal conduit wiring. The power cord size should be 1 rank thicker taking into account the line voltage drops.
Page 317 Installation of Outdoor Unit Installation 6. Field Wiring 6.2 Schematic Diagram of Series Wiring !! This System is representative Example. !! * : Actual combination of outdoor unit may be different by Product line-up of region or Product Type. R S T N R S T Switch Switch...
Page 318 Installation of Outdoor Unit Installation 6. Field Wiring 6.3 Schematic Diagram of Individual Wiring !! This System is representative Example. !! * : Actual combination of outdoor unit may be different by Product line-up of region or Product Type. R S T N R S T Switch Switch...
Page 319 Installation of Outdoor Unit Installation 6. Field Wiring 6.4 Example Connection of Communication Cable BUS Type STAR Type Connection of communication cable must be installed Abnormal operation can be caused by communication like this figure between indoor unit to outdoor unit. defect, when connection of communication cable is installed like below figure.
Page 320 Copyright 2024 LG Electronics Inc. All Rights Reserved. The air conditioners manufactured by LG have received ISO9001 certificate for quality assurance and ISO14001 certificate for environmental management system. The specifications, designs, and information in this brochure are subject to change without notice.

This manual is also suitable for:

Multi v zrum100lte6 Multi v zrum120lte6 Multi v zrum140lte6 Multi v zrum160lte6 Multi v zrum180lte6 Multi v zrum200lte6 ... Show all

LG Multi V ZRUM080LTE6 Data Book

Quick Links

Related Manuals for LG Multi V ZRUM080LTE6

Summary of Contents for LG Multi V ZRUM080LTE6

This manual is also suitable for:
