Summary of Contents for DIEBOLD NIXDORF C2120

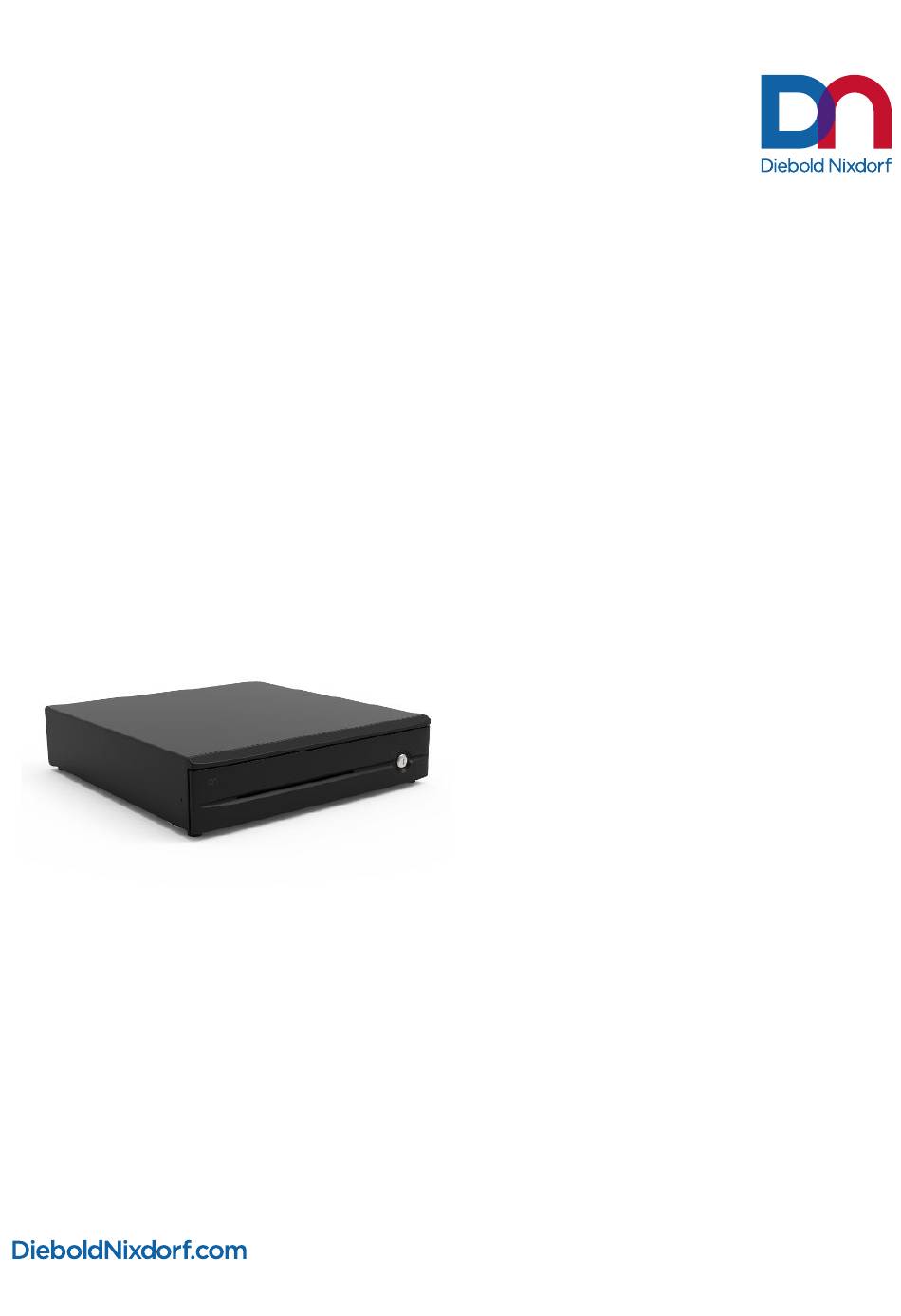

- Page 1 C2120 Cashdrawer Operator Manual 01750371903 A Customer/Partner Use This document is property of Diebold Nixdorf and is intended for customer/partner use. A written license agreement with Diebold Nixdorf is not required to use this material.
- Page 2 This document and the information contained herein are provided AS IS AND WITHOUT WARRANTY. In no event shall Diebold Nixdorf or its suppliers be liable for any special, indirect, or consequential dam- ages of any nature resulting from the use of information in this manual. The information contained in this document is subject to change without notice.
- Page 3 Table -1: Document History Date Remarks 03/2023 Original edition Copyright © 2023, Diebold Nixdorf 01750371903 A...
-
Page 4: Table Of Contents
Adjusting the Coin Trays..................4-3 4.1.4 Inserting the Cash Trays into the Drawer ............4-3 4.1.5 Security Cover (option) ..................4-4 4.1.6 Activating the C2120................... 4-6 4.1.7 Key Positions ...................... 4-7 5 Appendix............................. 5-1 Manufacturer’s declaration and approval................5-1 Environmental Protection....................5-3 6 Disposal ............................ - Page 5 Figure 4-7 Removing security cover ..................4-5 Figure 4-8 Connection system of cash drawer ............... 4-6 Figure 4-9 Position of the key in cash drawer ................. 4-7 Figure 4-10 Key Positions ......................4-7 Copyright © 2023, Diebold Nixdorf 01750371903 A...
- Page 6 Table of Contents List of Tables Table -1 Document History ....................-iii Table 1-1 Warning signs used ....................1-3 Table 1-2 Mandatory signs used ................... 1-3 Copyright © 2023, Diebold Nixdorf 01750371903 A...
-
Page 7: Introduction
Prerequisite that must be fulfilled before an action. Numbered instructions describe activities which must be carried out in the specified se- quence Intermediate result of an action. Action successfully completed. Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 8: Section-Specific Warning Notes
This warning note describes a hazard with a low degree of risk which, if not avoided, could result in slight or minor bodily injury. NOTE This note provides application tips and information that help prevent errors and material damage. Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 9: Signs, Markings And Symbols
Table 1-2: Mandatory signs used Mandatory signs Observe Wear Wear Wear the manual eye protection foot protection hand protection Ground Pull Wear before use main plug ear protection Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 10: Description
2 Description The C2120 compact cash drawer is distinguished by a combination of a small footprint and a large ca- pacity. Thus, it harmonizes with the new generation of POS systems, which are likewise characterized by their small space requirement. The C2120 offers sophisticated operation and a high standard of secu- rity. -
Page 11: The Cash Trays
The cash tray at the front is arranged in two layers. There are eight-coin trays on the top layer. Behind there is a tray with possibility of four or five bank note compartments based on sales order. Figure 2-2: Cash tray - Front view Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 12: Figure 2-3 Check Depositor - Front View
The bottom layer of the front coin tray contains a compartment for checks. The checks can be easily de- posited through a slot in the front cover into the compartment without opening the drawer. Figure 2-3: Check depositor - Front view Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 13: Pin Assignments
PIN Assignments 2.2.1 2.2.1 PIN Assignment of the RJ12 Connector Figure 2-4: RJ12 Connector 1 Frame ground 4 +24V DC 2 Opening pulse for cash drawer 5 N.C. 3 Status cash drawer 6 Signal ground Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 14: Technical Data
-5 °C to 50 °C, max. 80% RH Storage temperature -25 °C to 65 °C, max. 90% RH Relative humidity 10% to 90% RH (no condensation) Cable 3 m (118’’) or 5 m (196.9”) Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 15: Installation Of Cash Drawer
NOTE Securing of Cash Drawer The checkout desk must be level and horizontal. The securing screws must not exceed the specified length in order to ensure trouble-free operation of the cash drawer! Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 16: Figure 3-1 Measurements For Installation
Installation of Cash Drawer 413 (16.25") 36.6 (1.44") 120.8 (4.75") 90 (3.54") Figure 3-1: Measurements for installation Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 17: Figure 3-2 Position Of Bore Hole And Screw
Fixing bolts for these screws can be found at the cash drawer. When screwed in, the screws must not protrude, so that they do not scrape on the cash insert. If necessary, use washers to prevent the screws protruding. Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 18: Operation
1. Open the cash drawer to the front as far as it will go to remove the cash trays from the drawer. 2. Pull out the cash trays to the top. Figure 4-1: Removing the Cash Tray Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 19: Adjusting The Banknote Partitions
Rear Side NOTICE! The banknote partitions must be fixed at the bottom with two flexible hooks (2). 5. Press the partitions gently down to lock them Figure 4-2: Adjusting Banknote Partitions Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 20: Adjusting The Coin Trays
4.1.4 4.1.4 Inserting the Cash Trays into the Drawer 1. Open the cash drawer to the front as far as it will go. 2. Insert the cash trays downwards behind the front side. Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 21: Security Cover (Option)
Operation 4.1.5 4.1.5 Security Cover (option) NOTE Locking of security cover The cash trays can be locked with a security cover after they have been removed. Figure 4-5: Locking of Security cover Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 22: Figure 4-6 Turning The Key To Open Security Cover
3. Pull up the security cover in the direction (2) to remove. Figure 4-7: Removing security cover 4.1.5.2 4.1.5.2 Inserting the Security Cover 1. Insert the security cover following the same steps in reverse order. Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 23: Activating The C2120
Connection System On the bottom of the C2120 you will find a RJ12 jack (see arrow), which is used to connect the drawer to the POS system or the DN POS printers. The cashdrawer is supplied with power via this jack. -
Page 24: Key Positions
Figure 4-9: Position of the key in cash drawer The following key positions are possible: Figure 4-10: Key Positions Key position in which the cash drawer can be opened electrically Key position for the manual emergency opening Locking position Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 25: Appendix
First connect the signal cable with the cash drawer. Then connect it to the host system (BEETLE or printer). Be careful not to catch your fingers in the drawer when opening and closing the drawer. Never put your fingers into the Media slot! Copyright © 2023, Diebold Nixdorf 01750371903 A... - Page 26 Appendix Warranty Diebold Nixdorf guarantees generally a warranty engagement for 12 months beginning with the date of delivery. This warranty engagement covers all those damages which occur despite a normal use of the product. Damages because of • improper or insufficient maintenance, •...
-
Page 27: Environmental Protection
Used batteries can be disposed of free of charge throughout the EU. Labels on plastic parts of the housing Please do not stick any labels on plastic parts of the housing since that would make recycling more diffi- cult. Copyright © 2023, Diebold Nixdorf 01750371903 A... -
Page 28: Disposal
Please observe the respective national regulations with regard to the disposal of elec- trical equipment. Electrical equipment should not be disposed of as normal municipal waste within the EU (crossed-out wheeled bin symbol). For information regarding the possible repurchase of used systems, please contact: contact.remarketing@dieboldnixdorf.com Copyright © 2023, Diebold Nixdorf 01750371903 A... - Page 29 DIEBOLD NIXDORF, Incorporated 50 Executive Pkwy | PO Box 2520 | Hudson, OH 44236 | USA © 2023 Diebold Nixdorf, Incorporated. All Rights Reserved.
