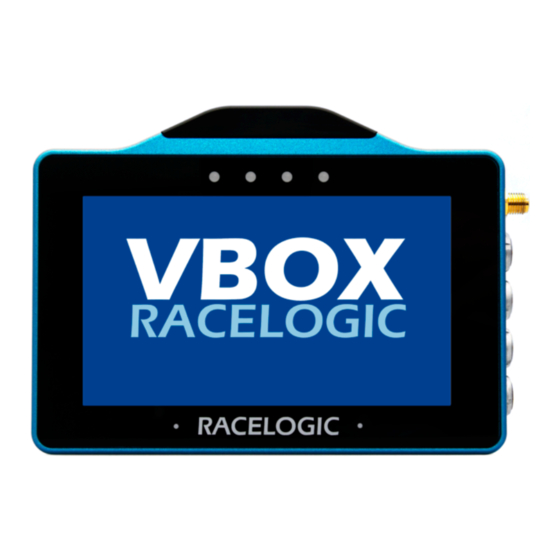

Motorsports VBOX Touch V1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Motorsport VBOX Touch V1 User Guide
•
01 Getting Started – VBOX Touch (v1)
•
02 Installing VBOX Touch (v1) in Your Vehicle
•
03 LED behaviour – VBOX Touch (v1)
•
04 Screen Layout – VBOX Touch (v1)
•
05 Display Modes – VBOX Touch (v1)
•
Accel Mode - VBOX Touch (v1)
•
Decel Mode - VBOX Touch (v1)
•
Lap Timing Mode - VBOX Touch (v1)
•
Speed Display Mode - VBOX Touch (v1)
•
06 Settings – VBOX Touch (v1)
•
CAN Bus - VBOX Touch V1
•
Pinouts - VBOX Touch (v1)
•
VBOX Touch (v1) - RS232 Output
•
VBOX Touch (v1) - Technical Specification
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VBOX Touch V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Motorsports VBOX Touch V1

Summary of Contents for Motorsports VBOX Touch V1

  • Page 1 Motorsport VBOX Touch V1 User Guide • 01 Getting Started – VBOX Touch (v1) • 02 Installing VBOX Touch (v1) in Your Vehicle • 03 LED behaviour – VBOX Touch (v1) • 04 Screen Layout – VBOX Touch (v1) •...

  • Page 2: What Is In The Box

    01 Getting Started – VBOX Touch (v1) Registration Please register your VBOX Touch so that Racelogic can continue to provide you with notifications about the latest software releases and firmware upgrades for your Racelogic product, and offer technical support. Register your device here. What is in the box? When you purchase a VBOX Touch Motorsport (v1) (RLVBTOUCH-M), you will find the following items when you open the box:...

  • Page 3: Optional Accessories

    Product Code Quantity Description 8 GB SD Ultima Pro UHS-1 Memory RLACS313 Card RLACS262 GNSS Antenna (3 m) ACS318MOUNT Suction Cup Windscreen Mount Optional Accessories Product Code Description RLVBACS004 Brake Pedal Trigger RLVBACS010 Hand Held Start/Stop Logging Switch RLCAB001 VBOX PC Serial Cable SD Card VBOX Touch logs data to an SD card.
  • Page 4 SDHC cards (2 GB to 32 GB) Supplied or purchased SDHC cards are formatted in the FAT32 file format. This format is supported by VBOX Touch. SDXC cards (64 GB and above) Purchased SDXC cards will be formatted in exFAT or NTFS file formats; these formats are not supported by VBOX Touch (please reformat as per instructions below).
  • Page 5 The first time that the unit is booted up, the Display Mode screen will be presented. Every time after this, the last used display mode will be opened. Logging VBOX Touch logs data via an SD card inserted into the side of the unit. Depending on the Logging Strategy selected within the General Settings area, the unit will either log continuously or when movement is detected (default).
  • Page 6 IMPORTANT Do not remove the SD card when the Record Icon is on as you may lose data. Note: If for some reason the SD card is removed while the unit is still recording, it may need to be repaired using a PC before it can be reused.
  • Page 7 02 Installing VBOX Touch (v1) in Your Vehicle Connectors Antenna If you are struggling to maintain a stable satellite lock, you can connect the supplied external antenna (RLACS262) to the antenna socket. You should also use the external antenna when you are doing Brake Trigger Tests.

  • Page 8: Satellite Reception

    VBOX Test Suite via an RLCAB001 and conduct live Right Side testing, or output lap timing parameters. You can find more information about the Serial Output settings here. You can find more detailed connector information on the PIN OUTS page. Mounting VBOX Touch is supplied with a Swivel Neck Richter Suction Mount (RLACS277) for mounting onto a vehicle windscreen.
  • Page 9 with the unit. IMPORTANT • If you are conducting Brake Trigger Deceleration Tests, you should use the external antenna. • The first time that the unit is used, it may take up to 10–15 minutes to fully acquire satellites. After this, it will usually take 1–2 minutes to acquire satellites.

  • Page 10: Gps Coldstart

    Media, iframe, embed and object tags are not supported inside of a PDF. Acquiring Satellite Lock Tall buildings or trees can block GNSS signals, causing a reduction in the number and quality of satellites being tracked, leading to inaccurate position measurements and a noisy velocity signal. GNSS works best in open areas/ Avoid tree-lined roads GPS Coldstart If VBOX Touch is struggling to acquire a satellite lock, a GPS coldstart may be required.
  • Page 11 When the button has been pressed, the unit will make an audible sound and a ‘PLEASE WAIT’ message will be displayed on the screen which will count down from 3. The number of satellites will then be displayed as '00' and GPS status will show ‘SEARCHING FOR SATELLITES’...
  • Page 12 03 LED behaviour – VBOX Touch (v1) The 4 LEDs at the top of the unit provide visual feedback dependent on what process is being performed: Function Behaviour Colour If Alert at End is enabled, the LEDs Accel/Decel Mode will flash green for 0.5 s once the test end criteria are met.
  • Page 13 Function Behaviour Colour When loading a Track Database file, the progress of the track database update is displayed via the LEDs; each lit LED will represent 25% of the process with all LEDs extinguishing when the process is complete. When a Track Layout is changed, the LEDs will briefly flash green twice.
  • Page 14 04 Screen Layout – VBOX Touch (v1) As the name suggests, VBOX Touch is controlled by using the capacitive touch screen. Generally, the different areas of the screen contain the following: • Top of the screen – indicative status information •...

  • Page 15: Logging Status

    LEDs VBOX Touch has 4 LEDs above the display. These can flash in different colours and different frequency patterns depending on the process being performed. You can learn more about the behaviour of the LEDs on VBOX Touch here. Logging Status Record Icon will show when the unit is logging data to the SD card.

  • Page 16: Satellite Status

    IMPORTANT Do not remove the SD card when the Record Icon is red. You may lose data or damage the SD card if you remove it while the unit is logging. SD Status The SD Card Icon displays the status of the recording media.

  • Page 17: Settings Button

    Settings Button The Settings Button will open a Settings area which contains menus for Display Mode Settings, General Settings, Serial Port Settings, Diagnostic Settings, Date & Time Settings and CAN Bus Settings. The Display Mode settings shown on the Settings screen depend on which mode has been selected.

  • Page 18: Mode Button

    Results Button You can view the test results history by selecting the Results button at the bottom of the current test screen. These test results will be displayed until you choose a new test type or you press the Reset Button. Mode Button The Mode Button lets you choose between the 4 Display Modes available.

  • Page 19: Exit Button

    Exit Button You can use the Exit button to return to the previous menu or page. https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/ VBOX_Touch_(v1)/User_Guide_%E2%80%93_VBOX_Touch_(v1)/04_Screen_Layout_%E2%80%93_VBOX_Touch_(v1)
  • Page 20 05 Display Modes – VBOX Touch (v1) VBOX Touch has 4 display modes; Accel, Decel, Lap Timing and Speed. The display modes allow you to conduct a range of performance tests and functions. You can change the display mode by pressing the Mode button at the bottom of the screen.
  • Page 21 Click on the screens below to find more information on the available modes. Acceleration Testing • Acceleration tests, including 0–60, 0–100, 0–100–0 and 0–¼ mile. • You can configure custom speed, distance or 0-speed-0 tests. Other options include enabling or disabling alert at end of test, one-foot rollout and slope correction.

  • Page 22: Lap Timing

    Lap Timing • A sophisticated lap timer with an updateable built-in database of over 800 circuits, real-time Delta-time, Delta-speed (shown via LEDs), Best Lap Time, Current Lap Time, Total Session Time and Lap Count. • Virtual Start/Finish Lines: When using GPS, there is no need for an external beacon or transmitter as timing will start with vehicle movement.
  • Page 23 Accel Mode - VBOX Touch (v1) The Acceleration Mode allows you to perform acceleration tests using pre-defined configurations or using your own specified values. It is also possible to display up to 4 concurrent test results on the screen. It is accessed by pressing Mode button at the bottom of the screen and selecting Accel.

  • Page 24: Primary Screen

    Note: If the start condition is 0 km/h, VBOX Touch will use the Smoothed Speed Value to reset the test to avoid a test incorrectly resetting within noisy satellite reception areas. Accel Mode Overview Primary Screen This is the default acceleration screen and displays current/completed test information. If One Foot Rollout or Slope Correction is enabled within the Accel Settings, the test header text will reflect the options.

  • Page 25: Secondary Screen

    The screen is split into two halves: • Left-hand side: This includes a live speed display which will always show the current speed of the vehicle, irrespective of any test start or end conditions. If the vehicle is travelling less than 0.5 km/h or the satellite lock is lost (less than 4 sats), the value will display as 000.0.
  • Page 26 • Left-hand side: This includes a live speed display which will always show the current speed of the vehicle, irrespective of any test start or end conditions. If the vehicle is travelling less than 0.5 km/h or the satellite lock is lost (less than 4 sats), the value will display as 000.0.
  • Page 27 • Left-hand side: This includes the maximum acceleration achieved (Peak G) and maximum speed achieved (Vmax) since reset. These values can be reset by pressing the Reset button at the bottom of the screen. • Right-hand side: This contains the best results from the defined acceleration test ranges, either as time, distance or speed.
  • Page 28 The currently selected test ranges are presented on the left-hand side of the screen and will be remembered for future use, even if another mode is chosen. To define a range, press the parameter you wish to edit. Note: Accel tests can also be defined when in the Secondary Accel Screen by double-tapping on an existing test range header or result.
  • Page 29 Speed Test Parameters Distance Test Parameters 0-Speed-0 Test Parameters Test Type Parameters Speed Start Speed (km/h or mph) End Speed (km/h or mph) Result (time or distance) End Distance (m or ft) Pre-Set Distance buttons Distance Start Speed (km/h or mph) Result (time or speed) include ¼...

  • Page 30: Result Type

    Start Speed Keypad Example To save the value inputted, press the Confirm button or press the Cancel button to return the Custom Test screen without saving. Notes: • The maximum input value for speed is 999.9 and 9999 for distance. •...
  • Page 31 • Speed and 0-Speed-0 tests: ◦ Time (default) - Elapsed time between the start and end conditions being met, given as the selected range result. ◦ Distance - Distance travelled between the start and end condition, given as the selected range result. •...
  • Page 32 To return to the main screen, select the Exit button. Alert at End/Target By default, both the audible and visual alerts are enabled and will notify you when either the test end criteria or the target speed is met in a 0-Speed-0 test. The VBOX Touch will beep and the 4 LEDs across the top of the device will flash green for 0.5 s.
  • Page 33 If enabled, VBOX Touch will apply a DB Scanner slope correction method to all Speed to Speed or Speed to Distance acceleration test results presented on the screen. Notes: • Slope correction only applies to the live display results in order to match DB Scanner third-party software post- process corrections.
  • Page 34 Sample results screen Tests will be displayed in chronological order and the fastest will be highlighted in green. To scroll through the results, use the scroll bar on the right-hand side of the screen. Each new session will have a separate header, displaying the time and date for the first completed test in that session. Information includes: •...

  • Page 35: Save Results

    It is possible to take a screenshot of the test history by pressing the Screenshot Button. To return to the main screen, select the Exit Button. IMPORTANT Up to a maximum of 127 tests will be displayed in chronological order, however, if more tests have been completed, they will still be recorded on the SD card.
  • Page 36 Decel Mode - VBOX Touch (v1) The Deceleration Mode allows you to perform deceleration tests by using pre-defined configurations, your own specified values, or a VBOX Brake Pedal Trigger. Access the Decel mode by pressing the Mode button at the bottom of the screen and selecting Decel.
  • Page 37 Decel Mode Overview The Deceleration screen displays current/completed test information. The screen is split into two halves: Right-hand side: Left-hand side: The test information displayed here depends on the test type you have selected: This includes a live speed display which always shows the current speed of the vehicle, irrespective of any start Speed decel test: When you have selected this test or end conditions set for testing.

  • Page 38: Selecting A Test

    • Time taken • Average deceleration achieved • Maximum deceleration achieved (g) • Height difference These values will start to populate when the start condition of the test is met. When the end condition is met, they will remain on screen until the start condition is met again.
  • Page 39 Return to the main screen by pressing the Exit button at the bottom left. You choose your test type by pressing the Test Type button. You can either start tests from a specific speed or by using a VBOX Brake Pedal Trigger. You will see different setting options depending on the test type you select. IMPORTANT You must use the external antenna when conducting a brake trigger test.
  • Page 40 The currently selected test is highlighted on the screen and will be remembered for future use, even if you select another mode. Preset Tests VBOX Touch is supplied with 5 preset Decel tests. • 60 - 0 (km/h or mph) •...
  • Page 41 Custom Test You can choose your own start and end conditions for the test by selecting the Custom Test in the test selection area. You can then define the start and end speed conditions by pressing the corresponding buttons and using the presented keypad.
  • Page 42 Custom Test will be remembered for future use, even when you use a Preset Test or another mode. Test Type: Trigger A Trigger test will start once a Minimum Trigger Speed is met and a VBOX Brake Pedal Trigger is activated. The test will stop once the vehicle is stationary (below 2.5 km/h).
  • Page 43 Minimum Trigger Speed This setting defines the Minimum Trigger Speed, at which trigger activation becomes valid. If the trigger is detected below this speed, the test will not start. You can change this setting by pressing the current value and using the presented keypad.
  • Page 44 This deceleration figure is used to show the maximum deceleration a vehicle can achieve. It is usually the deceleration between 80% and 10% of the trigger activation speed, the time at which the vehicle is loaded up and braking at its highest achievable level. The MFDD is calculated by the following formula (using default 80% –...
  • Page 45 You can change the speed values by pressing the current value and using the presented keypad. MFDD From Speed Keypad Example Save the selected value by pressing the Confirm button at the bottom right of the screen, or press the Cancel button on the bottom left of the screen to return to the Settings screen without saving.

  • Page 46: Test History

    ◦ The maximum From speed selectable is the value inputted as Minimum Trigger Speed. ◦ The minimum From speed selectable is the greater value of 5 km/h or the To value +1. Note: The maximum input value for speed is 999.9 (1 decimal place only). •...
  • Page 47 Sample speed decel test results screen Sample trigger decel test results screen Tests will be displayed in chronological order and the fastest will be highlighted. To scroll through the results, use the scroll bar on the right-hand side of the screen. Each new session will have a separate header, displaying the time and date for the first completed test in that session.

  • Page 48: Save Results

    You can take a screenshot of the test history by pressing the Screenshot Button. Return to the main screen by selecting the Exit Button at the bottom left of the screen. IMPORTANT A maximum of 127 tests will be displayed in chronological order. However, if you complete more tests, they will still be recorded on the SD card.
  • Page 49 Lap Timing Mode - VBOX Touch (v1) The Lap Timing Mode allows you to view Lap Timing information in relation to a set Start/Finish line. The available information includes: • live reference lap speed comparison (Delta-V) • live reference lap time comparison (Delta-T) •...
  • Page 50 The last selected Lap Timing Mode will be displayed after each power cycle. The speed and distance units used for the Lap timing depend on what is set under General Settings. Note: Lap timing gates are bi-directional and will be triggered when passing through in either direction. Lap Timing Mode Overview There are 2 different Lap Timing screens that you can access by using the Forward...
  • Page 51 • A set Start/Finish line • Separate Start and Finish lines • A Standing Start line and separate Finish line • A reference Lap The screen is split into two halves: Left-hand side: Right-hand side: • Lap time: This will show either a live rolling lap •...
  • Page 52 will see a 'Creating a Reference Lap' message. ◦ If the current lap is faster than the reference lap, the value will be signed negative and with a distance countdown to the Start/Finish line (if green in colour. the unit has satellite lock). If you have enabled Standing Start, you will see a 'Standing Start Mode ◦...
  • Page 53 • Lap time: This will show either a live rolling lap time or a static lap time (for the previous lap), depending on the Rolling Lap Time settings. If a rolling lap time is being displayed, the previous lap time will be displayed for 5 seconds when a new lap starts, before it reverts back to displaying the current live lap time.
  • Page 54 How to Manually Set a Start/Finish Line You can set a Start/Finish line manually when moving. This will overwrite the line detected in the circuit layout. To manually set a Start/Finish line, tap the screen once when on the Basic Lap Timing Screen or select Set Start Gate in the Settings.
  • Page 55 How to Manually Set a Separate Finish Line You can set a separate Finish line when moving manually, overwriting the Finish line detected in the circuit layout. If you have selected Standing Start, you can tap the screen once when on the Basic Lap Timing screen. Alternatively, you can select Set Finish Gate in the settings.
  • Page 56 Requirements for creating a reference lap: • Lap is longer than 20 seconds. • Lap is greater than 100 m. • Maximum speed achieved is greater than 40 km/h. • Lap is over half the stored reference lap distance. • Lap time does not exceed 43'40.00". You can also choose to ignore short laps when creating the reference lap by entering a Minimum Lap Time in the Lap Timing Settings.

  • Page 57: Select A Track

    To return to the main screen, press the Exit button on the bottom left. Select a Track VBOX Touch has an inbuilt track database containing a vast number of circuits throughout the world. You can find a list of the currently supported circuits here. The unit will display the currently selected track based on the current GPS location.
  • Page 58 If the layout is changed, the LEDs will briefly flash green twice and the unit will emit an audible confirmation notification. The layout will be remembered after each power cycle if it is determined to be local to the detected location.
  • Page 59 Clear Finish Gate (Only selectable if a Finish gate has been set) Selecting the Clear Finish Gate option within the Lap Timing Settings will clear the separate finish line and will use the active Start line as a combined Start/Finish line.
  • Page 60 The Track Database installed in VBOX Touch is updated whenever a new firmware file is uploaded onto the unit. However, you can update the Track Database independently by pressing the Load Track Database button in the Lap Timing Settings. If VBOX Touch detects an SD card with a saved .tdb or .bdb track database file in the root directory (not in the media or any other folder), the unit will load the file.
  • Page 61 Save Start/Finish Gates To save the currently defined Start/Finish gates, press the Save Lap Timing Gates button in the Lap Timing Settings. If VBOX Touch detects an SD card, it will be saved as a file named gates.spl in an SF LINES folder on the SD card.

  • Page 62: Standing Start

    If enabled, the Main Lap Timing Screen or Basic Lap Timing Screen will display the current live lap time. When a new lap starts, the previous lap time will be displayed for 5 seconds before it reverts to displaying the current live lap time.
  • Page 63 When the activation period has completed, you will see a 'Standing Start Mode Armed' screen notifying you that the unit is ready for movement. Pressing the screen will take you back to the Lap Timing Settings menu. When VBOX Touch detects vehicle movement (>0.5 km/ h), it will assign the Start gate at 90°...

  • Page 64: Reset Data

    LEDs will be off The current lap is the same speed as the reference LEDs will show dull red The current lap is 2.5 km/h slower than the reference LEDs will show bright red The current lap is >5 km/h slower than the reference Alternatively, if you have selected 10 km/h and the current lap is 5 km/h quicker than the reference lap, the LEDs will show dull green as it is halfway to the maximum value.
  • Page 65 Fix the Reference Lap This option will fix the current reference lap. When fixed, the stored reference lap will not update if a faster lap is achieved. If there is no stored reference lap, the next complete lap will be used as the fixed reference lap.
  • Page 66 Note: When a new reference lap is loaded, the Start/Finish gate stored in the .ref lap will be applied as the active Lap timing gate if it is different to the currently loaded gate. If the gates are changed, all existing lap timing values will be cleared and the new lap timing gates will be used.
  • Page 67 Ignore Double Distance Laps By default, this setting is disabled, and a new reference lap will be created if the lap distance is more than double the stored reference lap. This is useful if you are, for example, warming up on a smaller part of a longer circuit (such as the Nurburgring circuit and Nordschleife) and you want the reference lap to update once you have moved on to the longer circuit.
  • Page 68 Sample history screen The most recently completed lap will show at the top of the screen and the fastest lap will be highlighted. To scroll through the history, use the scroll bar on the right-hand side of the screen. Information includes: •...
  • Page 69 Touch Shortcuts Screen Shortcut Function Swipe Left/Right Accesses different lap timing or settings screens Triple tap the Main Lap Timing Screen Fixes/Unfixes the reference lap Resets the lap timing data, lap time history and Press and hold the Main Lap Timing Screen reference lap Sets a Start/Finish or Finish Line at the current Tap the Basic Lap Timing Screen...
  • Page 70 Speed Display Mode - VBOX Touch (v1) The Speed Display Mode allows you to view live speed data. You have 3 screen options; Speed, VMAX and Average Speed. You access the speed menu by pressing the Mode button at the bottom of the screen and selecting Speed.
  • Page 71 Speed Display - Speed Screen This is the default speed screen and it displays live speed data. If you have selected a Target Speed in the Speed Settings, it will be displayed in grey underneath the live speed. If the vehicle is travelling slower than 0.5 km/h or if VBOX Touch has lost its satellite lock (less than 4 satellites), the speed value will be 000.0.
  • Page 72 Speed Display Settings You can access the Speed Display settings by pressing the Settings button at the bottom left of the screen and selecting Speed. https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/ VBOX_Touch_(v1)/User_Guide_%E2%80%93_VBOX_Touch_(v1)/05_Display_Modes_%E2%80%93_VBOX_Touch_(v1)/Speed_Display_Mode_- _VBOX_Touch_(v1)

  • Page 73: Decimal Places

    To return to the main screen, press the Exit button at the bottom left. Decimal Places You can adjust the number of decimal places displayed for speed values across all the Speed displays. You can choose between 0, 1 (default) and 2 decimal places. Tap the button to cycle through the options. Speed Display Smoothing https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/ VBOX_Touch_(v1)/User_Guide_%E2%80%93_VBOX_Touch_(v1)/05_Display_Modes_%E2%80%93_VBOX_Touch_(v1)/Speed_Display_Mode_-...

  • Page 74: Avg Mode

    If required, the live speed values displayed can be smoothed. Your options are 0.0 s, 0.25 s (default), 0.5 s and 1.0 s. These time values refer to the amount of time that the displayed data is averaged by. Tap the buttons to change the smoothing levels.
  • Page 75 Set a Target Speed You can define a target speed that will be displayed underneath the speed value on the speed screens. You can choose whether to enable or disable an audible alert (continuous beep for 2 seconds) along with a visual alert (all 4 LEDs will flash green) when you reach the target speed.
  • Page 76 Target Speed Keypad Example To save the value inputted, press the Confirm Button on the bottom right of the screen, or press the Cancel Button on the bottom left of the screen to return the Settings screen without saving. The value will be remembered after each power cycle.
  • Page 77 06 Settings – VBOX Touch (v1) This page contains the settings menu information for FW version 1.5 on VBOX Touch. You find the VBOX Touch Settings menu by selecting the mode you want to use and pressing the Settings button at the bottom left of the display mode screen. https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/ VBOX_Touch_(v1)/User_Guide_%E2%80%93_VBOX_Touch_(v1)/06_Settings_%E2%80%93_VBOX_Touch_(v1)

  • Page 78: Mode Settings

    A Select Settings Screen is then presented, allowing to you choose Mode Specific settings (which will change depending on which mode you are using), General Settings, Date and Time Settings, Diagnostic Settings and Serial Port Settings. Press the Exit button on the bottom left to return to the Select Settings Screen. Pressing the Exit button again will return you to the main screen.
  • Page 79 Speed This setting allows you to change the speed units between km/h and mph. Changing the speed units will affect all visual speed parameters on all screens, unit labels will change and all speed values will be automatically recalculated accordingly. Press the button to change the units. Distance This setting allows you to change the distance units between metres and feet.
  • Page 80 (RLVBACS010) to control logging. Results Save Format You can change the data format of results saved (to inserted SD card) from test history screens. Options are either text format (.txt, default) or comma-separated values format (.csv). Screen Brightness You can manually adjust the screen brightness between 5 levels, with 1 being the dimmest and 5 being the brightest setting.
  • Page 81 Serial output is available on the top CAN/Serial port of the VBOX Touch, as shown in the image on the right-hand side of the Serial Port Settings. Output Mode If required, choose the output mode of the serial port, selectable as 'VBOX Stream', 'Lap Timing' or 'Disabled' (default).
  • Page 82 option will output lap timing parameters. Baud Rate Displays the serial output baud rate, set as 115200 kbit/s. Diagnostics The Diagnostics menu is the final screen within the Settings menu, it displays basic GNSS receiver and VBOX information. The satellite icon at the top of the screen is the quickest way to determine if the unit has a valid satellite lock. When lock is acquired, it will display as solid green.
  • Page 83 GPS Information Press the COLDSTART button to perform a cold start on the VBOX Touch. This means the receiver will clear any data currently stored within its internal memory. It may be required to do this when the GPS engine has locked up or the VBOX Touch is struggling to acquire a satellite lock (more than 4 satellites).
  • Page 84 https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/ VBOX_Touch_(v1)/User_Guide_%E2%80%93_VBOX_Touch_(v1)/06_Settings_%E2%80%93_VBOX_Touch_(v1)
  • Page 85 CAN Bus - VBOX Touch V1 https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/ VBOX_Touch_(v1)/User_Guide_%E2%80%93_VBOX_Touch_(v1)/06_Settings_%E2%80%93_VBOX_Touch_(v1)/CAN_Bus_- _VBOX_Touch_V1...
  • Page 86 Pinouts - VBOX Touch (v1) Right-side view of VBOX Touch Connector 1 - GNSS Antenna Function Centre RF Signal/Power for active antenna Chassis Ground https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/ VBOX_Touch_(v1)/User_Guide_%E2%80%93_VBOX_Touch_(v1)/07_Technical_Properties_%E2%80%93_VBOX_Touch_(v1)/Pinouts_- _VBOX_Touch_(v1)
  • Page 87 Connector 2 - D IN (3-pin Lemo) Digital Input Connector that can be used for logging switch or event and brake triggers. Function Ground Digital Input 2 - Logging ON/OFF Digital Input 1 - Event/Brake Trigger Connector 3 - CAN/SERIAL (5-pin Lemo) Isolated CAN bus with active 120 ohm terminating resistors Function RS232 Tx...
  • Page 88 Function CAN High CAN Low Power Chassis Ground Connector 4 - CAN/SERIAL (5-pin Lemo) Isolated CAN bus with active 120 ohm terminating resistors Function RS232 Tx RS232 Rx CAN High CAN Low Power Chassis Ground https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/ VBOX_Touch_(v1)/User_Guide_%E2%80%93_VBOX_Touch_(v1)/07_Technical_Properties_%E2%80%93_VBOX_Touch_(v1)/Pinouts_- _VBOX_Touch_(v1)
  • Page 89 Connector 5 - POWER (2-pin Lemo) Function Power Ground Chassis Ground https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/ VBOX_Touch_(v1)/User_Guide_%E2%80%93_VBOX_Touch_(v1)/07_Technical_Properties_%E2%80%93_VBOX_Touch_(v1)/Pinouts_- _VBOX_Touch_(v1)
  • Page 90 VBOX Touch (v1) - RS232 Output The RS232 output is present on the top CAN/Serial port of VBOX Touch and can be used to provide a connection to a computer for testing online with VBOX Test Suite or for outputting laptiming data. VBOX Data Format This is output when VBOX Stream...
  • Page 91 Parameter Number of bytes Description (0, 8641000). Latitude Signed aaaaaa integers, 0.0000001 minutes per bit. Range (-539999999999, 540000000000) Longitude Signed integers, 0.0000001 oooooo minutes per bit. Range (-1079999999999, 1080000000000). Speed Unsigned integer, 0.001 km/h per bit. Range (0, 16777.215). Heading Unsigned integer, 0.01°...
  • Page 92 Parameter Number of bytes Description Longitudinal acceleration Signed integer, 0.01 g per bit. Range (-32768, 32767). Solution type Enumeration as signed integer. • -1: No data • 0: No solution • 1: Stand alone • 2: Code differential • 3: RTK Float •...
  • Page 93 Lap Timing Data Format This is output when Lap Timing is selected within the Serial Port Settings menu. Protocol: 115200 Baud, no parity, 8 data bits, 1 stop bit Message format: $$LLTTnnnnttttllsssscc https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/ VBOX_Touch_(v1)/User_Guide_%E2%80%93_VBOX_Touch_(v1)/07_Technical_Properties_%E2%80%93_VBOX_Touch_(v1)/VBOX_Touch_(v1)_- _RS232_Output...
  • Page 94 Parameter Number of bytes Description Header Message identifier as ASCII string. Length Message length not including header or checksum. Fixed at 0x0012 for this message. Type Message type. Fixed at 0x0030 for this message. Serial number nnnn Unit serial number as unsigned integer.
  • Page 95 Polynomial:= 4129 CRC:=0; for Loop:=1 to Length(s) do begin Temp:=s[Loop]; CRC:= CRC xor (integer(Temp) *256); CRC:= CRC mod 65536; for i:=7 downto 0 do begin if ( (CRC and 32768)=32768) then begin CRC:= CRC *2 ; CRC:= CRC xor Polynomial; else begin CRC:= CRC *2 ;...

  • Page 96: Gnss Specifications

    VBOX Touch (v1) - Technical Specification Specifications GNSS Specifications Velocity Accuracy 0.1 km/h (averaged over 4 samples) Update Rate 10 Hz Maximum Velocity 1600 mph Minimum Velocity 0.5 km/h Resolution 0.01 km/h Distance Accuracy 0.05 % (<50 cm per km) Resolution 1 cm Update Rate...
  • Page 97 Position - VBOX Touch Accuracy (Standalone)* H: 2.5 m CEP Accuracy (with SBAS)* H: 2 m CEP Update Rate 10 Hz Resolution 0.00185 m Position - VBOX Touch RTK Accuracy (Standalone)* H: 1.5 m CEP Accuracy (with SBAS)* H: 1 m CEP •...

  • Page 98: Environmental And Physical

    Heading Resolution 0.01° Accuracy 0.3° Update Rate 10 Hz Trigger Brake Stops Accuracy ±20 cm * Specifications will vary depending on the number of satellites used, obstructions, satellite geometry (PDOP), multipath effects, and atmospheric conditions. For maximum system accuracy, always follow best practices for GNSS data collection.

  • Page 99: Touch Screen

    Touch Screen Size 4.3” TFT Capacitive Touch Resolution 480 x 800 pixels TFT LCD Display Colours 262K colours (18 bit) Dimensions https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/ VBOX_Touch_(v1)/User_Guide_%E2%80%93_VBOX_Touch_(v1)/07_Technical_Properties_%E2%80%93_VBOX_Touch_(v1)/VBOX_Touch_(v1)_- _Technical_Specification...
