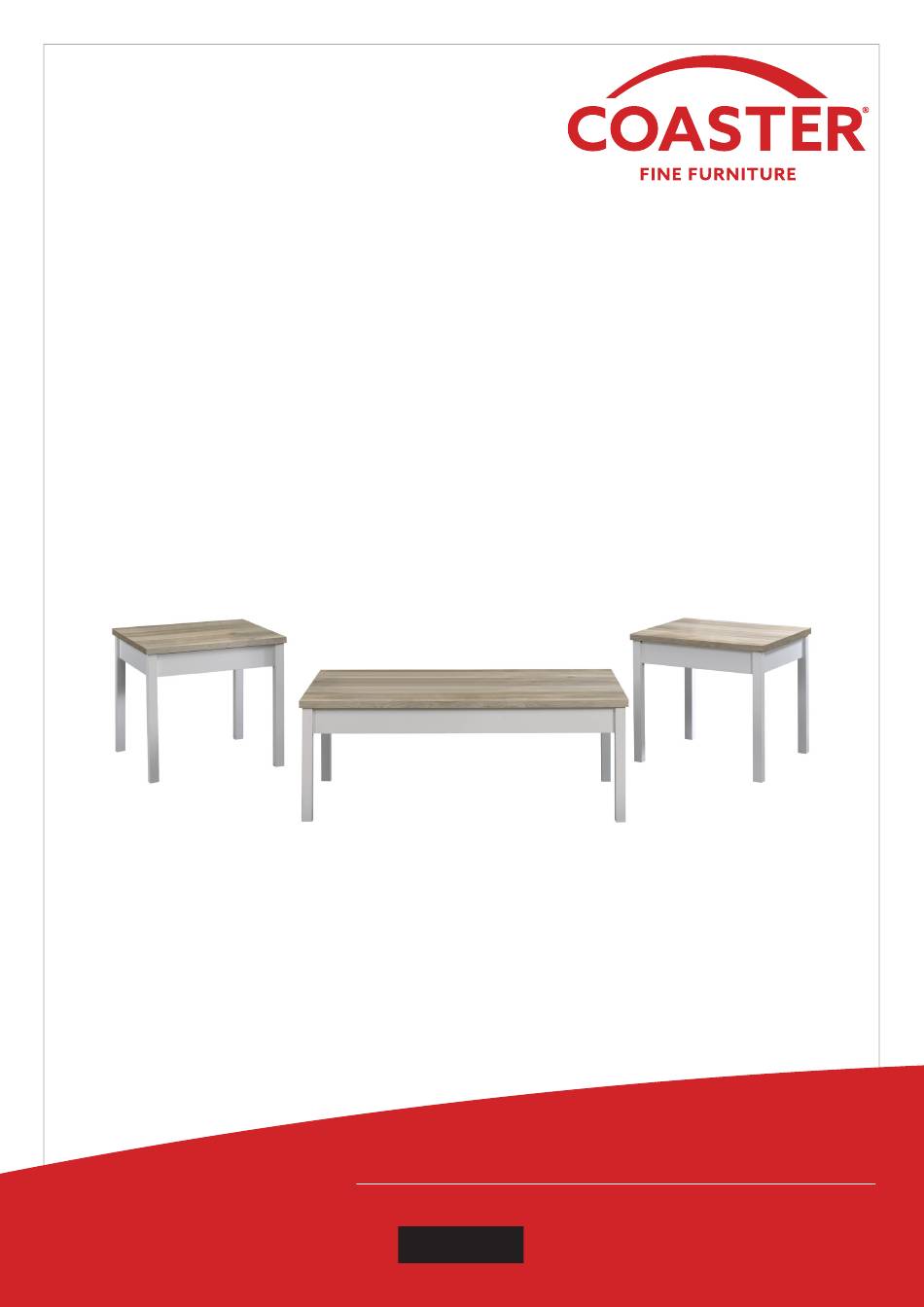

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 709950 3PC OCCASIONAL SET REVISION 0 : 08/03/2023 PAGE 1 OF 9 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
709950 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. - Page 3 709950 ITEM: STEP 1 x 48 x 26 5 x 4 x 10 INCORRECT CORRECT Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 3 OF 9 COASTERFURNITURE.COM...
- Page 4 709950 ITEM: STEP 2 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 3 PAGE 4 OF 9 COASTERFURNITURE.COM...
- Page 5 709950 ITEM: STEP 4 STEP 5 x 10 x 10 Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 5 OF 9 COASTERFURNITURE.COM...
- Page 6 709950 ITEM: STEP 6 5 x 8 x 48 Apply glue on all wooden dowels to ensure integrity of the structure. F x 8 STEP 7 x 16 x 16 PAGE 6 OF 9 COASTERFURNITURE.COM...
- Page 7 709950 ITEM: STEP 8 STEP 9 Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 7 OF 9 COASTERFURNITURE.COM...
- Page 8 709950 ITEM: STEP 10 x 16 x 16 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 11 COMPLETE PAGE 8 OF 9 COASTERFURNITURE.COM...
- Page 9 709950 ITEM: 43.62" 20" 13.78" 20" 20" 16.93" Note : Dimension tolerance ±5% PAGE 9 OF 9 COASTERFURNITURE.COM...
