uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410

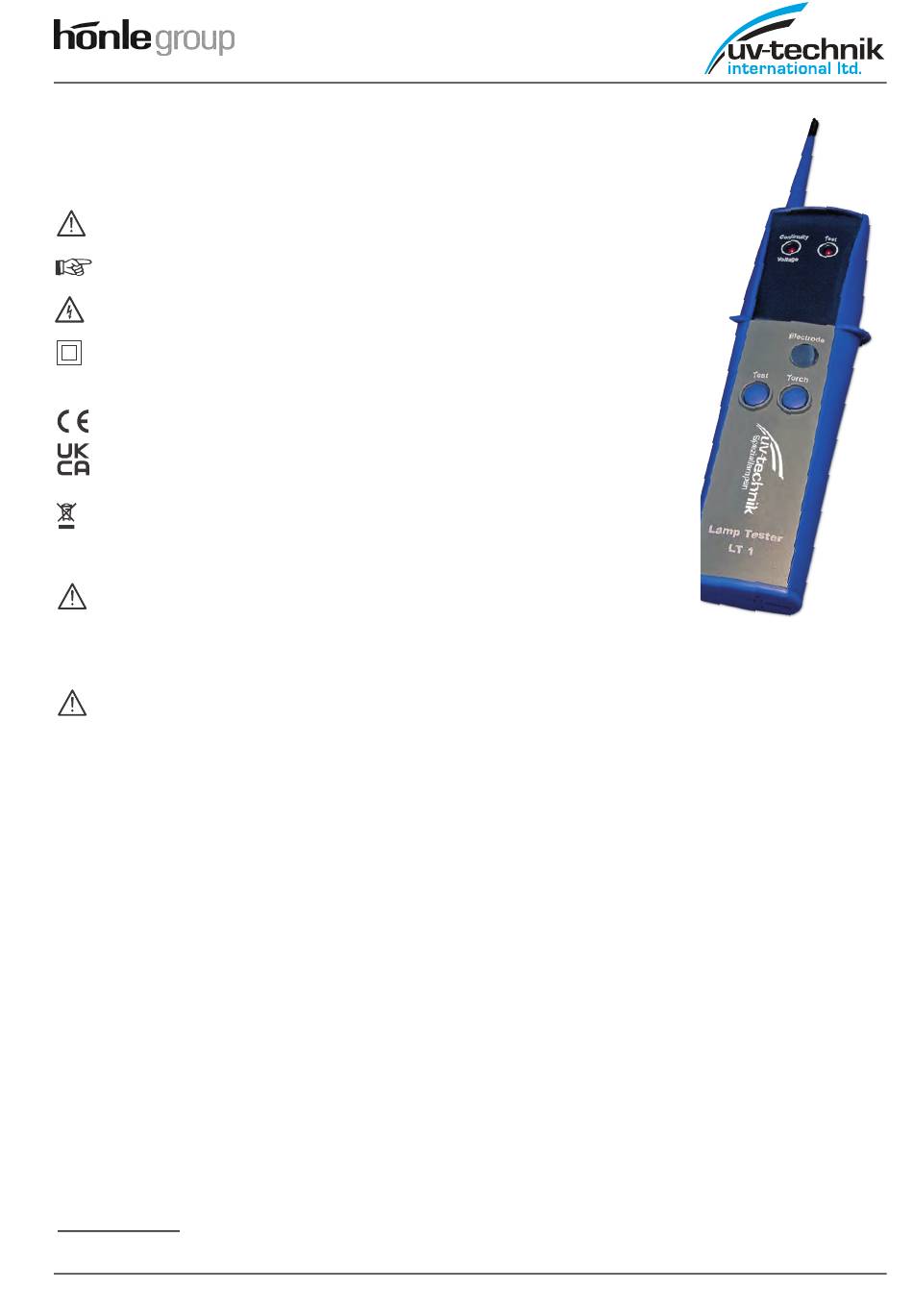

LT 1 Lamp Tester - Instruction Manual
References marked on instrument or in instruction manual:
Warning of a potential danger, comply with instruction manual.
Reference. Please pay utmost attention.
Caution! Dangerous voltage. Danger of electrical shock.
Continuous double or reinforced insulation complies with category II DIN EN
61140.
Conformity symbol, the instrument complies with the valid directives. It
complies with the EMC Directive (2014/30/EU) and EN 61326-1s fulfilled. It
also complies with the Low Voltage Directive (2014/35/EU) and EN 61010-1
is fulfilled.
Instrument complies with the directive (2012/19/EU) WEEE.
Device complies with RoHS Directive 2011/65/EU and Delegated Directive
2015/863.
The instruction manual contains information and references, necessary for
safe operation and maintenance of the instrument.
Prior to using the instrument (com-missioning / assembly) the user is kindly requested to thoroughly read the
instruction manual and comply with it in all sections.
Failure to read the instruction manual or to comply with the warnings and references contained herein
can result in serious bodily injury or instrument damage.
The respective accident prevention reg-ulations established by the professional associations are to be strictly
enforced at all times
1.0 Introduction/Scope of Supply
The Lamp Tester LT1 is a handy test in-strument for fast lamp failure detection, especially for all gas filled low
pressure and high pressure vapor lamps. The gas filled lamps are ionized using a high frequency voltage (approx.
3 kV) and thus tested.
•
Lamp Tester for gas filled lamps
•
Continuity Tester
•
Single Pole Voltage Tester
•
Torch Light
This instrument is used for testing cabling, capacitors, resistors and following lamp types:
•
fluorescent lamps
•
low pressure sodium vapor lamps
•
high pressure sodium vapor lamps
•
neon tubes
•
mercury and metal halogen lamps
Scope of supply:
1 pc. lamp tester LT1 | 1 pc. Battery 9V, IEC 6LR61 | 1 pc. Manual
1/6
subject to change without notice
Advertisement
Table of Contents
Summary of Contents for honle uv-technik LT 1
- Page 1 uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 LT 1 Lamp Tester - Instruction Manual References marked on instrument or in instruction manual: Warning of a potential danger, comply with instruction manual. Reference. Please pay utmost attention. Caution! Dangerous voltage. Danger of electrical shock. Continuous double or reinforced insulation complies with category II DIN EN 61140.
- Page 2 uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 2.0 Transport and Storage Please keep the original packaging for later transport. Any transport damage due to faulty packaging will be excluded from warranty claims. In order to avoid instrument damage, it is advised to remove battery when not using the instrument over a certain time period.
- Page 3 uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 4.0 Operation Elements ① Test Probe for lamp test, voltage test and continuity test ② LED for lamp test ③ LED for voltages 60-250V and continuity ④ Touch electrode for voltage and continuity test ⑤...
- Page 4 uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 A correct indication is only ensured for AC voltage circuits with a fre-quency of 40-60 Hz being grounded in accordance with the regulations. The quality of the indication may be impaired when testing in unfavour-able locations, such as wooden lad-ders or in insulated floor coverings.
- Page 5 uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 5.3 Continuity / Diode Test For continuity tests, test probe and one hand touches the voltage free Electrode of the Lamp Tester. Prior to any continuity test, it must be ensured that the resistance to be measured is not live. Failure to com-ply with this prescription can lead to dangerous user injuries.
- Page 6 uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 Please consider your environment when you dispose of your oneway battery. They belong in a rubbish dump for hazardous waste. In most cases, the battery can be returned to their point of sale. Please, comply with the respective valid regulation regarding the return, recy-cling and disposal of used batteries and accumulators.
