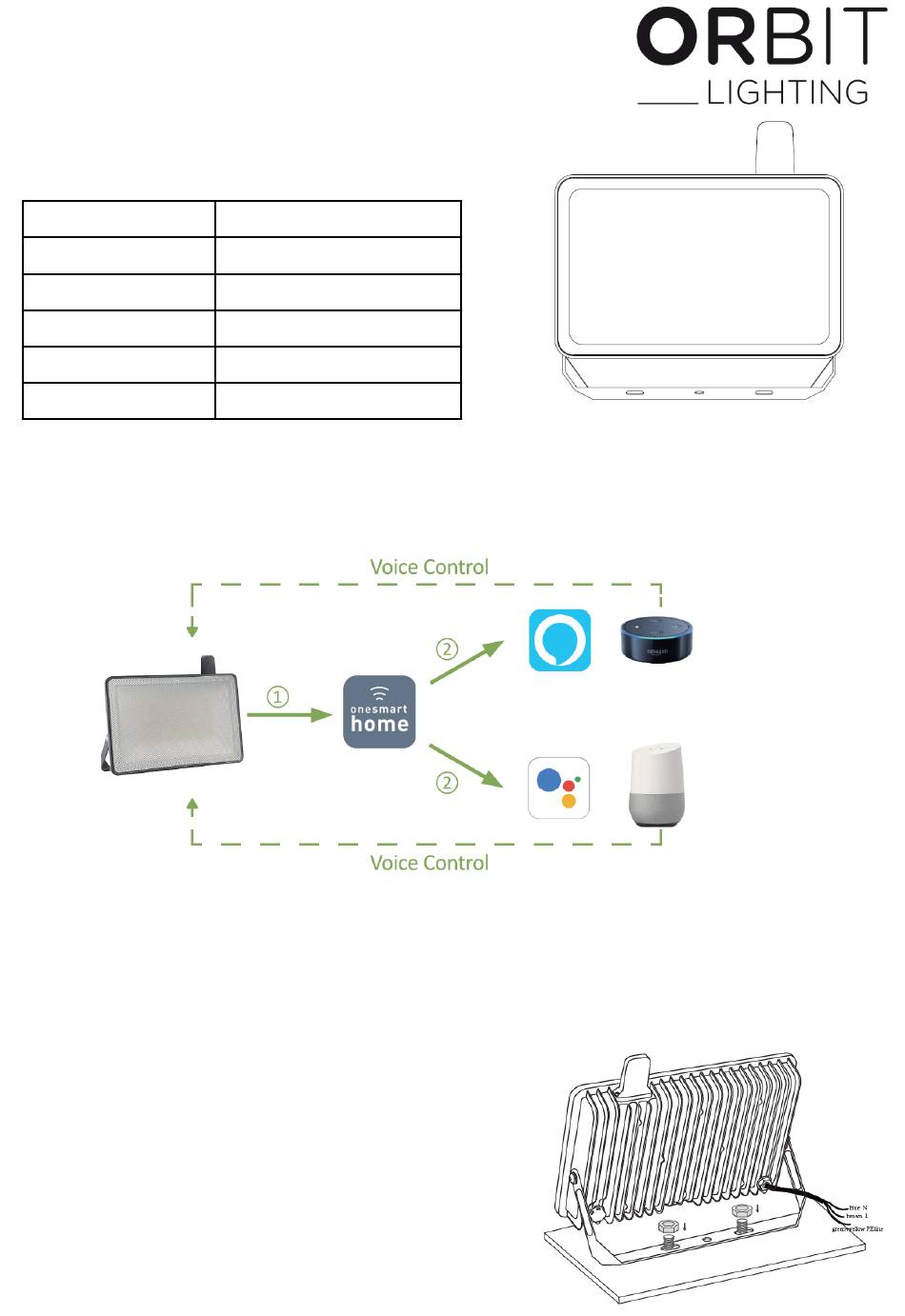

Installation Guide & Owner Manual
ORBIT CCT SMART FLOODLIGHT
MODEL: OFL60WB-SM
FEATURES
Colour temperature
Wattage
IP Rating
Power Source
Lumens
Beam Angle
SETUP
•
Step one: Install the Smart Flood Light.
•
Step two: Fundamental setup - Connect to onesmart home app.
•
Step three: Optional setup – Connect onesmart home app to Amazon Alexa or Google Assistant.
WARNING
•
Make sure the light and all parts are intact before installation. If there is any damage to the cord,
please cut off the power and stop using immediately.
•
To ensure the light works properly, please use at the voltage indicated on the packaging.
•
This product must be installed by a licensed electrician in accordance with the Australian / New
Zealand Wiring Rules AS/NZS 3000.
INSTALLATION
1. Ensure the power is turned off.
2. Drill two holes on the mounting panel according to the
spacing on the bracket.
3. Fix the light with bolts as per diagram and adjust
direction up or down.
4. Connect power source to "N" (blue wire) "L" (brown
wire) and "PE" (green & yellow wire).
5. Turn on the power.
3000K-6000K
60 Watts
IP65
220-240V a.c. 50Hz
4800 Lumens
120 degrees
