Summary of Contents for Anschutz 105-107.NG010

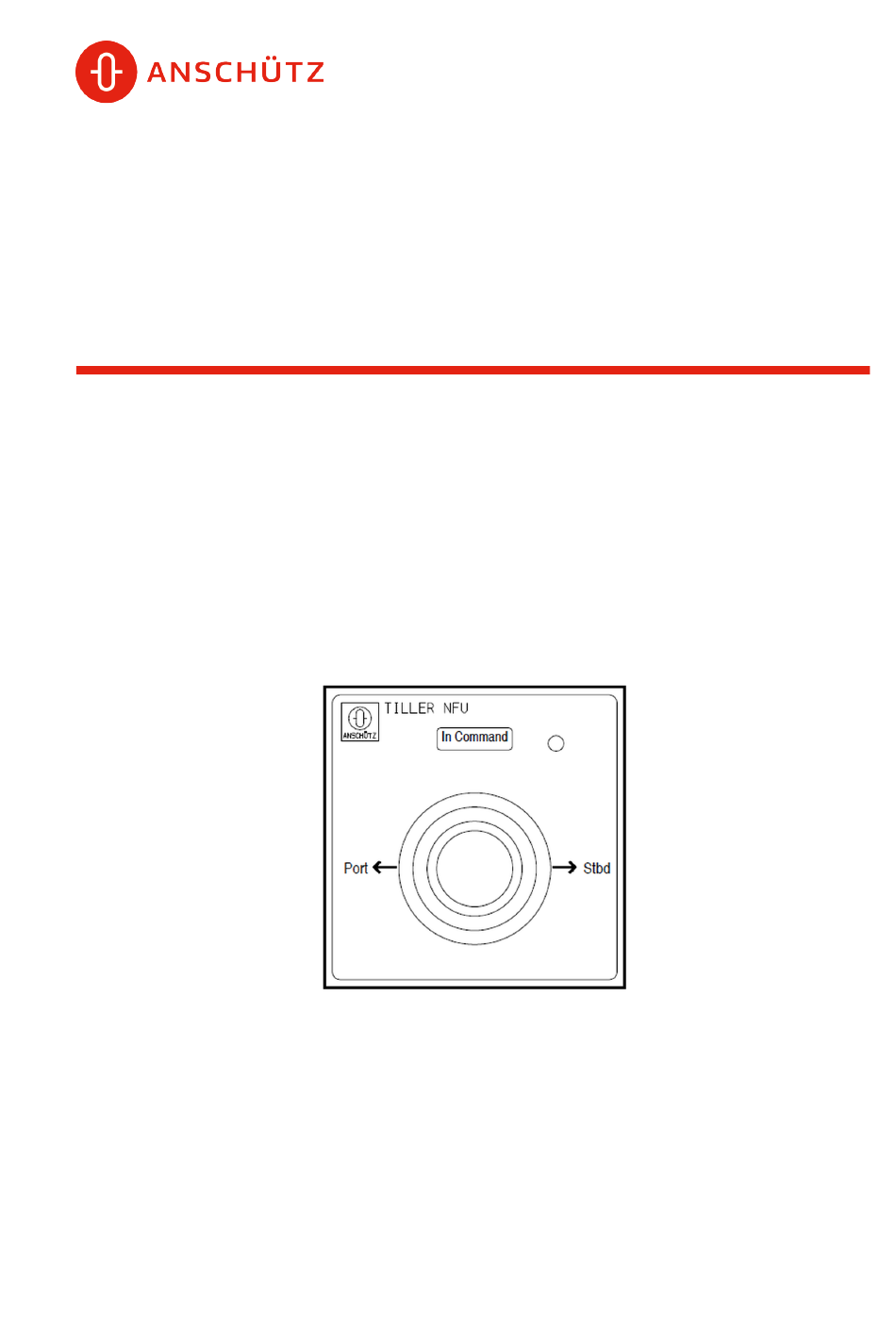

- Page 1 Anschütz GmbH Zeyestr. 16-24 24106 Kiel Germany www.anschuetz.com NFU Tiller Operator and Service Manual Type: 105-107.NG010 Edition: 001 10000001264...
- Page 2 Copyright Dieses Dokument sowie dessen Inhalt sind urheberrechtlich This document and its content are copyright protected. Distribution, geschützt. Die Weitergabe,Vervielfältigung und Speicherung sowie reproduction and storage as well as translation and exploitation of die Übersetzung wie auch Verwendung dieses Dokuments oder this document and its content, in whole or in parts and regardless of dessen Inhalts, als Ganzes oder in Teilen und egal in welcher Form what form, are prohibited without prior express written permission.
-
Page 3: Table Of Contents
NFU Tiller Table of Contents Table of Contents List of Figures..............................III List of Tables................................ V List of Abbreviations............................VII Introduction................................ 1 Preliminary Remarks............................. 1 Change History.............................. 1 Safety................................1 General Safety Regulations........................2 General Safety Instructions........................3 Electrostatic Discharge..........................3 List of Further Documents..........................4 List of Annex Documents.......................... - Page 4 NFU Tiller Table of Contents 6.1 General Remarks........................... 18 6.2 Definitions............................... 18 6.3 NFU Tiller............................... 18 7 Annex................................20 10000001264 Edition: 001...
-
Page 5: List Of Figures
NFU Tiller List of Figures List of Figures Fig. 1: Electrostatic Discharge, Protected Area..................... 3 Fig. 2: NFU Tiller, Operating Elements and Indicators..................5 Fig. 3: Prepare a Cable Connection........................10 Fig. 4: Prepare a Cable Entry..........................11 Fig. 5: Example for Cable Connections....................... 11 Fig. - Page 6 NFU Tiller List of Figures 10000001264 Edition: 001...
-
Page 7: List Of Tables
NFU Tiller List of Tables List of Tables Tab. 1: Change History............................1 Tab. 2: List of Further Documents......................... 4 Tab. 3: List of Annex Documents...........................4 Edition: 001 10000001264... - Page 8 NFU Tiller List of Tables 10000001264 Edition: 001...
-
Page 9: List Of Abbreviations
NFU Tiller List of Abbreviations List of Abbreviations ESD Protected Area Electrostatic Discharge Follow-Up International Electrotechnical Commission ISPC Illustrated Spare Parts Catalog Non-Follow-Up Edition: 001 10000001264... - Page 10 NFU Tiller List of Abbreviations 10000001264 VIII Edition: 001...
-
Page 11: Introduction
NFU Tiller Introduction Introduction Preliminary Remarks The present manual is a description and reference book only. It is intended to answer questions and to solve problems in the quickest possible manner. Read and follow the instructions and notes in this manual before operating the equipment. For this purpose, refer to the table of contents and read the corresponding chapters thoroughly. -
Page 12: Safety
NFU Tiller Introduction Safety General Safety Regulations The following safety symbols are used in this manual: WARNING! Warning statements indicate a hazardous situation that, if not avoided, could result in minor, moderate or serious injury, or death Consequence •... -
Page 13: General Safety Instructions
NFU Tiller Introduction General Safety Instructions Electrostatic Discharge Fig. 1: Electrostatic Discharge, Protected Area Table Mat Ground Cord Dissipative Shoes Floor Mat Wrist Band Wrist Strap Common Ground Ground Point Any product which is labeled as shown is electrostatic sensitive. If proper precautions are not taken, handling or working on Electrostatic Discharge (ESD) -
Page 14: List Of Further Documents
NFU Tiller Introduction List of Further Documents Tab. 2: List of Further Documents Documentation No. Designation 3963 Service Tool AS NB42-232 4062 Override Signal Unit AS 105-313.NG001-NG002 List of Annex Documents Tab. 3: List of Annex Documents Documentation No. Designation 105-107.HP015 Dimensional Drawing... -
Page 15: Description
NFU Tiller 1 Description 1 Description 1.1 General Information 1.1.1 Purpose The NFU Tiller - set into control desks or steering stands - serves as non-follow-up steering element on bridges. 1.2 Technical Data Height 162 mm Dimensions Width 96 mm Depth 96 mm Weight Approx. -
Page 16: Functional Description
NFU Tiller 1 Description Pos. Area / Element Description Information field In Command LED lights up if non-follow-up steering or autopilot with LED is selected Joystick Activates contacts for port or starboard 1.4 Functional Description By setting the joystick to PORT or STBD up to a mechanical stop, 2 sets each of contacts are activated. -
Page 17: Operation
NFU Tiller 2 Operation 2 Operation 2.1 Setting into Operation Procedure 1. Connect the supply voltage. ► The NFU Tiller is in standby and ready for operation. Note There is no separate ON/OFF switch. 2.2 Adjust Brightness Procedure 1. Use potentiometer R2 to adjust the brightness of the background. Note Make sure to adjust the brightness during night operation when bridge is dark. -
Page 18: Installation And Maintenance
NFU Tiller 3 Installation and Maintenance 3 Installation and Maintenance 3.1 Safety Instructions for Installation and Maintenance WARNING! Danger due to maintenance and service by unskilled personnel Risk of serious injury and material damage • Keep all unskilled personnel away from the working area. •... -
Page 19: Special Tools, Measurement And Test Equipment
NFU Tiller 3 Installation and Maintenance Note All spare parts that are produced by Anschütz GmbH are identified in the ISPC by a seven-digit part number. This part number is included in the serial number on the type plate of the equipment. The first 7 digits of the serial number are formed by the part number. -
Page 20: General Remarks About Preparing Cable Connections
NFU Tiller 3 Installation and Maintenance 3.3.2 General Remarks about Preparing Cable Connections WARNING! Danger due to electrical current Risk of death or serious injury or material damage • Make sure that all cables are disconnected from the power supply. • If necessary, measure the voltage beforehand and/or disconnect the relevant distributor. -
Page 21: Fig. 4: Prepare A Cable Entry
NFU Tiller 3 Installation and Maintenance Fig. 4: Prepare a Cable Entry 7. Insert the earthing insert, the seal, and the washer into the cable gland, place the counter nut last and tighten the nut hand-tight. 8. Strip the cable cores to a length of approx. 15 mm, twist slightly and clamp on the cable end sleeves. -
Page 22: General Remarks About Preparing Common Ground Connections
NFU Tiller 3 Installation and Maintenance 3.3.3 General Remarks about Preparing Common Ground Connections In order to comply with the stringent requirements, please follow the instructions given below regarding cable connections. Use the cable types specified. CAUTION! Damage to Equipment and Components It is essential to make sure that any equipment and any additional component (options) have common reference to the ship's common ground. -
Page 23: Care And Maintenance
NFU Tiller 3 Installation and Maintenance Fig. 8: NFU Tiller, Circuit Diagram 3.4 Care and Maintenance Note The NFU Tiller is an important part of the steering control system. Regarding the ship’s safety, particular attention must therefore be paid to its care and maintenance and the use of original Anschütz equipment / parts only. -
Page 24: Repair
NFU Tiller 3 Installation and Maintenance 3.6 Repair CAUTION! Hazard due to wear and tear of electromechanical devices such as relays, switches or potentiometers Risk of malfunction • Observe operation cycles and environmental conditions. • Replace devices in due time. A repair of the NFU Tiller is performed as a replacement of the complete device. After replacement the NFU Tiller must be checked for correct functioning. -
Page 25: Transport And Storage
NFU Tiller 4 Transport and Storage 4 Transport and Storage 4.1 Preservation, Packing and Storage Preservation All components / devices require no special preservation procedures. Packing All components / devices are packed with a special protection against humidity. The package contains desiccants and a humidity indicator. The humidity indicator can be read from the outside through a window and must be checked regularly. -
Page 26: Transport
NFU Tiller 4 Transport and Storage Color Indication Inside Humidity Necessary Action 40 % patch: pink > 40 % Desiccants must be replaced Components / devices must be checked for hu- midity, 50 % patch: pink > 50 % Desiccants must be replaced, Packaging must be checked for damages Note Opening and closing the packing to exchange the desiccants must be done by... -
Page 27: Disposal
NFU Tiller 5 Disposal 5 Disposal The NFU Tiller or components of it can be disposed according to the respective national regulations for electronic waste without harmful materials (according to Directive 2012/19/ EU on waste electrical and electronic equipment (WEEE)). Edition: 001 10000001264... -
Page 28: Spare Parts Catalog
NFU Tiller 6 Spare Parts Catalog 6 Spare Parts Catalog 6.1 General Remarks All depicted items in the following figure(s) which are not mentioned in the corresponding table(s) are not available as spare part for this unit. Since further development may cause modifications to existing equipment, its conformity with the relevant illustrations and drawings is not always ensured. -
Page 29: Nfu Tiller
NFU Tiller 6 Spare Parts Catalog 6.3 NFU Tiller Fig. 9: 00-0000 Fig. No. Designation 1. Part No. Remarks Item No. 2. Part No. 00-0000 NFU Tiller 105-107.NG010E02 4002480 Edition: 001 10000001264... -
Page 30: Annex
NFU Tiller 7 Annex 7 Annex 10000001264 Edition: 001...
