North Light GT228C-W-PIR Quick Start Manual

Solar-powered wall light with motion sensor
Please read the entire instruction manual before using the product
and then keep it for future reference. We accept no liability for any
errors in the text or images and we reserve the right to make any
necessary changes to technical data. If you have technical problems
or other questions, please contact our customer service team.

Safety

• Handle the product with care. Make sure that you do not
damage the surface of the solar panel and that it does not
become covered with dust or other dirt.
• The product must not be changed or modified in any way.
• Do not let children play with the product.

Responsible disposal

This symbol indicates that the product should not
be disposed of with general household waste. This
applies throughout the entire EU. To prevent any
harm to the environment or health hazards caused
by incorrect waste disposal, the product must be
handed in for recycling so that the materials can be
disposed of in a responsible way. To recycle the product, take it to
your local recycling facility or contact the retailer. They will ensure
that the product is disposed of in a way that does not harm the
environment.

Care and maintenance

Clean the product by wiping it with a damp cloth. Use only mild
cleaning agents. Never use solvents or corrosive chemicals.
Be careful not to damage the surface of the solar panel while
cleaning it.

Specifications

Light source LED 3000 K, max. 220 lm
Battery 1 × 18650 3.7 V/2200 mAh
Operating time 8−12 hours
Charging time 8 hours
Operating temperature 10 to 45°C
Detection zone max. 3 m, 90°
Dimensions 197 x 107 x 46 mm
Hole pattern, C-C 175 mm

Product description

2
1
5

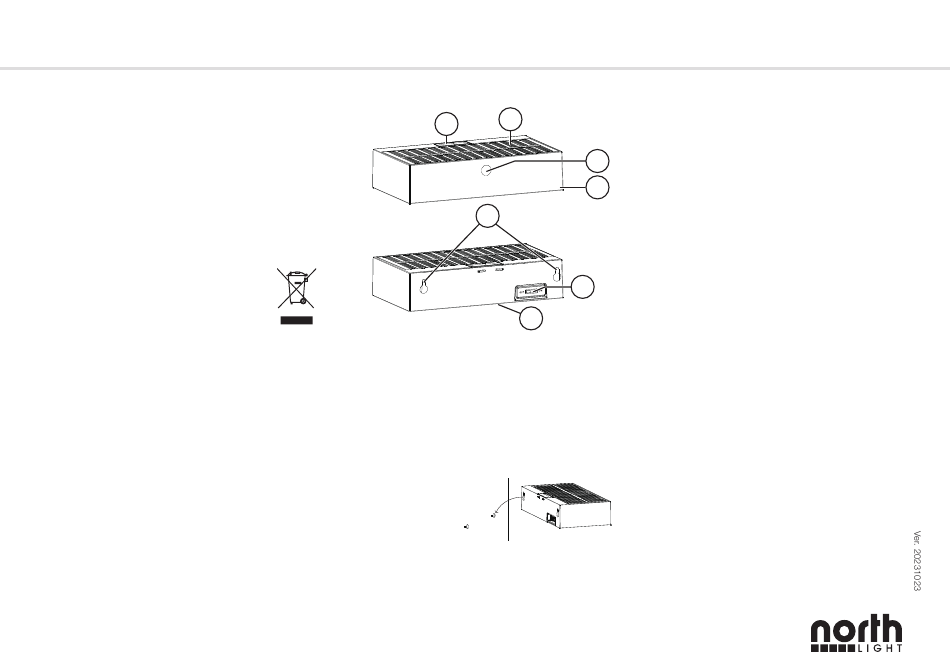

1. LED 5. Mounting hole
2. Solar panel 6. On/off switch
3. Motion sensor 7. LED
4. Light housing

Installation

• Use an appropriate fastening method for the wall in question.
• Make sure that there are no water pipes or electrical cables in
the wall where you intend to drill holes or insert screws.
1. Mark out the wall where
you want to hang the
lamp. The C-C distance
for the mounting holes
is 17 cm.
2. Screw the screws
into the wall.
3. Align the wider part of the mounting holes (5) with the screws
and slide the lamp downwards until it locks into position.
Art. no. 36-9422 Model GT228C-W-PIR

Bear in mind that:

• The solar panel should be installed where it can receive as
much sunlight as possible. A south-facing wall is usually a
good option. Putting the product in a location shaded by
buildings, trees, walls, etc. will reduce the ability of the solar
panel to charge the battery.
3
• If the product is not used for a long time, the battery may
become so discharged that the LED light does not come
on. In this case the product must be left in bright sunlight for
4
10–20 hours to charge. The battery will charge regardless of
which operating mode it is in, but it will charge more quickly
if it is set to OFF.
• Angle/tilt the solar panel so that it receives as much sunlight
as possible.

For best possible performance:

• To prevent the light from being activated inadvertently, it should
6
be put in a location where it will not be affected by heat
sources such as barbecues or air conditioning units.
• The motion sensor may also be sensitive to passing traffic,
7
ventilation systems or sources of electromagnetic interference
such as transformers.
• Do not position the wall light so that its motion sensor points
towards a reflective surface such as a large pane of glass, a
swimming pool or a smooth white wall. These surfaces can
reflect movement which will cause the motion sensor to turn
on the light inadvertently.
• Do not install the wall light too high or too low.
The recommended installation height is 1.8 m.
• Remember that the motion sensor works best when the
movement is going past it. People or objects moving directly
towards or away from the motion sensor are harder to detect.

Using the product

Set the on/off switch (6) on the back of the solar panel to ON.
The light (1, 7) will come on as darkness falls, initially at 20% of its
full brightness. When the motion sensor (3) is activated, the light
will come on at 100% brightness.
