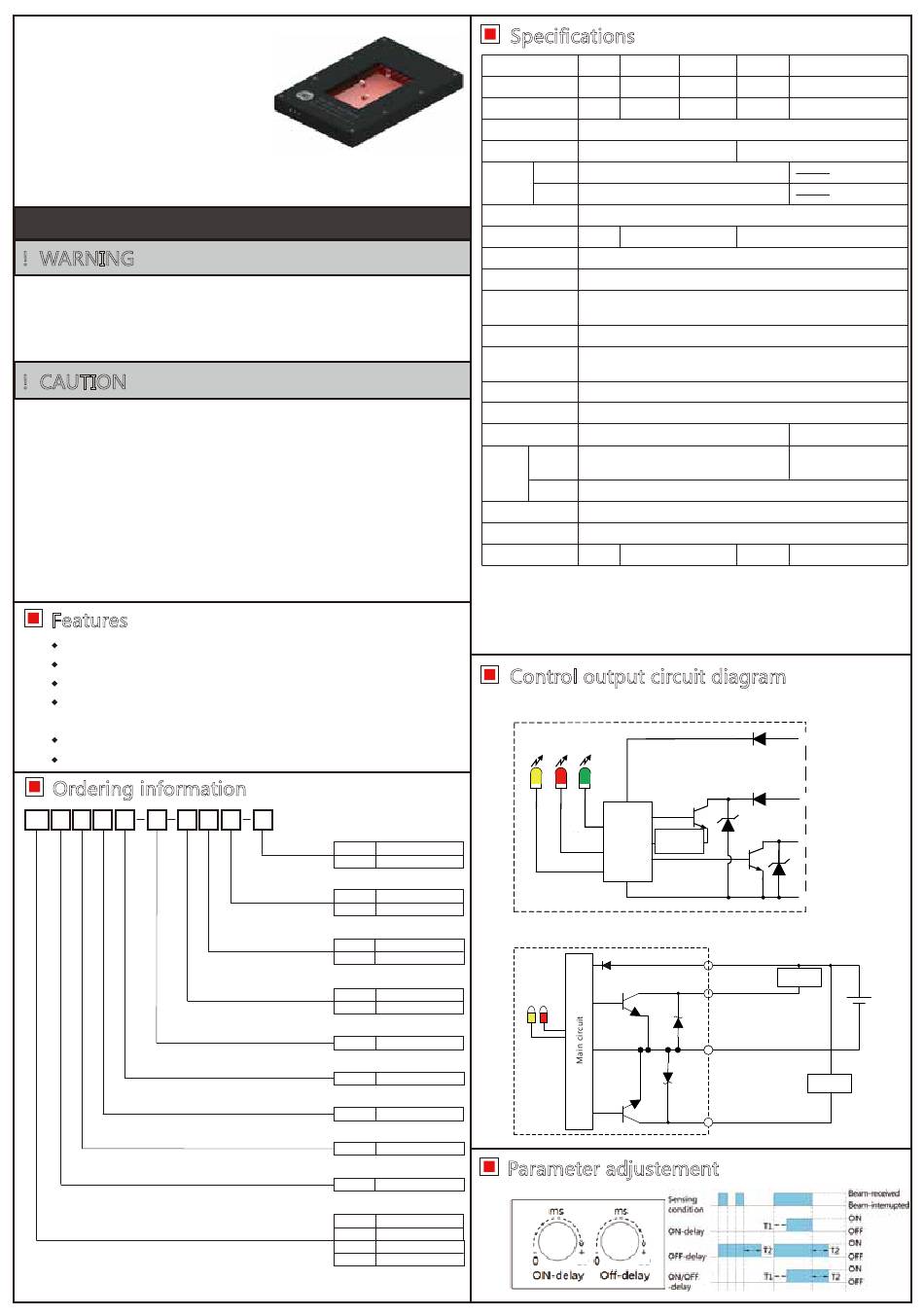

IMS CX3068 Instruction Manual

IMS
Frame Counting Sensor
INSTRUCTION MANUAL

! WARNING

Thank for you selecting IMS product.This sheet primarily describes precautions
required in installing and operating the product.Before operating the product,read
the sheet thoroughly to acquire sufficient knowledge of the product.For your
convenience,keep the sheet at your disposal.

! CAUTION

Failure to follow these instructions may result in serious injury or death：
Fail-safe device must be installed when using the unit with machinery that may
cause serious injury or substantial economic loss. (e.g. nuclear power control,
medical equipment, ships, vehicles, railways, aircraft, combustion apparatus,
safety equipment, crime/disaster prevention devices,etc.)
Failure to follow these instructions may result in product damage：
Do not use this unit over rated voltage；
Do not use this unit where there is flammable or explosive gas；
Do not use this unit where there is vibration or impact；
In cleaning the unit, do not use water or an oil-based detergent.

Features

Suitable for all types of materials, metal or non-metal
Fast Response time, down to 1ms
On-delay、Off-delay can be set
High performance ASIC with high immunity to EMI and environmental
interference
Built in algorithm to calculate the volume of passing object
Strong metal structure with M8 connector

Ordering information

CX 30 68 Tn Vn 3 N
Output
Accuracy/Sensitivity*(1)
V：Channel spacing ，n：number（mm）
Tn：channel number,no need to fill in single channel
Length of sensing area,no need to fill in the ring series
Width of sensing area
Item*(2)
*(1) ：Accuracy refers to the smallest particle size to achieve no blind area detection；
*(2) ：Non-standard structure can be designed.
O F A
Alarm Non
Alarm output
A
Reset time Fixing
F Off-delay function
Response time Fixing
O On-delay function
N NPN
P PNP
Number Unit：mm
Vn Channel spacing
n Number,4、6、8...
Number Unit：mm
Number Unit：mm
CX Frame series
RX Ring series
EX Slot series
PG Miniature

Specifications

Model CX3068 CX6080
Sensing area*(2)
28*68 57.6*91.5
φ3mm
Accuracy *(3) φ1.5/φ5mm
Power supply DC10~30V（including voltage ripple of 10%(p-p)max.）*(4)
Response time
1.6ms
On-delay
0~20ms
Parameter
adjustment
Off-delay 0~50ms
Indicators Power indicator ( green ) , operation indicator ( red ) , Alarm ( yellow )
Current consumption 40mA 90mA
100mA Max.
Load current
Output NPN（PNP type can be customized）
Power on delay, power supply reverse polarity protection, output
Circuit protection
short-circuit protection, output reverse polarity protection
Incandescent lamp: Max. 5,000lx /Sunlight: Max. 50,000lx
Ambient illumination
Operation: -20～65 ℃; Storage: -30～80 ℃（with no icing and
Ambient temperature
condensation）
Operation: 45～85 %RH; Storage: 35%～95%RH (with no condensation)
Ambient humidity
Protection degree IEC IP64
M8 connector, 4P
Connection
Line
Individual Operation: black; Alarm: red or white
color
definition
Common Power: brown; ground: blue
Material
Case: aluminum, Black anode
Instruction, screwdriver
Accessory
Weight
223g 395g
*(1): The product has 26mm and 30mm channel spacing, which can be expanded into 8
channels and 12 channels；*(2): Effective areas for material testing should be large enough
to ensure that no collision or overlap occurs in the area；*(3): Minimum material size without
leakage or miscounted in sensing area；*(4): Customizable 5V low-power products for
battery-powered outdoor environments.
Control output circuit diagram
Single channel
Power
indicator
动 电
上
(green)
作 源
电
指
调 指
示 示
节
灯 灯
及
主
警 Operation
Main Short circuit
indicator
报
电
(red) protection
指
circuit
示 路
Alarm indicator
灯
(yellow)
Four channels
Operation
indicator
(red)
Alarm
indicator
(yellow)
Parameter adjustement
Max Max
EX6080 CX90150 Four channels*(1)
60.6*80 87*147 20*50
φ1.5/φ5mm φ3/φ5mm φ4mm
1ms
70mA
M12 connector, 7P
Operation: black, white,
red, green; Alarm: yellow
558g 414g
（NPN）
棕色 ： 12 ~ 30 VDC
① Brown：10~30VDC
Black：Operation
黑色 ： 动作输出 NPN
②
output NPN
White：Stability
白色 ： 稳定输出 NPN
③
短路保护
output NPN
Blue：GND
④ 蓝色 ： GND
Brown （+） +V
Load
White/Green/Black/Red
（OUT）output
Blue（- ）0V
Load
Yellow（ALARM ）output
+
-
10~30VDC
