Summary of Contents for Reveal PRO3
- Page 1 PRO3 INSTRUCTION MANUAL INSTRUCTION MANUAL TACTACAM.COM REVEALCELLCAM.COM DEER MANAGEMENT SYSTEMS, LLC...
- Page 2 REVEAL APP DOWNLOAD D O W N L O A D T H E TACTACAM REVEAL APP V I S I T Y O U R A P P S T O R E T O D O W N L O A D...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION What is in the Box? What you will need QUICK START GUIDE Setting Up Your Account Downloading the App Add Camera to the App Sending a Test Picture Leaving Your Camera in the Field SETTINGS &... -
Page 4: Introduction

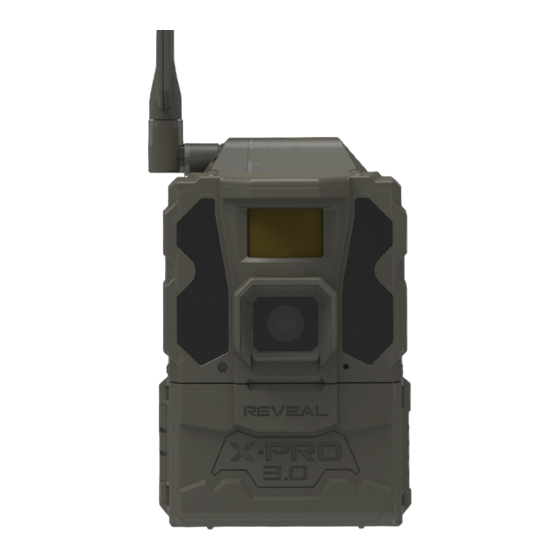

• (1) Antenna Lexar, SanDisk • (1) Verizon & AT&T SIM Card (Other brands of lower end SD cards are incompatible with the Reveal X-Pro and will Reveal Pro 3.0 and will yield unexpected results) • 12 AA Batteries Required -... - Page 5 INTRODUCTION Lens Antenna Camera Working Status Indicator Microphone SIM Slot (do not mix SIM’s with other cameras) Display PIR Motion Sensor IR LEDs Navigation Arrows SD Card Slot Power/Enter Battery Eject Button External Battery In/DC Port USB-C Port Tripod/Mount Attachment...
-
Page 6: Quick Start Guide
You can also access the Web Portal directly from your app, by clicking My Reveal on the account page in the app. If you already have a Reveal account with ACTIVE cameras, you can simply log in to your app and add your camera following the instructions on page 8. -
Page 7: Add Camera To The App
QUICK START GUIDE ADD CAMERA TO THE APP 1. Navigate to your Reveal app and login using your Reveal account credentials. Click the home icon. 2. Click the camera icon at the top. 3. From the camera page click the (+) in the bottom right hand corner. -
Page 8: Sending A Test Picture
QUICK START GUIDE SMS CONTROLS/ON-SCREEN SETTINGS Pro 3.0 allows you to fully control your camera settings directly on-screen. Use the X-Pro allows you to fully control your camera settings directly on-screen. Use the keypad to navigate (left, right, up, down, enter) to adjust camera settings. For best results, we recommend leaving the camera settings in the factory programmed REMOTELY CHANGE THE CAMERA SETTINGS FROM THE APP. -
Page 9: Leaving Your Camera In The Field
This may take a few minutes. LEAVING YOUR CAMERA IN THE FIELD 1. Using the display screen on the Reveal, position the camera to your desired focal point. 2. Ensure the antenna is securely tightened. -
Page 10: Settings & Specifications
SETTINGS / SPECIFICATIONS Camera Mode Photo; Photo+Video Day/Night Mode Daytime: Color, Nighttime: B+W IR Range 80+ Feet PIR Angle Flash No Glow IR Technology effectively eliminates all Operating Keys (2) 1x Power button; Navigation arrows Lens F=6mm; F/No=2.0; FOV=60* Auto IR-Cut-Remove (at night) SD Card Class 10, U3, 16GB-32GB, minimum 90MB/Sec Status Indicator... - Page 11 SETTINGS / SPECIFICATIONS Transfer Picture via 4G Thumbnail images sent to app (Additional data charges may apply) Request HD Photo and Video Only in supported locations (Additional data charges may apply) via 4G Upload Frequency/Send Type Instantly (Timely) 4 hours / 12 hours / 24 hours 4G Communication LTE wireless 4G Antenna...
-
Page 12: Best Practices
BEST PRACTICES PROPER CAMERA PLACEMENT 1. Location and placement is critical for best camera performance. 2. Avoid hanging the camera on small trees that are prone to moving with the wind. 3. Place the camera about waist height on the tree or post. 4. -
Page 13: Batteries And Cellular Trail Camera Performance
BEST PRACTICES BATTERIES AND CELLULAR TRAIL CAMERA PERFORMANCE 1. Use the recommended batteries for the Reveal: • Energizer Lithium batteries • Duracell Max Alkaline batteries • Rayovac UltraPro Alkaline batteries 2. In cold weather, use lithium ion batteries for best camera speed and performance. -
Page 14: Troubleshooting
TROUBLESHOOTING CAMERA SENDS PICTURES OF NOTHING Motion sensors (PIR sensors) are actually heat and motion sensors. This is why on a hot and windy day, people get false triggers. People and animals are not the only objects that will trigger your camera; vegetation and precipitation can act as a moving target as well. -
Page 15: Camera Stops Taking Images Or Won't Take Images
INTERNAL CONDENSATION ON LENS The Reveal is IP66 rated waterproof. This means the camera is water resistant against powerful jets. The only way the Reveal can get condensation in or behind the lens is if the antenna is not screwed in all the way, or if there is dirt or debris on the seal. -
Page 16: Warranty
LIMITED WARRANTY HOW LONG DOES THIS COVERAGE LAST? 1. One year from the date of purchase. 2. Be sure to register your Reveal under warranty at www.tactacam.com/warranty WHAT IS COVERED? 1. This limited warranty covers: manufacturer defects in materials and workmanship including but not limited to: •... - Page 17 FCC REGULATIONS Federal Communications Commission - Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 18 DO NOT RETURN THIS PRODUCT TO YOUR RETAILER PLEASE CALL 218-282-5650 EMAIL SUPPORT@TACTACAM.COM For any warranty issues or questions on how to 110 N Sunset Blvd, Caledonia, MN 55921 www.revealcellcam.com TACTACAM.COM...
- Page 19 110 N SUNSET BLVD, CALEDONIA, MN 55921 PRO3 SUPPORT@REVEALCELLCAM.COM | 218-282-5650 WWW.TACTACAM.COM © 2024 REVEAL CELLULAR CAMERA BY TACTACAM™...
Need help?
Do you have a question about the PRO3 and is the answer not in the manual?
Questions and answers
Do I have to reset the camera after replacing batteries?
No, you do not need to reset the Reveal PRO3 camera after replacing the batteries.
This answer is automatically generated
Where or how do I change the SD card In my pro 3.0
To change the SD card in the Reveal Pro 3.0, follow these steps:
1. Choose the Right SD Card – Use a Class 10 U3 full-size memory card between 16 and 32 GB.
2. Format the Card – Insert the SD card into a computer or laptop and format it before use.
3. Insert the Card – Open the side compartment of the camera, place the SD card into the slot, and push it in until it clicks.
4. Ensure Proper Setup – Turn on the camera after inserting the formatted SD card.
This will allow the camera to store images and videos properly.
This answer is automatically generated
where is the default setting on the camera? I purchased a used camera and need wipe former owners info.
The context does not provide specific instructions for resetting the default settings on the Reveal PRO3 camera.
This answer is automatically generated
How to get the battery cartridge out
To remove the battery cartridge from the Reveal PRO3, locate the battery eject button on the camera. Press the eject button firmly, as the cartridge may be tightly secured, especially since it is designed not to fall out easily. Once the button is pressed, pull the battery tray out with a stout pull.
This answer is automatically generated
