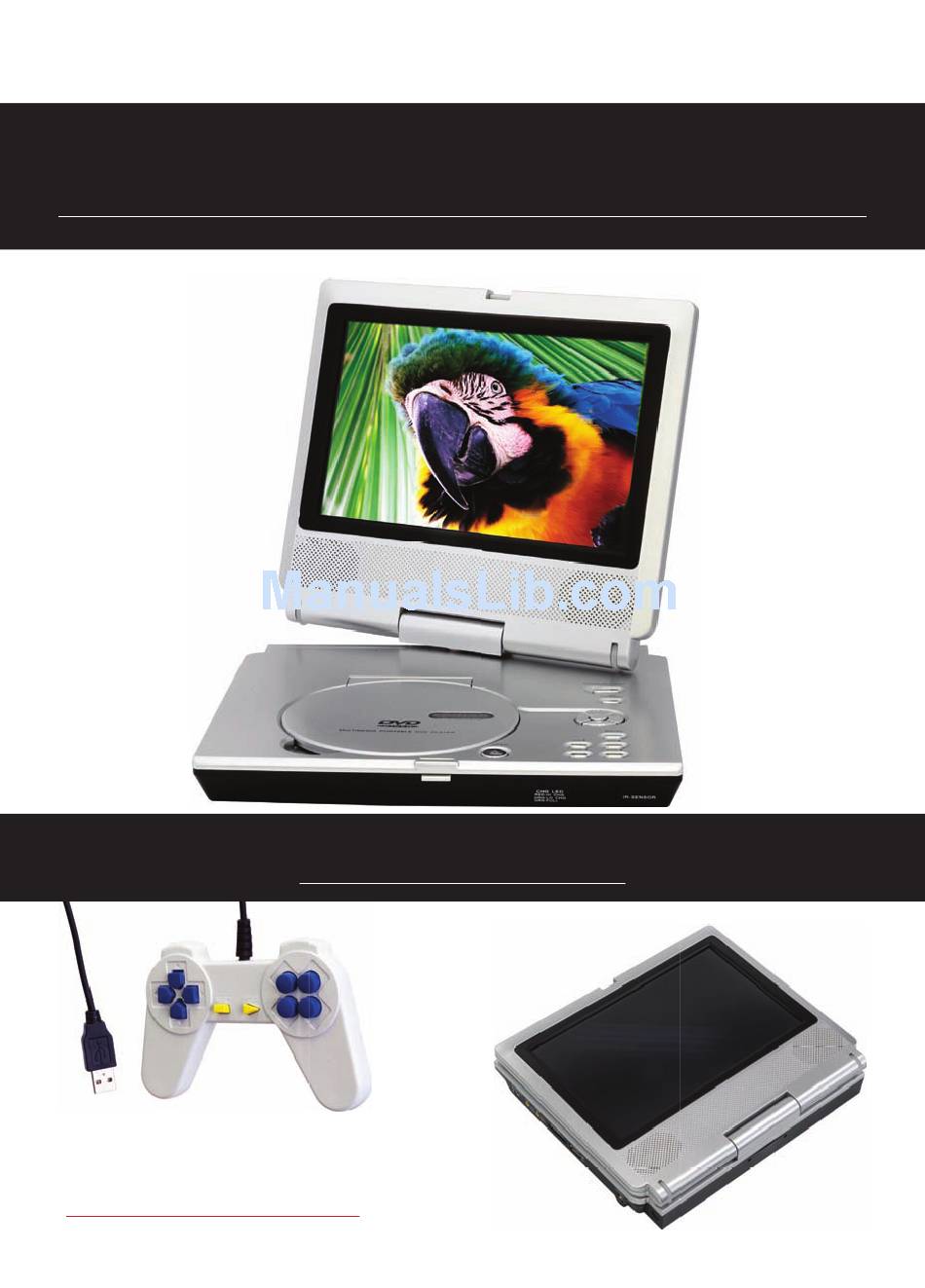

- Page 1 PORTABLE DVD PLAYER WITH BUILT-IN DIGITAL & ANALOG TUNERS USER MANUAL PD900...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ... 3 MAIN FUNCTIONS ... 3 REMOTE CONTROL ... 6 CONNECTION AND SETUP FOR RECEPTION OF DVB-T AND ANALOG TV ... 7 CONNECTION TO TV SET ... 8 AS A MONITOR ... 9 PLAYING GAMES ... 10 FILE BROWSING AND PLAYBACK ... 11 PLAYING FILES OFF USB FLASH DRIVE ... -
Page 3: Introduction
The rotatable screen allows versatile viewing opportunities. • DVD player Watch your favourite movies on the go. The PD900 not only includes support for common DVD movies, but can also read DivX, MPG, S/VCD discs too. • Integrated DVB-T and Analog TV tuner Analog TV receives almost all systems in the world: PAL B/G, PAL D/K, PAL I, NTSC M, SECAM B/G, SECAM D/K, PAL M, PAL N, SECAM L. - Page 4 • Package contents: > 1x PD900 > 1x Remote control > 1x AV cable > 1x headphone > 1x DC car charger lead > 1x AC power supply 13.8 V @ 1.5 A > 1x joystick > 1x user manual >...
-
Page 6: Remote Control
REMOTE CONTROL Note: As you switch between modes (DVD/ TV/ DVB-T/ AV) the buttons functions will change. The remote takes 2x “AAA” batteries. -
Page 7: Connection And Setup For Reception Of Dvb-T And Analog Tv
CONNECTION AND SETUP FOR RECEPTION OF DVB-T AND ANALOG TV Connect the included portable antenna or an external antenna to the “Antenna” input on your PD900. Choose your mode to watch either digital or analog TV. To watch digital television Press “DVD/DVB/TV/AV”... -
Page 8: Connection To Tv Set
Only in DVD mode can the output be sent to an external device (eg. TV set). Press “DVD/DVB/TV/AV” key to change the unit to “DVD” Connect the 2.5mm jack to “AV Out” on your PD900 Connect the Yellow/ White/ Red connectors to your TVs AV input... -
Page 9: As A Monitor
You can use your PD900 as a monitor, by inputting video and audio to the unit. Press the “DVD/DVB/TV/AV” key, to change the input mode to “AV” Using the AV cable supplied connect the external signal to the “AV In” on your PD900 (see below fi g). -
Page 10: Playing Games
PLAYING GAMES Load the 8-bit NES game disc into the unit (you can also load 8bit NES games from a USB drive or fl ash card) Connect the game controller to the game port as per diagram. Use the remote to select the game you wish to play from the menu. -
Page 11: File Browsing And Playback
FILE BROWSING AND PLAYBACK Your PD900 allows you to playback a multitude of audio and video fi les from a number of sources; including data fi les burnt to a CD-R/RW, DVD±R/W, USB fl ash drive, or fi les located on a memory card. -
Page 12: Playing Files Off Usb Flash Drive
Picture, Game and Movie) then move the cursor to select the fi le then press enter to begin playback. Your PD900 will display relevant fi le types according to the mode you set. See File browsing and playback for more information. -
Page 13: Reading Memory Cards (Sd / Ms / Mmc)
READING MEMORY CARDS (SD / MS / MMC) To enable USB playback, make sure there are no discs inserted. Insert your fl ash card (SD / MS PRO / MS DUO / MMC). Power on. You can plug and play MPEG4, MP3, JPG, VCD and NES fi les via your USB fl ash drive. Follow instructions as per USB Drive (Navigating the fi... -
Page 14: Dvb-T Setup Menu Overview
Regional Setting Language Time Setting System Schedule Game Mine DVB-T First Time Installation Wizard The fi rst time you enter DVB mode on your PD900, you will prompted to run the “First Time Installation Wizard”. Tetris Gomoku Calendar Accessory System Information... -
Page 15: Operating In Dvb Mode
First Time Installation Do you want to start fi rst time installation wizard? Follow the on screen instructions to set up digital reception. The wizard will automatically scan available digital channels, including TV and Music (Radio). Should you need to run the set up again, revert to Factory Defaults (DVB Mode > Menu > Accessory >... -
Page 16: Analog Tv Setup Menu Overview
ANALOG TV SETUP MENU OVERVIEW To access the TV menu: Press the “DVD/DVB/TV/AV” key to change the unit to “TV”. Press the menu button on your remote control to access the PRESET menu. Note: Pressing the MENU button on the unit itself will present the Picture settings menu. PRESET Channel (Use the directional keys on your remote to select the channel to edit settings) -
Page 17: Dvd Playback
To return to the DVD’s menu, press the TITLE or RETURN keys on your remote. Using the included AV lead and hooking the PD900 to your television set will allow you to use your PD900 like a standard DVD player and enjoy your movie on a bigger screen. -
Page 18: Parental Lock (Dvb-T Mode)
PARENTAL LOCK (DVB-T MODE) Parental lock allows you to block selected channels. To access the Parental lock feature, make sure you are in DVB mode and press the SETUP/MENU key on your remote. To enable Parental lock: Press the “DVD/DVB/TV/AV” key to change the unit to “DVB”. Press the menu button on your remote control to access the DVB menu. -
Page 19: Charging Your Battery
(approx. 0.4 A). If the PD900 is switched off while charging however, the higher current (approx. 1.2 A) will provide a quicker charge. -
Page 20: Troubleshooting
DVD. Ensure that your DivX fi les are compatible with the PD900. The PD900 supports DivX 4.x and 5.x versions encoded at 640x480 or less. Enter the DVD setup menu and change the Parental lock to be higher than your DVD’s rating. -
Page 21: Specifications
SPECIFICATIONS Video D/A converter: 10 bit DVD Video D/A Converter Horizontal resolution: 500 lines Frequency response: 20 Hz - 20 KHz DVD Audio Output Audio D/A converter: 96 KHz/ 24 bit Image resolution: 9.2” 800 x 480 pixels General Specifi cations Power consumption: <...
