Summary of Contents for Bush Baby Bb4kWiFiFan-Short

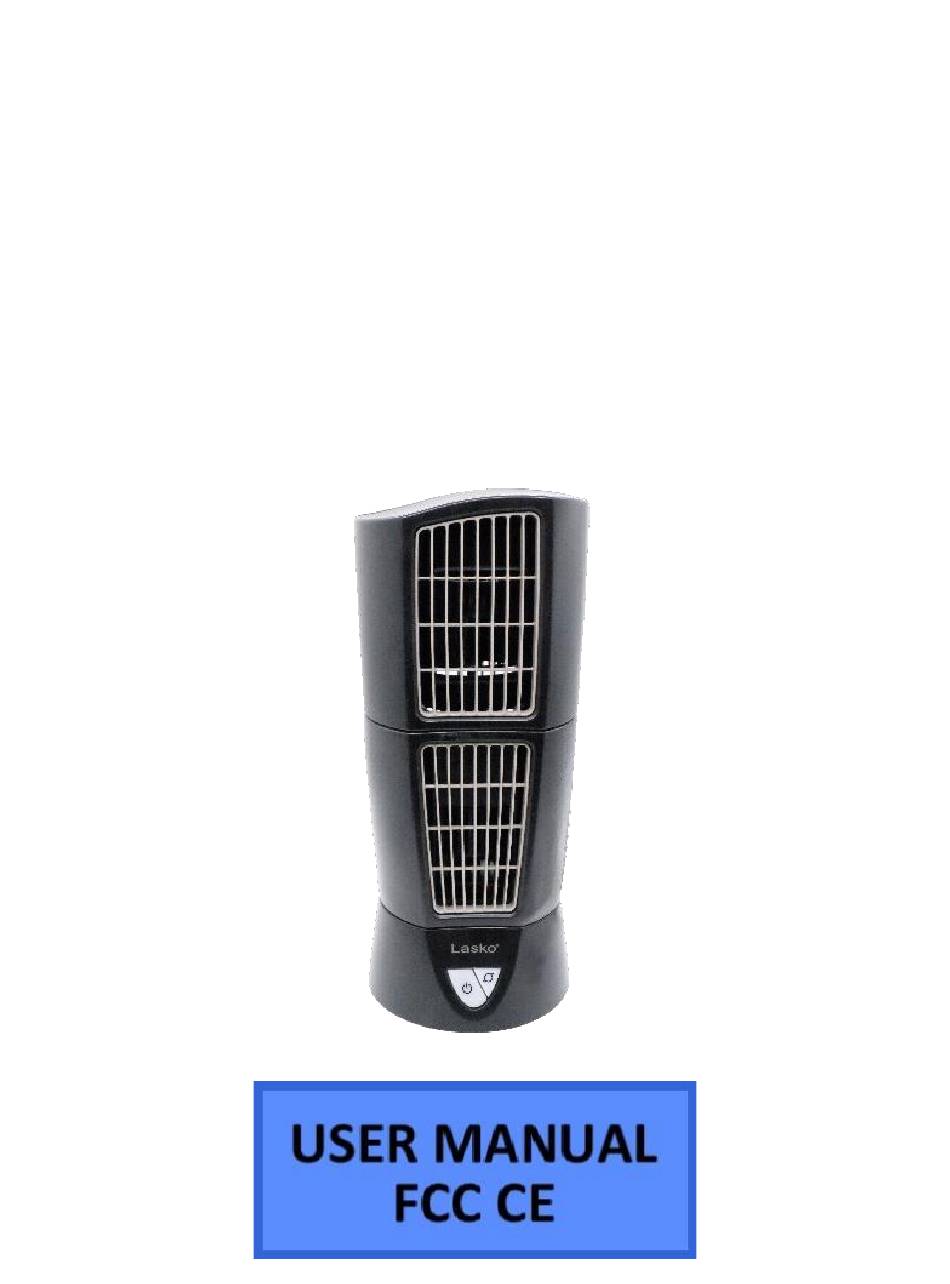

- Page 1 Bush Baby Fan - Short with 4K Wi-Fi Hidden Camera SKU: Bb4kWiFiFan-Short Version 2.0...
- Page 2 THANK YOU FOR PURCHASING THE BB4KWIFIFAN- SHORT Please read this manual before operating the Bb4kwififan-short and keep it handy. Your purchase should include: 1 x Bb4kwififan-short 1 x Manual 1 x 128GB Micro SD Card 1 x Micro SD Card Reader...
- Page 3 GET FAMILIAR WITH YOUR BB4KWIFIFAN-SHORT Version 2.0...
- Page 4 a. Camera Lens b. Fan Operation Buttons c. SD Card Slot d. Power Cord Version 2.0...
- Page 5 BEFORE YOU GET STARTED IMPORTANT INSTRUCTIONS BEFORE GETTING STARTED 1. In order to operate your device, you must download the LookCamPro app to your smartphone or tablet. o Android: www.minigadgets.com/lcpdroid o iPhone: www.minigadgets.com/lcpios 2. This device can only make one Wi-Fi pairing attempt and then the TUT signal will disappear.
- Page 6 device has the best chance possible of pairing with your router. • This device will only connect to routers that produce a 2.4 GHz signal. Please contact your internet service provider to determine if your router is 2.4 or 5.8 GHz.
- Page 7 with the test plug prior to hardwiring it Note: If you are using this anywhere other than the US, you will need to purchase a converter in order to use the device and avoid damaging the product. Because different countries use different voltages in their electrical wiring, you will need a converter that adapts to the current in your particular country.
- Page 8 warranty will be voided. You may be charged fees or denied a return should this happen. STEP ONE – ADDING THE DEVICE TO THE APP & PAIRING WITH WI-FI FOR REMOTE VIEWING Note: If you do not want to use your device for remotely live streaming/video playback, you can still use it as a DVR unit.
- Page 9 plug that came attached with it into an outlet, or have it professionally hardwired into the existing electrical system 2. Turn on your phone’s Wi-Fi and wait up to 5 minutes for the device to generate a Wi-Fi signal (this will match the UID on the sticker, ex: TUTxxxxxxx) 3.
- Page 10 Note: For iOS devices, you must wait until the Wi-Fi signal appears next to your Phone Carrier Name at the top of your phone screen. 4. After connecting, open the LookCamPro App. 5. The app will automatically detect the camera, and display an “AP added device, whether the network?”...
- Page 11 Note: You will be prompted to change the device password the first time you view the camera video feed. We suggest that you do change this to prevent any unauthorized viewing of your camera. The default password is 6666. IMPORTANT: You must keep this password in a safe place.
- Page 12 Note: All steps from here onwards require you to have completed step one and have already added the device to the LookCamPro app. Do not continue without completing step one. Note: Your device will come with a 128GB MicroSD card already installed in it. To get started with capturing video, follow the steps below.
- Page 13 • Record Length – This controls the length of your video recordings and can be set between 5 and 30 minutes. (Note: This only controls the video length for the ‘Throughout the Video’ and ‘Timing Video’ video modes. For controlling video length on the ‘Alarm Video’...
- Page 14 • Alarm Video – The unit will record to the microSD card only when there is motion (Note: Make sure to follow Step Three for enabling motion detection) • Timing Video – The unit will record continuously 24/7 to the microSD card only between the specified start and end times (time is in military format)
-
Page 15: Setting Up Motion Detection
Note: If you do not want to record to the microSD card based off motion, or do not want to receive motion detection alerts on your phone, you can skip this entire section. SETTING UP MOTION DETECTION 1. Open the LookCamPro application on your smartphone or tablet. - Page 16 notifications, or to record when there is motion. • Alarm Push – Enable this if you want to receive alerts on your phone when the device detects motion. • Mobile Detection Video – This feature will not apply to your device and can be on or off.
- Page 17 • Detection Sensitivity – This controls how sensitive the unit is to detecting motion. You will want to test the device to see which option is best suited for the environment your device is in. STEP FOUR – CHANGING THE DEFAULT DEVICE PASSWORD Note: For security purposes, we strongly recommend that you change your device’s...
- Page 18 3. You will be taken to a screen with multiple options. Select the ‘User’ option. • Note: On iOS devices, this will be the ‘User Setting’ option. 4. On the next screen, put in 6666 for the ‘Old pwd’ field 5.
- Page 19 smartphone or tablet to the device’s wi-fi signal. Note: If this is the first time opening the live stream, you will be prompted to change the device password. We suggest that you do change this to prevent any unauthorized viewing of your camera. The default password is 6666.
- Page 20 • 2 Top Left ↔ Icon – This will mirror the live stream horizontally. This also affects video orientation for video recordings. • Light Bulb Icon – This will enable/disable the working wi-fi LED light on your unit (blue LED). •...
- Page 21 o Note: This does not save video to the microSD card, that is controlled separately. • ‘Photo’ Camera Icon – This will take a snapshot of the live stream and save it to the app on your phone. o Note: This does not save the snapshot to the microSD card.
- Page 22 as brightness and contrast levels (these range between 0 and 100) o Note: The ‘Horn’ and ‘Microphone’ sliders will not apply to your device. REVIEWING VIDEOS VIA THE LOOKCAMPRO APPLICATION Note: This requires you to have completed Step One. 1. Open the LookCamPro application and you will see four tabs at the bottom of the main menu: Camera, Photo, Video, and Playback.
- Page 23 device. You can then review photos taken during the live stream. • Reviewing Videos Taken in Live Stream – Select the ‘Video’ tab and then choose your device. You can then review videos taken during the live stream. • Reviewing Videos Recorded to the MicroSD Card –...
- Page 24 TRANSFERRING FILES TO YOUR PC 1. Remove the MicroSD Card from your device (see page 4). 2. Use the MicroSD Card Reader to connect the MicroSD card to your computer. 3. Locate “Removable Disk” inside the (My) Computer folder. • AutoPlay Removable Disk > Open folder to view files Version 2.0...
- Page 25 Or… Go to Start > Computer > Removable Disk 4. Open the Removable Disk drive. 5. Open the folder containing the files. Version 2.0...
-
Page 26: Troubleshooting
6. Double click the file you want to view. Note: You can easily manage your MicroSD card recordings using the phone app. TROUBLESHOOTING THE DEVICE WON’T TURN ON • Make sure the plug is securely connected to the device. o Double check that the connection is secure. - Page 27 o If plugging the unit in, try a different cable or AC adapter. CANNOT RECORD TO MICROSD CARD • Make sure the MicroSD card is inserted into the unit fully. It’s spring loaded so you should feel it click into place. •...
- Page 28 to the bottom, and selecting “Reset Device”. • You do not have to delete the app in order to reset the device. • This will un-pair the device from any networks and reset the password back to the default of 6666. The device’s wi-fi signal will begin broadcasting again.
- Page 29 THE DEVICE IS NOT BROADCASTING ITS WIFI SIGNAL • Please unplug the device, wait 30 seconds, and then plug it back in. THE APP CANNOT FIND THE CAMERA/”SEARCH LAN/SEARCH NETWORK” NOT FINDING ANYTHING • Ensure you are still connected to the device’s Wi-Fi signal by going to your phone’s Wi-Fi settings.
-
Page 30: Other Problems
OTHER PROBLEMS • Contact our Technical Support team at 770-694-6921 or support@minigadgets.com Technical Support and product assembly located in the United States. Version 2.0... -
Page 31: Specifications
Technical Support: 770-694-6921 Monday-Friday 9 AM – 6:00 PM EST Leave Us A Review! SPECIFICATIONS Feature Specification Streaming Resolution 4K, 2K, 1080P, 720P Recording Resolution 720P Video Format .AVI Version 2.0... - Page 32 Viewing Angle 90° MicroSD Card Storage Up to 128GB MicroSD Location External Slot Video Consumption 2 Hours = 1GB Playback Software Loop Recording Operating Systems Android, iOS Phone App LookCamPro Max File Length – 5 – 30 minutes Continuous Recording Max File Length –...
- Page 33 ☐ MicroSD Card Reader ☐ Bb4kwififan-short ☐ 128GB MicroSD Card Quality Control Technician: _______________________________________ Date: __________________________________ Warranty number: _______________________ Version 2.0...
