Gorke Electronic RSU-N1 User Manual

TECHNICAL PARAMETERS OF THE
RECEIVER
• class: C
• type of receiving module: superreaction
• sensitivity: -100 dBm
• frequency: 433,92 MHz
• radio transmission: KeeLoq hopping code by
Microchip Technology
• memory capacity: 14
• voltage supply:
nominal: 12 V DC
allowable: 10-15 V DC
• power consumption:
static: 17 mA
maximal: 40 mA
• capacity:
relay output: 1A/ 30 V DC
S transistor output: 0,5A/ 12 V DC
sabotage output: 50mA/ 12 V DC
• number of relays: 1
• relay's operating mode: mono or bistable
• time scope for the mono mode: ~1s-4min20s
• operating temperature range: 0 to +40
• dimensions (mm): 48*68*26
• cooperation: any GE sender
• operating range (m)*: 100-500
• colour: white
TECHNICAL PARAMETERS OF THE
REMOTE CONTROL
• class: C
• frequency: 433,92 MHz
• transmission: coded (KeeLoq hopping
code by Microchip Technology)
• number of buttons: 2 (1code)
• sending power: <5mW
• power supply: 3 lithium batteries 12V
• dimensions (mm): 29*61*11
• colour: black
• cooperation: any GE receiver
• work range (m):
with superreactive receiver: 100
with heterodyne receiver: 200

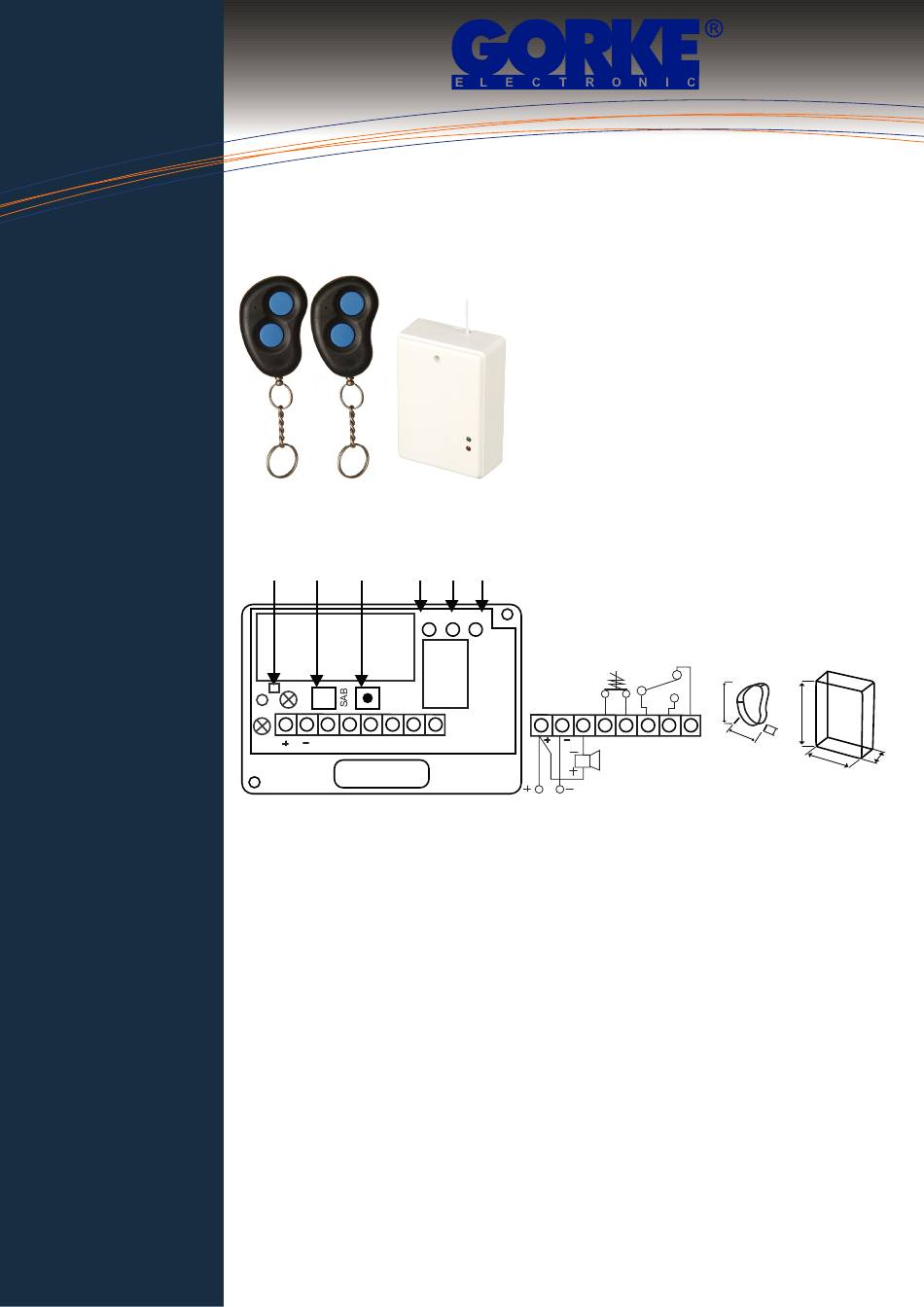

button button diode
antena antisabotage learning suply
A
LEARNING
S C1 N01 NC1
SAB

USER'S MANUAL

The purpose of the elements:
Diode SUPPLY control (green ZAS) – it indicates connection of the power supply
Diode CHANNEL 1 control (red K1) – it signals that the relay is open
Diode K2 (red) – it signals the programming procedure
LEARNING button – launches the programming procedures
ANTISABOTAGE – allows for connecting the device to the antisabotage circuit
S output – it is used to connect an acoustic signalling device which informs with short signals whether the
relay is opened or closed, for example while opening the access path to the encryptor or by arming a
simple alarm circuit. On opening the relay on the S output it emits one short signal, and on closing it – two
signals. The maximal capacity of this output is 0,5A/12V DC, which is enough even for using sirens with a
high level of audibility. The positive terminal should be connected to +12V and the negative terminal – to
the S output on the terminal strip.

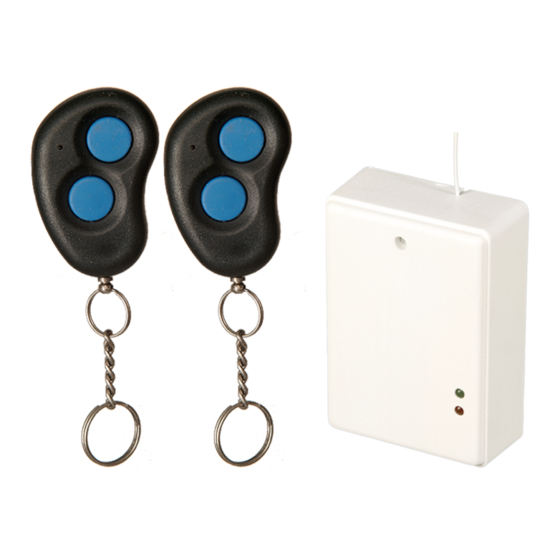

1-channel RSU-N1/2 set
the set contains: 1-channel RSU-K01 receiver and
two 2-button PUK 112-1 remote controls
The operating range: the following range (100m) concerns
the open space (without any obstacles, when the
receiver and the remote control can "see each other"). If
there are any obstacles between the receiver and the
sender, one must assume that the range would be
reduced: for wood and plaster it would be 5-20% lower, for
bricks 20-40% lower, and for reinforced concrete 40-80%
lower.
diode
channel diode
1 learning
ZAS K1 K2
K1
10 - 15V
S
Dimensions devices
51
12
SAB C1 N01 NC1 37
remote
control
68
26
48
receiver
