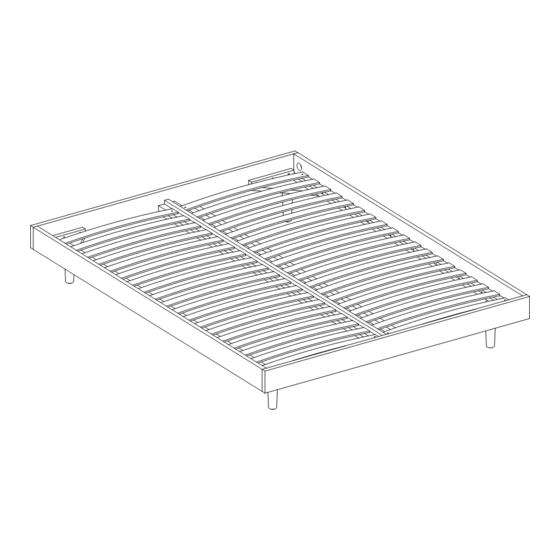

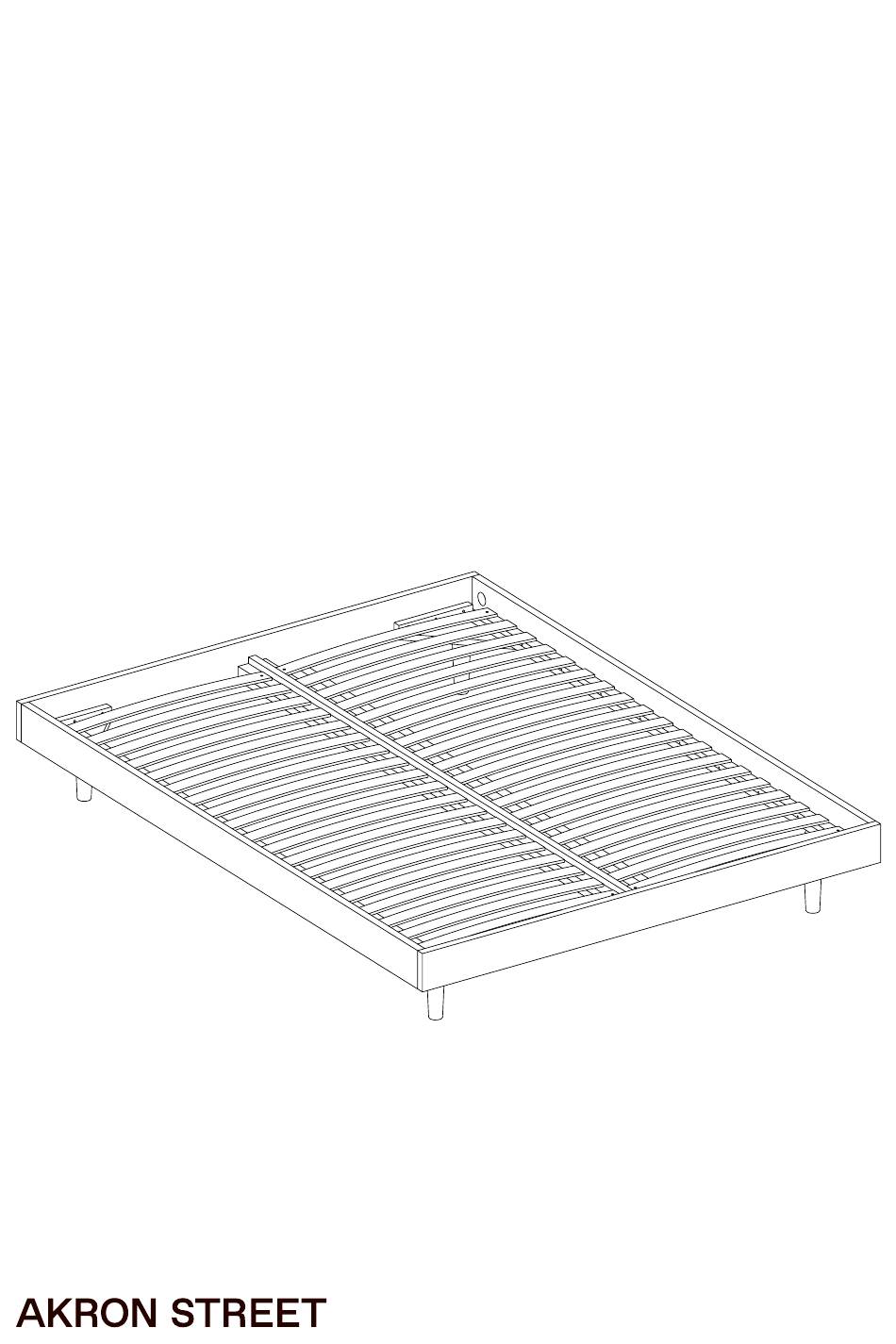

- Page 1 ASSEMBLY INSTRUCTIONS 50–MYS–07–K 50-MYS-07-Q 50-MYS-07-F Mysa Bed AKRONSTREET.COM...
- Page 2 HOME STARTS HERE.
- Page 3 Thank You For Choosing Akron Street. We hope you enjoy your new Akron Street furniture. We take great care in designing our products for quick and easy assembly. If you need any more help, please don’t hesitate to contact us at support@akronstreet.com.
- Page 4 Hardware A. Wrench B. Hex Key C. Half-Moon Nut x4 D. Hex Nut (m8) x4 E. Headless Bolt x4 F. Wooden Dowel x8 G. M6 40mm Bolt x16 H. M6 20mm Bolt x8 AKRON STREET...
- Page 5 Parts I. Sideboard x2 J. Endboard x2 K. Center Support x1 L. Ribbon Slats x2 M. Corner Brace x4 N. Straight Leg* x4 O. Tapered Leg* x4 *The Mysa Bed includes two interchangeable leg styles. MYSA BED...
- Page 6 Step 1. AKRON STREET...
- Page 7 C. Half-Moon Nut x4 E. Headless Bolt x4 F. Wooden Dowel x8 MYSA BED...
- Page 8 Step 2. AKRON STREET...
- Page 9 D. Hex Nut x4 MYSA BED...
- Page 10 Step 3. The Mysa Bed includes two interchangeable leg styles. Select your preferred style and mount it to the corner brace. Straight Tapered AKRON STREET...
- Page 11 G. M6 40mm Bolt x16 M. Corner Brace x4 N. Straight Leg x4 or O. Tapered Leg x4...
- Page 12 Step 4. AKRON STREET...
- Page 13 MYSA BED...
- Page 14 Step 5. AKRON STREET...
- Page 15 K. Center Support x1 N. Straight Leg x4 or O. Tapered Leg x4 Mount the remaining legs to the center support. MYSA BED...
- Page 16 Step 6. AKRON STREET...
- Page 17 MYSA BED...
- Page 18 Step 7. AKRON STREET...
- Page 19 H. M6 20mm Bolt x8 H. M6 20mm Bolt x8 M. Ribbon Slats x2 MYSA BED...
- Page 20 NEED MORE HELP? CONTACT US AT SUPPORT@AKRONSTREET.COM...
