Check the Package Contents
ITEM
1.
LEFT STAND LEG
2.
RIGHT STAND LEG
3.
CROSS BOARD
4.
FOOT
5.
BRACKET
6.
CROSS BOARD BRACKET
7.
INSERT WITH THREADED HOLE
8.
4X12 SCREW
9.
M6X70 SCREW
10. M6X30 SCREW
11. SCREW KNOB
Assembly

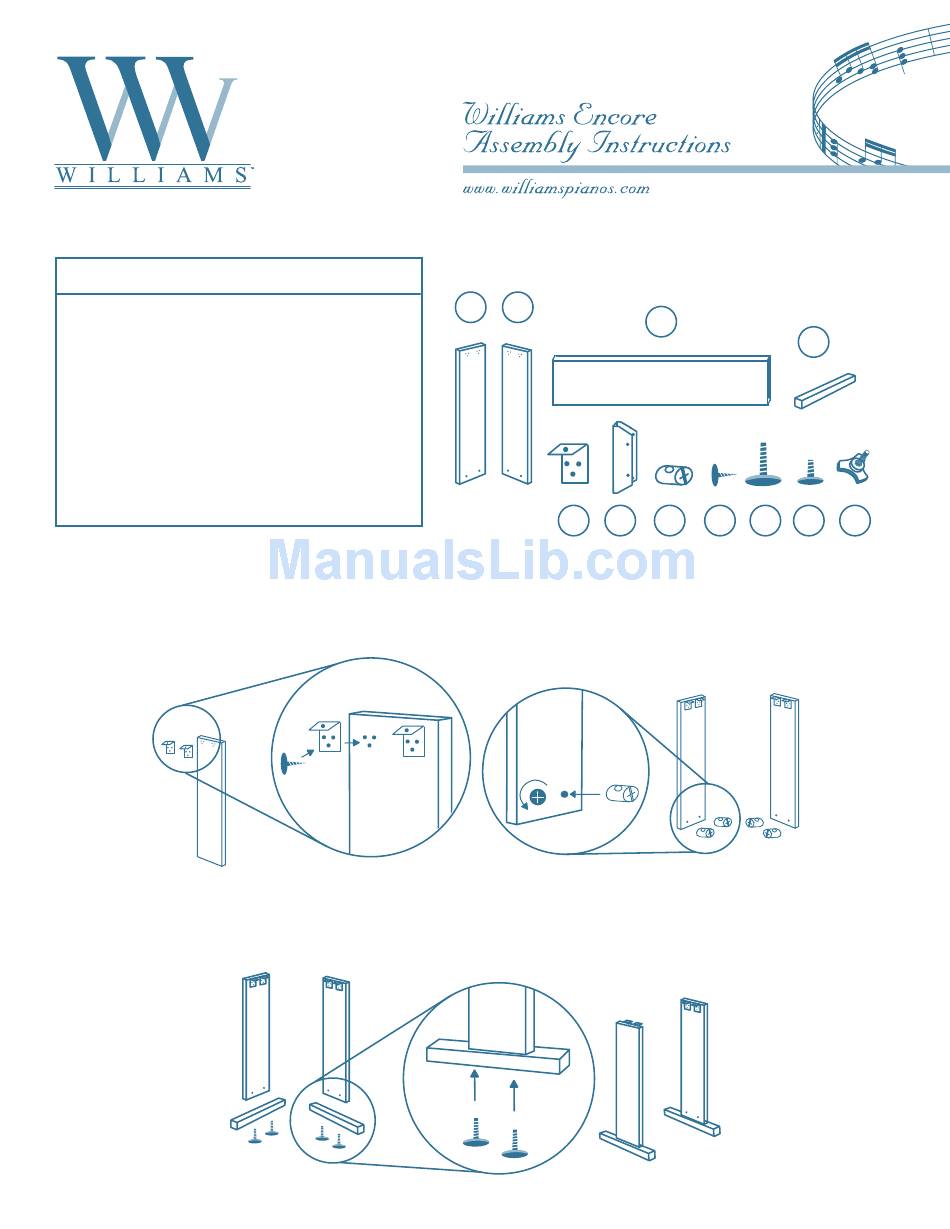

Assemble the Stand Legs
1. Align the circular holes on bracket with the left and right stand legs.
2. Insert the 4X12 screws into the holes and fasten.
3. Place the threaded insert into the hole on the stand leg. Rotate the threaded insert using a screw driver
to align the screw holes with the hole in the foot bottom.
4. Insert the M6X70 screws to the holes in the foot and align with the threaded holes of the insert in the side
board and fasten.
Tools required: phillips screwdriver
QUANTITY
1
1
1
1
2
4
2
4
20
4
4
4
2
3
5
6
7
4
8
9
10
1 1
Advertisement
Table of Contents
Related Manuals for Williams Encore
Summary of Contents for Williams Encore
- Page 1 Check the Package Contents ITEM LEFT STAND LEG RIGHT STAND LEG CROSS BOARD FOOT BRACKET CROSS BOARD BRACKET INSERT WITH THREADED HOLE 4X12 SCREW M6X70 SCREW 10. M6X30 SCREW 11. SCREW KNOB Assembly Assemble the Stand Legs 1. Align the circular holes on bracket with the left and right stand legs. 2.
- Page 2 Assemble the Cross Board 5. Place the cross board brackets on the cross board and fasten with 4X12 screws. Assemble the Piano Stand 6. Align the circular holes on the end of the cross board assembly with the right and left stand leg assembly. 7.
