BOERPLAY BPKE261.6KP Manual

Multi-play equipment
Hide thumbs

Advertisement

Quick Links

Download this manual
Multi-play equipment
BPKE261.6KP

Advertisement

loading
Need help?

Need help?

Do you have a question about the BPKE261.6KP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY BPKE261.6KP

Summary of Contents for BOERPLAY BPKE261.6KP

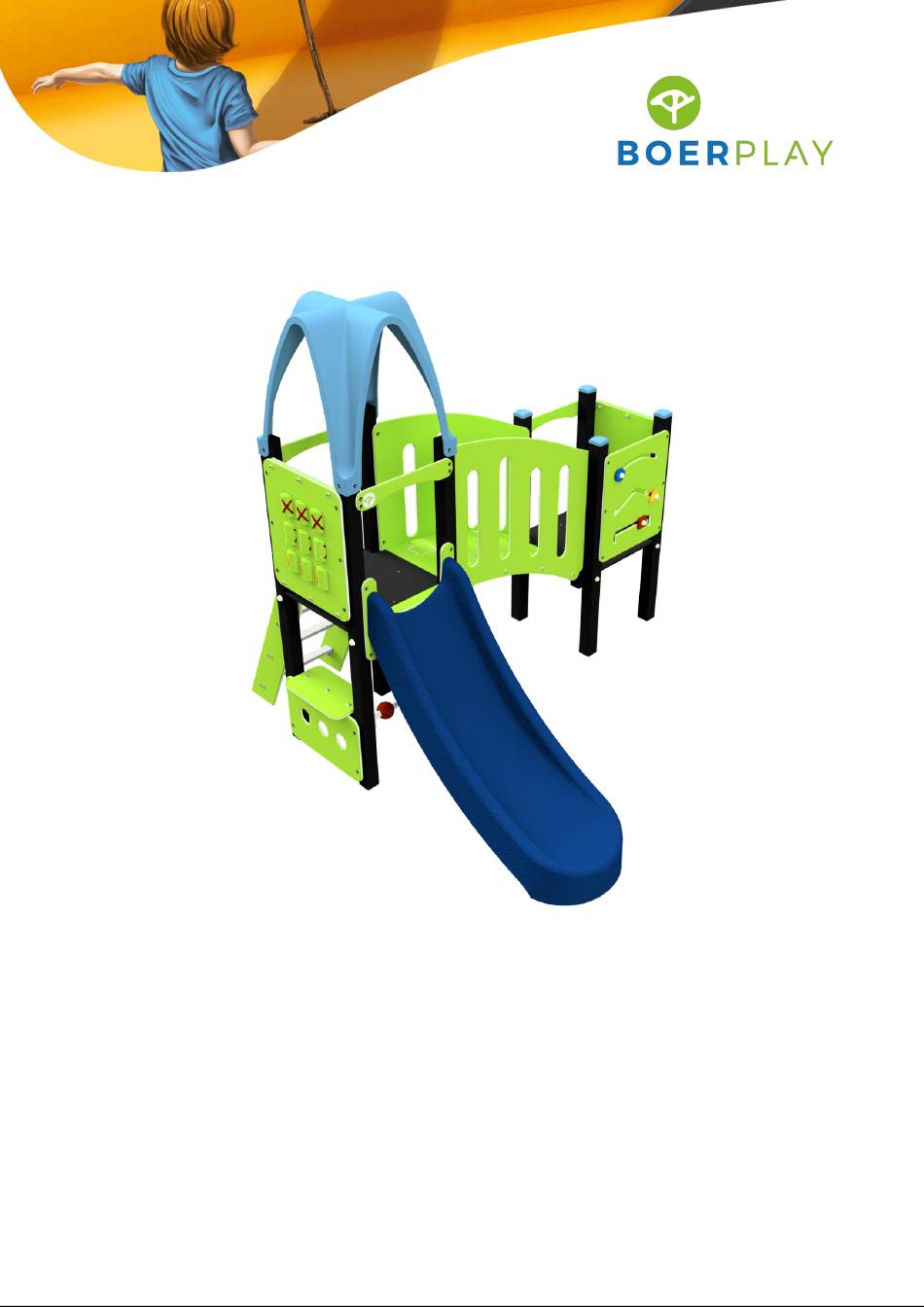

  • Page 1 Multi-play equipment BPKE261.6KP...
  • Page 2 0,00 m 0,54 m 0,95 m * 0,59 m * 1,12 m 2,48 m 2,40 m 1,41 m 0,95 m 0,59 m 0,00 m 0,00 m < 0.,20 m * Vloerhoogte (Floor height) Benaming TOE BPK 261 6KP Klimklauter 2 torens Title Tekening Opmerking...
  • Page 3 5,59 m 5,09 m 1,05 m 0,50 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE BPK 261 6KP Klimklauter 2 torens Title Tekening Opmerking Basic Play Kids Drawing Comment Datum Obstakelvrije zone Obstacle free zone 11-5-2021 Date...
  • Page 4 1,54 m 0,58 m 1,16 m 0,58 m 1,54 m 0,50 m 0,29 m 0,55 m Grondmarkering Ground level marker 0,40 m 0,52 m Benaming TOE BPK 261 6KP Klimklauter 2 torens Title Tekening Opmerking Basic Play Kids Drawing Comment Datum Bodemplan Groundplan 11-5-2021...
  • Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
  • Page 6 2,40 m 1,68 m 1,32 m 0,86 m 0,50 m 0,45 m 0,00 m Voor (Front) 2,40 m 1,68 m 1,41 m 1,32 m 0,90 m 0,45 m 0,00 m 0,00 m Rechts (Right) Benaming TOE BPK 261 6KP Klimklauter 2 torens Title Tekening Opmerking...
  • Page 7 2,40 m 1,68 m 1,41 m 1,32 m 0,86 m 0,50 m 0,45 m 0,00 m Achter (Back) 2,40 m 1,68 m 1,68 m 1,41 m 1,32 m 1,23 m 0,50 m 0,45 m 0,00 m 0,00 m Links (Left) Benaming TOE BPK 261 6KP Klimklauter 2 torens...
  • Page 8 LOGBOOK Type indication Basic Play Article number BPKE261.6KP Product Name Multi-play equipment Maximum fall height 1,0 m Construction year 2023 Certificate 148363 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...

  • Page 9: Inspection And Maintenance

    LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 10: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 11 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 Certificate Playground Equipment Certificate of approval issued by Keurmerkinstituut (Certification Institute), appointed by ministerial disposal of 16 November 2020, nr. 1778239-213859-VGP. Certificate number: 148364 File number: 16867 Concerns: BPK.261.6xy Description: Owner/keeper: Boer speeltoestellen b.v. Postbus 10 4255 ZG Nieuwendijk The Netherlands Equipment type: Playground equipment Basic Play Kids BPK_261_6xy Manufacturer:...
  • Page 13 Grondmarkering Ground level marker Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 40 - RVS A2-70 Schroef Assy Voetplaat Ukkepuk Rebo balk 80x80x1800 mm Basic Play Kids Benaming MOD BPK 001 K Staander 0,59m Title Tekening Opmerking Basic Play Kids Drawing Comment Datum...
  • Page 14 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 120 - RVS A2-70 Schroef Assy 5 x 50 - RVS A2-70 Borgmoer M10 - VZ 8.8 M10 x 165 - VZ 8.8 Zeskantbout ISO 4014 SLUITRING M10 VZ Vloerplaat Basic Play Kids interplay donut M10 wit...
  • Page 15 Type Progr. Bew. Rev. Benaming Volgnr. Opmerking 5 x 50 - RVS A2-70 Schroef Assy ROZETRING M5 ZWART Dak polyester Basic Play Kids Benaming MOD BPK 005 G Title Tekening Opmerking Basic Play Kids Drawing Comment Datum Samenstelling module Assembly module 4-3-2015 Date...
  • Page 16 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 35 - RVS A2-70 Schroef Assy 5 x 70 - RVS A2-70 Borgdopmoer M10 - RVS A2-70 Zeskantmoer laag M10 - RVS A2-70 Bolkopbout ISO 7380 M10 x 40 - RVS A2-70 SLUITRING ROZETRING M5 ZWART...
  • Page 17 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy ROZETRING M5 ZWART Railing blanco Basic Play Kids Benaming MOD BPK 008 G Railing HMPE blanco Title Tekening Opmerking Basic Play Kids Drawing Comment Datum Samenstelling module Assembly module 4-3-2015 Date...
  • Page 18 Grondmarkering Ground level marker Type Progr. Volgnr Bew. Rev. Benaming Opmerking 5 x 40 - RVS A2-70 Schroef Assy Voetplaat Ukkepuk Rebo balk 80x80x2160 mm Basic Play Kids Benaming MOD BPK 002 K Staander 0,95m Title Tekening Opmerking Basic Play Kids Drawing Comment Datum...
  • Page 19 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Borgdopmoer M10 - VZ 8.8 M10 x 55 - VZ 8.8 Bolkop bout ISO 7380 M10 - VZ 8.8 Sluitring Schoolbord Basic Play Kids OPVULDOPJE 6 MM ROOD ROZETRING M5 ZWART...
  • Page 20 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Borgdopmoer M10 - VZ 8.8 Bolkop bout ISO 7380 M10 x 55 - VZ 8.8 SLUITRING M10 VZ Spinner OXO klein Bevestigingsstang OXO klein OPVULDOPJE 6 MM ROOD ROZETRING M5 ZWART...
  • Page 21 6 10 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 75 - VZ 8.8 SLUITRING M10 VZ AFSTANDBUS 12.6x25x20 84395000012 interplay donut M10 wit 84395000014 interplay dop M10 wit ROZETRING M5...
  • Page 22 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Borgmoer M10 - RVS A2-70 DOPMOER BORG RVS M10 Slotbout M10 x 100 - RVS A2-70 SLUITRING Carrosserie ring M10 - RVS A2-70 84395000012 interplay donut M10 wit interplay dop M10 wit 84395000014 ZWART...
  • Page 23 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Schroef Assy 5 x 50 - RVS A2-70 Zelfb. schroef 3,5 x 19 - RVS A2-70 Telbol helft Rood ROZETRING M5 ZWART Railing voor klem Basic Play Kids Benaming MOD BPK 032 G Telbollen Title Tekening...
  • Page 24 Geleverde onderdelen: Supplied parts: See table Zie tabel Montageinstructie: Assembly instruction: - Attach walls 10 to the equipment - Monteer de zijwanden 10 in het toestel - Monteer de montagehoekjes 8 handvast tegen de zijwanden - Attach angle profiles 9 loosely to the walls 10 - Monteer de vloer 9 handvast aan de onderste twee montagehoekjes - Attach floor 9 loosely to the lowest two assembly angles - Forceer de vloer 9 tussen de vloeren van de torens...
  • Page 25 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Schroef Assy 5 x 50 - RVS A2-70 DOPMOER BORG RVS M10 M10 x 40 - RVS A2-70 Slotbout SLUITRING ZWART ROZETRING M5 Staander Trap REBO 100x30 mm Lengte 460 mm Traptrede L=460...
  • Page 26 Type Progr. Volgnr Bew. Rev. Benaming Opmerking 5 x 50 - RVS A2-70 Schroef Assy Klinknagel bolkop 4,8 x 30 - RVS A2-70 ZWART ROZETRING M5 Klimwand 0,95m Basic Play Kids Steun oploop links Basic Play Kids Steun oploop rechts Basic Play Kids Benaming MOD BPK 045 G...
  • Page 27 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 50 - RVS A2-70 Paalkap 80x80 Ral 5024 Benaming MOD BPK 053 G Paalkap 80x80 Title Tekening Opmerking Basic Play Kids Drawing Comment Datum Samenstelling module Assembly module 4-3-2015 Date...
