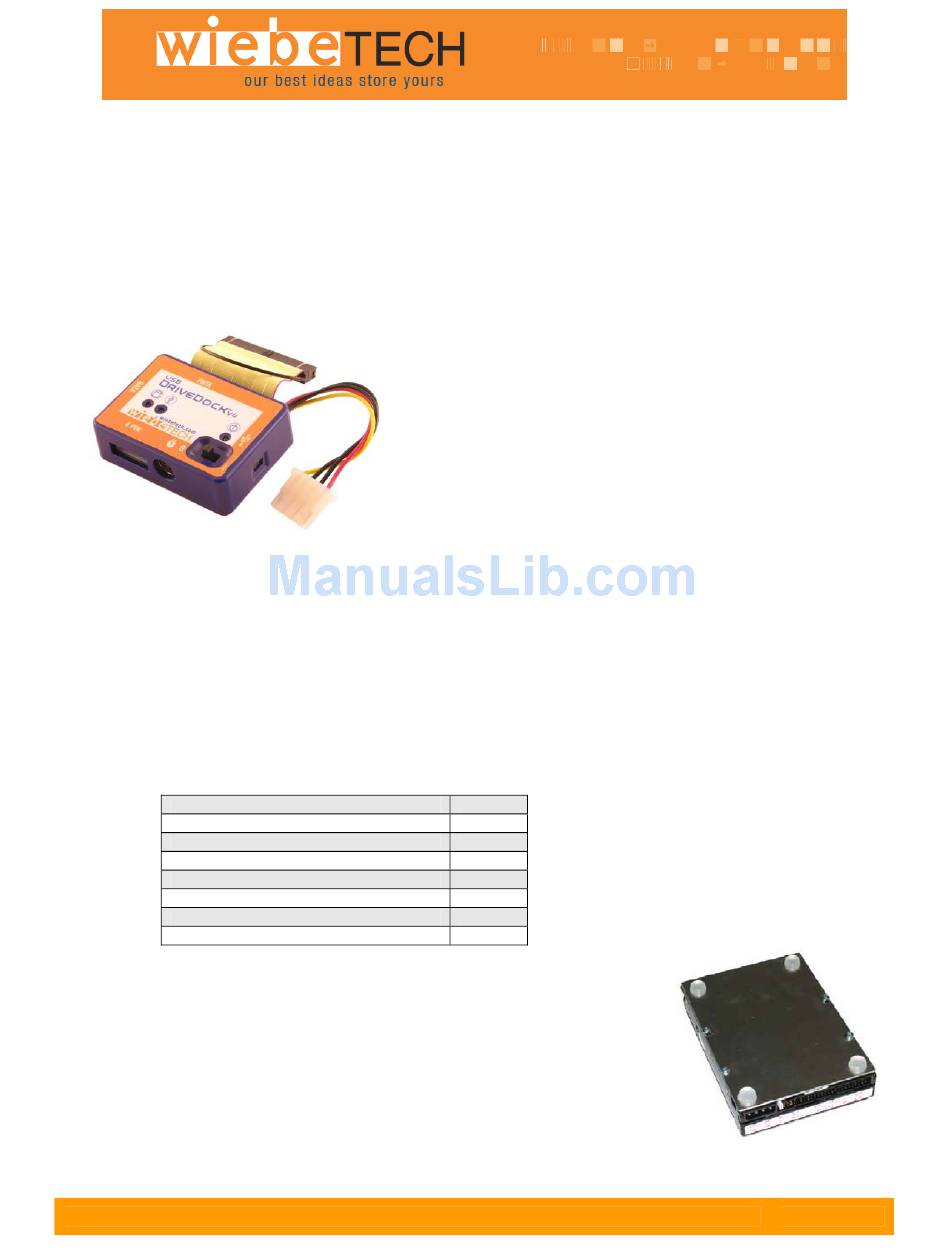

USB DriveDock™ v4

Installation Instructions

1.
Check the accessories packaged with your USB DriveDock. Please contact WiebeTech if any items are
missing or damaged. The box should contain:
USB DriveDock
AC adapter & power cord
USB Cable
SATA power/data cable
Metal drive plate
Hard drive screws
Rubber bumpers
Manual and Warranty information
2.
Attach bottom plate to your 3.5" hard drive. This step is optional but
recommended. The purpose of the bottom plate is to provide protection to your
drive electronics and aid heat dissipation. Attach the bottom plate to your drive using
the four screws supplied. Attach a rubber bumper to each corner. Extra bottom
plates are available from WiebeTech (p/n BPLATE).
U S B D r i v e D o c k v 4 U s e r ' s M a n u a l
USER'S MANUAL
Revised November 2, 2007

Features

• USB2 port allows attachment to all hosts, including PCs,
Macs and Linux
• Natively connects to the four most common drive types
(2.5" & 3.5" SATA or PATA drives)
• Two options for power input: Use the included AC
adapter, or use a 4-wire connector from a computer's
power supply
• Power status LED verifies that unit is switched on (or off)
• Small size allows you to take it anywhere
1
1
1
1
1
4
6
(on CD)
- 1 -
