Perfect Vision PV-NPRM Series Installation Instruction

INSTALLATION INSTRUCTION

•

Carefully open the packaging, remove contents and lay out parts on a protective surface to avoid damage.

•

Check package contents against the Supplied Parts List in the next page(s) to assure that all components were received

undamaged. Do not use damaged or defective parts.

•

Carefully read all instructions before attempting installation.

Install reinforcement with care. Please read these instructions before beginning this installation, and carefully follow all

instructions contained herein. Use proper safety equipment and protocol during installation.

Please consult Perfect 10 for help if you:

•

Don't understand these directions or have any doubts about the safety of the installation.

•

Are uncertain or unfamiliar with the nature of the existing structure to be reinforced.

For questions and consulting please call Perfect 10 at 1-800-205-8620. Ask for product support.

Do not use this product for any purpose or in any configuration not explicitly stated in this instruction. We hereby disclaim

any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

PART #: PV-NPRM-##

UNPACKING INSTRUCTIONS

NPRM INSTALLATION INSTRUCTION

PAGE NUMBER

1 OF 5

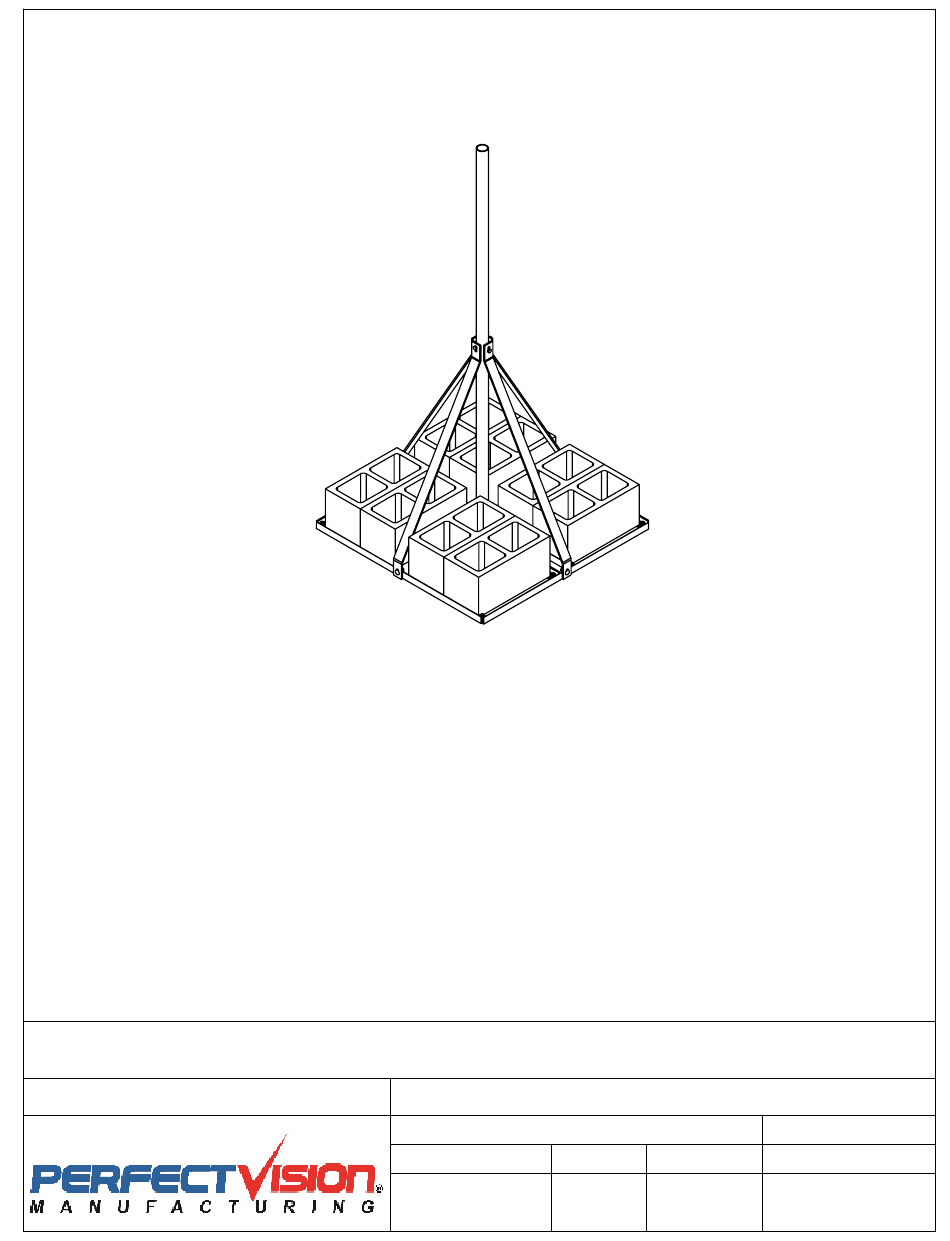

NON PENETRATING ANTENNA MOUNT

REVISION

DRAWN BY

DATE: 5/3/2016

SHEET

LGL

NPRM - T-1

Table of Contents

Do you have a question about the PV-NPRM Series and is the answer not in the manual?

Page 1 INSTALLATION INSTRUCTION UNPACKING INSTRUCTIONS • Carefully open the packaging, remove contents and lay out parts on a protective surface to avoid damage. • Check package contents against the Supplied Parts List in the next page(s) to assure that all components were received undamaged.
Page 2 Supplied Parts List PV-NPRM-## NON PENETRATING ANTENNA MOUNT P297-015-01 P597-059-01 P697-009-##* BASE ANGLE BRACE PLATE ANTENNA PIPE QTY: 6 QTY: 4 QTY: 1 WEIGHT: 3.01 LBS EACH WEIGHT: 4.95 LBS EACH *SEE TABLE 1 FOR PART NUMBER PV-H81-0612-10 H03-0006-01 3/8" x 1-1/4" CARRIAGE BOLT 3/8"...
Page 3 STEP 1 ASSEMBLING THE BALLAST FRAME Connect (6) Base Angles as shown in Detail A. Use 3/8" x 1-1/4" Carriage Bolts with hardware for all connections. CONNECT ANGLES USING: (1) 3/8" X 1-1/4" CARRIAGE BOLT (1) 3/8" FLAT WASHER (1) 3/8" LOCK WASHER (2) 3/8"...
Page 4 STEP 3 INSTALLING BRACE PLATES Connect (4) Brace Plates to the Ballast Frame and Antenna Pipe as shown in Detail E & F. BRACE PLATE (x4) DETAIL D CONNECT BRACING PLATE BRACE PLATE ASSEMBLY TO FRAME USING: (1) 3/8" X 1-1/4" CARRIAGE BOLT (1) 3/8"...
Page 5 STEP 4 LOADING BALLAST TRAYS Add required 8x8x16" CMU Ballast Blocks. Refer to site-specific engineering calculations for quantities. 8x8x16" CMU BALLAST BLOCKS. (8) MAX. DETAIL G BALLAST BLOCK INSTALLATION THANK YOU FOR CHOSING OUR PRODUCTS PART #: PV-NPRM-## NON PENETRATING ANTENNA MOUNT NPRM INSTALLATION INSTRUCTION DATE: 5/3/2016 PAGE NUMBER...
