Heating Solutions Ltd
Compatible with:
All Single Stage Unit heaters
All Single Stage and Modulating Cabinet heaters
Combat Heating Solutions Ltd
Unit 20, Red Mill Trading Estate
Rigby Street
Wednesbury
WS10 0NP
0121 506 7700
CBT0020 Elite Pro Touch Controller User/Engineer Guide February 2024

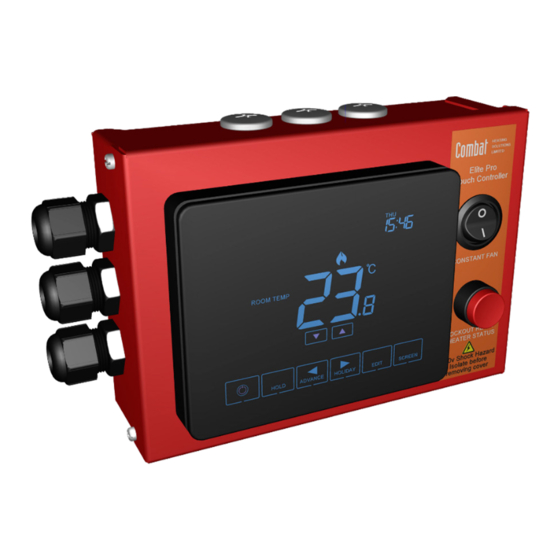

Elite Pro Touch
Elite Pro Touch Controller
User & Engineers Guide
Features :
•
Wireless air sensor function
•
Wireless door switch
•
User selectable operating mode
•
Temperature and time control
•
Energy saving optimum start
•
4 or 6 comfort levels per day
•
Temperature hold facility
•
Holiday mode
•
Key locking
•
Frost protection
•
Modbus connectivity
1
Advertisement
Table of Contents
Related Manuals for COMBAT Elite Pro Touch
Summary of Contents for COMBAT Elite Pro Touch
- Page 1 Temperature hold facility Combat Heating Solutions Ltd • Holiday mode Unit 20, Red Mill Trading Estate • Key locking Rigby Street • Frost protection Wednesbury • Modbus connectivity WS10 0NP 0121 506 7700 CBT0020 Elite Pro Touch Controller User/Engineer Guide February 2024...
- Page 2 Heating Solutions Ltd TECHNICAL UPDATES INFORMATION REGARDING UPDATES TO THIS MANUAL ARE LISTED BELOW AND SHOULD BE NOTED BEFORE COMMENCING WITH ANY INSTALLATION WORK. Date of Amendment Version Page Description...
-
Page 3: Table Of Contents
Unlocking the Elite Pro Touch Accessories Pairing accessories Pairing the remote temperature sensor and door contact Viewing accessories Deleting accessories Holiday To set a holiday Modbus Wiring diagram General safety when using gas appliances CBT0020 Elite Pro Touch Controller User/Engineer Guide February 2024... -
Page 4: Mode Select
The mode select function will reset all parameters (Remote temperature sensors and door contacts excluded). 2. POWER ON/OFF The Elite Pro Touch can be turned off completely; while it is off, it will not control the heater or communicate with any connected accessories (Remote temperature sensors and door contacts). -
Page 5: Setting Heating Time & Temperature
SET TEMP and the desired temperature value. Press DONE to confirm the temperature setting and return to the main display. Press the UP/DOWN key to cancel this override, then CANCEL. CBT0020 Elite Pro Touch Controller User/Engineer Guide February 2024... -
Page 6: Temperature Hold
Heating Solutions Ltd 7. TEMPERATURE HOLD The temperature hold function allows you to manually override the current operating program and set a different temperature for the desired period. • Press the HOLD once • Use UP/DOWN to set the desired HOLD time (hours) •... -
Page 7: Frost Protection
Use the UP/DOWN keys to set the first two digits • Press NEXT • Use the UP/DOWN keys to set the next two digits • Press DONE The display will unlock and return to the main screen. CBT0020 Elite Pro Touch Controller User/Engineer Guide February 2024... -
Page 8: Accessories
Heating Solutions Ltd 13. ACCESSORIES The Elite Pro Touch can be paired with remote temperature sensors and door contacts. Pairing accessories: Sixteen accessories can be paired with a single Elite Pro Touch Thermostat. Remote temperature sensor: When a remote temperature sensor is paired to the thermostat, the thermostat will take an average between all the remote temperature sensors attached and the temperature sensor built into the thermostat;... -
Page 9: Deleting Accessories
All Modbus connections should be daisy-chained rather than wired in a star formation If the thermostat is the last Modbus device on the end of the chain, move the toggle switch on the back of the fascia to the ON position CBT0020 Elite Pro Touch Controller User/Engineer Guide February 2024... -
Page 10: Wiring Diagram
Heating Solutions Ltd 16. ELITE PRO TOUCH WIRING DIAGRAM (Elite Pro Unit Heaters) -
Page 11: General Safety When Using Gas Appliances
Improper installation, adjustment, alteration, service or maintenance can result in death, injury or property damage. • Read the installation, operation and service manual thoroughly before installing or servicing an gas equipment. CBT0020 Elite Pro Touch Controller User/Engineer Guide February 2024... - Page 12 Heating Solutions Ltd Combat Heating Solutions Ltd Unit 20 Red Mill Trading Estate Rigby Street Wednesbury West Midlands WS10 0NP Tel: 0121 506 7700 email: uksales@combat.co.uk www.combat.co.uk CBT0020 Elite Pro Touch Controller February 2024...
