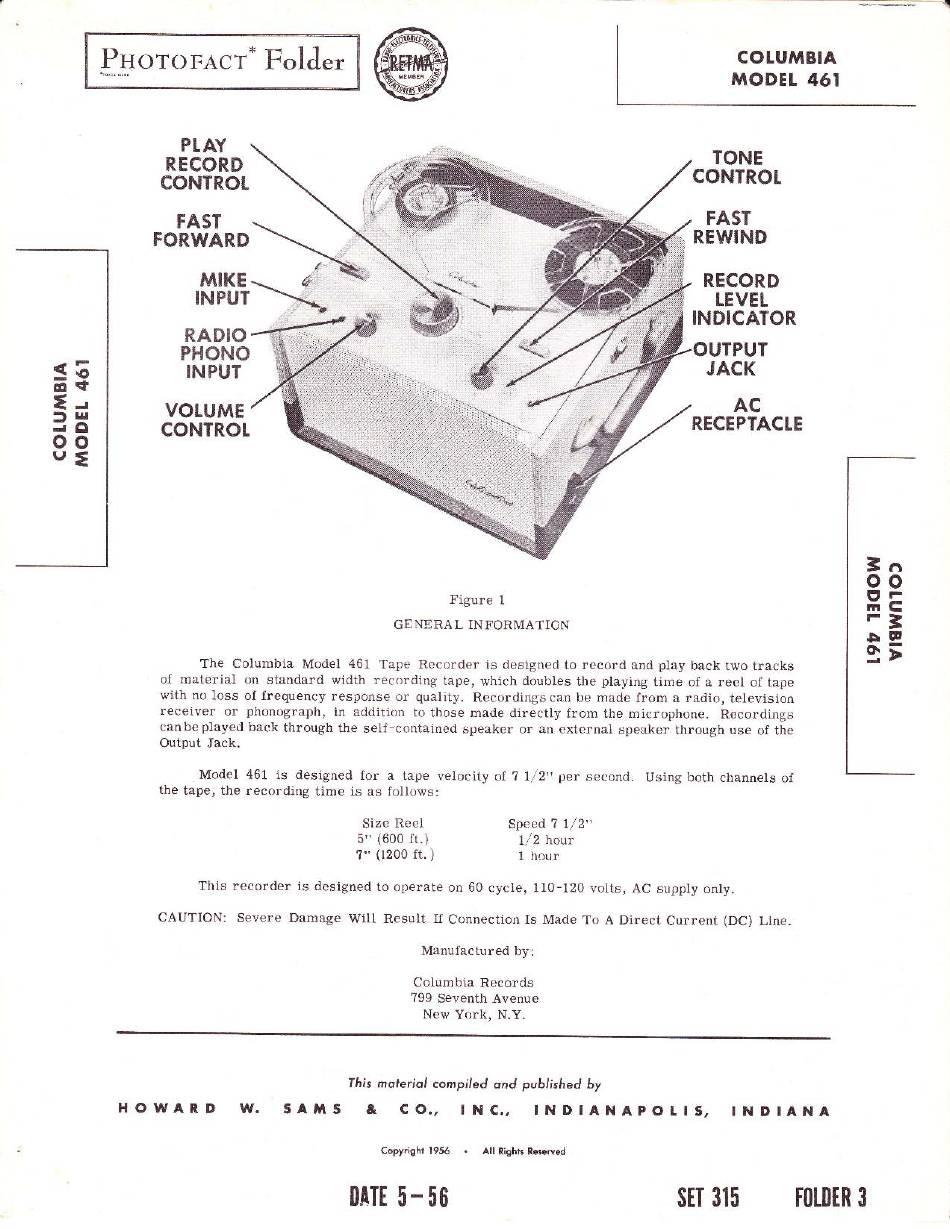

Figure
1
GENERAL INFORMATION
The Columbia Model 461 Tape Recorder
is
designed
to record
and
play
back two tracks
of material
on standard width recording
tape, which doubles the
playing
time of a
reel
of
tape
with
no
loss of frequency
response
or quality.
Recordings can be made
from
a
radio, television
receiver
or
phonograph,
in
addition to
those made directly from
the
microphone.
Recordings
canbeplayed
back through the self-contained
speaker
or
an
external
speaker through
use of
the
Output Jack.
Model 461
is
designed
for a
tape
velocity of
7
lf
2" per second.
Using both channels of
the tape, the recording time
is
as follows:
3a
oo
HE
F=
ttrE
It
Size
ReeI
5"
(600
ft.)
?"
(1200
ft.
)
This recorder is
designed
to
operate
Speed
7
tf2,,
t/2
hour
t
hour
on 60
cycle,
110-120
volts, AC
supply only.
CAUTION: Severe
Damage
WilI
Result
If
Connection
Is
Made To A
Direct Current
(DC) Line.
