assembly and installation manual
Read this manual carefully before performance of work
The BG140 barrier is delivered partially assembled and is assembled by the customer from the
following elements: double posts, triple posts, crossbars, 75 mm connection strap, 32 mm fixing
pipes, pipes for holes in the wall, decorative rings, post caps, post fixings in crossbars, M8x50
screws, clips, self-tapping anchors.
1

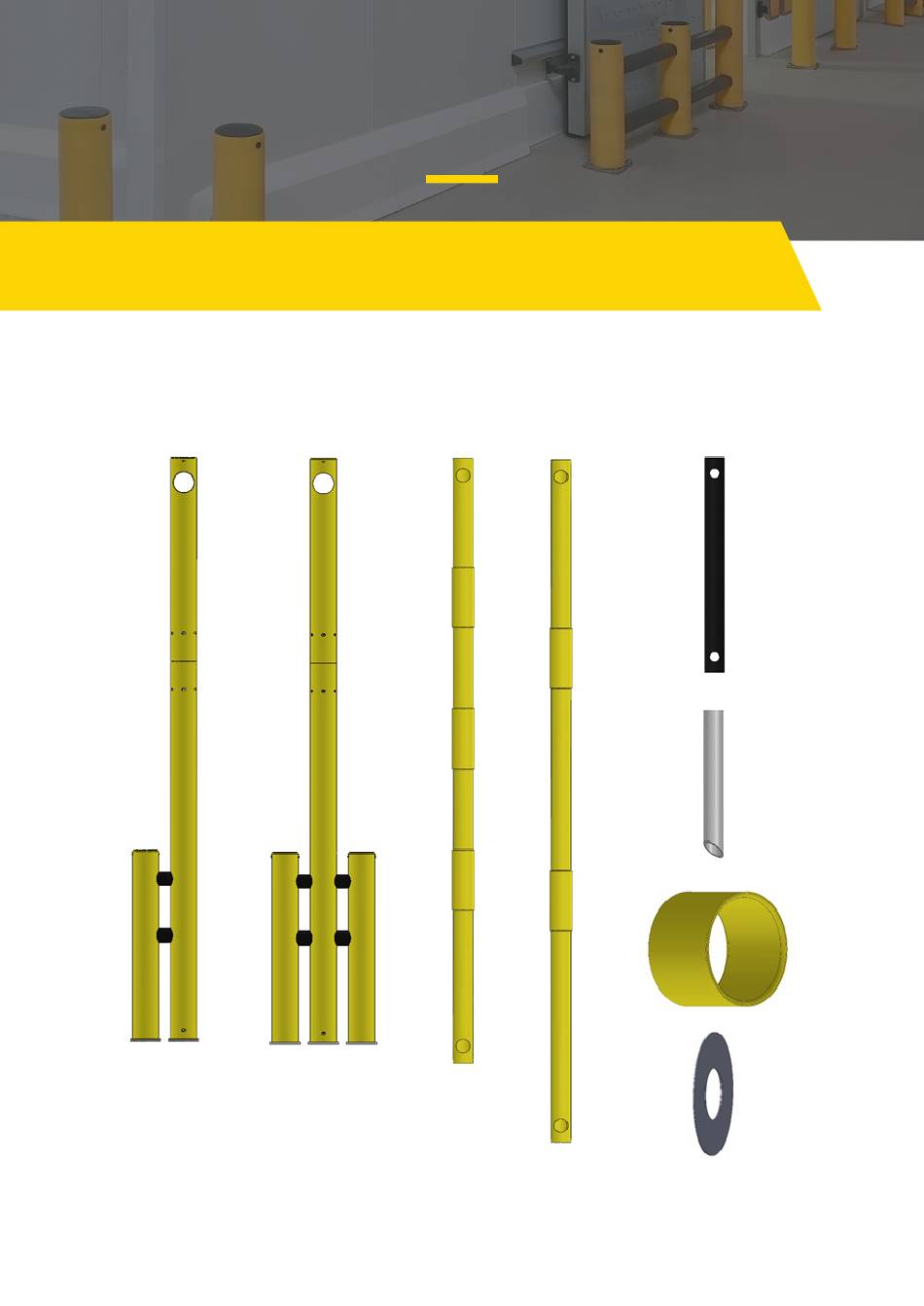

Figure 1. Double post (1), triple post (2), crossbar for 2500х3000gates (3), crossbar for 3000х3000 gates (4),
75 mm connection strap through the wall (5), fixing pipe 32 mm (6), pipes for holes in the wall (7),
BG140 barriers
2
3
decorative ring (8)
.
4
5
6
7
8
Advertisement
Table of Contents
Related Manuals for Gigant BG140
Summary of Contents for Gigant BG140
- Page 1 Read this manual carefully before performance of work The BG140 barrier is delivered partially assembled and is assembled by the customer from the following elements: double posts, triple posts, crossbars, 75 mm connection strap, 32 mm fixing pipes, pipes for holes in the wall, decorative rings, post caps, post fixings in crossbars, M8x50 screws, clips, self-tapping anchors.
- Page 2 3000x3000 mm. The posts and the crossbar should overlap the opening of the gate by 100 mm on each side. The algorithm for assembling BG140 barrier elements is as follows: Pass the crossbars through the holes in the upper parts of the posts. The distance from the...
- Page 3 (Fig. 1(7)). The gap between this pipe and the wall will be filled with construction foam. Figure 3. Key dimensions of the assembled BG140 for protection of 3000x3000 mm gates.
- Page 4 2 holes with a diameter of 7 mm at a distance of 20 mm from the end of the crossbar pipe upon cap installation. Insert clips into these holes. Figure 4. Key dimensions of the assembled BG140 for protection of 2500х3000 mm gates.
- Page 5 BG140 barriers assembly and installation manual Check and, if necessary, adjust the position of the barrier posts in space. Check the conformity of the dimensions indicated in fig. 3 and fig. 4. 6. Fix the tops of the posts to the connection straps.
- Page 6 BG140 barriers assembly and installation manual Figure 6. Cross-section of a wall with a connection strap. Figure 7. Installation of a 75 mm connection strap.
- Page 7 BG140 barriers assembly and installation manual а Figure 8. Fixing the top of the post to the connection strap and installing of the cap. Figure 9. Installation and fixation of caps.
- Page 8 BG140 barriers assembly and installation manual After assembly, the barrier must be fixed to the foundation with self-tapping anchors, which are supplied complete with it. Before drilling holes in the floor, it is necessary to check the parallelism of the one-meter posts to the central three-meter post (in case of the correct mutual placement, the gap between adjacent poles is 60 mm along the entire height).
