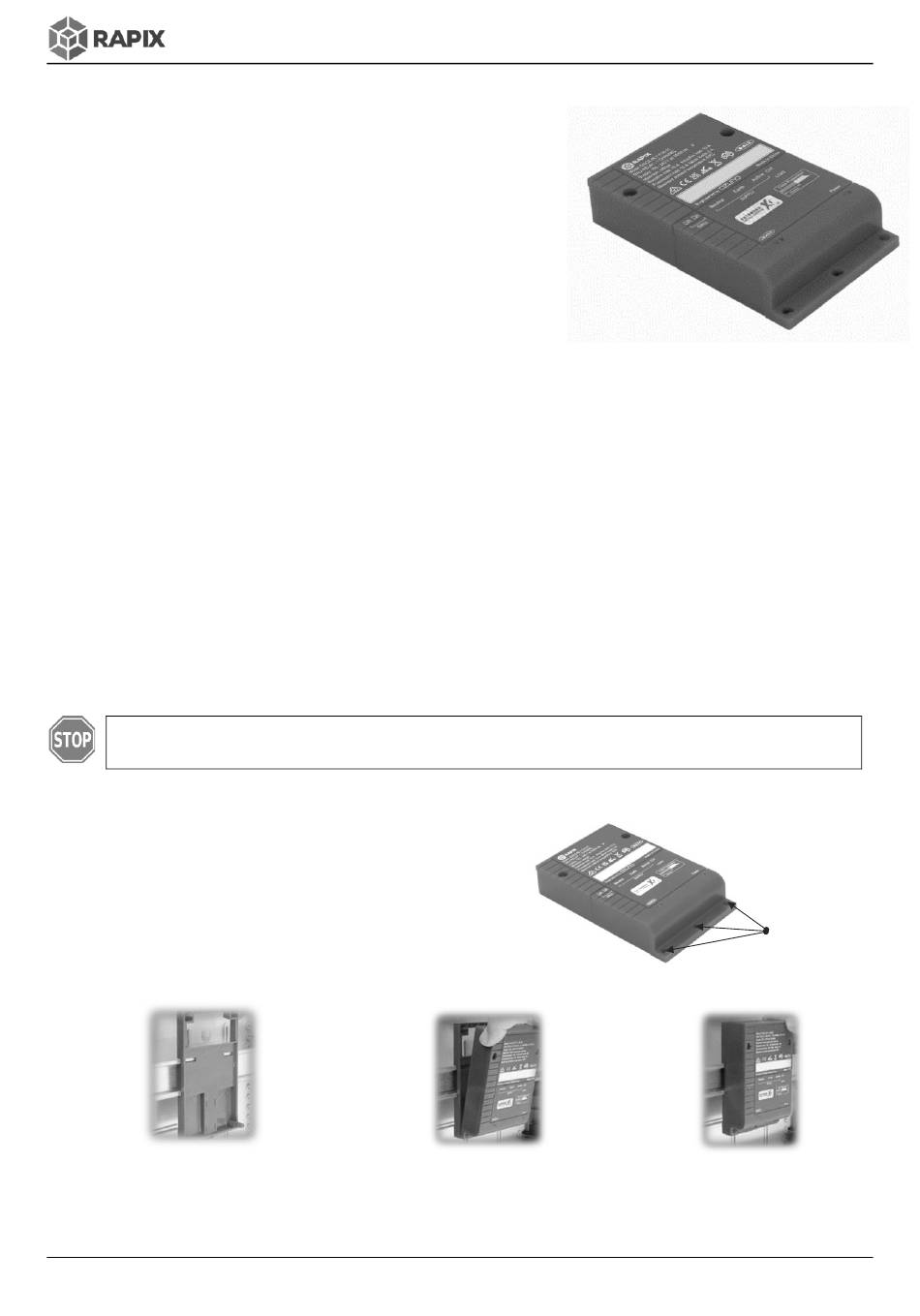

RAPIX DALI-2 DGOZ-RLY-16A-01 Quick Start Manual

DGOZ-RLY-16A-01 / DGOZ-RLY-16A-02 - RAPIX DALI-2 Relays

Product summary and capabilities

These one and two channel DALI Relays are suitable for on/off switching of
up to 16 Amps of lighting load using DALI commands.
The on-board 240 V ac relay can switch a full 16 A of LED, incandescent,
fluorescent, and HID lighting loads, making it suitable for a wide range of
commercial and industrial building applications.
These Relays include a large area for terminating all 1.5 mm
double insulated cables: ac supply cables, switched load cables and DALI Line
cables.
To maximise contact life, these Relays include a proprietary zero cross turn
on feature. The load is switched on at the mains voltage zero-crossing point,
helping to reduce the effects of inrush current and maximise contact life.

Product Features

• General purpose load switching (ON and OFF) via received DALI commands.
• Capable of switching 16 AX at up to 220 - 240 V ac.
• Very high inrush current rating – 500 A (2 ms).
• Includes large Neutral and Earth termination bars.
• Suitable for mounting in a ceiling void.
• Zero crossing detection to maximise relay contact life.
• Optional DIN rail mounting bracket.
• Fits through a 90 mm downlight hole.
• LED indicators (DALI and power).
• Uses a single DALI Short Address; can be including in up to 16 DALI Group Addresses and/or up to 16 DALI Scenes.
• DALI Short Address, Group Addresses and DALI Scenes are configured using RAPIX Addressing or RAPIX Integrator
software. Can also be commissioned using other DALI commissioning software that supports DALI Device Type 7.
• Complies with DALI standard IEC 62386 and Device Type 7 (Switching Function).

Important notes and safety information

WARNING
– Electric shock may result in serious injury or death. Follow all warnings in this guide and on the
product. Work in accordance with the latest electrical safety practices.
• DALI system wiring is only single insulated from mains. Treat DALI wiring the same as mains wiring.
• There are no user serviceable parts inside the Relay. Do not attempt to disassemble or operate the device with any
covers removed.
• This Relay is intended for indoor use only.

Mounting

Surface Mounting
Three 6mm mounting holes are provided for mounting the device.
DIN Rail Mounting
For DIN rail mounting, use the optional DIN Rail mounting bracket (order code DGOZ-RLY-DINBKT)
Mount the optional mounting bracket onto
DIN rail. Lock into place by pushing up the
black locking pin at the bottom of the bracket
RAPIX DALI-2 Relay DGOZ-RLY-16A-01 / DGOZ-RLY-16A-02
2 2
or 2.5 mm
Locate the Relay device onto the two
pins at the bottom mounting bracket
6mm Mounting holes
Push the top of the Relay onto the
mounting bracket and clip into place
Page 1 of 4
